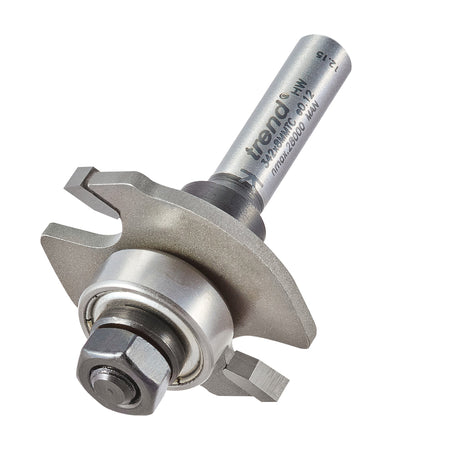

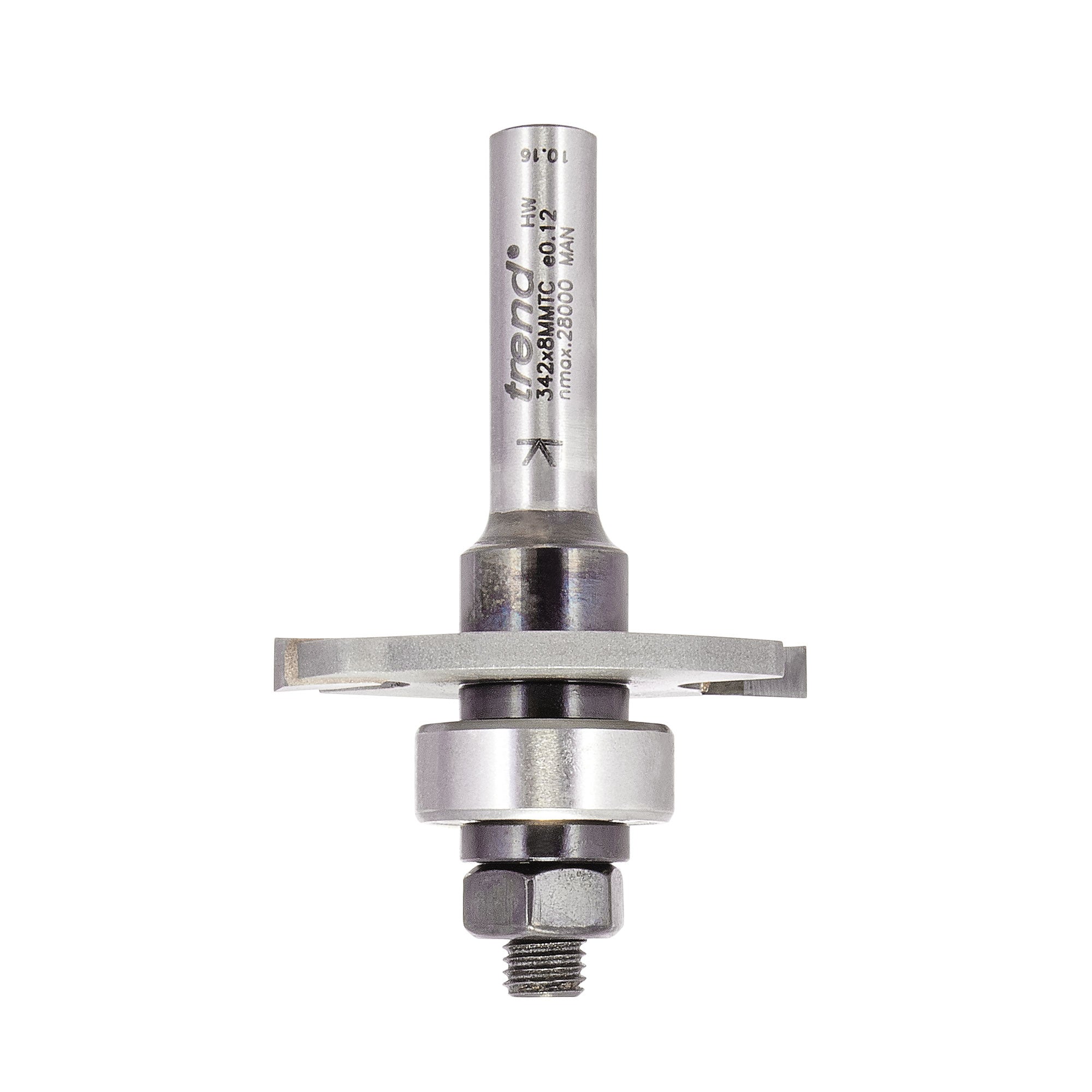

Trend Tools 342X8MMTC Biscuit Jointer Set

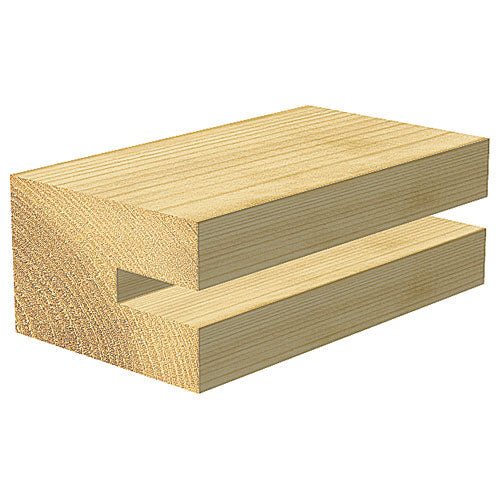

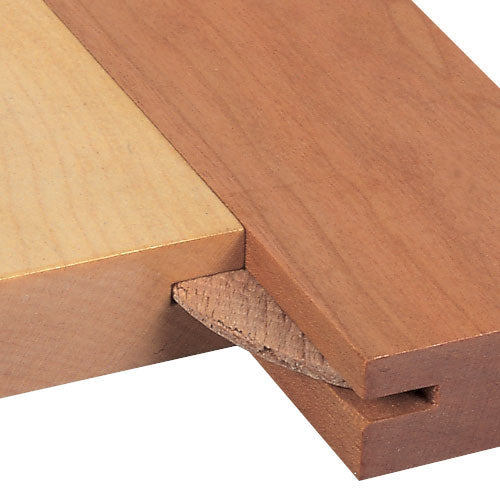

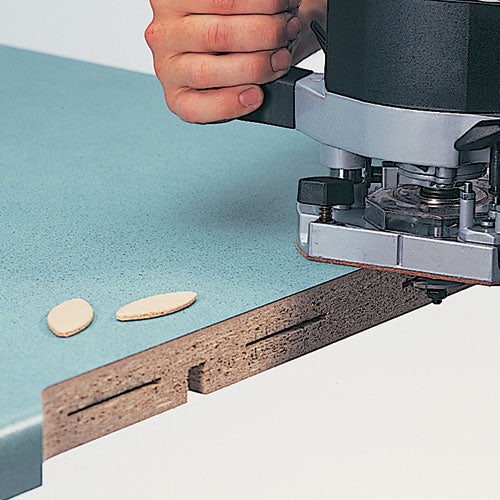

• For biscuit jointing of timber, man-made fibre and particle board with the router.

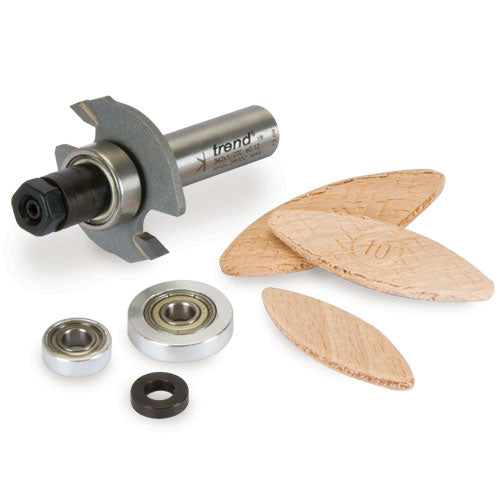

• The set includes three sizes of bearing which set the correct depth of cut for the three sizes available.
• A slightly longer cut than the length of the biscuit is required to allow some lateral play for easy alignment during assembly.

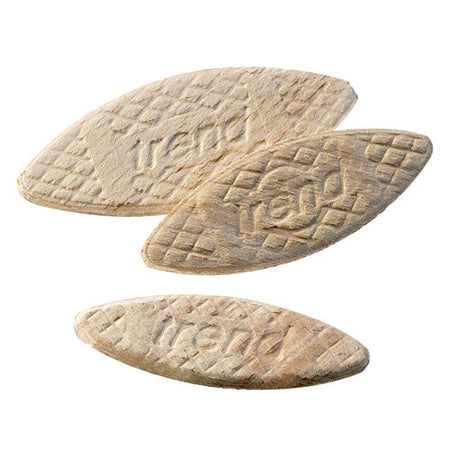

• A water based glue (PVA) is used with the biscuits which will expand as the moisture is absorbed.
• Boards are simply clamped together until glue is cured.
• For larger boards, biscuits can be doubled up by making two passes.

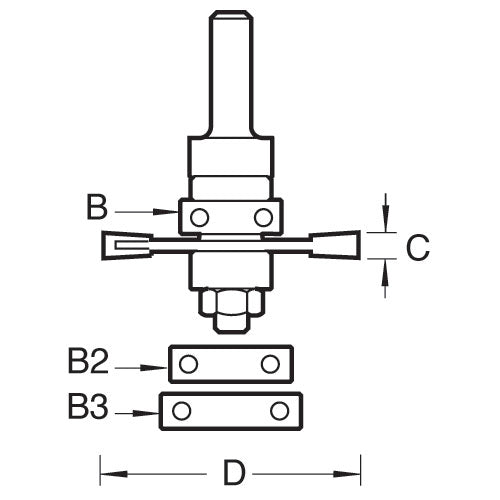

Specifications

• D=40 mm
• C=4 mm
• B=15 mm
• B2=19 mm
• B3=23 mm
• OL=63.5 mm
• Shank Diameter=8 mm

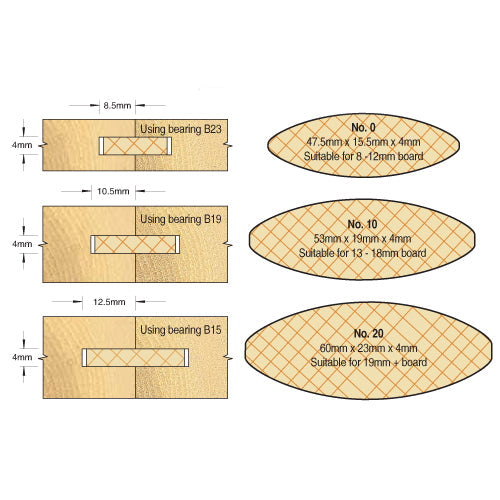

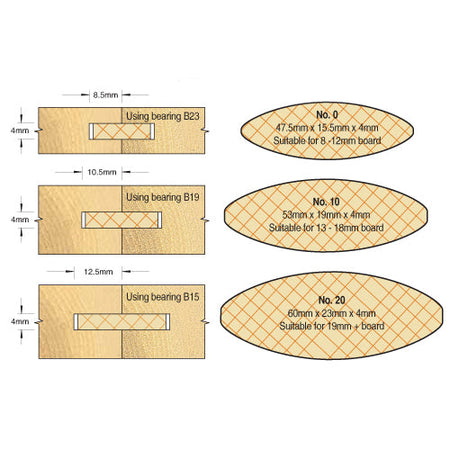

• Groove depths=8.5 mm, 10.5 mm & 12.5 mm
• For biscuit sizes=No.0, 10 & 20
