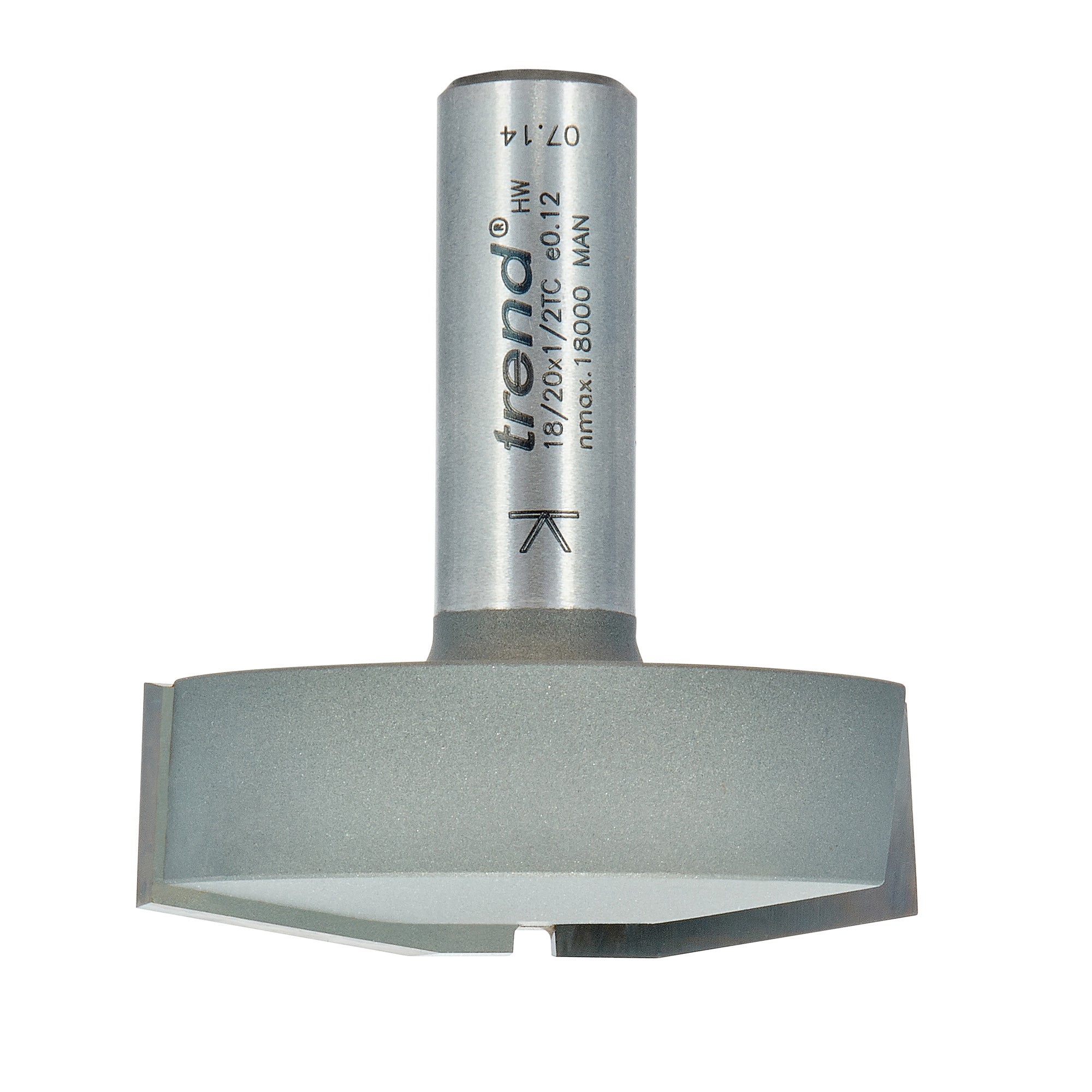

Trend Tools 18/20X1/2TC Panel Bevel Cutter

• This Raised Panel cutter runs best at lower speeds between 12,000 and 18,000 RPM.
• Matches our range of profile scribers.
• Suitable for use on natural timber and MDF.
• When joining sections to produce solid wood panels, alternate the growth ring direction of adjacent boards to prevent cupping.
• When moulding the panel, cut across the end grain first. Any break out will then be removed when cutting with the grain.
• Suitable panel mould for use with Ref. PSC/5.

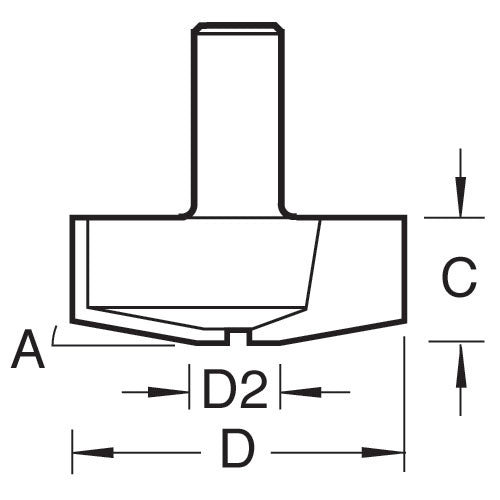

Specifications

• D=50 mm
• D2=16 mm
• C=17 mm
• A=10 degrees
• OL=55.1 mm
• Shank Diameter=1/2 inch
• For stationary machines at max. recommended speed 18,000 RPM
