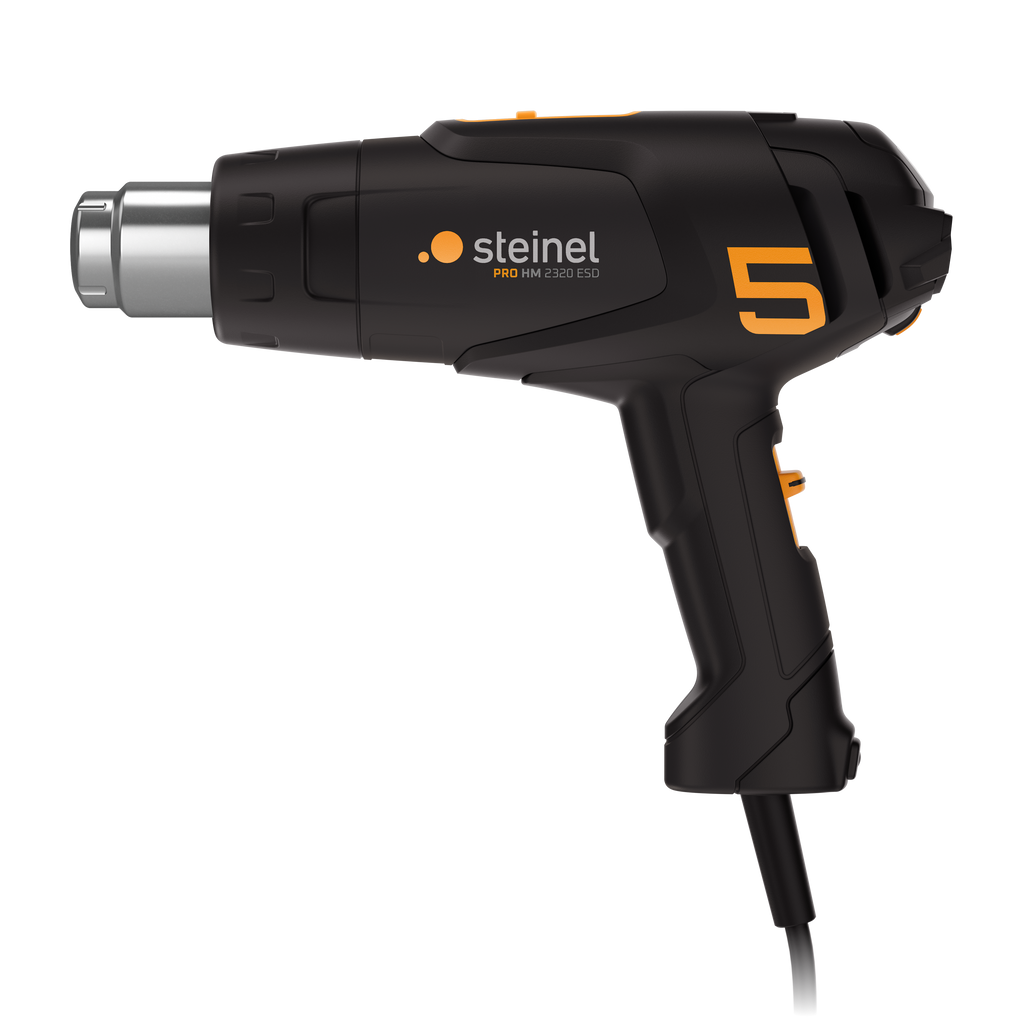

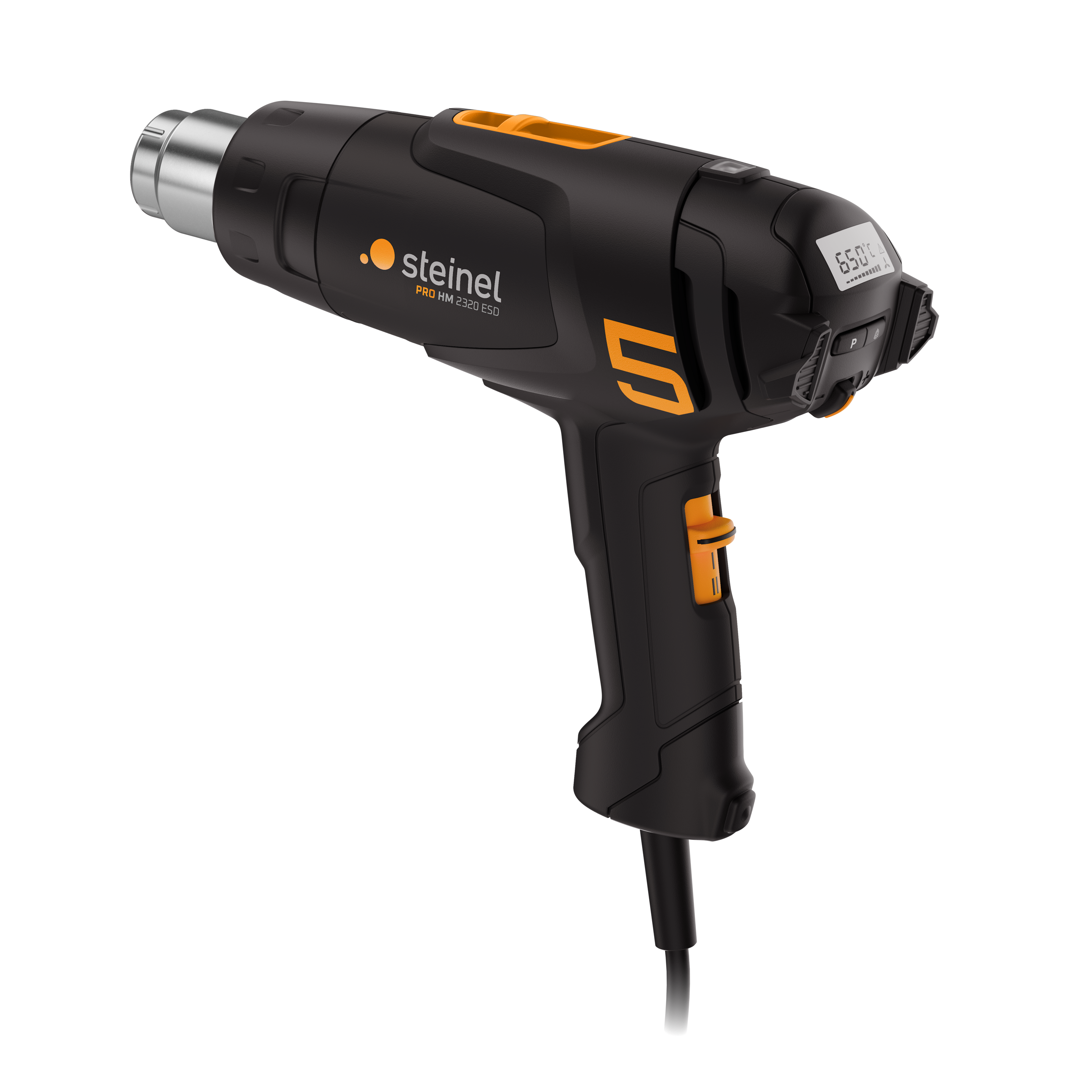

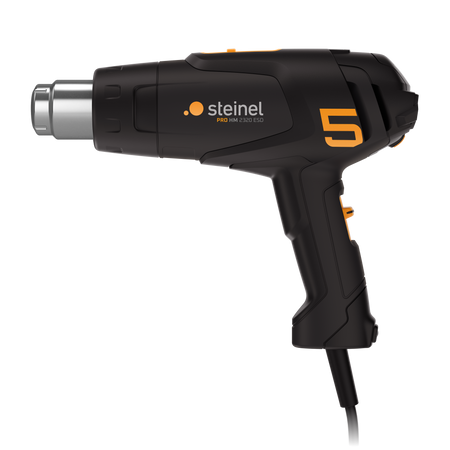

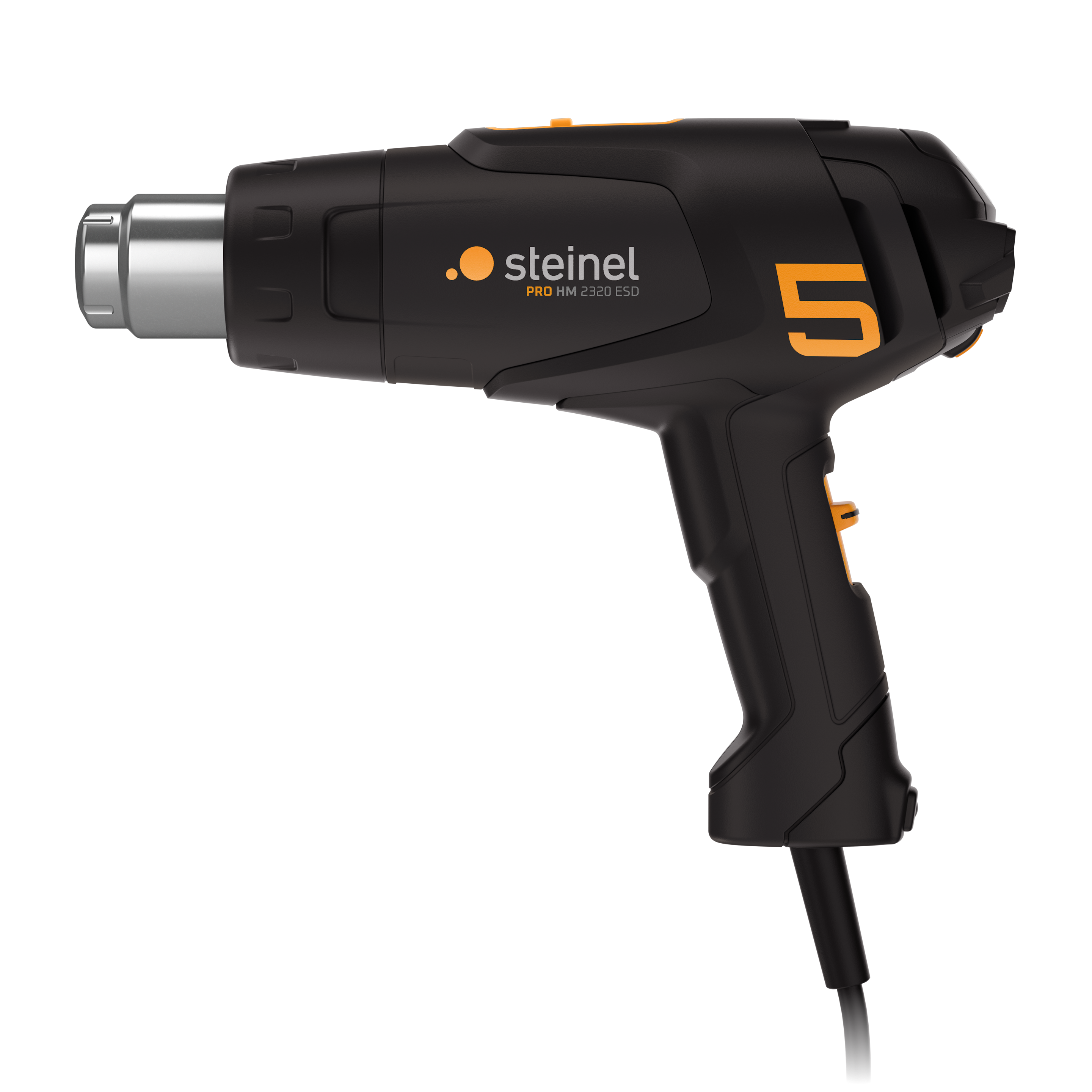

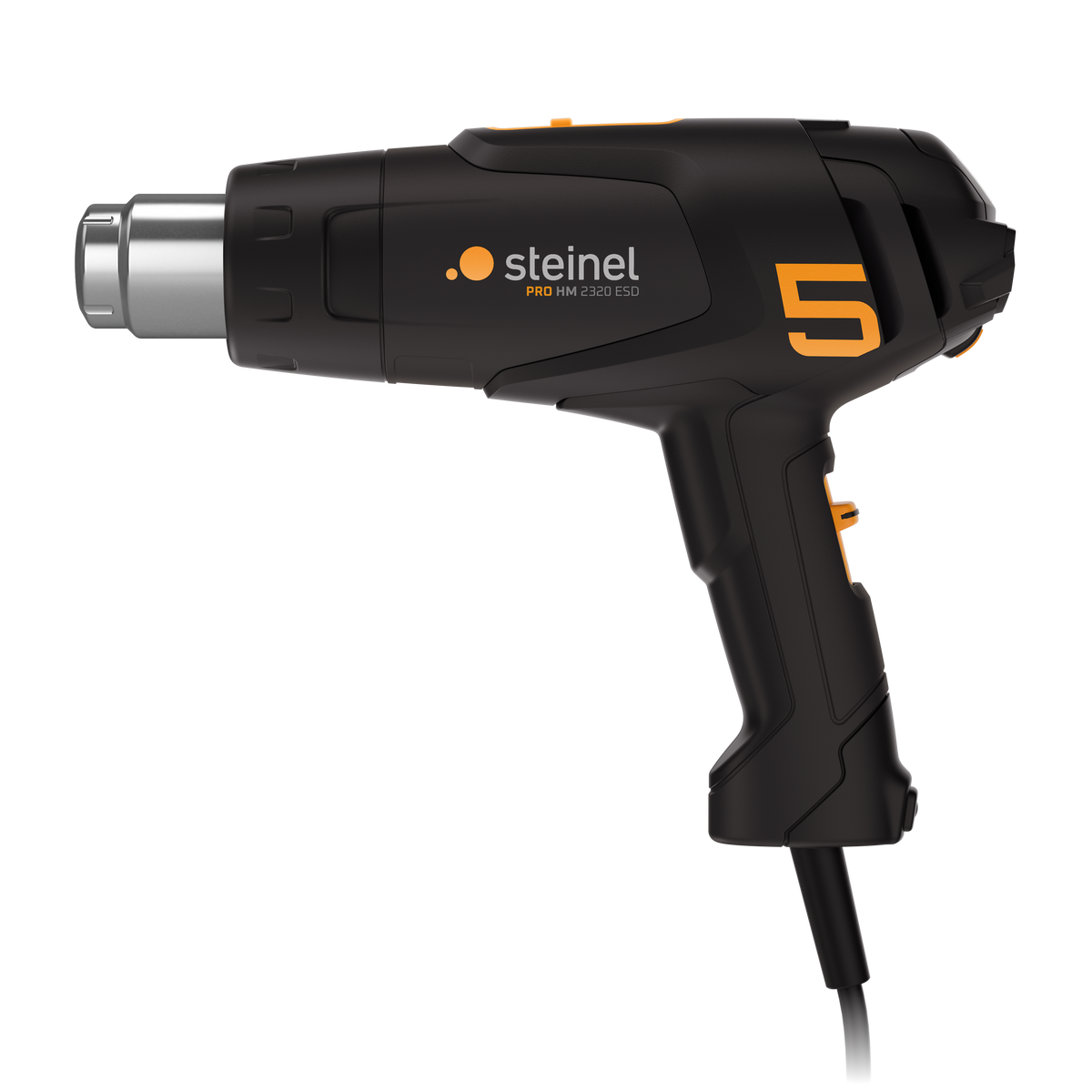

Designed for absolute safety in electronics manufacturing, the STEINEL HeatMatic HM 2320 ESD is a professional hot air gun built specifically for use in ESD Protected Areas (EPAs). Combining powerful performance with full ESD compliance, it ensures maximum protection when working with sensitive electronic components.
Delivering a strong 2300 W output, the HM 2320 ESD provides precise, infinitely variable temperature control from 80 °C to 650 °C in exact 10 °C increments via joystick operation. The clear LCD display, residual heat indicator, and integrated temperature scanner guarantee absolute temperature certainty, even on highly sensitive materials.
Certified ESD-compliant in accordance with IEC DIN EN 61340-5-1, the HM 2320 ESD does not generate static charges, making it ideal for electronics assembly, repair, and manufacturing. An integrated Eco Mode timer (10–1990 seconds) automatically switches the tool into energy-saving mode, reducing power consumption and extending tool life.
Specifications
- Power Output: 2300 W
- Voltage: 230 V / 50 – 60 Hz
- Temperature Range: 80 – 650 °C
- Temperature Adjustment: 10 °C steps via joystick
- Airflow Rate: 150 – 500 l/min
- Temperature Display: LCD
- Heating Element: Ceramic
- Motor Type: Brush motor
- Weight: 1.004 kg
- Dimensions: 253 × 87 × 200 mm
- Cable Length: 3 m
- ESD Compliance: Yes (IEC DIN EN 61340-5-1)
- Product Category: Professional hot air tool
Features
- Professional ESD-compliant hot air gun for electronics manufacturing
- 2300 W output for powerful and stable performance
- Precise temperature control from 80 – 650 °C
- Joystick-controlled adjustment in 10 °C increments

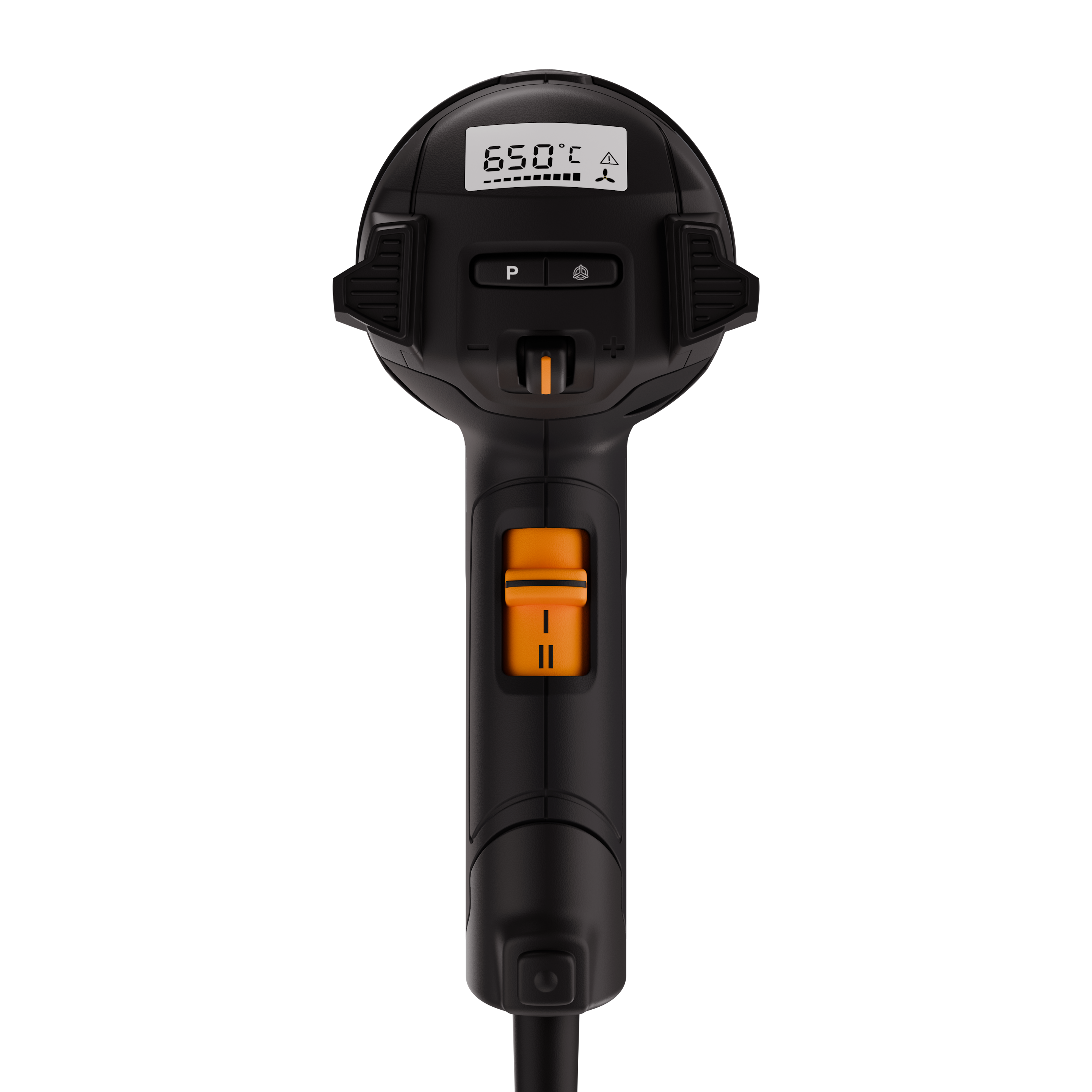

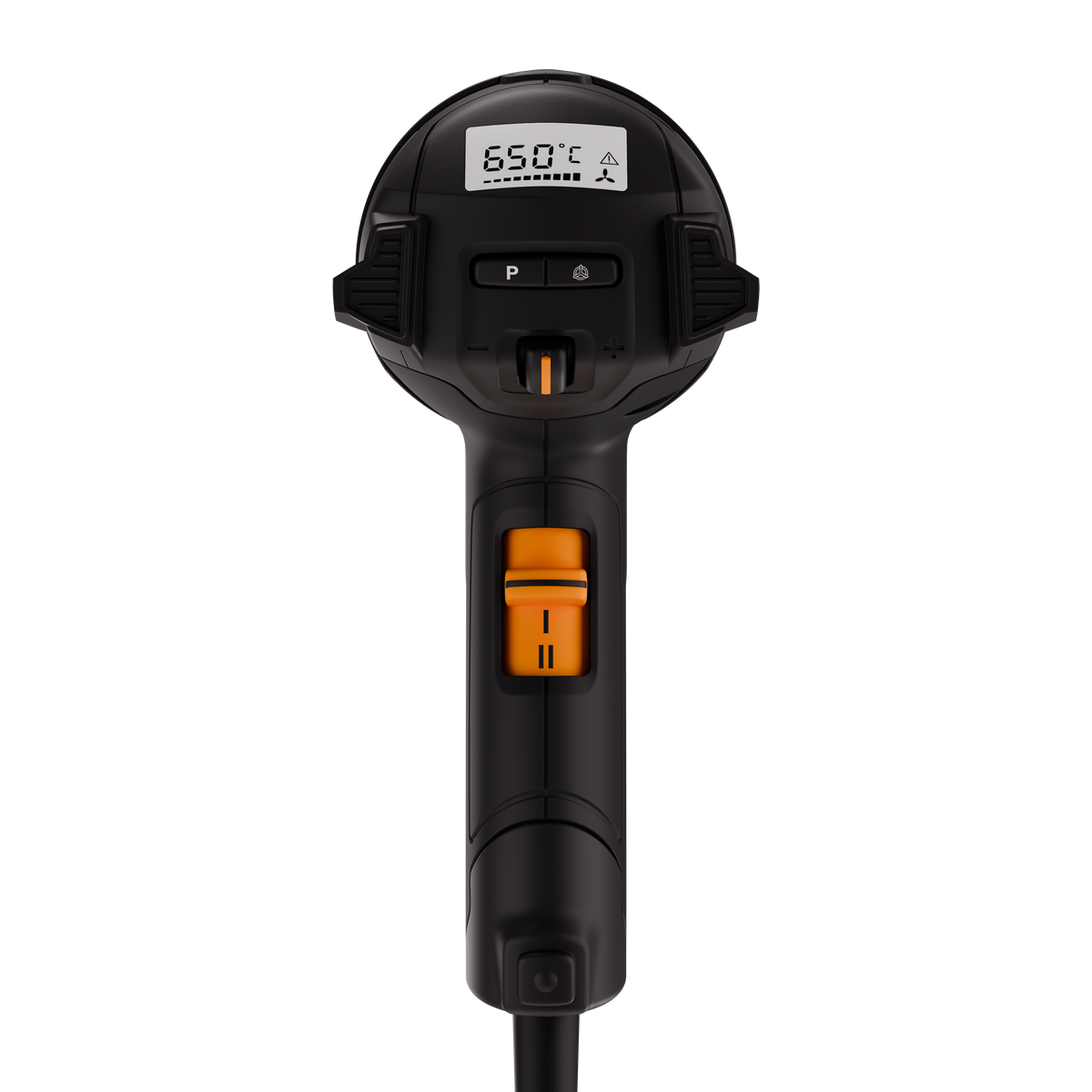

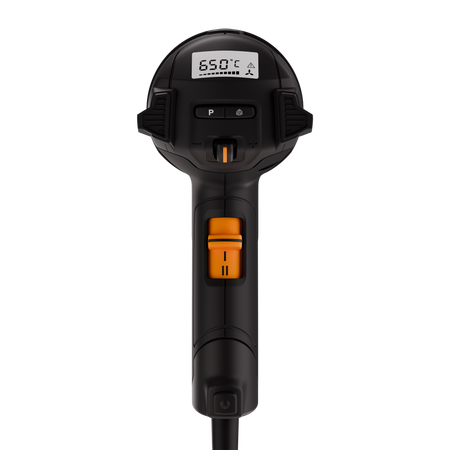

- LCD information display for accurate monitoring
- Integrated temperature scanner for sensitive applications
- Residual heat indicator for added safety
- Eco Mode timer function (10–1990 seconds) for energy saving
- Three programmable settings for quick start of recurring tasks
- High-quality ceramic heating element
- Thermal cut-out and thermostat protection
- Integrated hanger for convenient storage
- Durable 3 m power cable for flexible handling
- Supplied in a folding box
- Manufacturer warranty: 1 year
