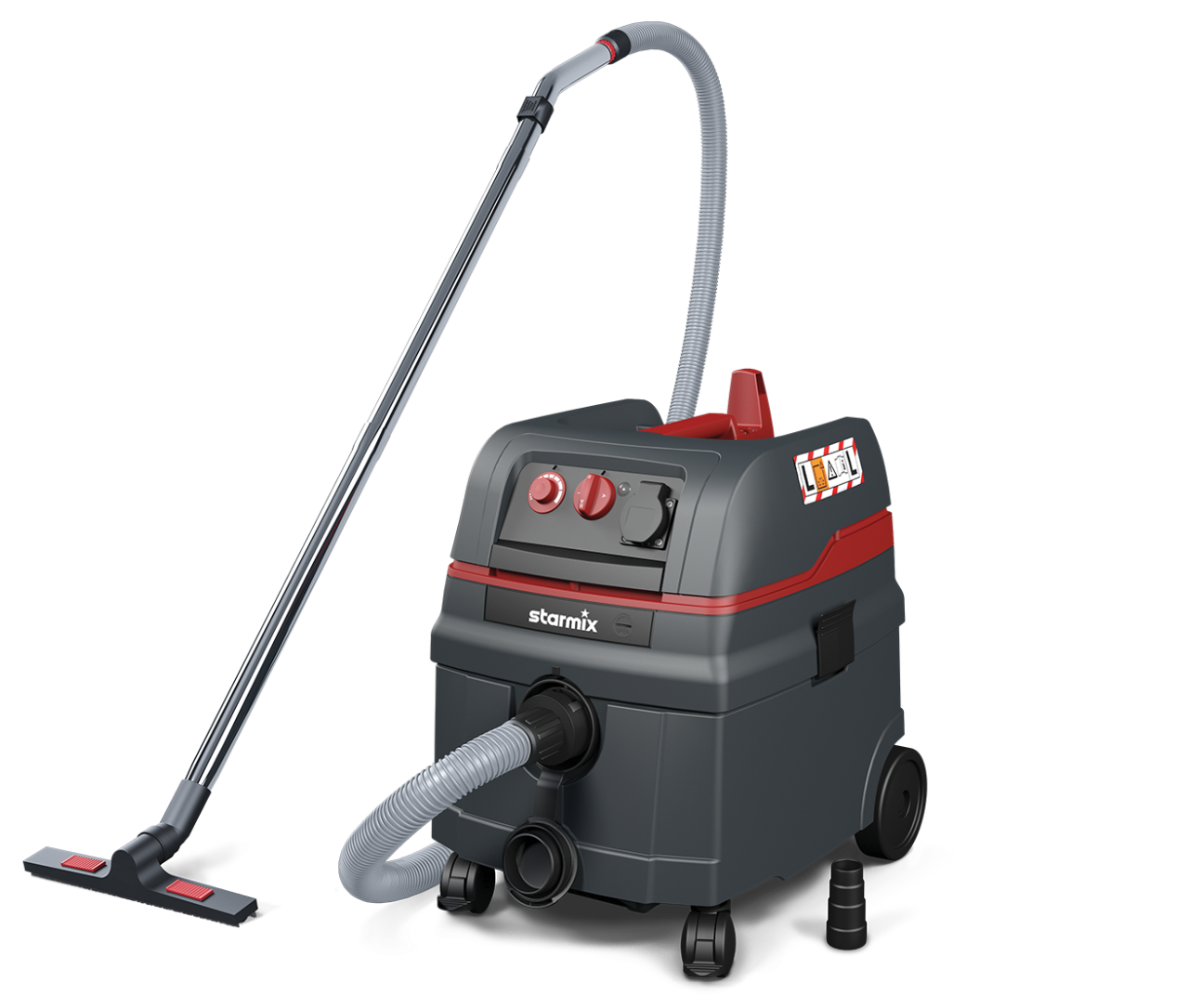

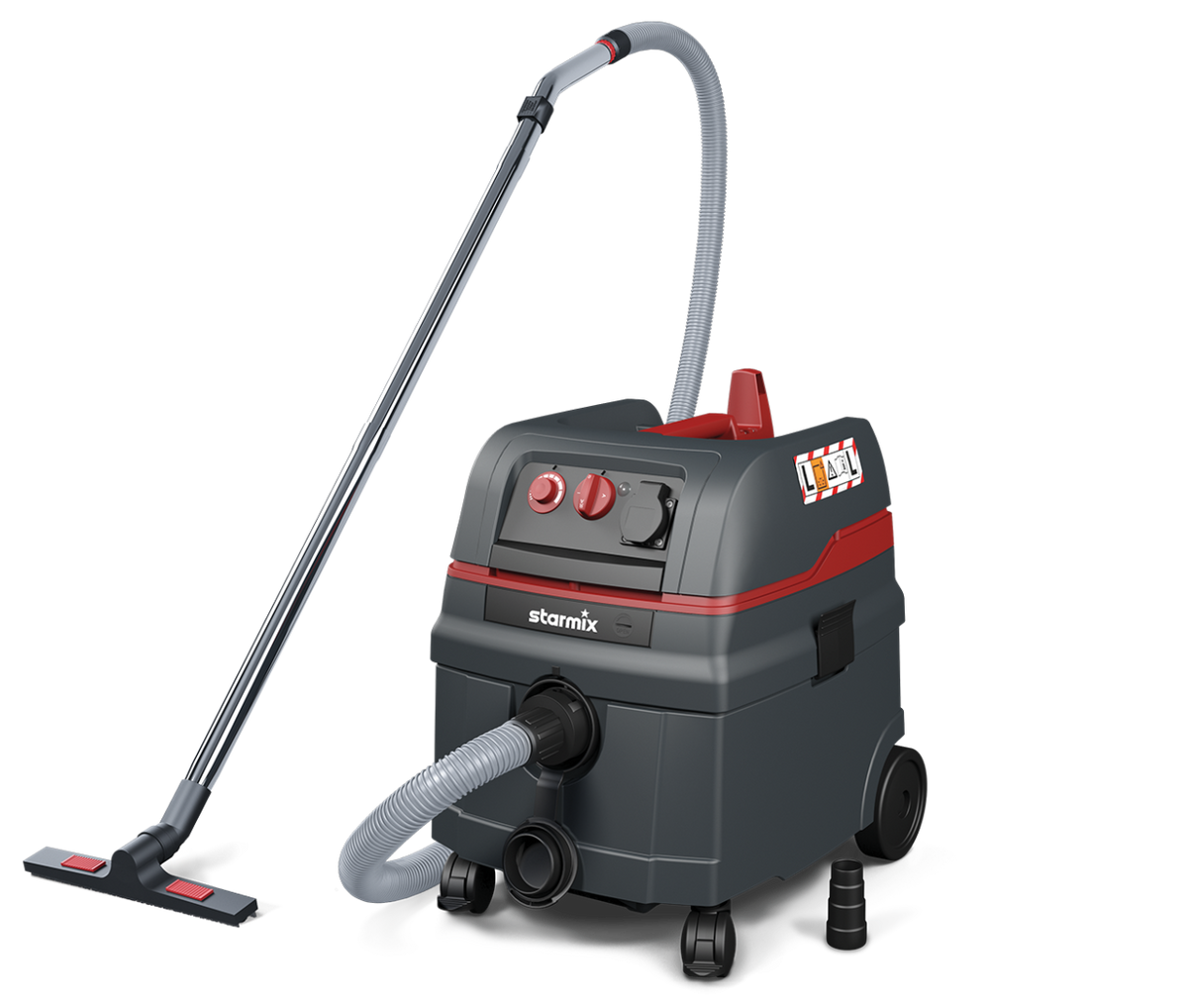

The STARMIX ISC L-1625 Top is a powerful, compact industrial vacuum cleaner designed for demanding use in workshops, construction sites, and industrial environments. Equipped with automatic impulse filter cleaning, it delivers consistently high suction performance even during applications with heavy dust generation.
Designed for direct extraction at power tools, the ISC L-1625 Top is ideal for drilling, milling, grinding, and sawing materials such as concrete, gypsum, stone, cement, wood, paints, and varnishes. Certified for non-hazardous dusts (Dust Class L), it combines performance, reliability, and ergonomic design in a compact footprint.

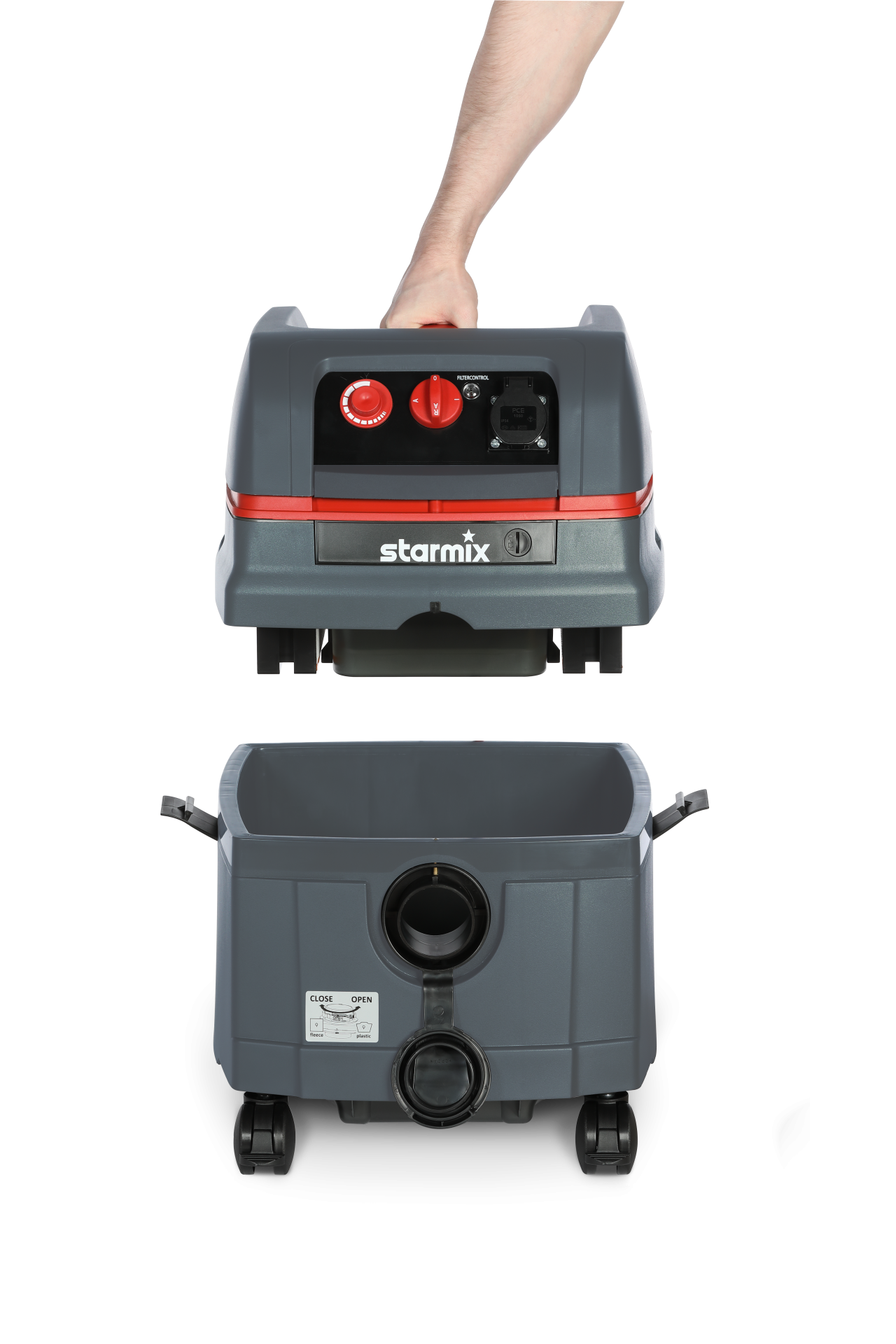

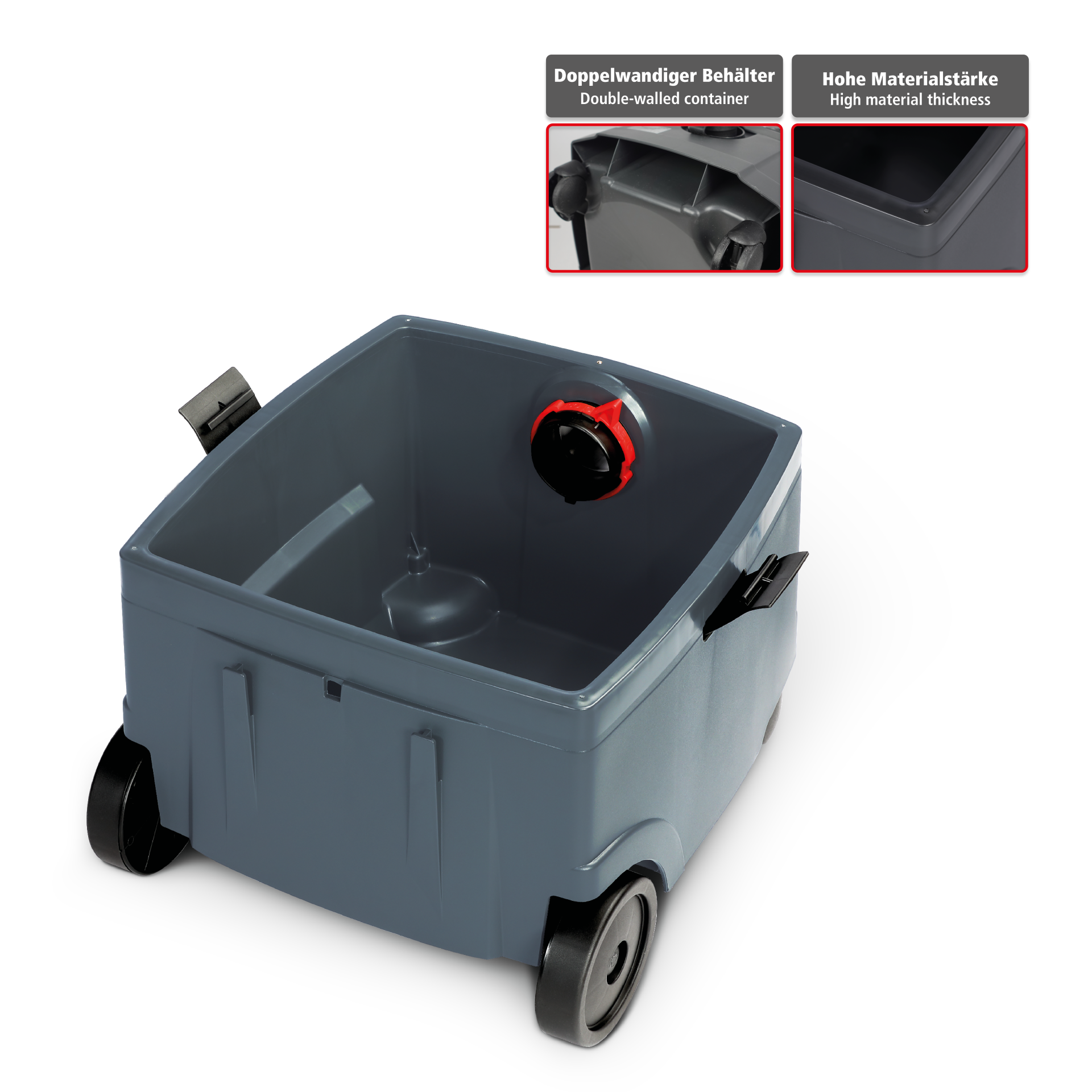

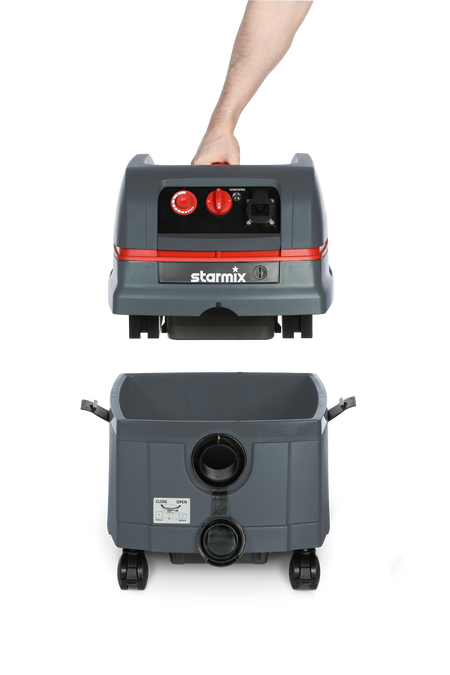

A high-performance turbine generates significantly higher airflow and vacuum compared to standard motors, while the automatic electromagnetic pulse filter cleaning system activates during work breaks to maintain constant airflow and extend filter life. The robust double-wall container, low centre of gravity, and smooth interior walls ensure stability, durability, and easy emptying.
Specifications
- Power Consumption: 1600 W
- Dust Class: L (non-hazardous dusts)
- Tank Volume (gross/dust/water): 25 / 20 / 15 litres
- Volume Flow: 75 / 45 l/s (motor head / hose end)
- Negative Pressure: 280 / 245 mbar (motor head / hose end)
- Sound Pressure Level: 69 dB(A)
- Dimensions: 45 × 39 × 49 cm
- Weight: 12.2 kg

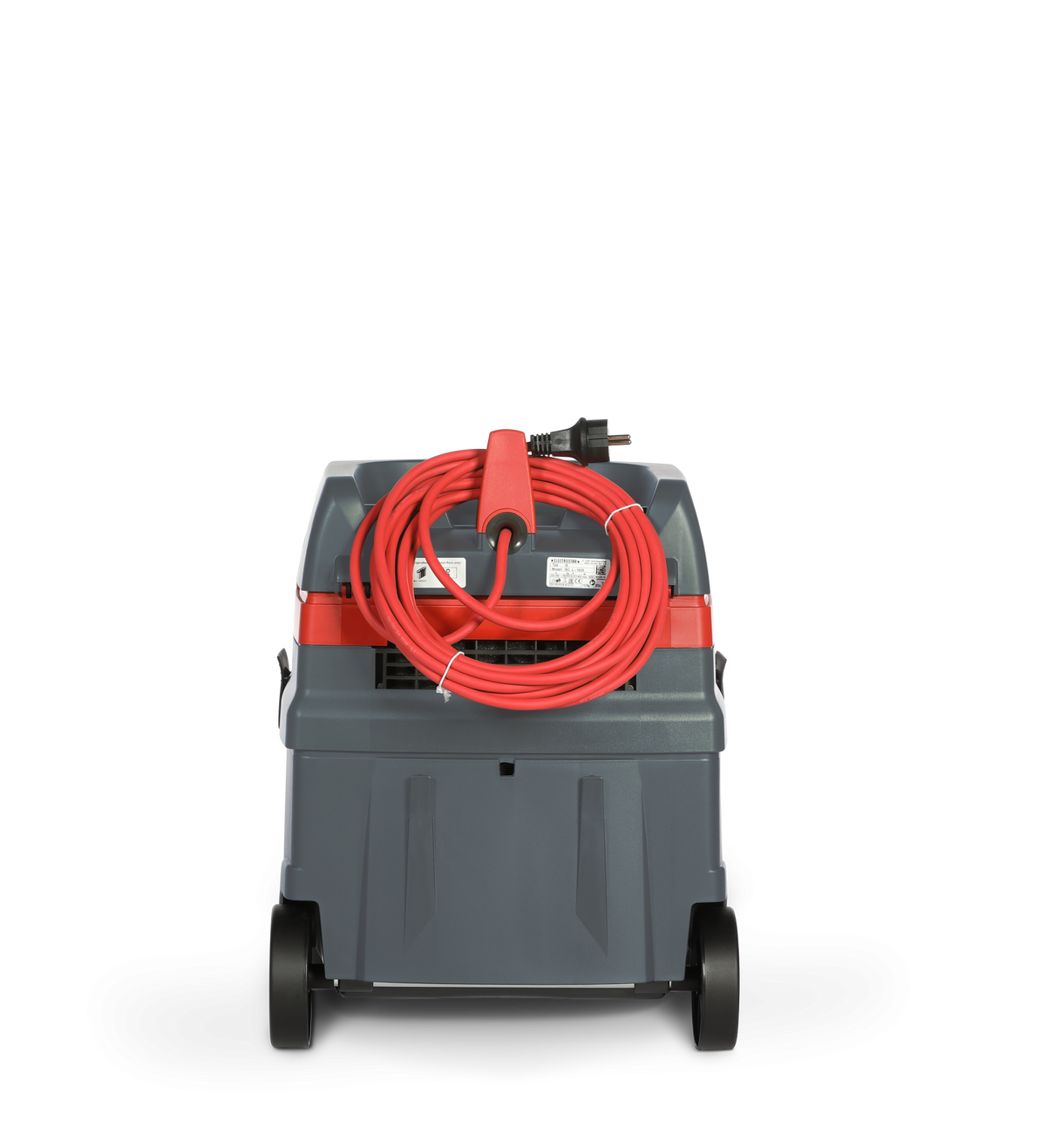

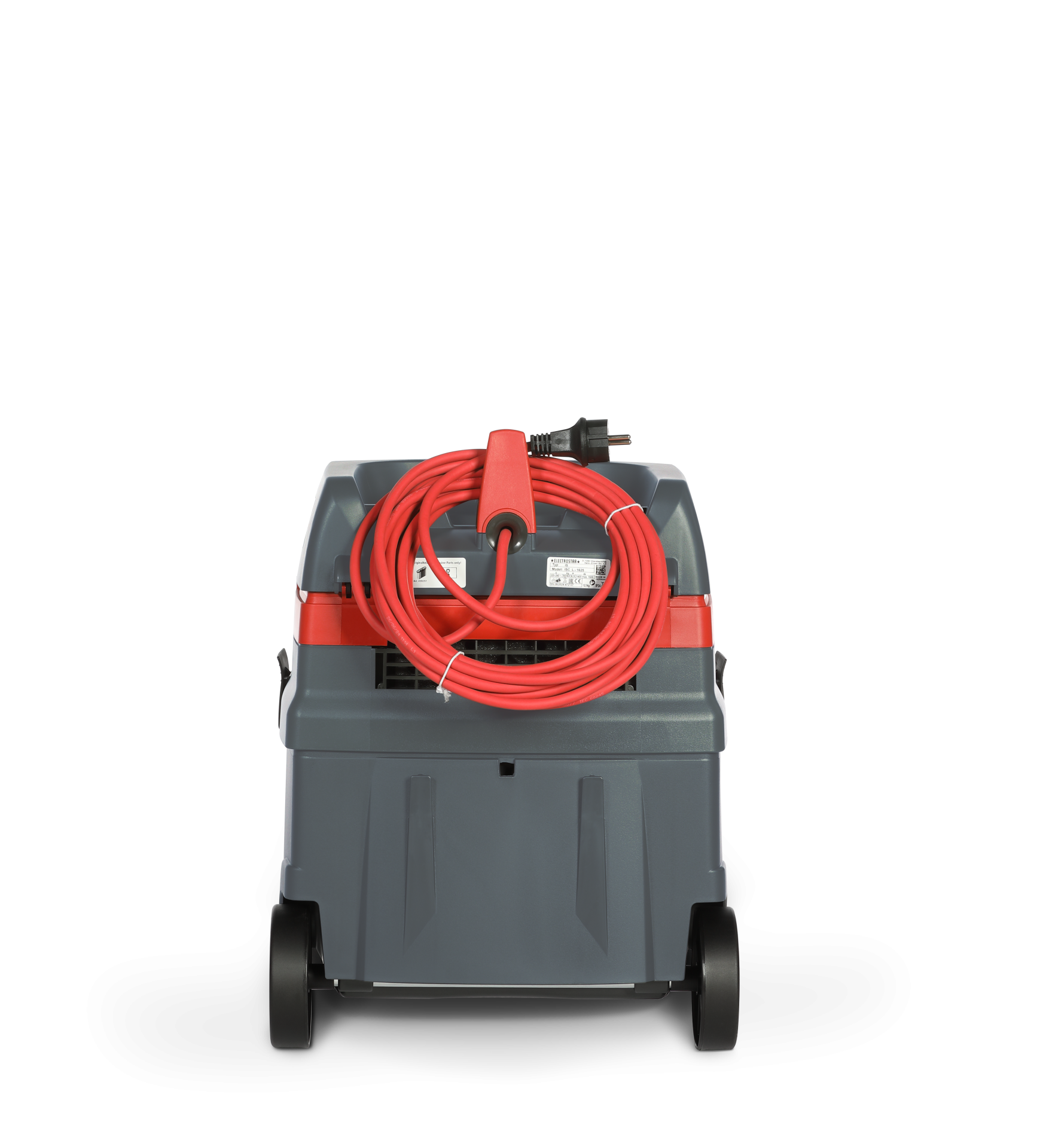

- Mains Cable Length: 8 m (rubber H05RR-F)
- Operating Radius: 13 – 14 m
Features
- Automatic electromagnetic impulse filter cleaning during work breaks
- High-performance turbine for powerful suction and airflow

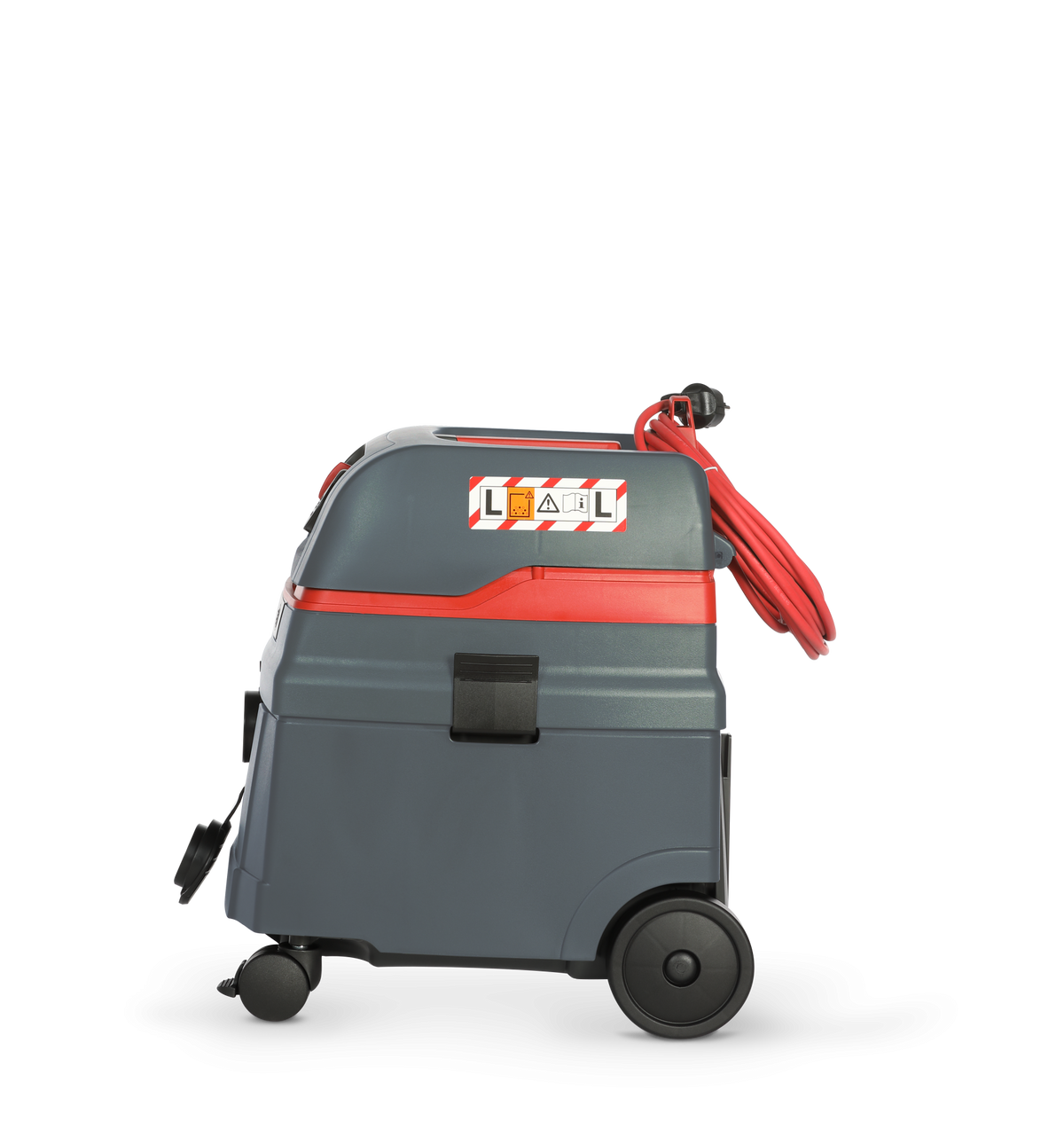

- Compact rectangular design for easy transport and storage
- Low centre of gravity for excellent stability and manoeuvrability
- Robust wheels and castors for rough site conditions
- Bayonet hose connection for secure, pull-resistant fit
- Parallel filter mounting for maximum usable container volume

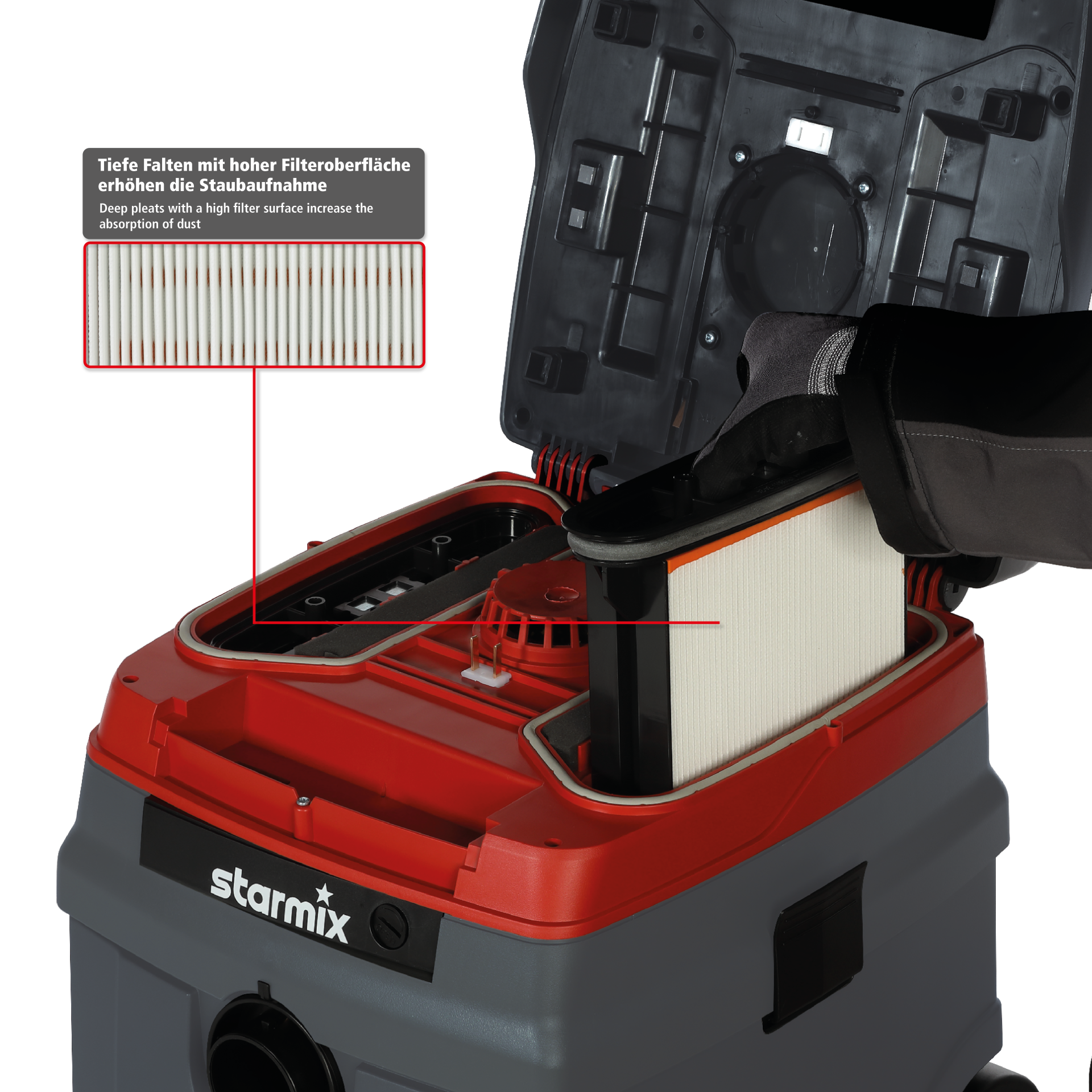

- Easy, clean access to filter cassettes with no dust contact

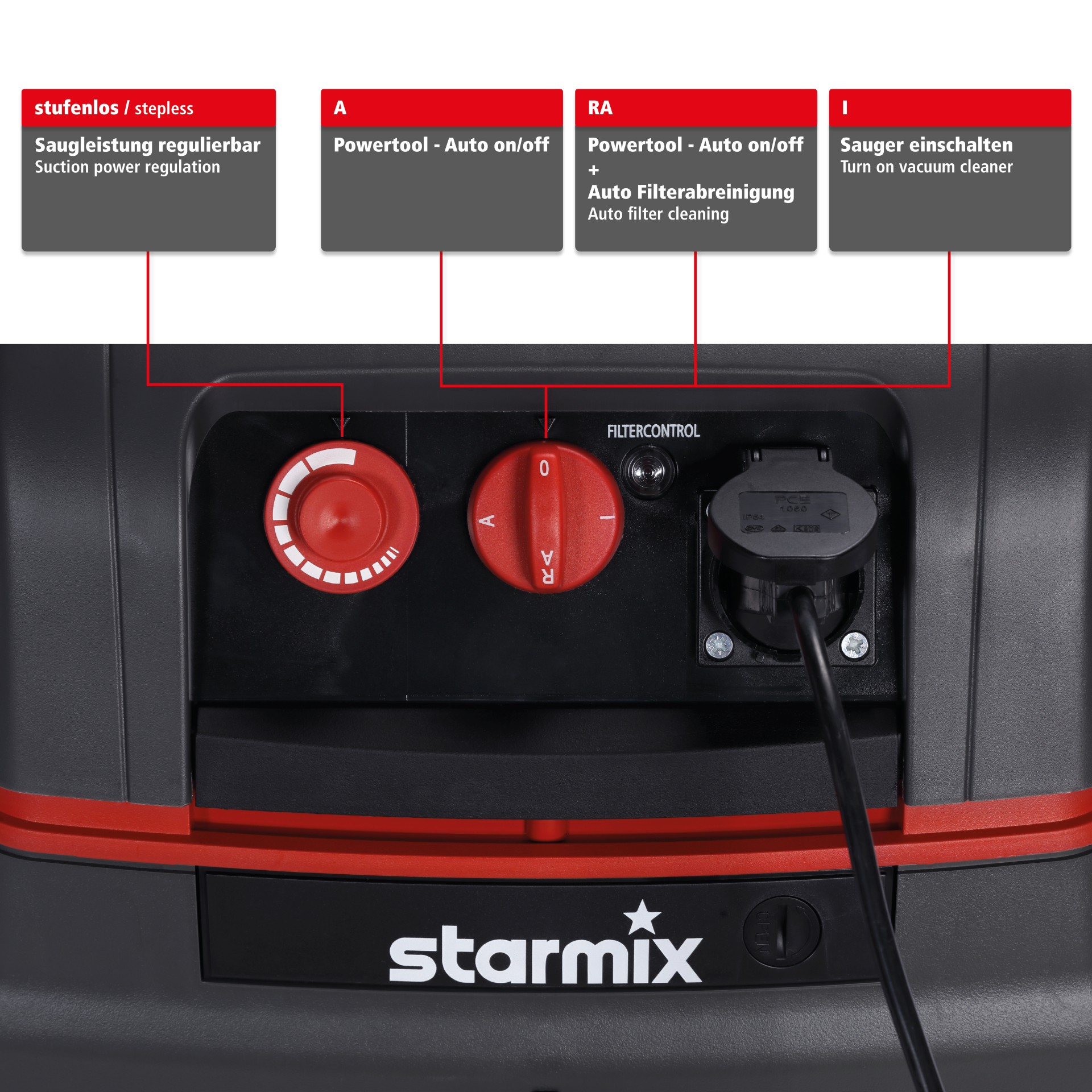

- Stepless speed control via rotary switch
- Integrated power tool socket with automatic start/stop
- Water level detection with automatic shut-off
- Soft start and run-on function
- Integrated accessory storage and tool depot
- Antistatically prepared vacuum cleaner body
Filter System
- Main Filter: FKP 4800 M ADVANCED (polyester)
- Dust Retention: 99.9%
- Filter Item No.: 459257

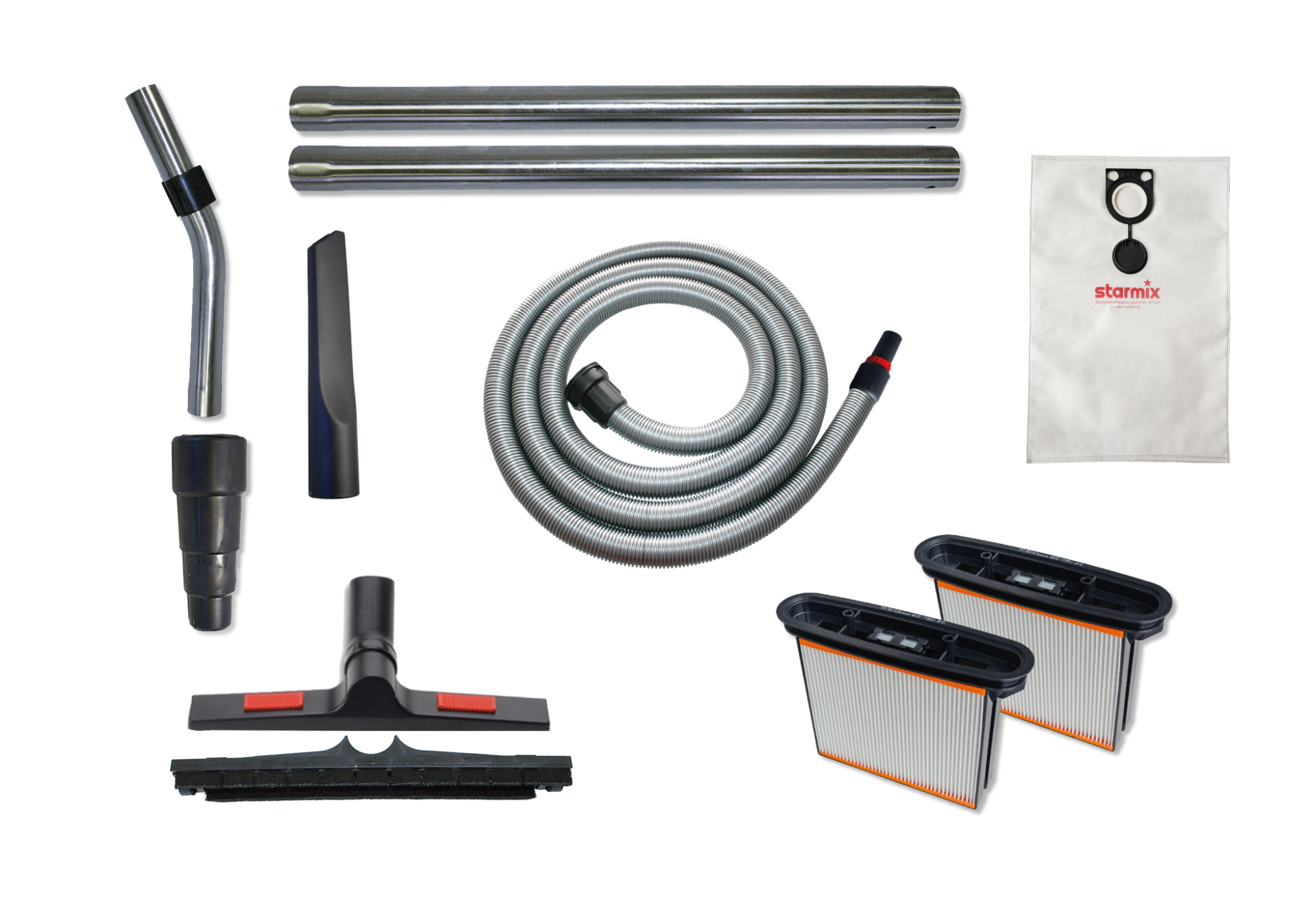

Scope of Delivery
- Suction hose Ø 35 mm × 5 m with rotary adapter (Art. No. 447193)
- Stainless steel handle tube with secondary air slide (Art. No. 421445)
- 2 × stainless steel suction tubes (50 cm each) (Art. No. 424842)
- Crevice nozzle, 22 cm (Art. No. 417011)
- Stepped connection sleeve (Art. No. 425719)
- Dust nozzle 37 with hard floor insert (Art. No. 414706)
- 1 × fleece filter bag FBV 25-35 (Art. No. 411231)
