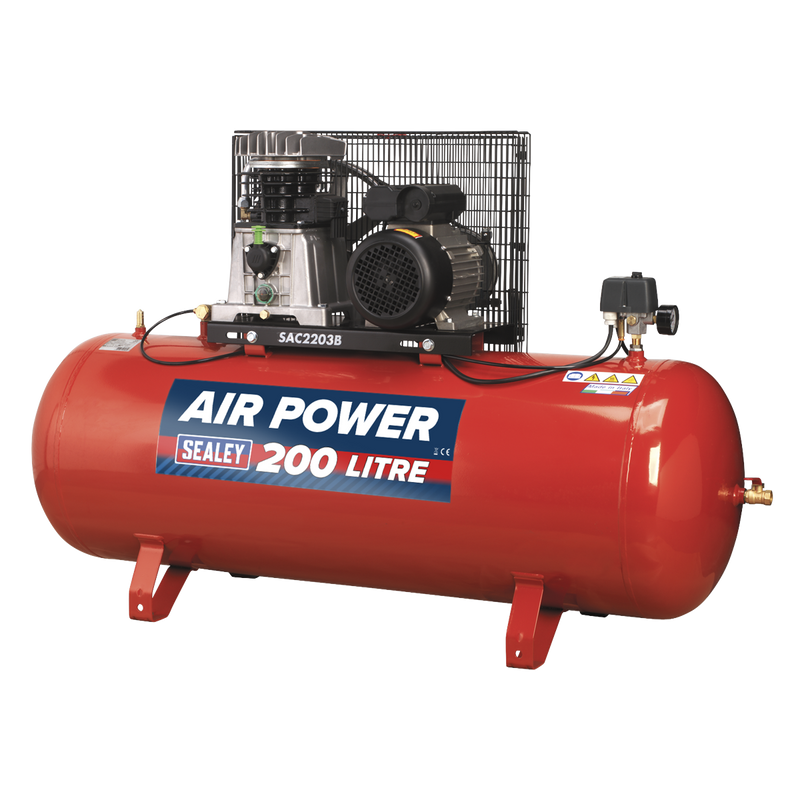

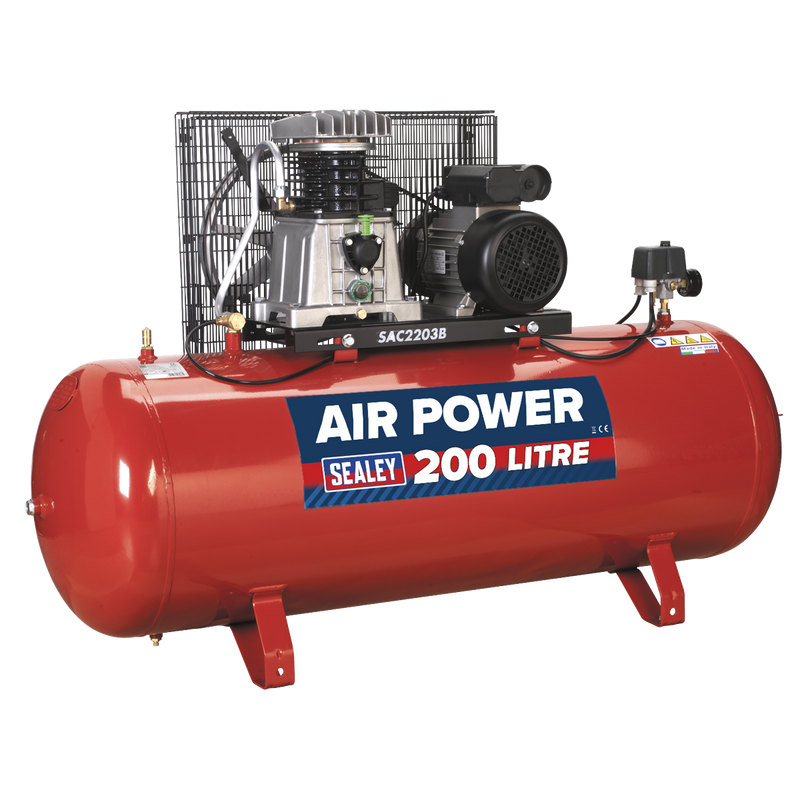

Our top-of-the-range single phase 200L compressor, this unit is suitable for the professional workshop and is fitted with a genuine 3hp motor.
Twin capacitors and a centrifugal switch aid trouble-free start up-on a good 13A supply. However on this model we recommend fitting a 16A plug and connecting to a 20A supply protected by a type-C circuit breaker for easier start-up. Pump features heavy-duty full cast cylinders, capped by an alloy head for improved heat dissipation and long-life. Heavy-duty drive guard protects belt and flywheel that is designed to force air over the pump to aid cooling. Supplied with full CE certification, test certificates and operating/maintenance manual.
Specification
- Air Displacement: 15cfm(425L/min).
- Maximum Free Air Delivery: 10.9cfm(309L/min).
- Maximum Pressure: 145psi(10bar).
- Top-of-the-range single phase 200L compressor suitable for the professional workshop and fitted with a genuine 3hp motor.
- Twin capacitors and a centrifugal switch aid trouble-free start-up on a good 13A supply.
- However on this model we recommend fitting a 16A plug and connecting to a 20A supply protected by a type-C circuit breaker for easier start-up.
- Pump features heavy-duty full cast cylinders, capped by an alloy head for improved heat dissipation and long-life.
- Heavy-duty drive guard protects belt and flywheel that is designed to force air over the pump to aid cooling.
- Supplied with full CE certification, test certificates and operating/maintenance manual.
- This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
- Model No. SAC2203B
