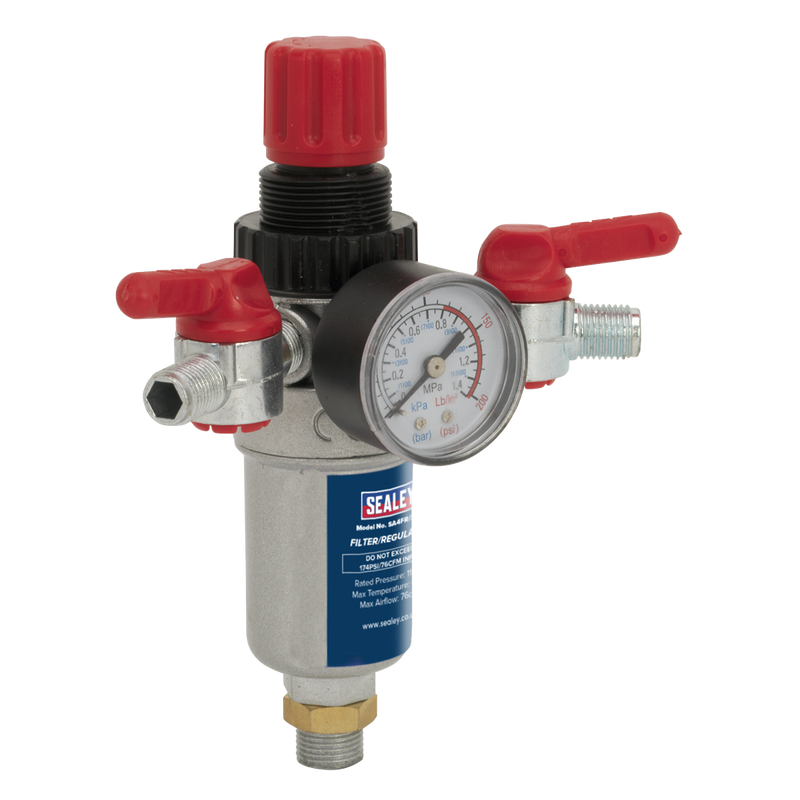

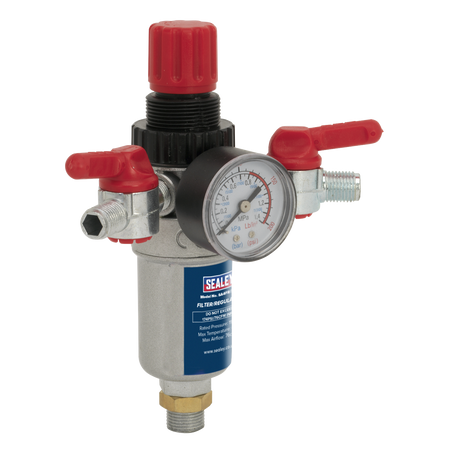

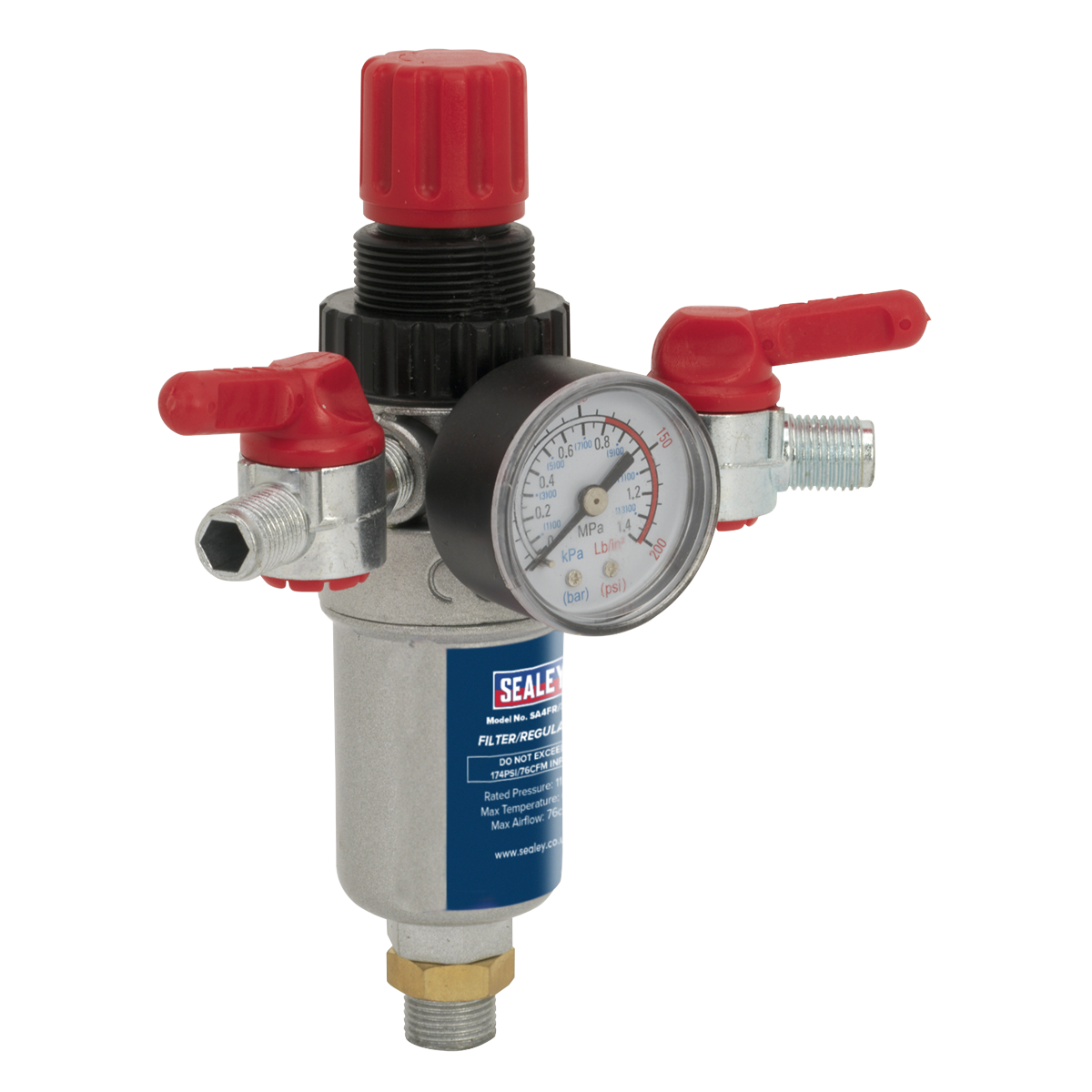

Heavy-duty aluminium alloy valve assembly with integral filter and water trap. Airflow control knob can be locked in position to prevent accidental adjustment of pressure. Features large gauge marked in psi, bar and MPa. Individual compressed air outlets are fitted with shut-off valve. Suitable for direct mounting onto compressors or can be plumbed into air line runs.
Specification
- Heavy-duty aluminium alloy valve assembly with integral filter.
- Airflow control knob can be locked in position to prevent accidental adjustment of pressure.
- Large gauge marked in psi, bar and MPa.
- Individual compressed air outlets are fitted with shut-off valve.
- Suitable for direct mounting onto compressors or can be plumbed into air line runs.
- Max. Air Input: 174psi, Max. Air Output: 174psi, Safe Working Pressure: 0-115psi.
- Max. Airflow: 76cfm, Inlet Thread: 3/8"BSP, Outlet Thread: 1/4"BSP.
- Outlet quantity: 2.
- Model No. SA4FR/38
