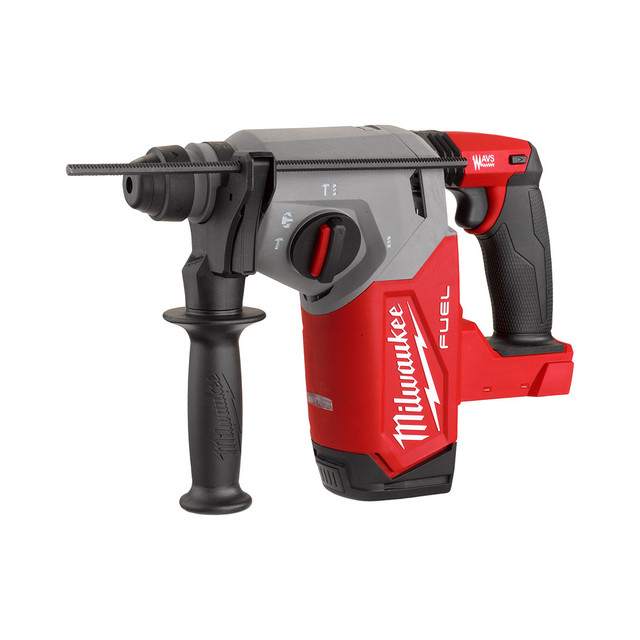

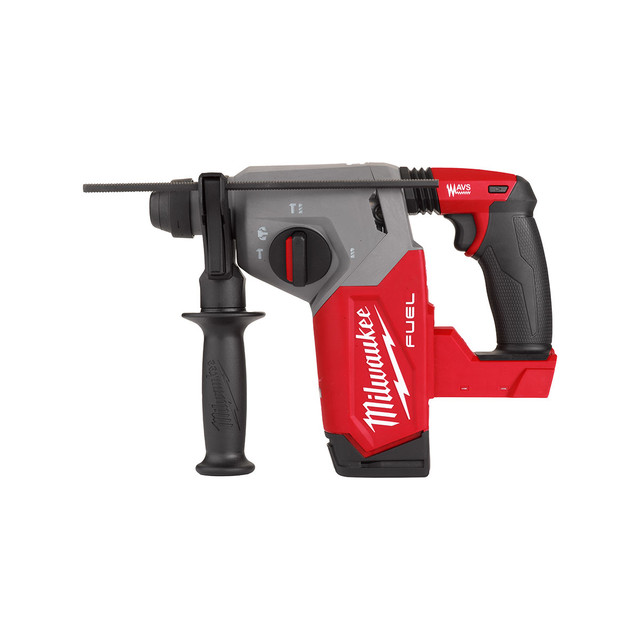

The Milwaukee M18 FH-0 18V FUEL 4-Mode 26mm Brushless SDS Plus Hammer Drill (Body Only) is a compact, high-performance cordless SDS+ rotary hammer for professional concrete and masonry drilling. Delivering 2.5 J of impact energy with a no-load speed up to 1,330 rpm and 4,800 bpm, it is optimised for drilling 6-20 mm holes and excels at repetitive 10 mm fixings in concrete. The POWERSTATE brushless motor, REDLINK PLUS electronics and M18 REDLITHIUM battery platform combine to provide strong, consistent power and runtime for demanding trade use. A 4-mode selector offers rotary hammer, hammer only, rotation only and variolock chisel positions, while the AVS Anti-Vibration System and ergonomic side handle support comfortable control during extended work. AUTOSTOP kickback control helps protect the user in bind-up situations, and compatibility with M18 FCDDEXL and M18 FDDEXL dust extractors makes it suitable for cleaner drilling on site. Supplied as a bare unit with side handle and depth gauge, it works with all Milwaukee M18 batteries.
- POWERSTATE brushless motor delivers 2.5 J of impact energy for fast drilling in tough concrete and masonry
- 4-mode operation (rotary hammer, hammer only, rotation only, variolock chisel) allows the Milwaukee M18 FH-0 18V FUEL 4-Mode 26mm Brushless SDS Plus Hammer Drill (Body Only) to tackle drilling, chiselling and light breaking with one tool
- Optimised SDS-Plus tool holder accepts bits up to 26 mm in concrete for common anchor, fixing and pipework applications

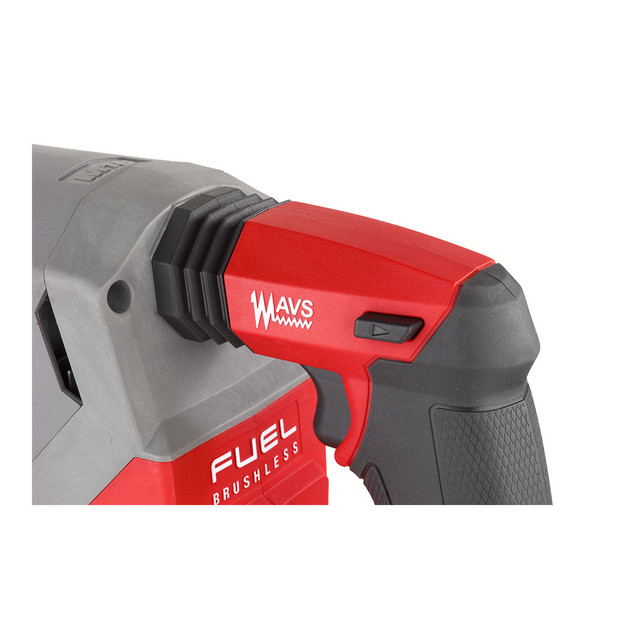

- AVS Anti-Vibration System and ergonomic side handle help reduce hand-arm vibration for more comfortable all-day use

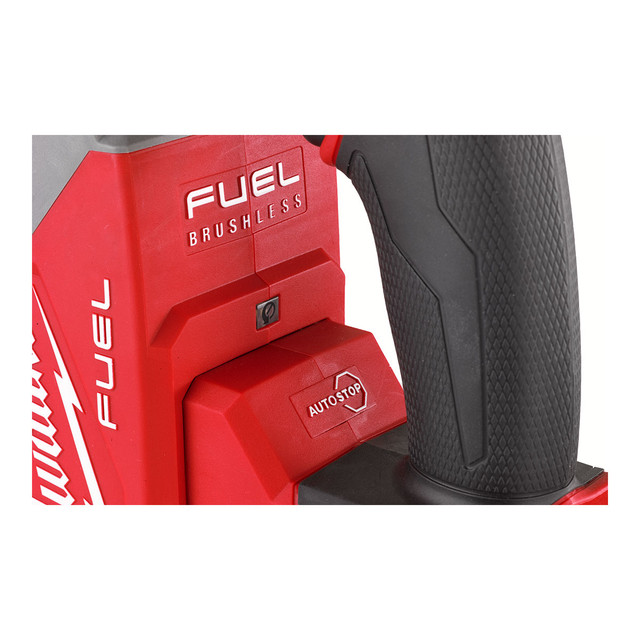

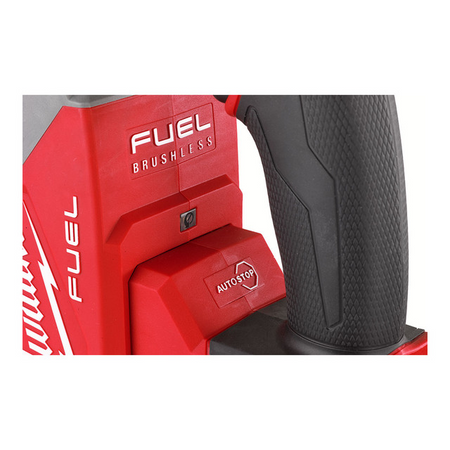

- AUTOSTOP kickback control senses sudden bind-up and shuts down the drill to help protect the user
- No-load speed up to 1,330 rpm and percussion rate up to 4,800 bpm maximise productivity on site

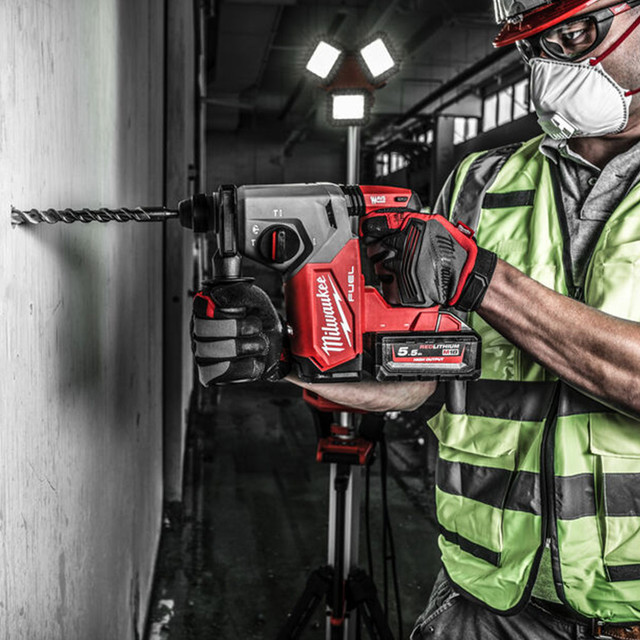

- Drills up to 125 ø10 x 50 mm holes per charge with an M18 HIGH OUTPUT 5.5 Ah battery to support intensive fixing work
- All-metal gear case provides robust gear support for long service life in demanding trade environments
- Compatible with M18 FCDDEXL and M18 FDDEXL dust extractors to support safer, cleaner drilling in occupied areas
- Part of the M18 FUEL SDS+ hammer drill range, running on the flexible M18 REDLITHIUM battery platform used across Milwaukee cordless power tools
Technical Specifications:
- Product code: M18 FH-0
- Model: M18 FH-0
- Voltage: 18 V
- Tool type: SDS-Plus rotary hammer
- Impact energy: 2.5 J
- No-load speed: 0-1,330 rpm
- Percussion rate: 0-4,800 bpm
- Max drilling capacity in concrete: 26 mm
- Max drilling capacity in wood: 28 mm
- Max drilling capacity in steel: 13 mm
- Optimised drilling range in concrete: 6-20 mm
- Max core drilling capacity in brick and limestone: 65 mm
- Vibration level hammer drilling in concrete: 12.9 m/s²
- Vibration level chiselling: 14.2 m/s²
- Sound pressure level: 92.6 dB(A)
- Sound power level: 103.6 dB(A)
- Tool holder: SDS-plus
- Number of modes: 4
- Anti-vibration system: Yes
- AUTOSTOP function: Yes

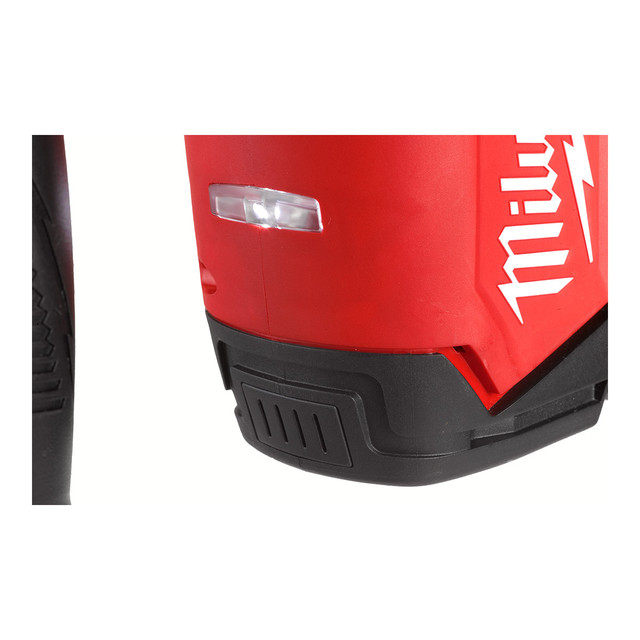

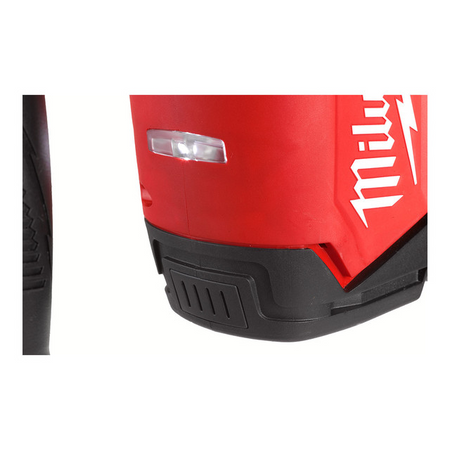

- LED work light: Yes
- Battery system compatibility: M18 REDLITHIUM
- Battery chemistry: Li-Ion
- Weight without battery: 2.9 kg
