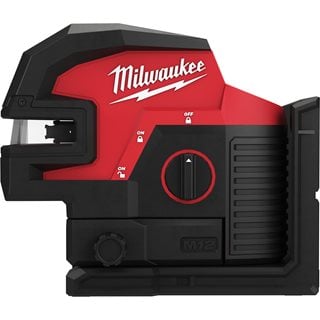

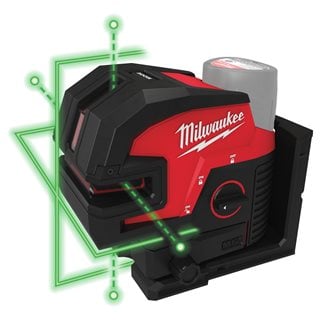

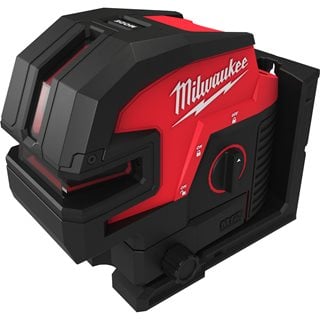

M12™ green cross line laser with 4 points, provides an all-in-one functionality with horizontal levelling, vertical alignment, plumb point transfer from floor to ceiling and horizontal point transfer
- High intensity green beams provide a working range of 38 m and up to 100 m with a detector
- Provides all-day run time of 9+ hours with an M12 B3 battery pack
- 3 mode pendulum system: Manual Mode for use at any angle, Self-Levelling Mode that indicates out-of-level condition with a 4° self-levelling range and Pendulum Lock Mode to protect components during transport

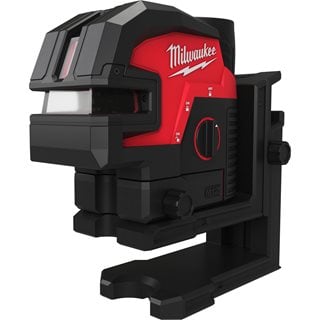

- Integrated magnetic bracket with rear mounted amplified rare earth magnets, ¼″ and ⅝″ tripod thread and hang hole - allows attachment to steel stud, wooden stud and tripod
- The bracket also provides the laser 360° rotation that pivots on plumb point, with an integrated micro control knob for faster point to point alignment
- Robust over-moulded construction with an IP 54 rating, the laser is water/ debris resistant and can withstand up to 1 m drops
- Flexible battery system: works with all MILWAUKEE® M12™ batteries
- Includes 1x high visibility target plate and 1x track clip
Technical Specification:
Accuracy [mm|m] - 0.3
Colour of laser line - Green
Colour of plumb points - Green
Compatible laser detector - LLD50 / LRD100
IP protection class - 54
Laser clasification - Class 2
Laser projection - 1x horizontal, 1x vertical, 2x plumb points and 2x horizontal points
Max. run time with M12 B3 battery [h] - 9
Self levelling range (°) - 4
Self levelling time [s] - 3
Standard equipment - Track clip, HVIST
Supplied in - Kitbox
Working range detector [m] - 50 / 100
Working range visible [m] - 38.0
