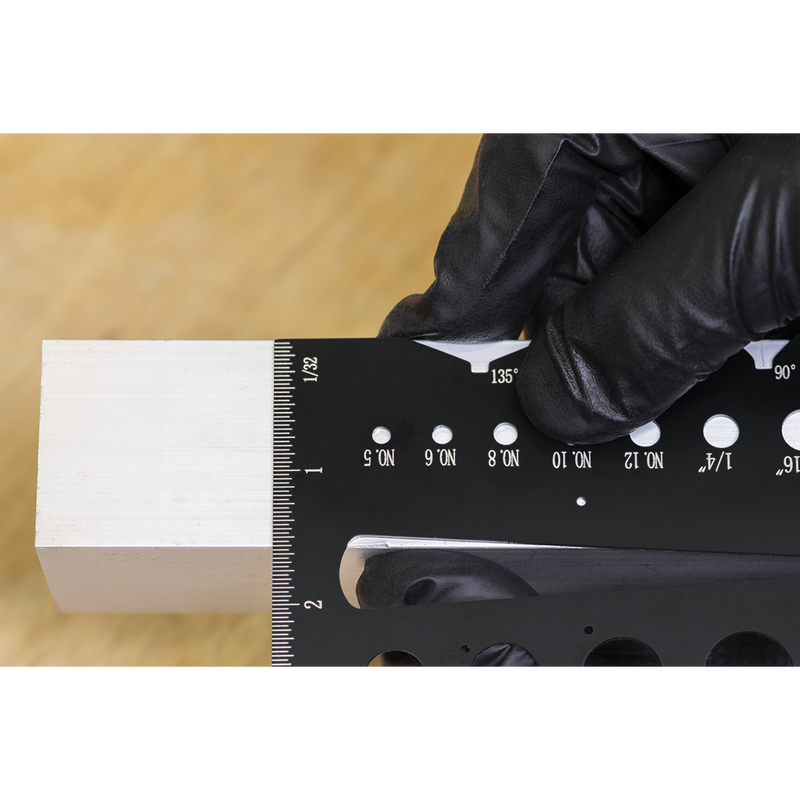

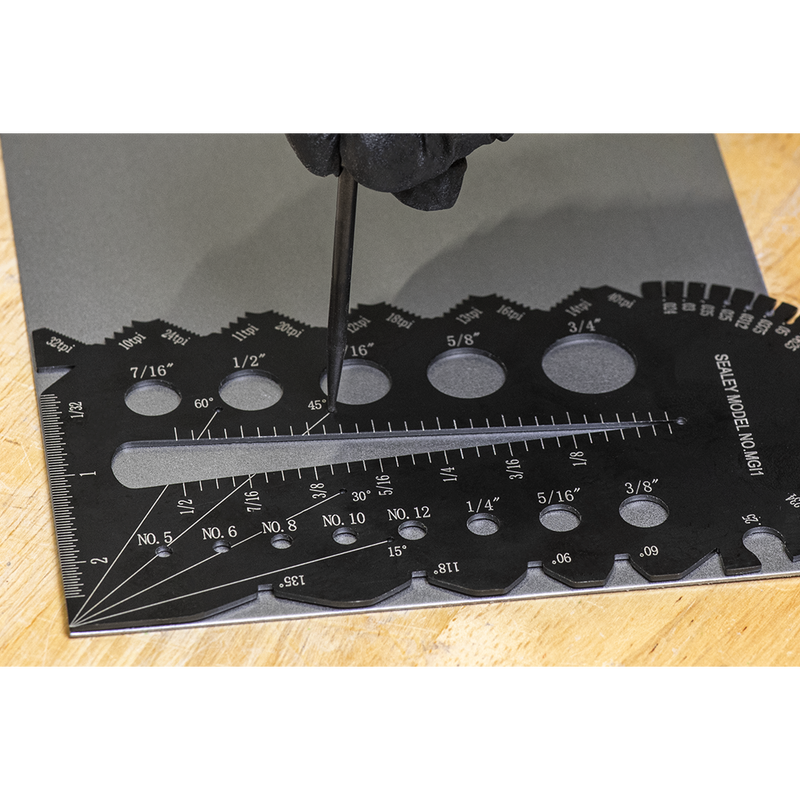

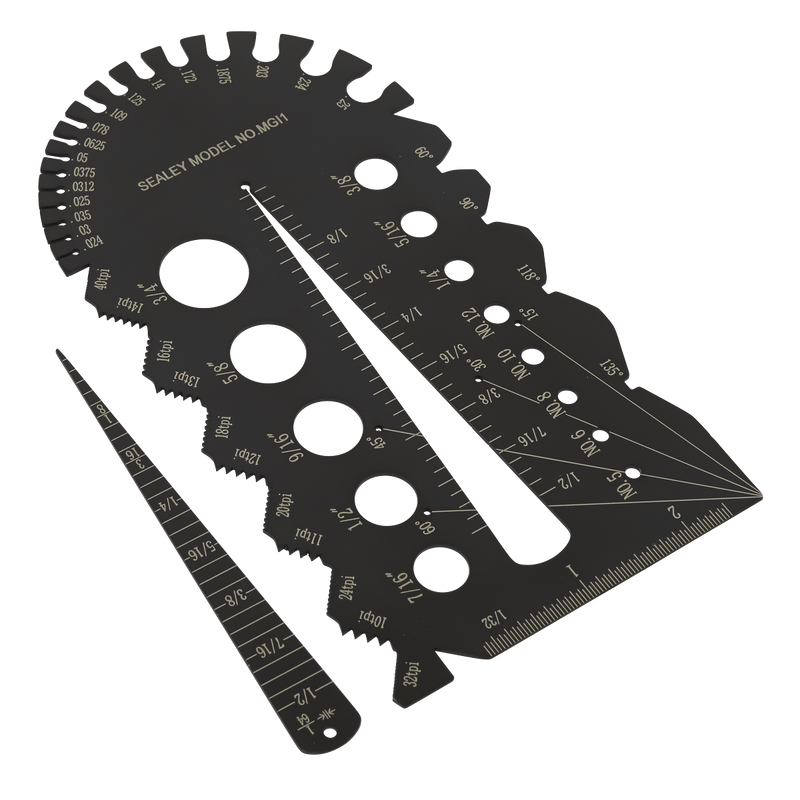

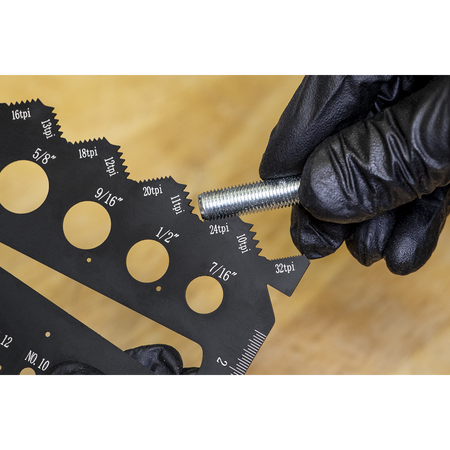

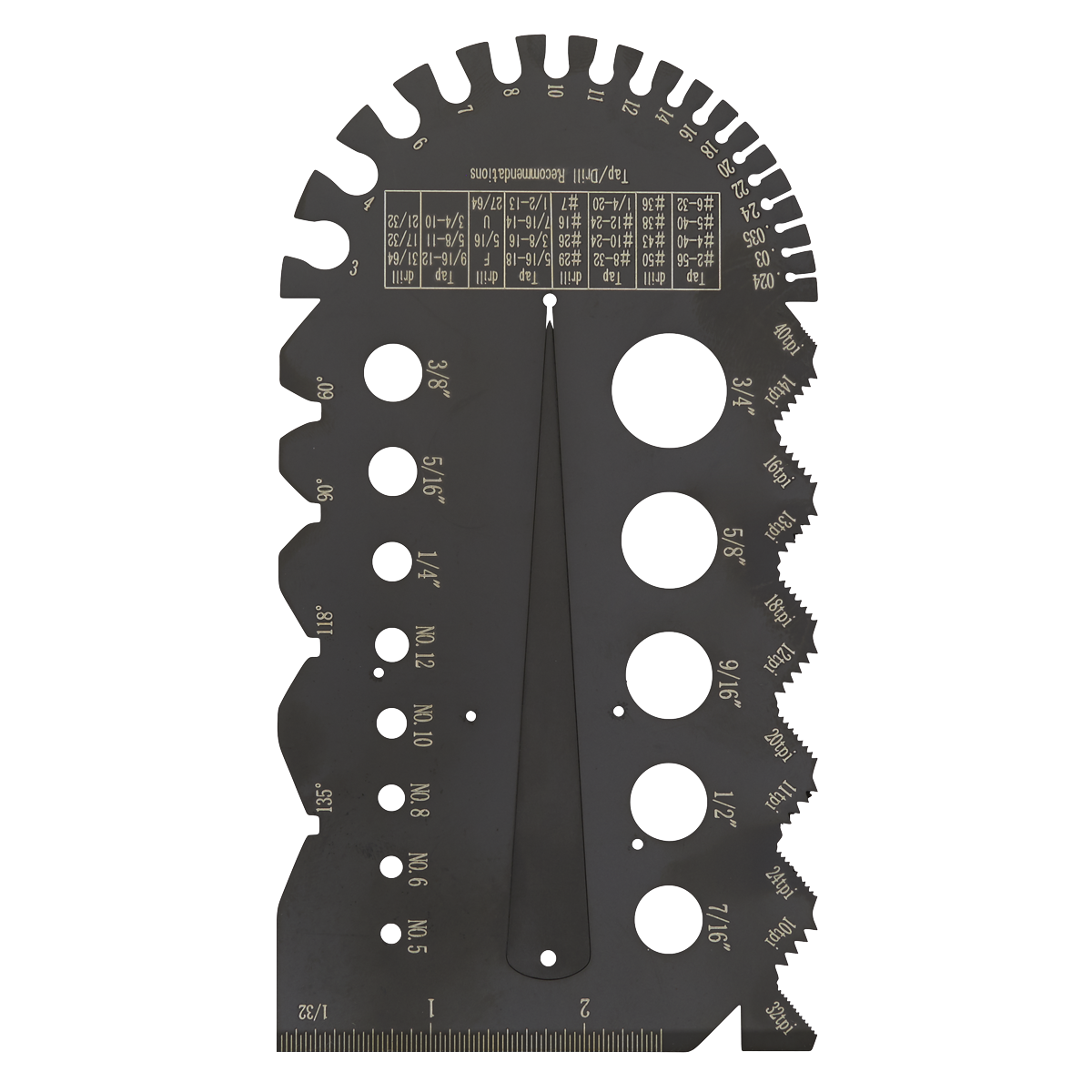

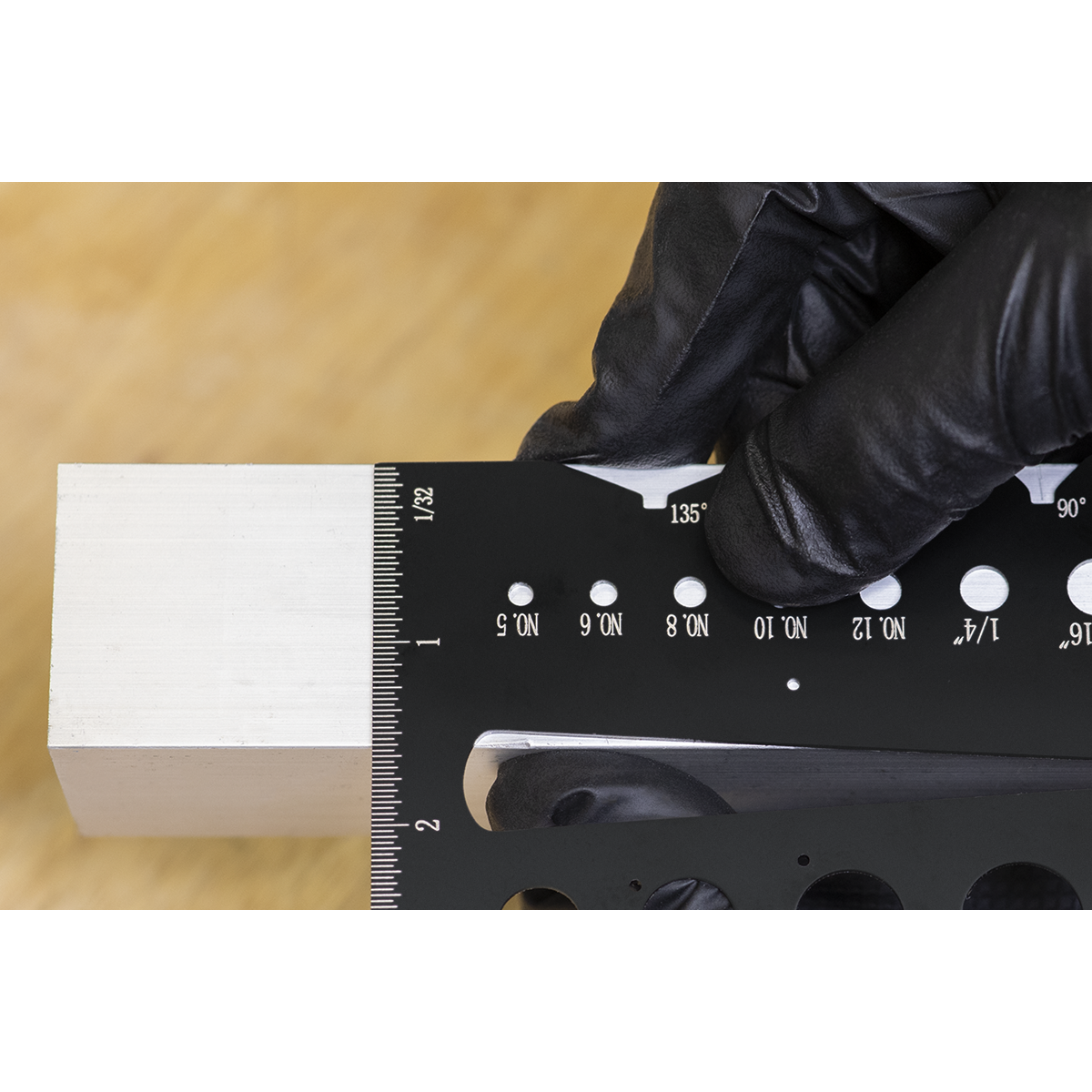

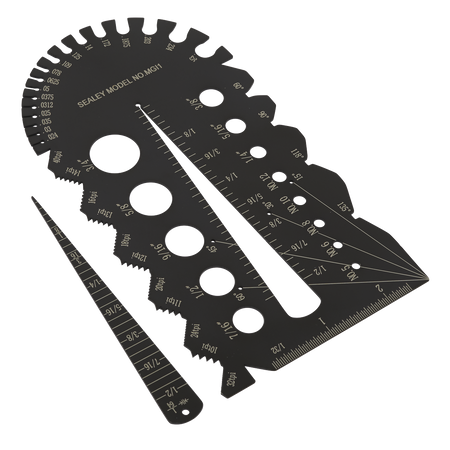

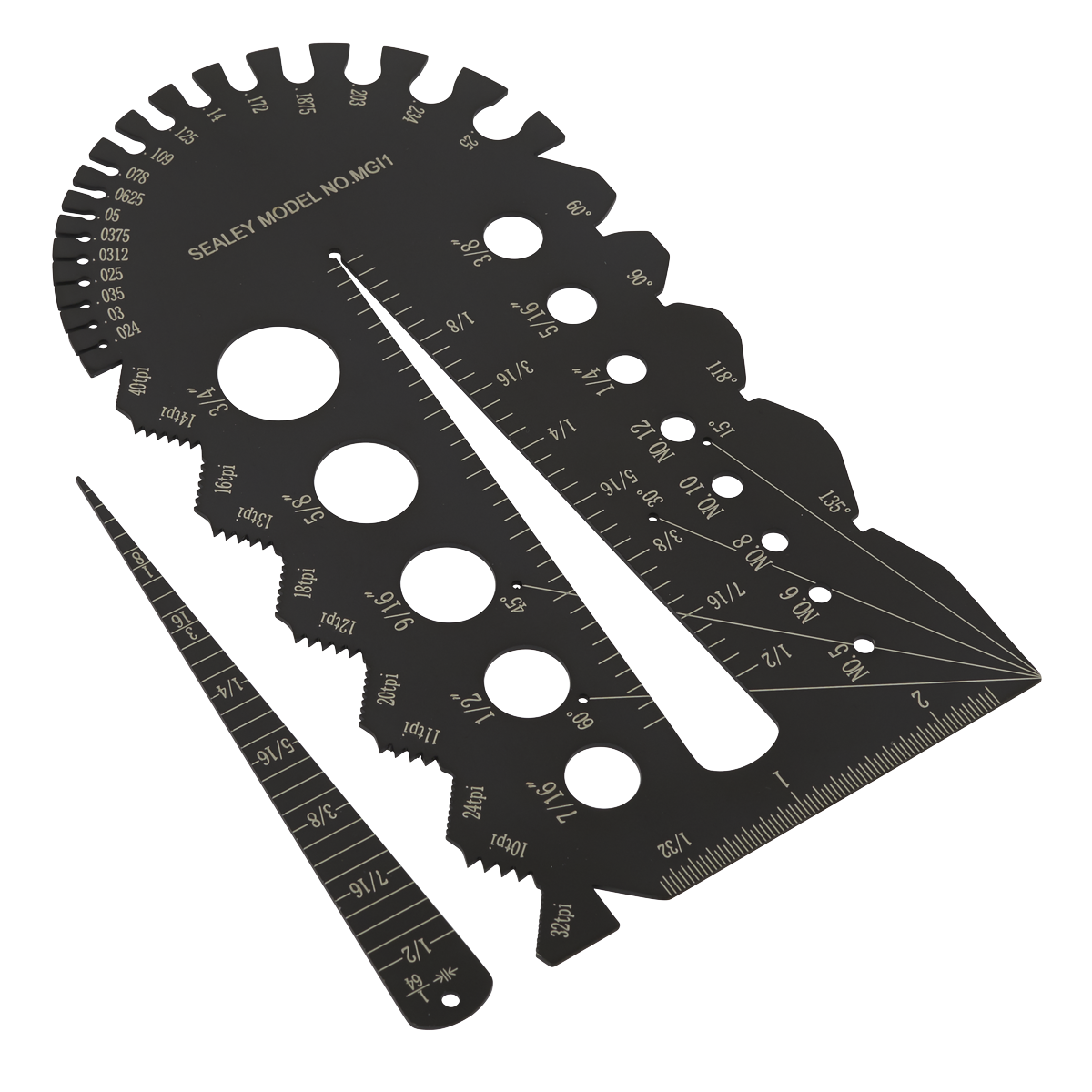

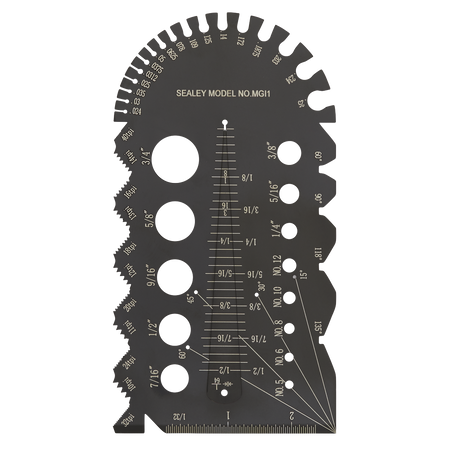

Stainless steel multifunction thread/pitch identification gauge. Easily identify the size of bolt, drill bit or tap that is required. Check the thickness of washers and diameter of electric wire. Use as a set square and ruler.
Specification

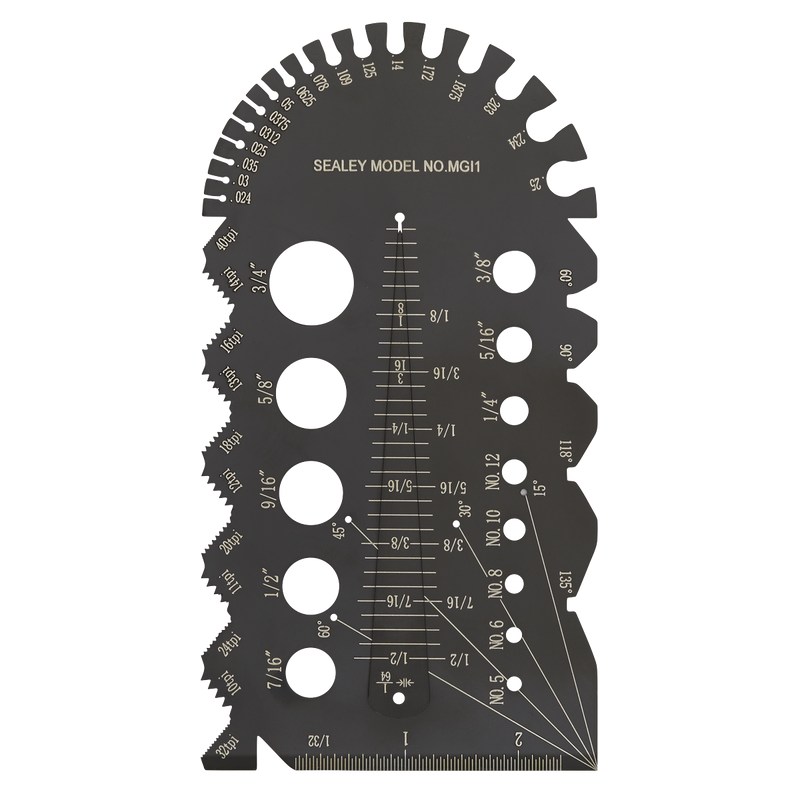

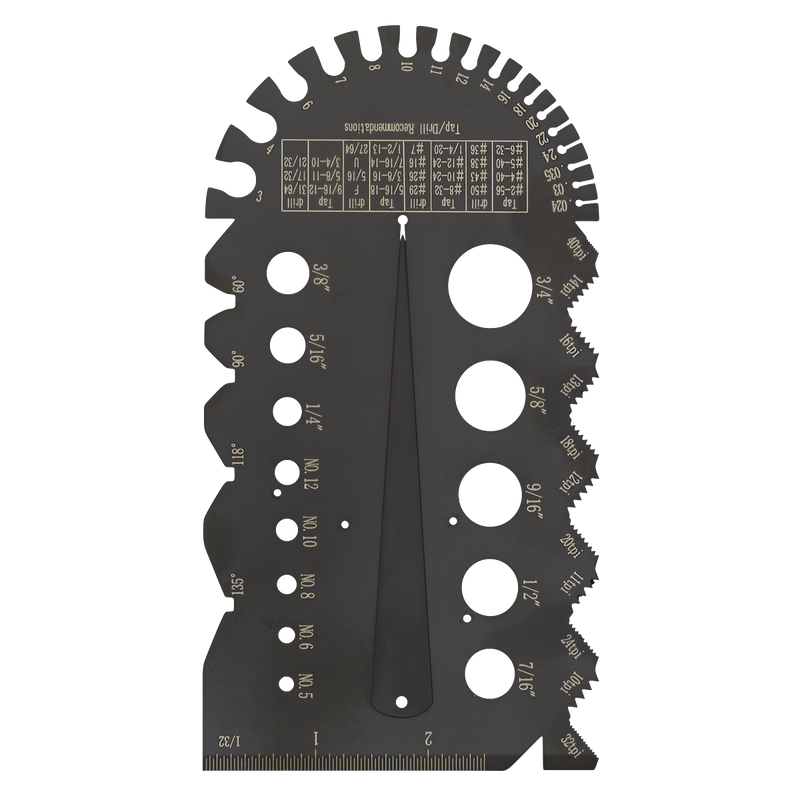

- Stainless steel Imperial multifunction thread/pitch identification gauge.

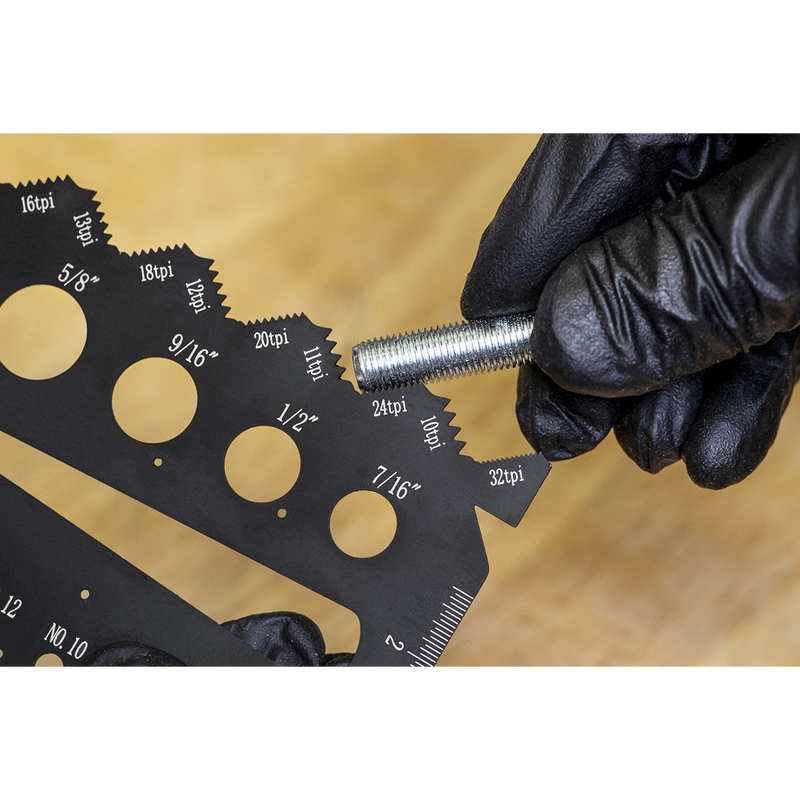

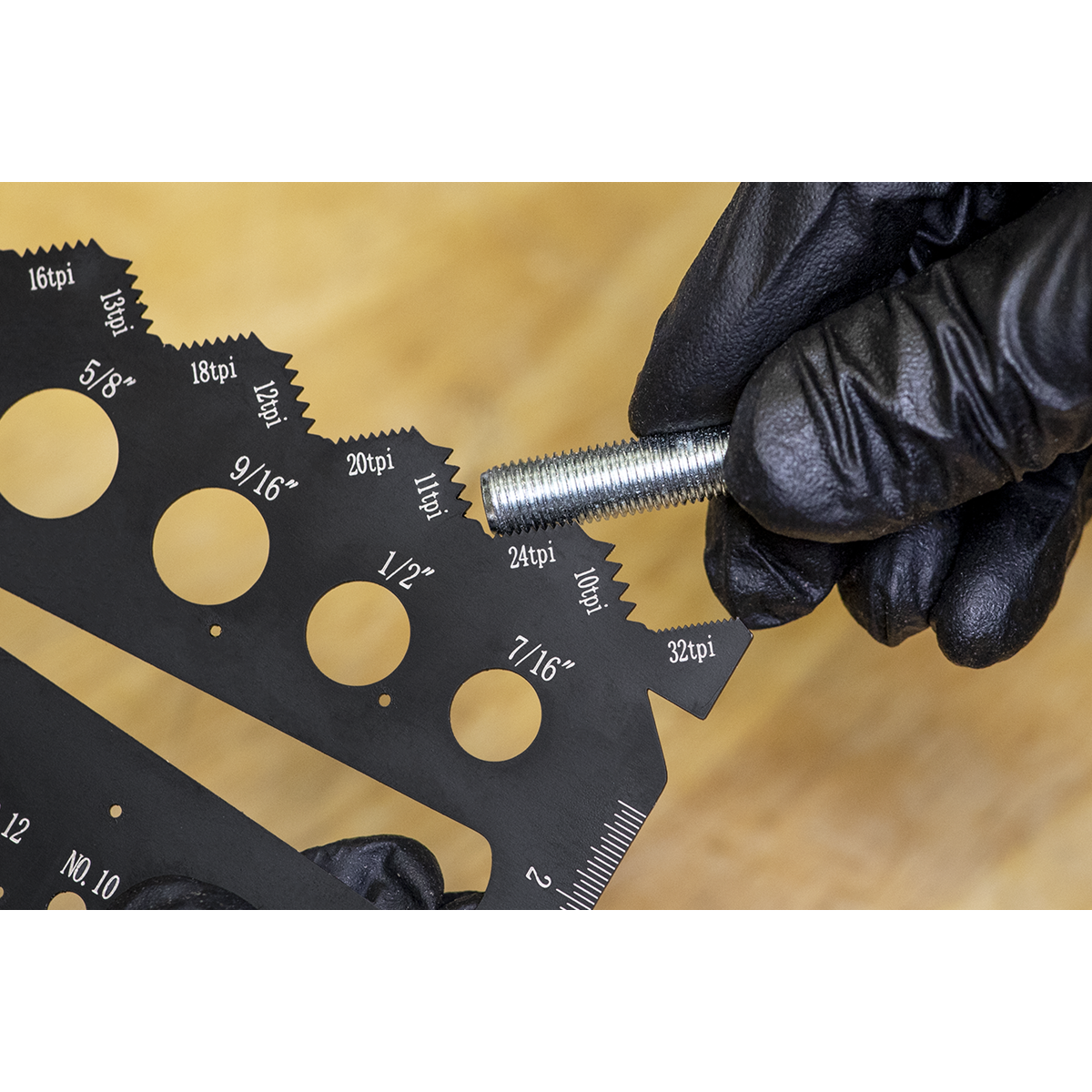

- Pitches: 10, 11, 12, 13, 14, 16, 18, 20, 24, 32, 40 (tpi).

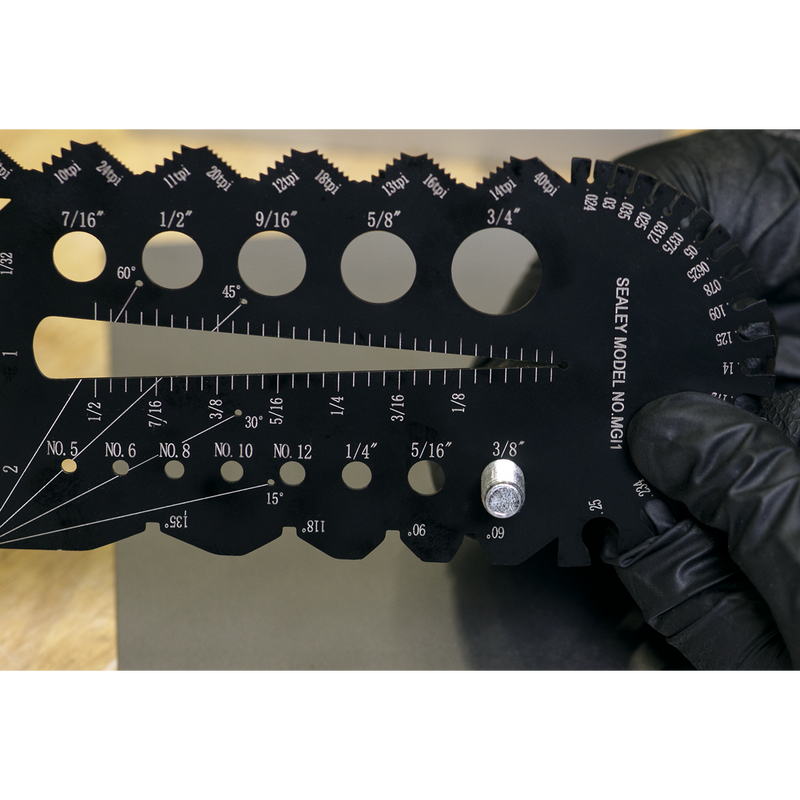

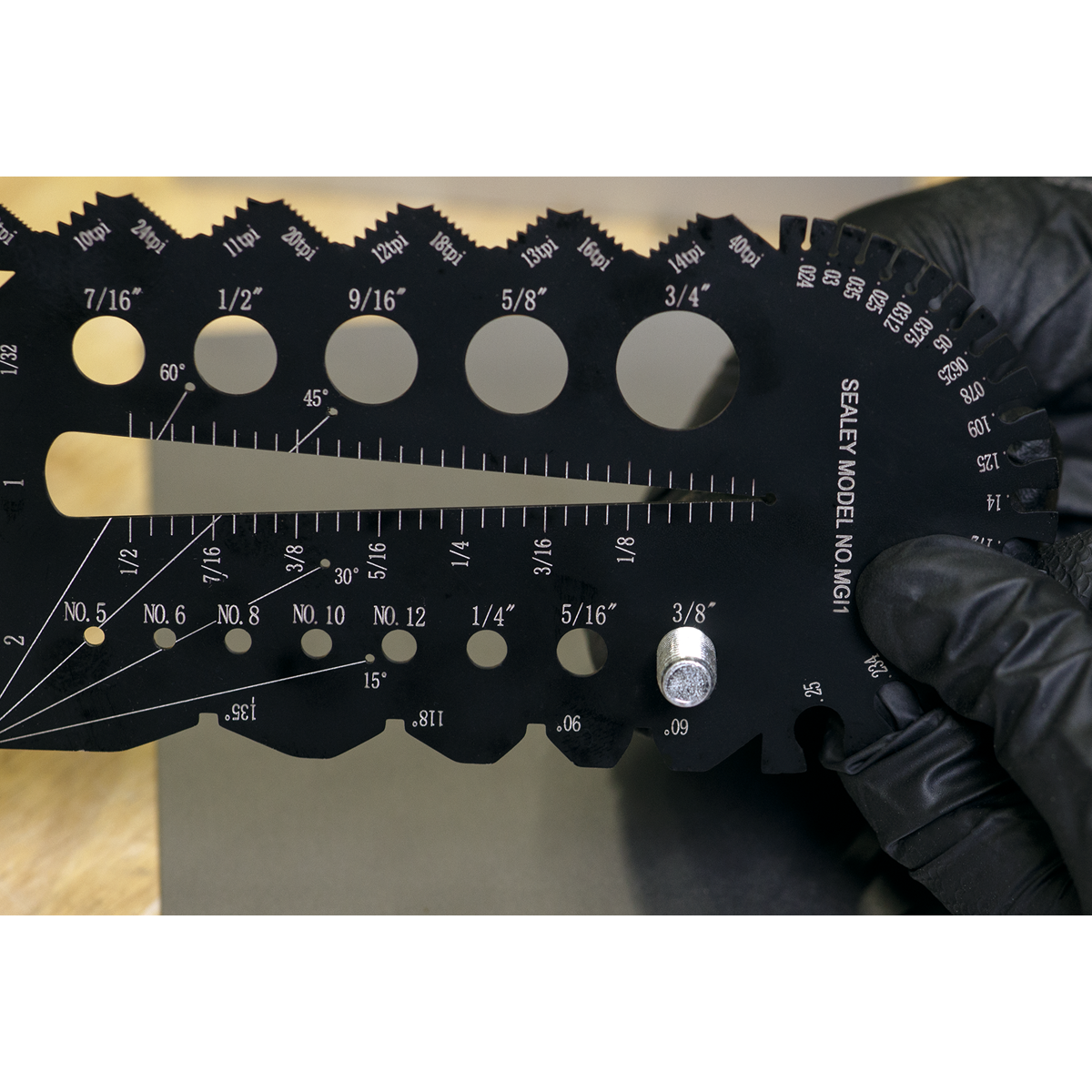

- Bolt Screw Diameters: No.5, No.6, No.8, No.10, No.12, 1/4", 5/16", 3/8", 7/16", 1/2", 9/16", 5/8", 3/4".

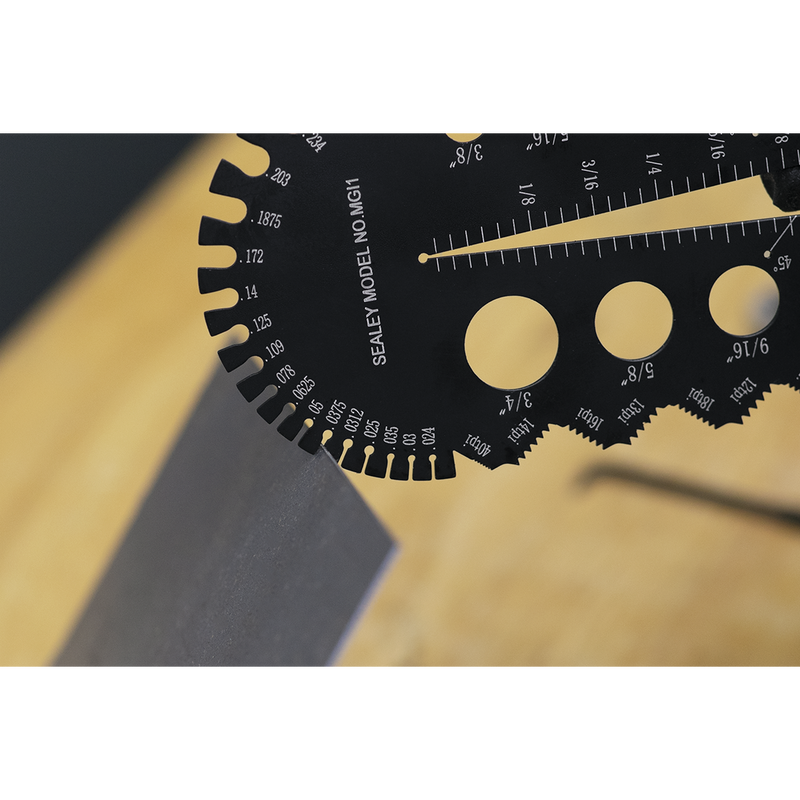

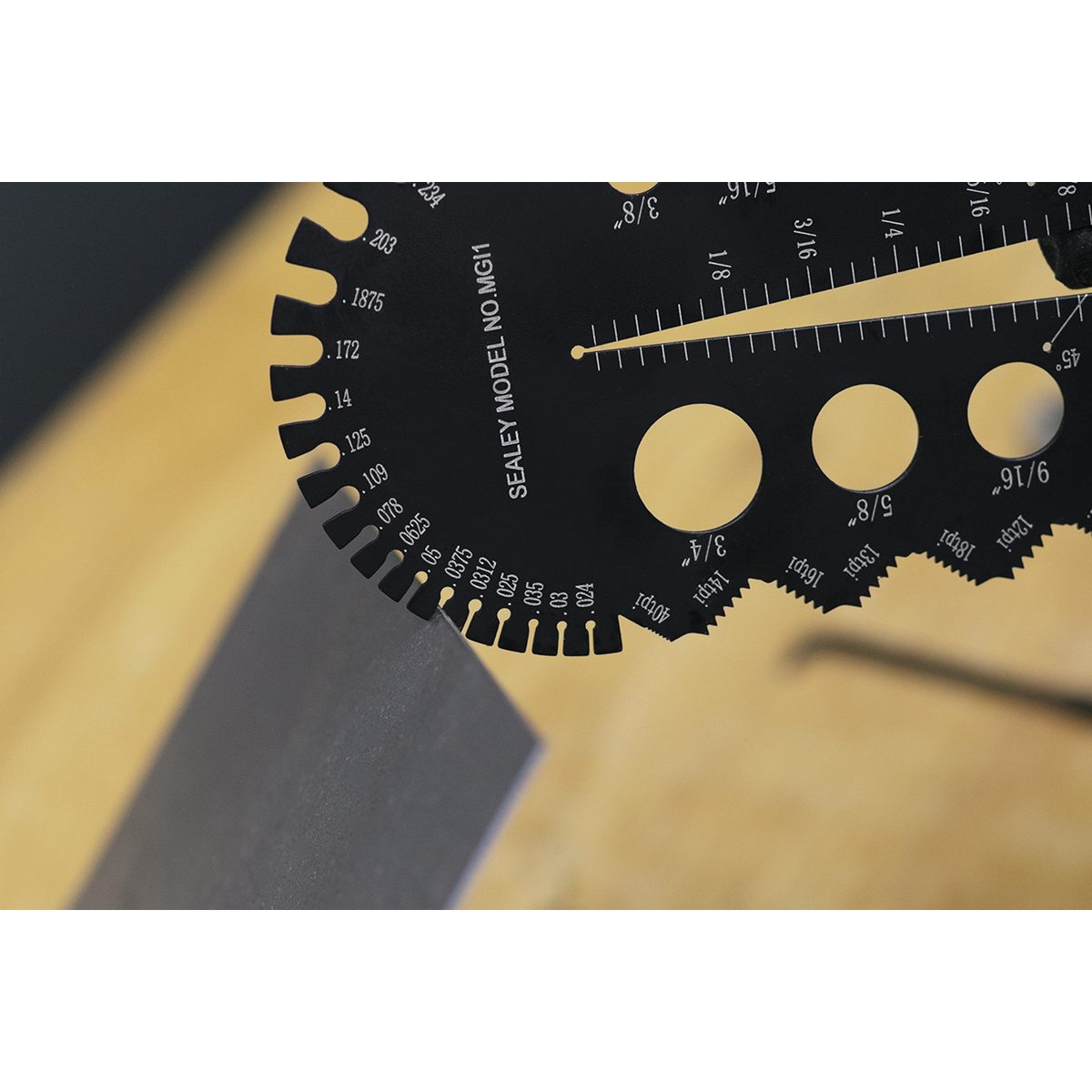

- Wire Gauge: 0.024", 0.03", 0.035", 0.025", 0.0312", 0.0375", 0.05", 0.0625", 0.078", 0.109", 0.125", 0.14", 0.172", 0.1875", 0.203", 0.234", 0.25".

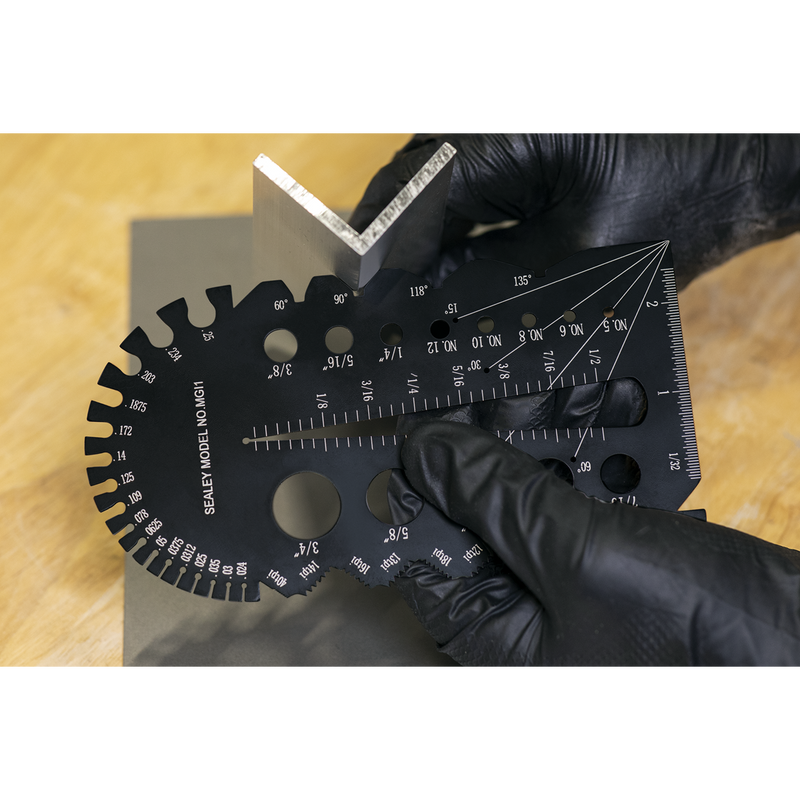

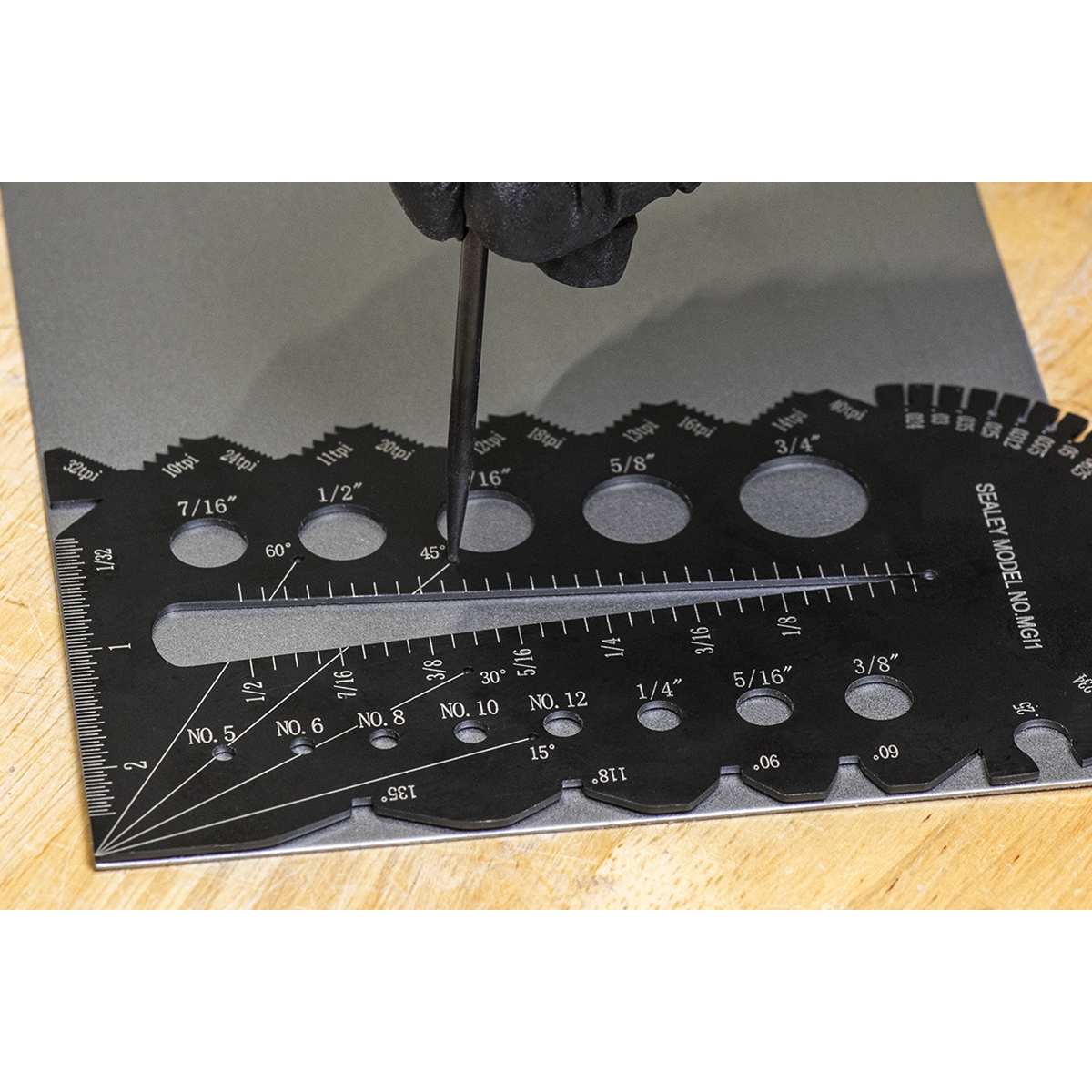

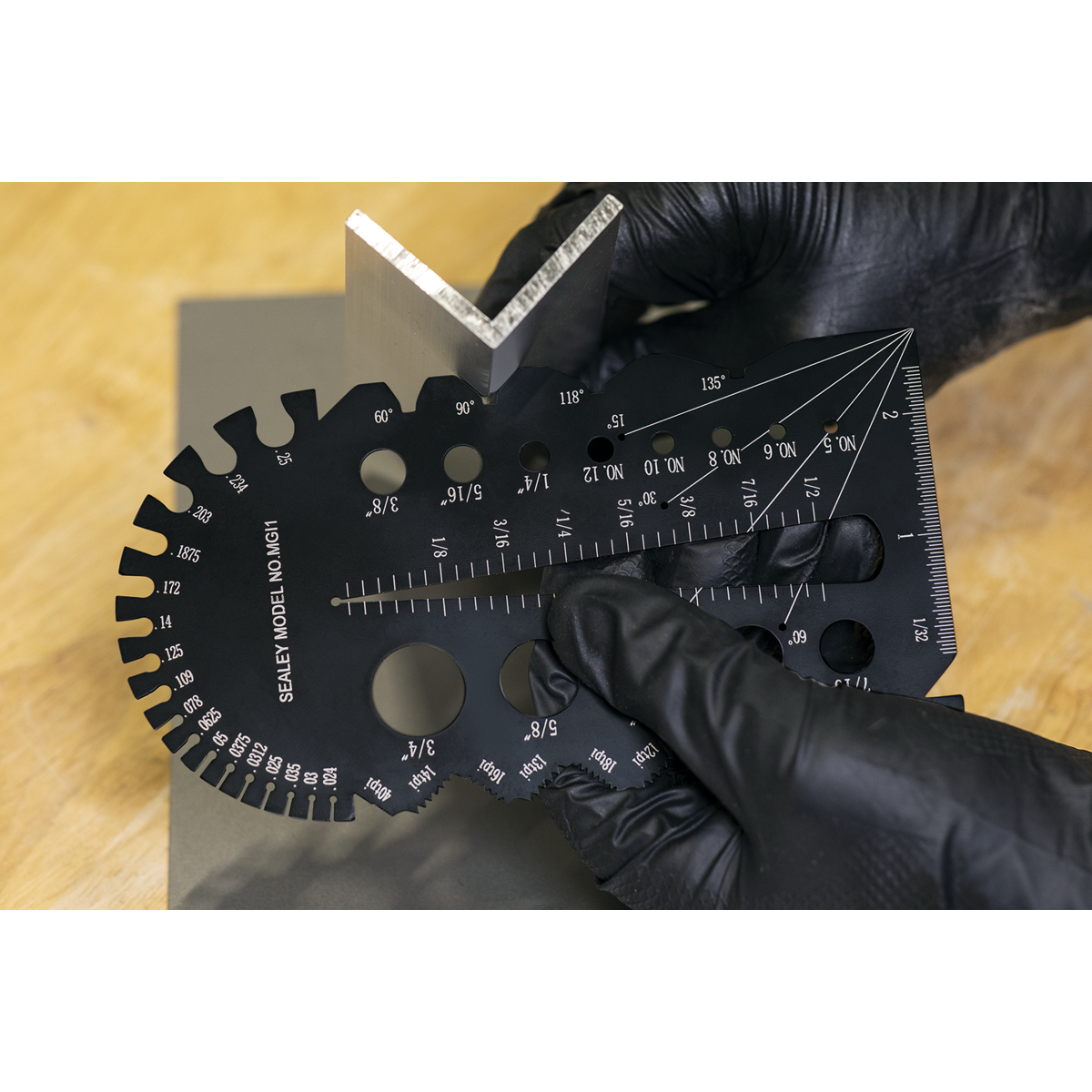

- Square: 15 Degree, 30 Degree, 45 Degree, 60 Degree, 90 Degree.
- Drill Point Angle: 60 Degree, 90 Degree, 118 Degree, 135 Degree.

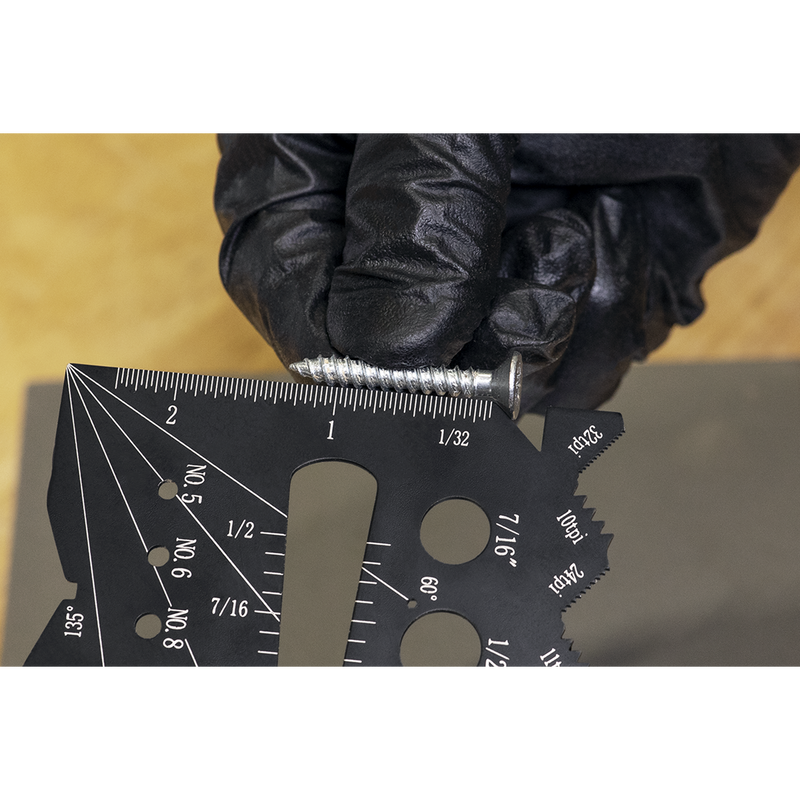

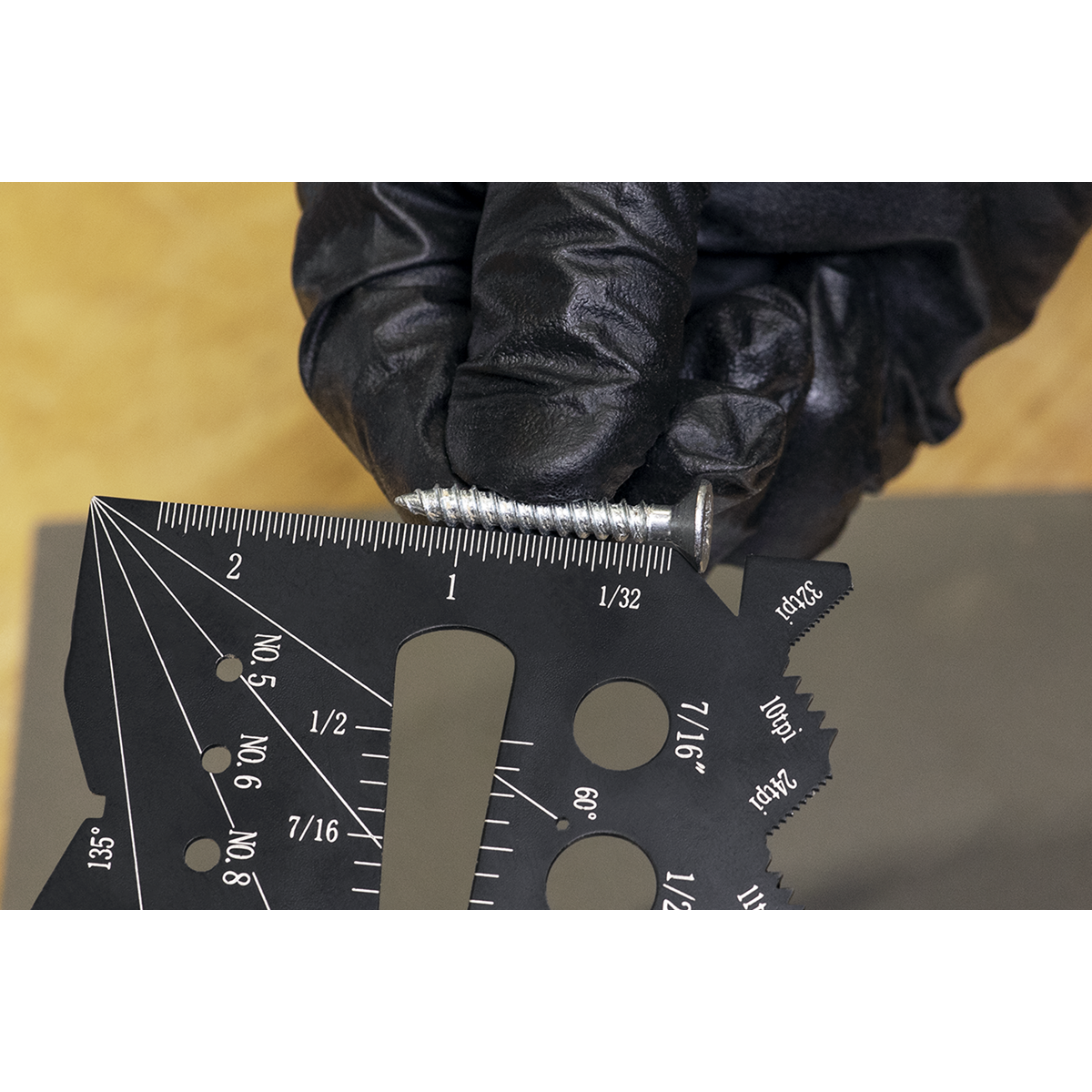

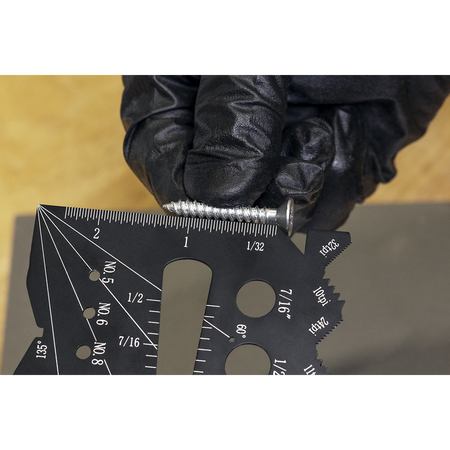

- Bolt screw length: 0-2-3/8".

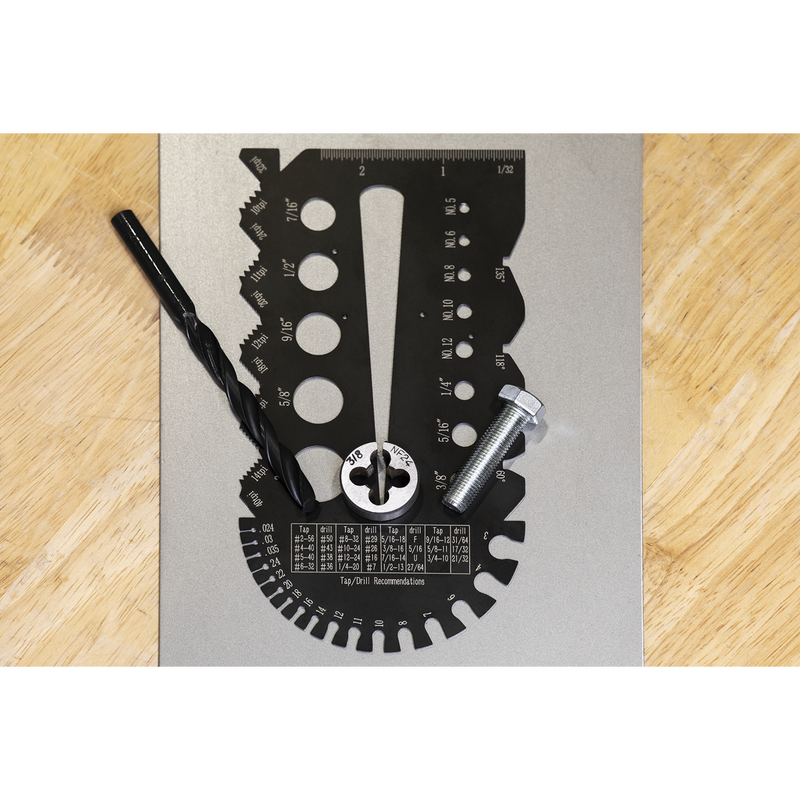

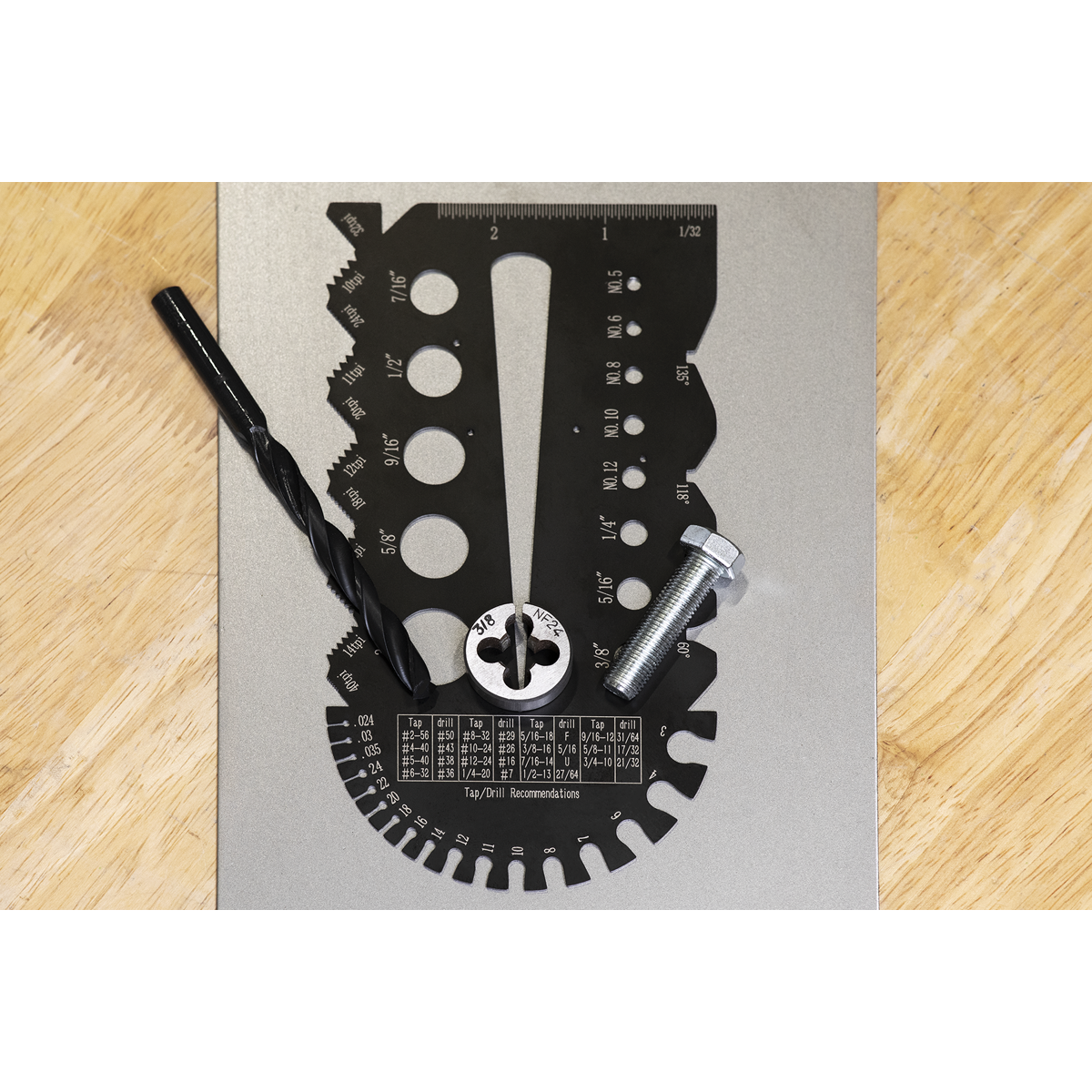

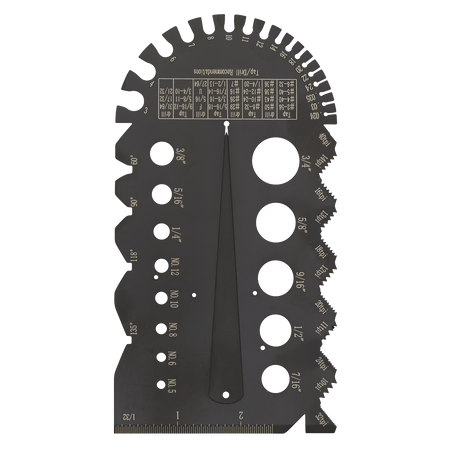

- Tap/Drill Recommendation: #2-3/4".

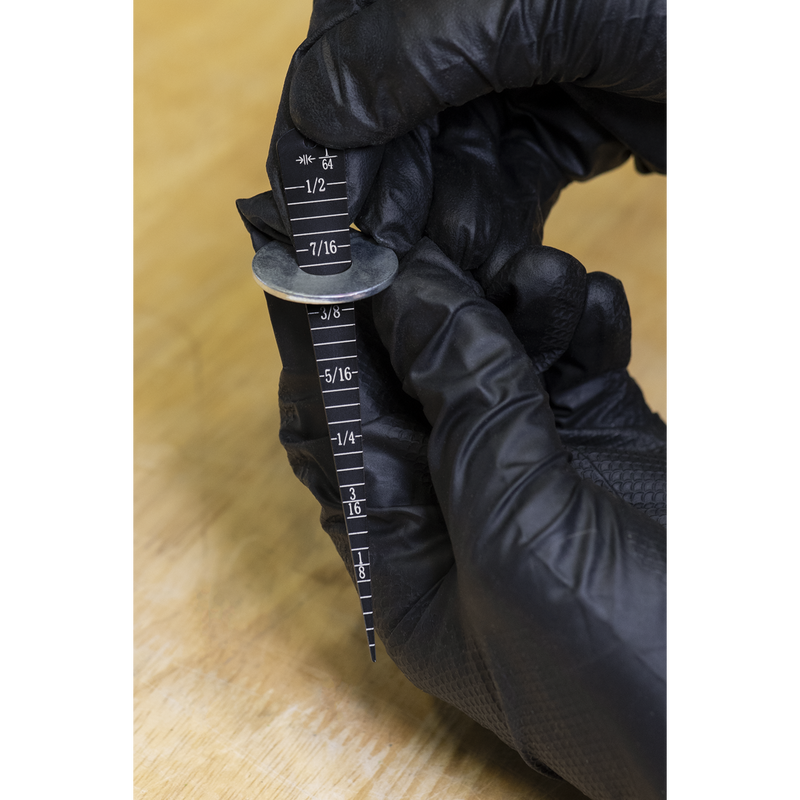

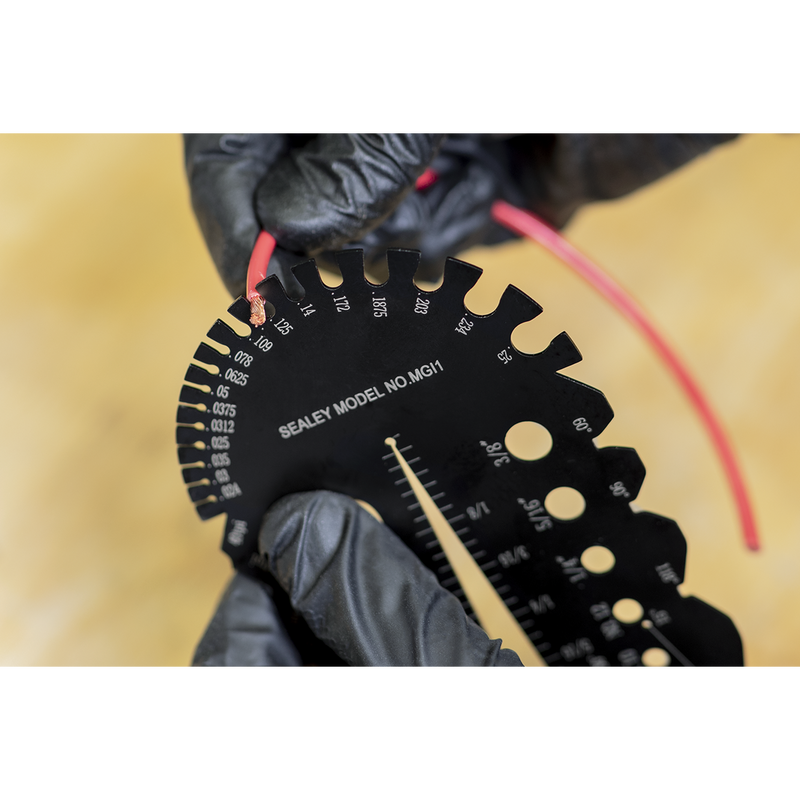

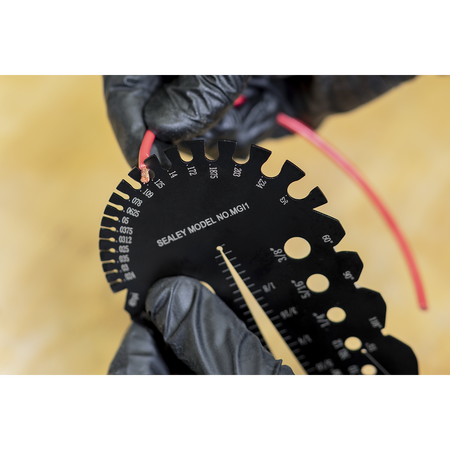

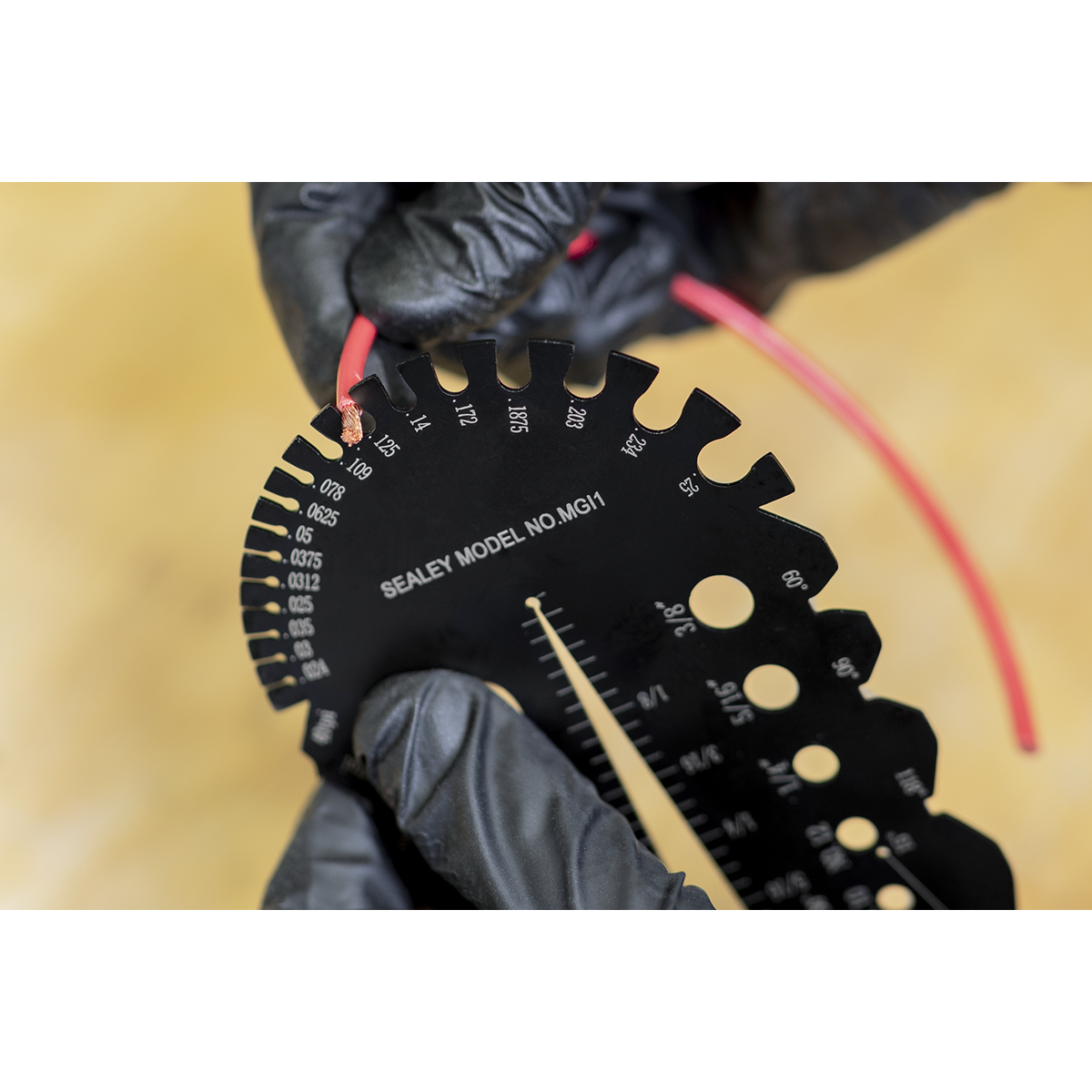

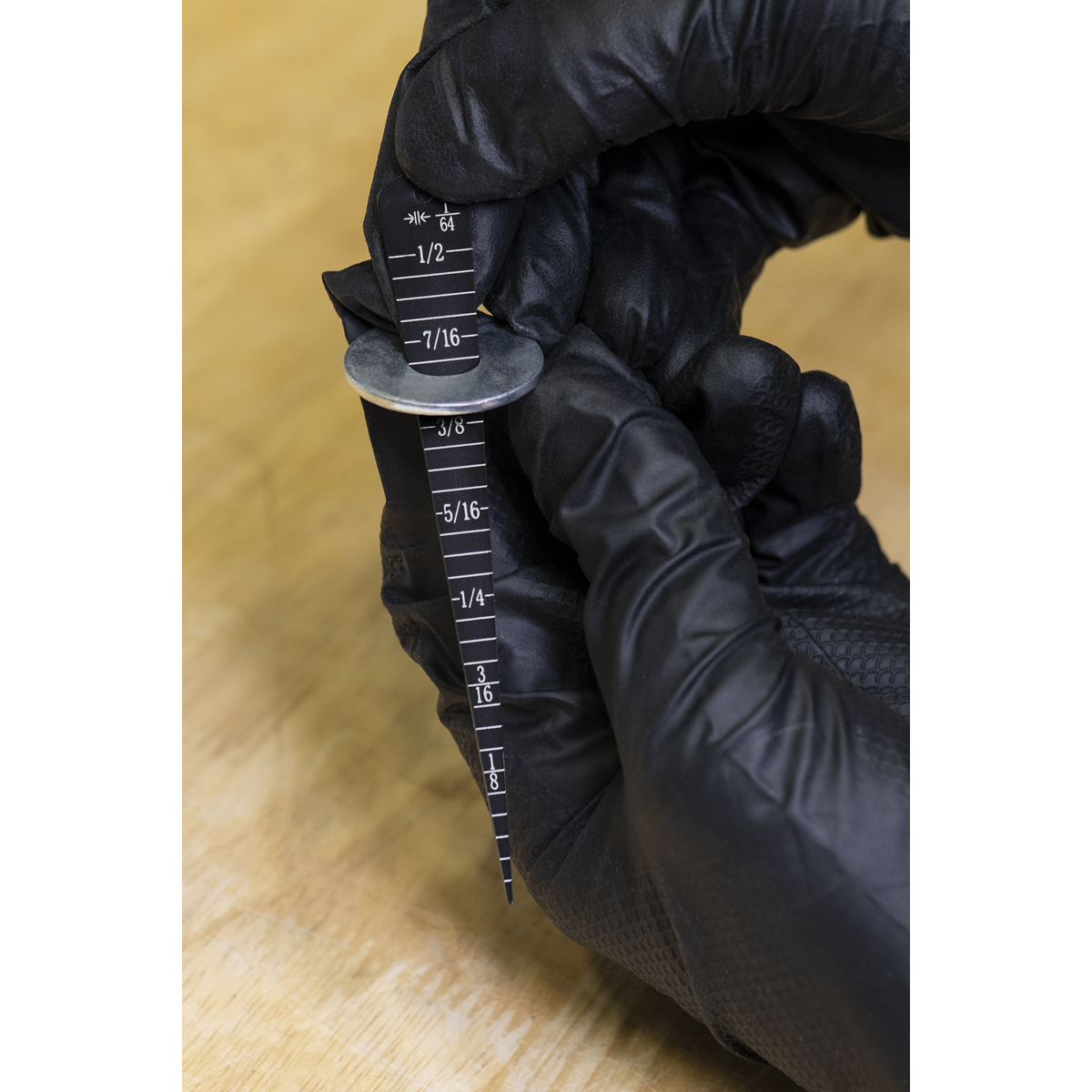

- Checks the thickness of washers and diameter of electric wire.

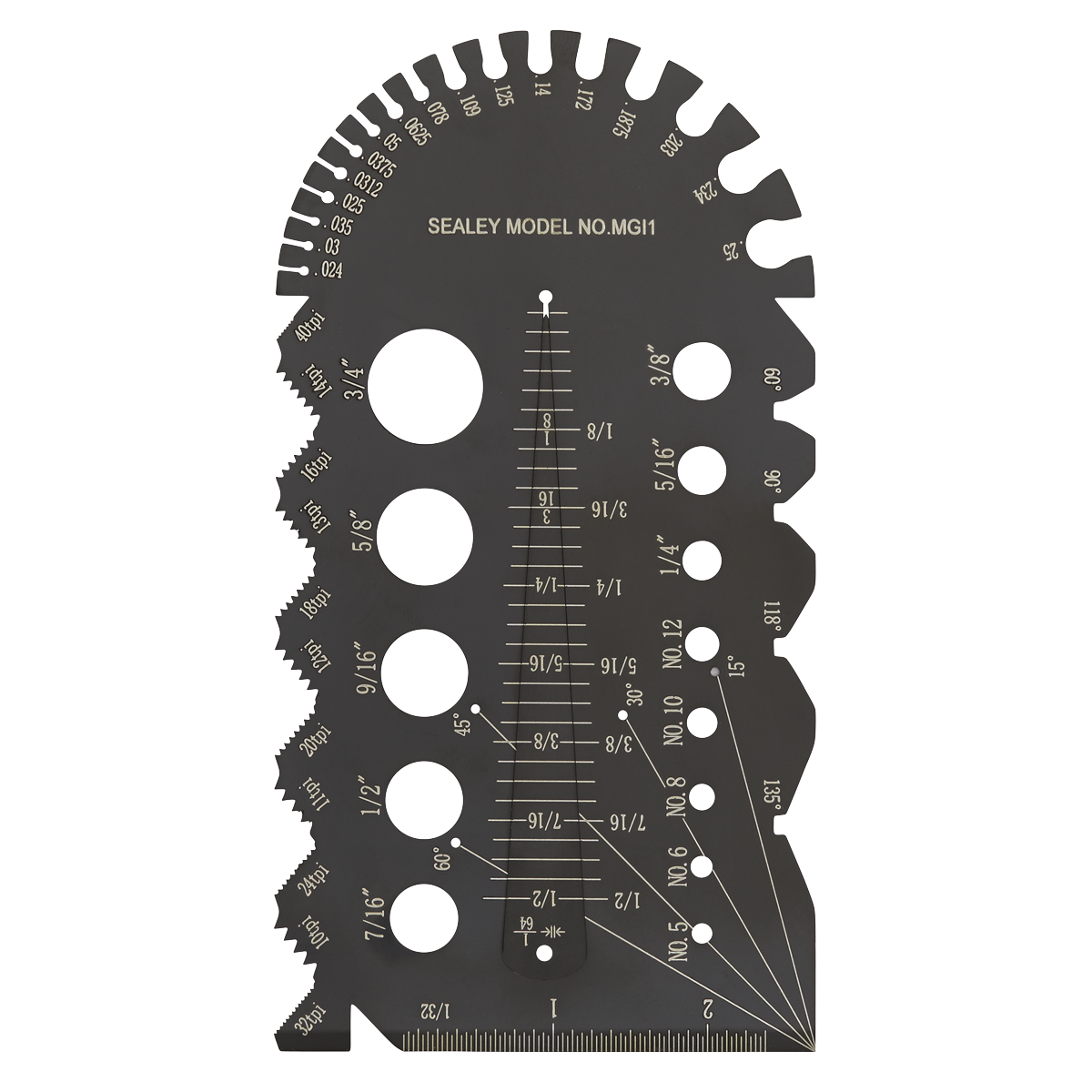

- Model No. MGI1
