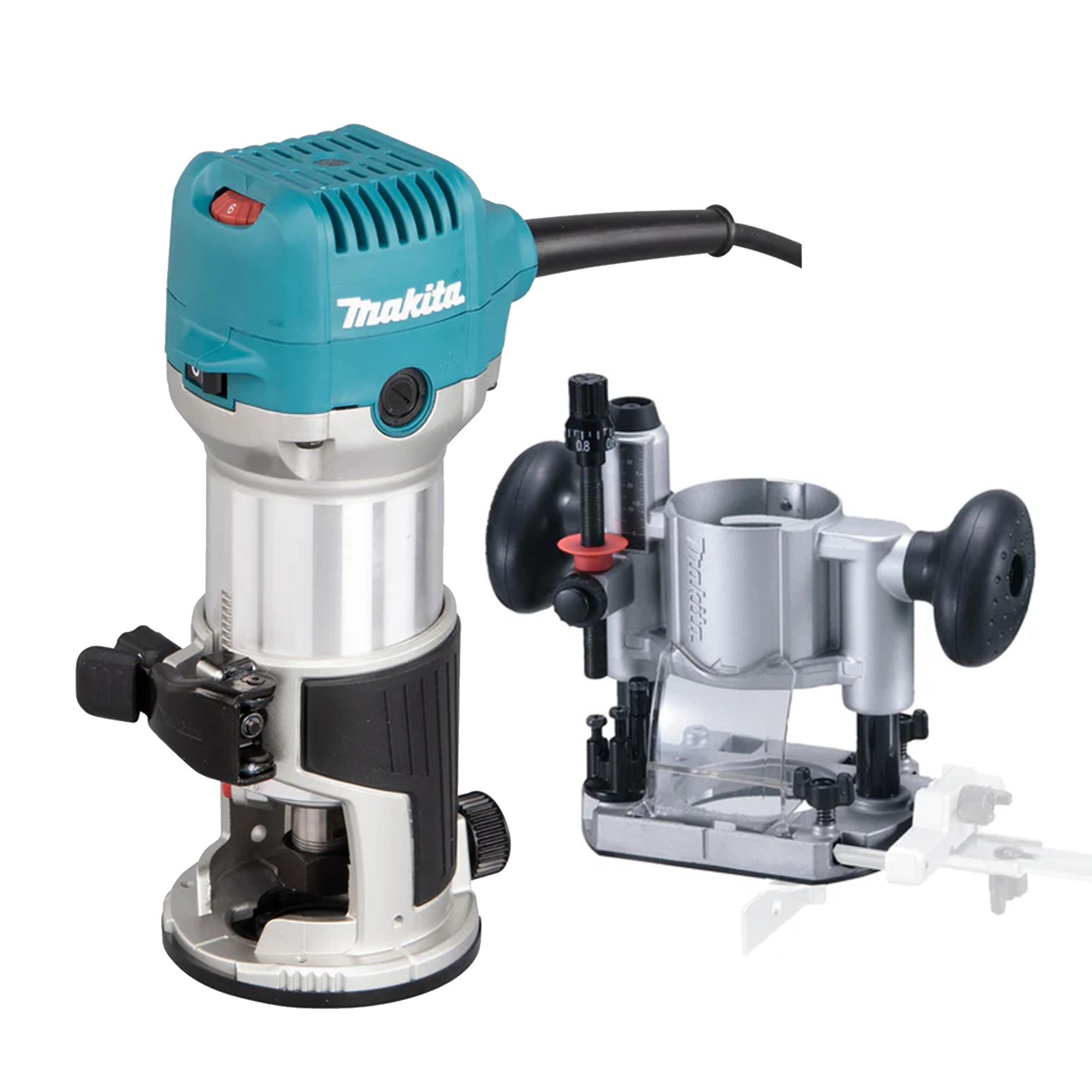

Makita RT0702CX4/2 Versatile trimmer and 195563-0 Plunge base set

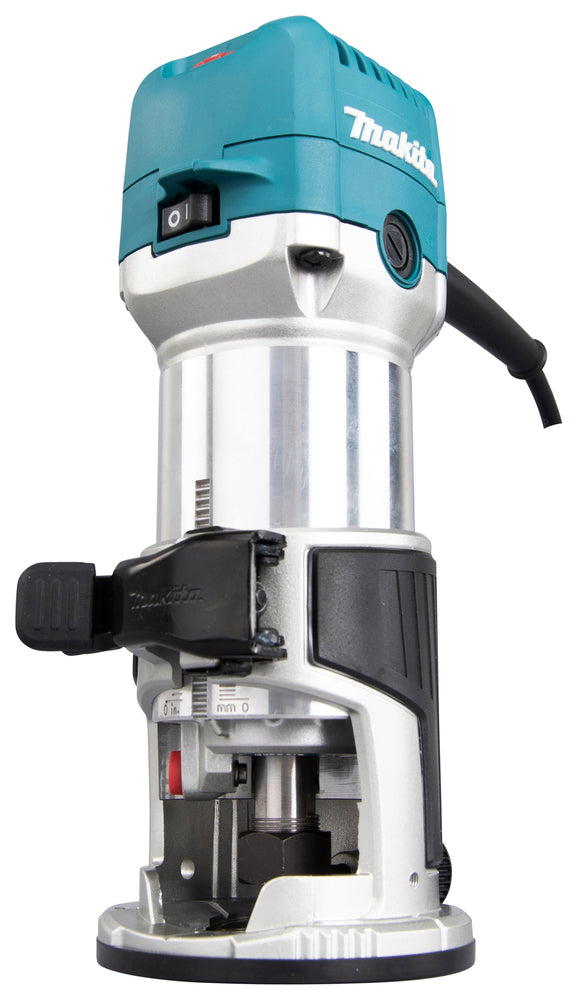

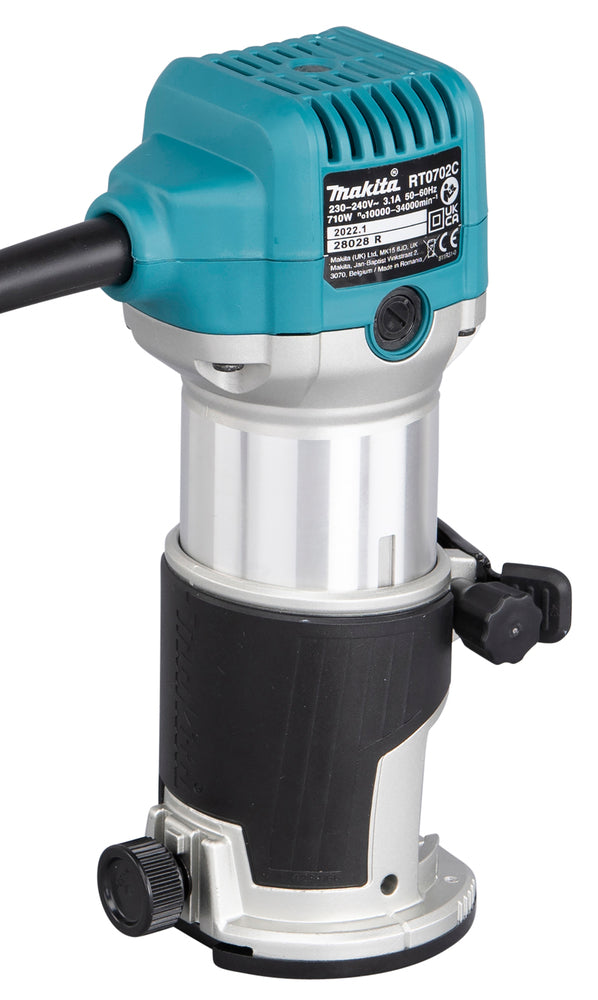

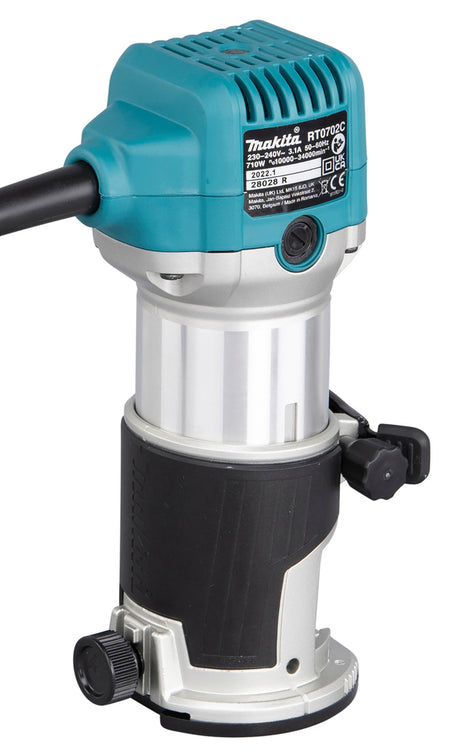

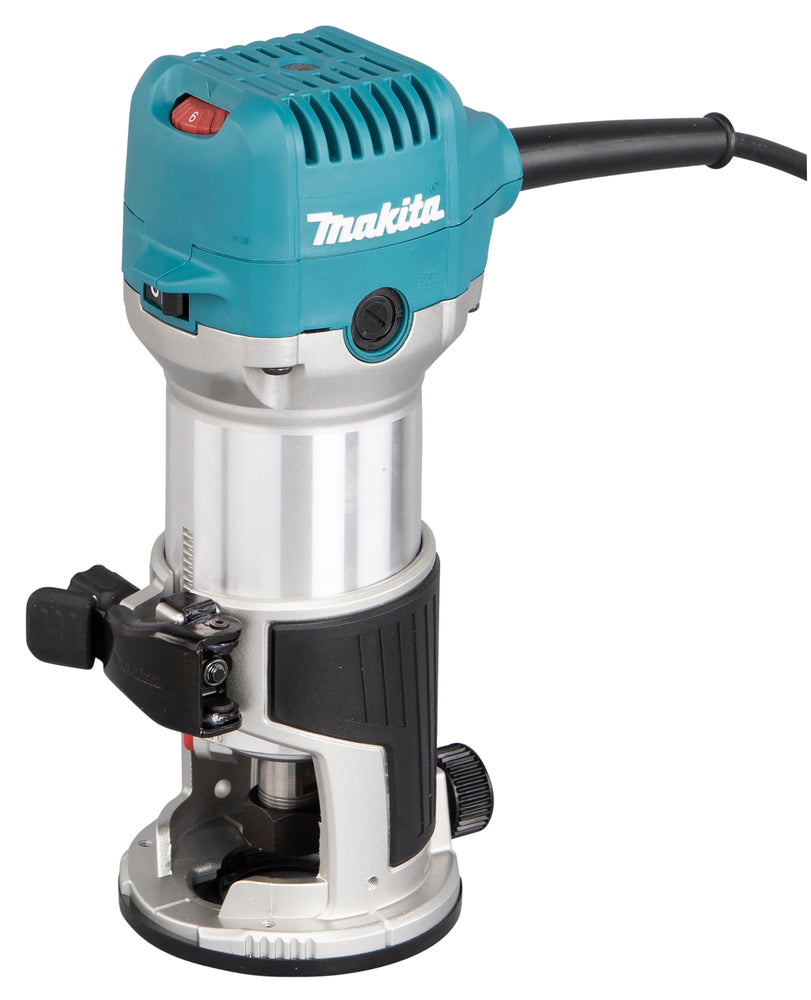

RT0702C

Handy trimmer for carpentry or hobbies. With this router trimmer, you can cut various grooves or decorative edges in wood. Compatible with 6 and 8 mm collets. A wide range of accessories for converting the trimmer to a router, for example.

• Slim and ergonomically designed body for increased comfort

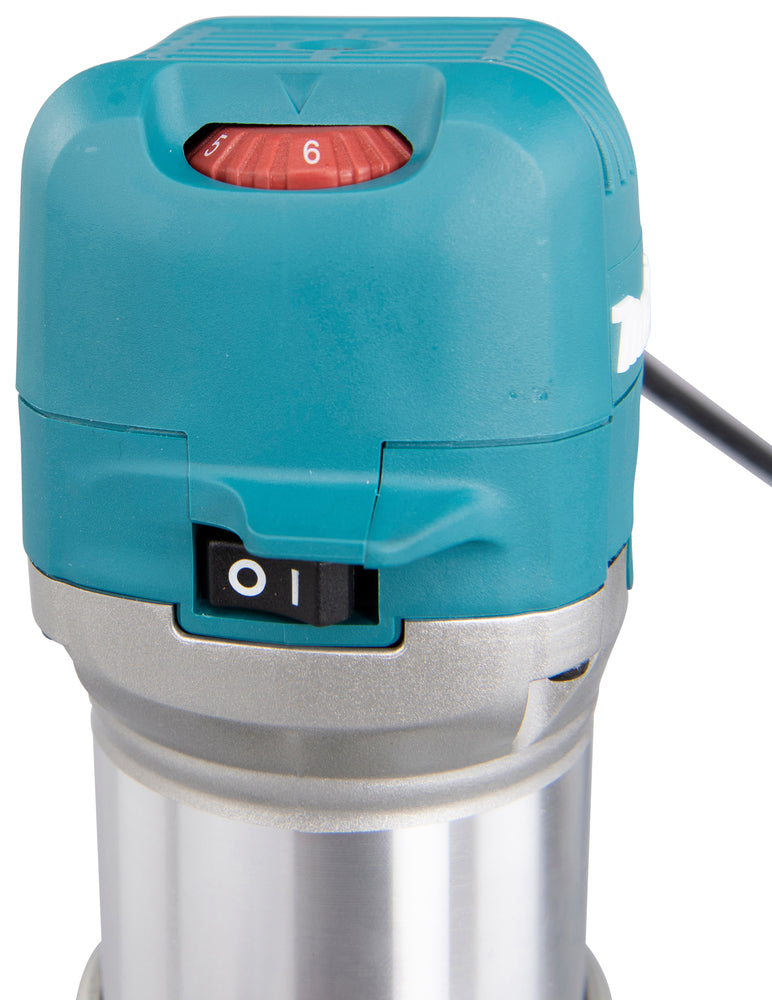

• Soft start for smooth start-ups
• Anti-restart function minimises accidental start-up
• Different base assemblies for added versatility

Technical Specification:

Continuous Input Power - 710 W
No load speed - 10000 - 34000 min⁻¹
Plunge capacity - 0 - 40 mm
Plunge capacity with plunge base - 0 - 35 mm
Plunge capacity with trimmer base - 0 - 40 mm
Collet Capacity - 6 / 8 mm
Power Supply Cord - 2,5 m
Sound Power Level (LWA) - 93 dB(A)
Sound Pressure Level (LpA) - 85 dB(A)
Noise Uncertainty (K Factor) - 3 dB(A)
Weight Without Cable - 1,8 - 2,8 kg
Product Dimensions (L x W x H): - 89 x 89 x 210 mm
Vibration Level, Rotation Without Load - ≤ 2,5 m/s²
Vibration Uncertainty (K Factor), Rotation Without Load - 1,5 m/s²
Vacuum cleaner connection Ø in / out - 32/37 mm

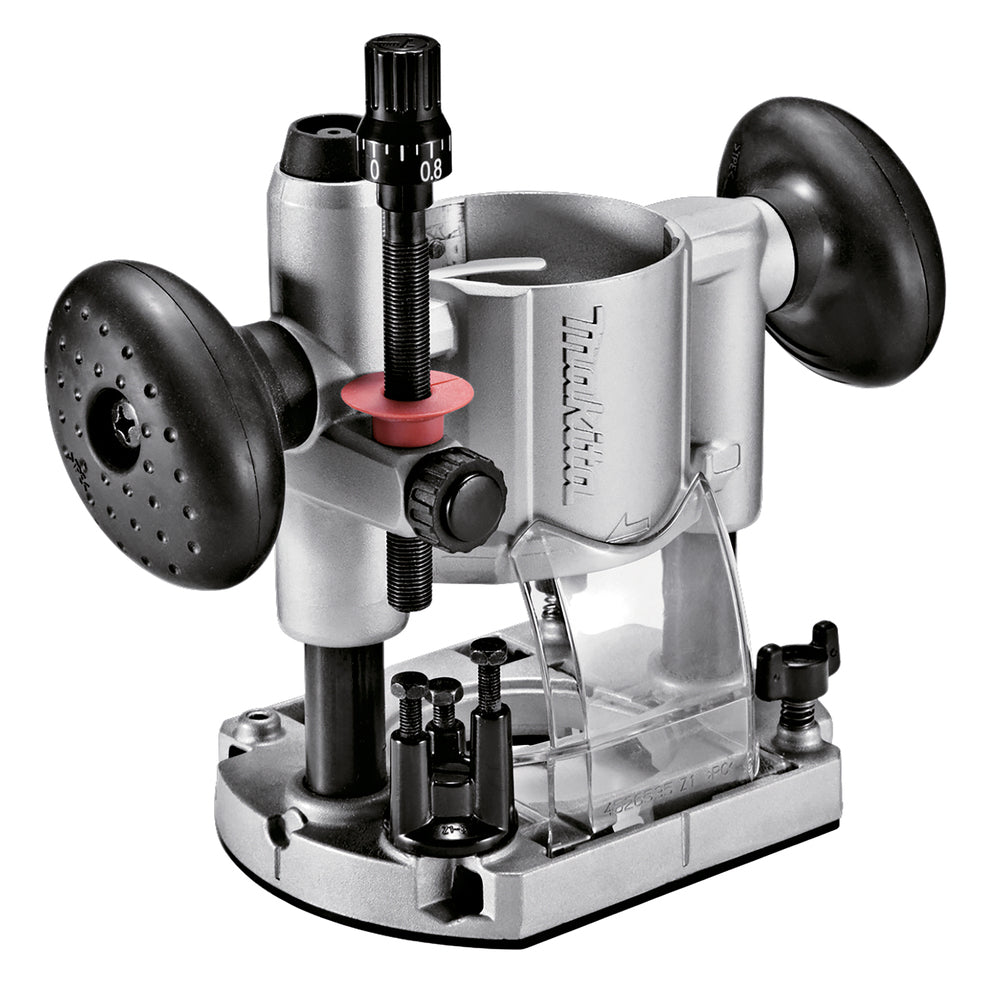

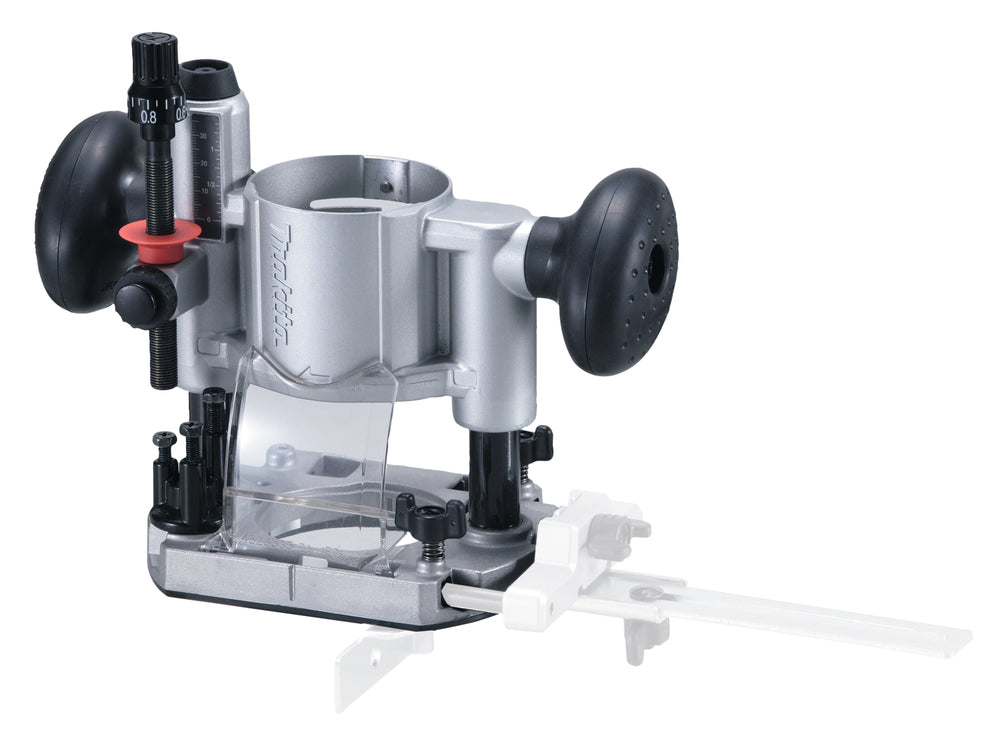

195563-0

The 195563-0 plunge base set enables the router to easily penetrate into the work base and is equipped with 4-way adjustable head part with catches at 0, 45, 90 and 110 degrees, fine depth adjustment with 3 preset depth stops for added precision and plunge capacity of 0 to 35mm.

195563-0 has a conveniently located easy to operate lock lever, rubberised soft grip and replaceable, non-marking plastic base for protection and smooth sliding on the work piece and 2 handle body grip for comfort in use and stable operation.

The 195563-0 has a highly durable lightweight aluminium base, accepts standard template guides and is compatible with the Makita guide rail system when used with a guide rail adapter (sold separately).

• 3 preset depths
• 0"-1-3/8" plunge depth
• With 4-way adjustable head part with catches at 0°, 45°, 90° and 110°
• Removable clear plastic shield
• Power source type: AC/DC
