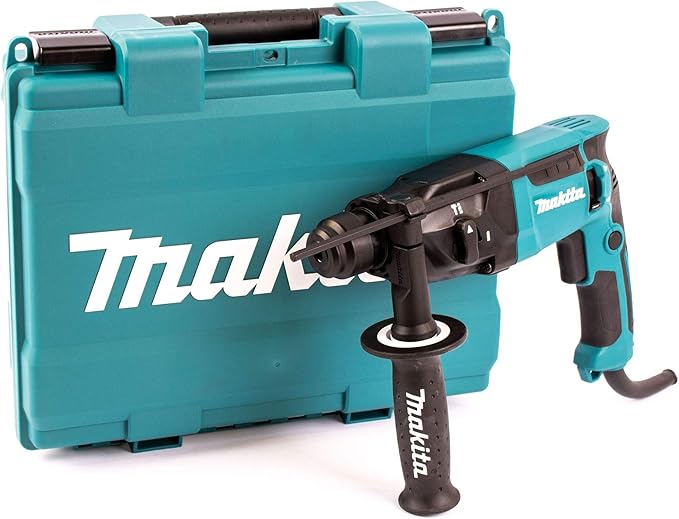

A small and light rotary hammer compatible with SDS-PLUS bits. Suitable for drilling and impact drilling. Motor capacity of 470 W and speed can be adjusted between 0 and 2 100 min-1 from a switch. Impact energy of 1.4 J and optimal drilling range of 4 – 10 mm in concrete. Max. drilling capacity of 18 mm in concrete.
- The rubber coating on the handle ensures a firm working grip
- Right / left rotation
- Impact drilling, non-impact drilling and spike function
Technical Specification:
Continuous Input Power -Â 470 W
No load speed - 0 - 2100 minâ»Â¹
Impacts per Minute (IPM) - 0 - 4800 minâ»Â¹
Max. Drilling Diameter in Wood -Â 24 mm
Max. Drilling Diameter in Concrete -Â 18 mm
Max. Drilling Diameter in Steel -Â 13 mm
Optimum Drilling Diameter Range in Concrete -Â 4 - 10 mm
Impact Energy -Â 1,4 J
Adapted for SDS-PLUS bits - Yes
Power Supply Cord -Â 2,5 m
Sound Power Level (LWA) -Â 98 dB(A)
Sound Pressure Level (LpA) -Â 87 dB(A)
Noise Uncertainty (K Factor) -Â 3 dB(A)
Weight Without Cable -Â 2,4 kg
Vibration Level, Hammer Drilling Into Concrete - 9,8 m/s²
Product Dimensions (L x W x H): -Â 285 x 75 x 208 mmÂ
Vibration Uncertainty (K Factor), Hammer Drilling Into Concrete - 1,5 m/s²
