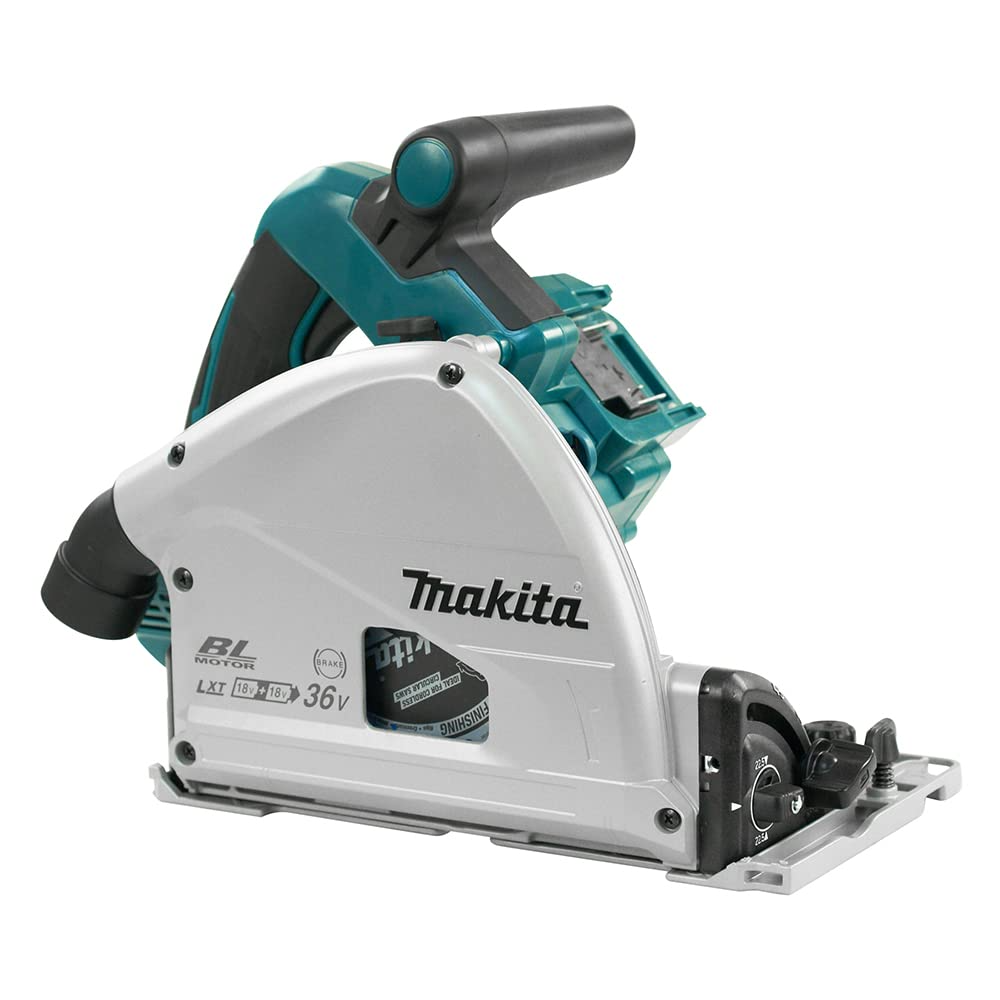

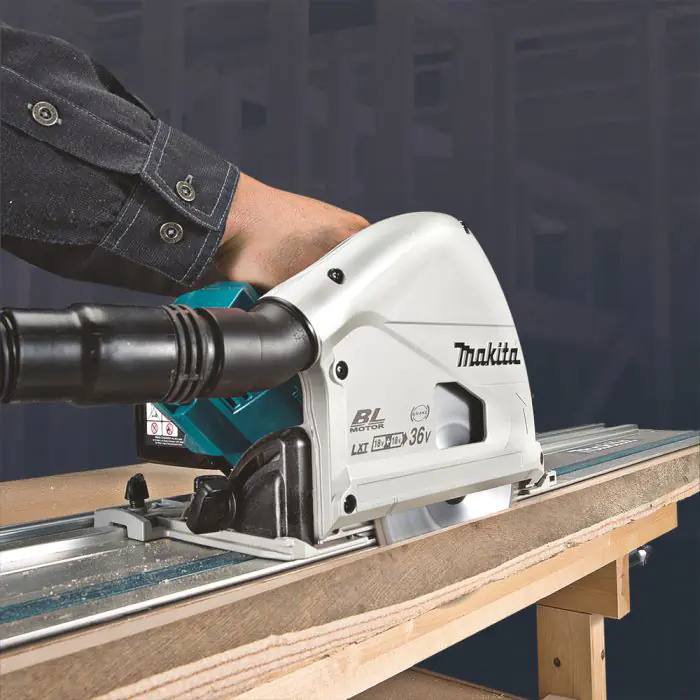

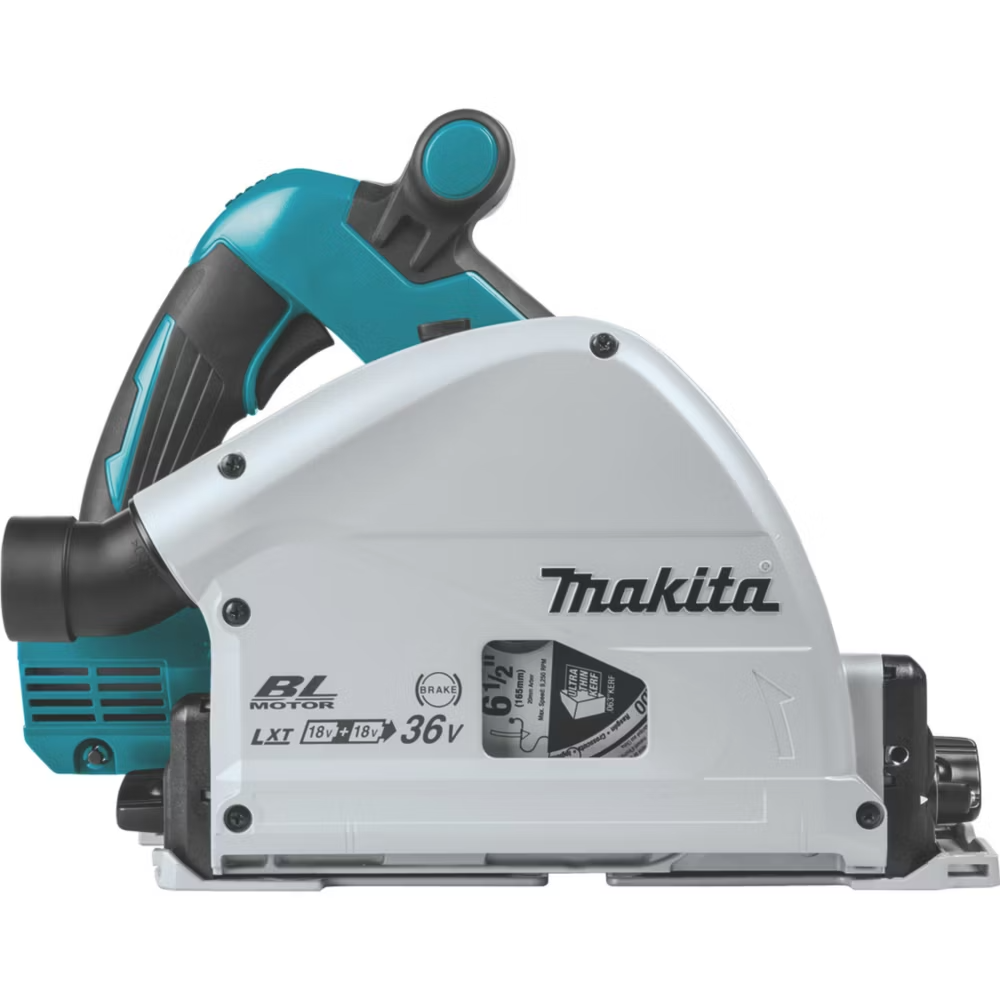

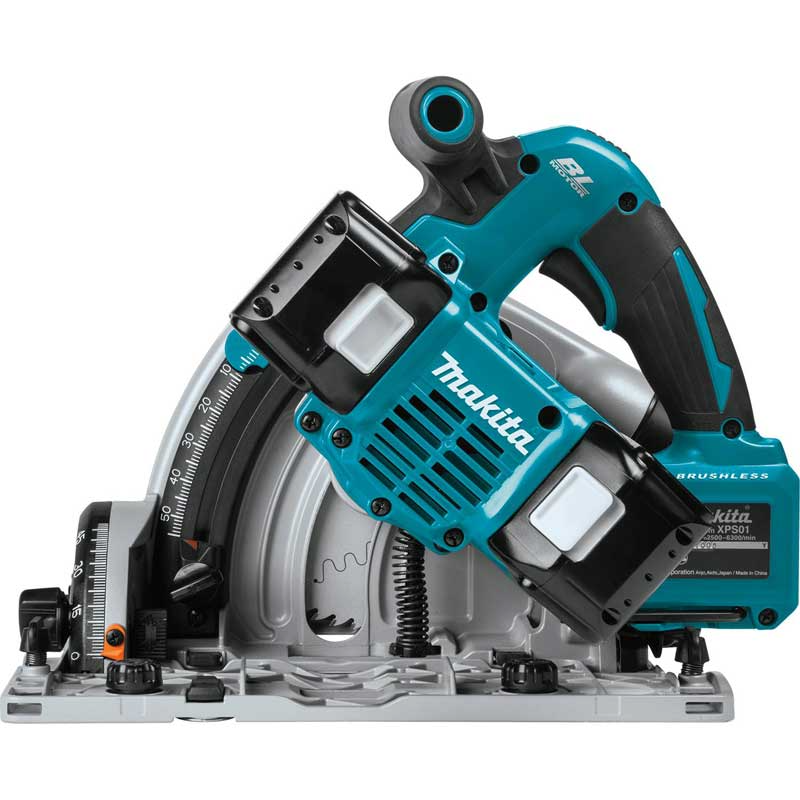

A precise plunge cut circular saw with a brushless motor. Two 18V LXT® batteries offer a voltage of 36V. This fast saw has an adjustable speed of between 2 500 and 6 300 min-1. Achieves neat cutting results when used with a guide rail.
- Brushless maintenance-free and long-life motor
- Soft start for smooth start-ups
- ADT (Automatic torque Drive Technology) adjusts speed and torque during operation for optimum performance
- Electric brake for maximum productivity and increased operator safety
- Variable speed control dial enables user to match the speed to the application for greater versatility
- Battery protection system automatically shuts off power when the battery level is low
- Body Only Machine
Technical Specifications:

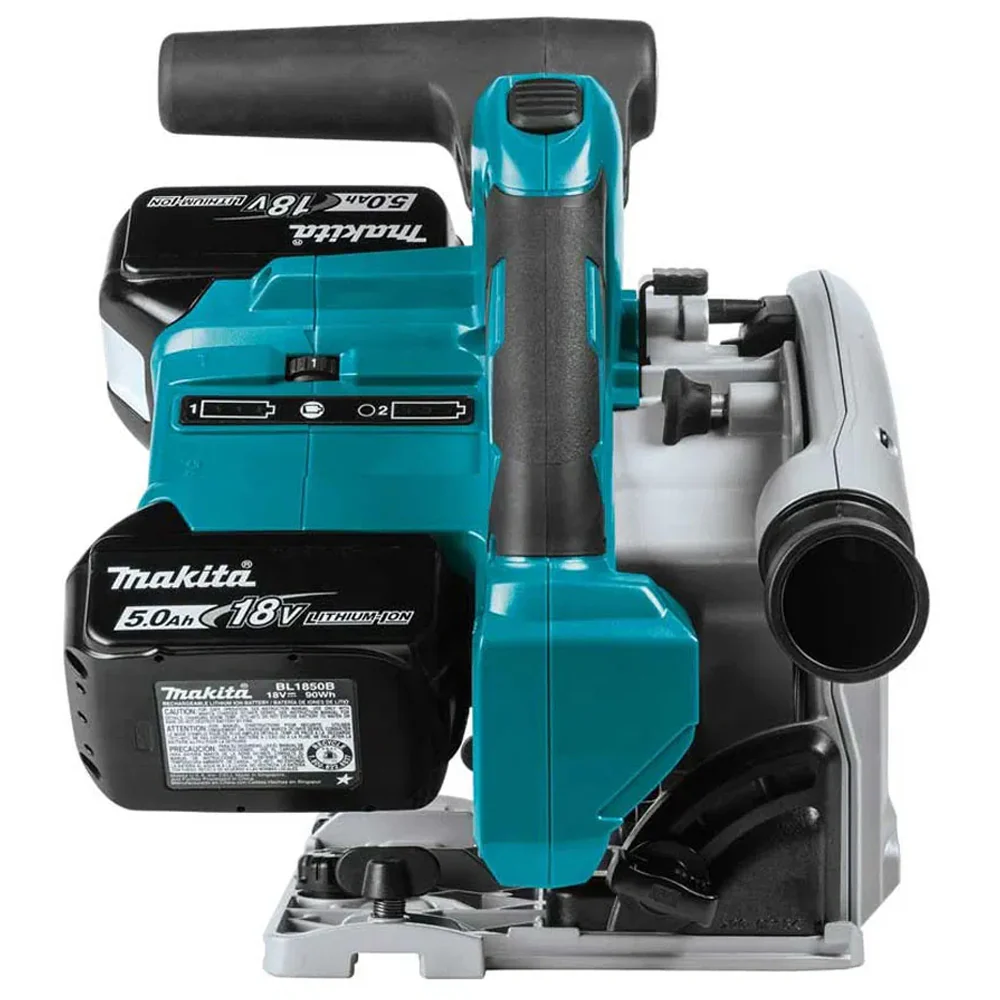

Nominal Battery Voltage - 2 x 18 V
Voltage LXT
Max. Cutting Depth at 90° - 56 mm
Max. Cutting Depth at 45° - 40 mm
No load speed - 2500 - 6300 min⁻¹
Sound Power Level (LWA) - 103 dB(A)
Sound Pressure Level (LpA) - 95 dB(A)
Noise Uncertainty (K Factor) - 3 dB(A)
Tool weight with battery - 4,4 - 5,1 kg
Product Dimensions (L x W x H): - 346 x 241 x 272 mm
Brushless Motor
Max. Cutting Depth at 48° - 38 mm
Battery Chemistry (Ni-Cd / Ni-MH / Li-ion) - Li-ion

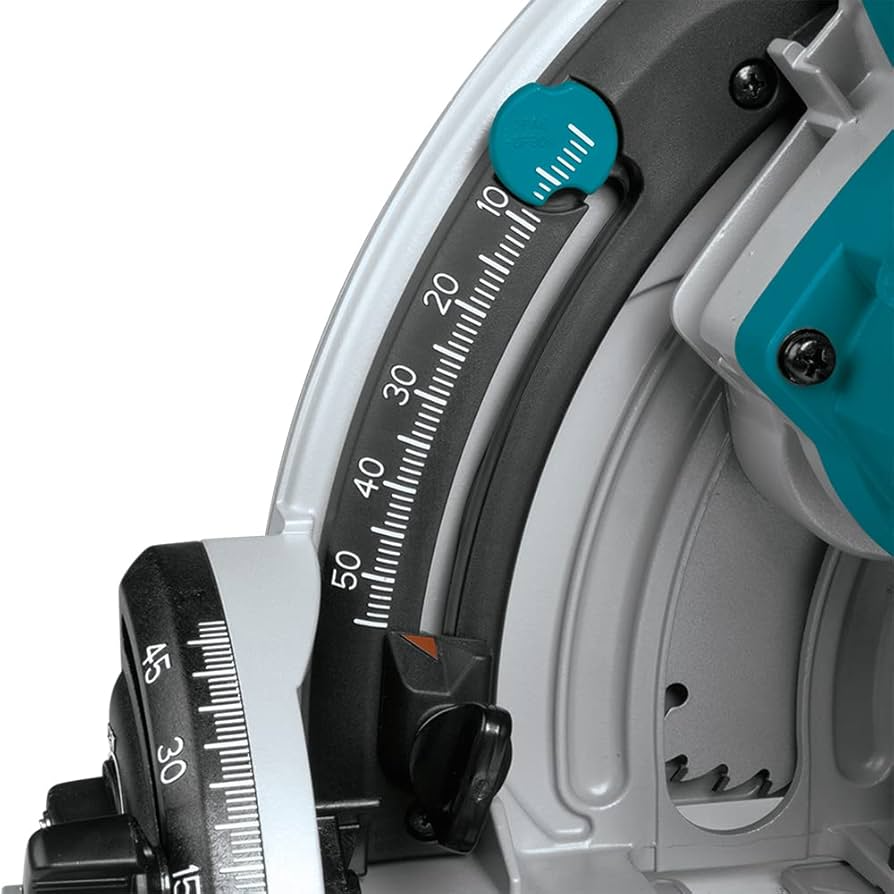

Max. Bevel Range (Right) - -1 - 48 º
Blade Diameter - 165 mm
Bore Size (Arbor Diameter) - 20 / 30 mm
Electronic brake
Vibration Level, Cutting Wood - ≤ 2,5 m/s²
Vibration Uncertainty (K Factor), Cutting Wood - 1,5 m/s²
Vibration Level, Cutting metal - ≤ 2,5 m/s²
Vibration Uncertainty (K Factor), Cutting metal - 1,5 m/s²
Vacuum cleaner connection Ø in / out - 35 / 43 mm
