Technical Specification:
Nominal Battery Voltage - 18 V
Battery Chemistry (Ni-Cd / Ni-MH / Li-ion) - Li-ion
DHP484:
Nominal Battery Voltage: - 18 V
Battery Chemistry (Ni-Cd / Ni-MH / Li-ion): - Li-ion
No load speed: - 0 - 500 / 2000 min⁻¹
Max. fastening torque Hard/Soft: - 54 / 30 Nm
Max Torque: - 65 Nm
Torque setting: - 21
Impacts per Minute (IPM): - 0 - 7500 / 30000 min⁻¹
Max. Drilling Diameter in Masonry: - 13 mm
Max. Drilling Diameter in Concrete: - 13 mm
Max. Drilling Diameter in Steel: - 13 mm
Drilling Capacity Wood (Auger Bit): - 38 mm
Drilling Capacity Wood (Self-feed bit): - 38 mm
Drilling Capacity Flat bit: - 38 mm
Drilling Capacity Hole Saw: - 51 mm
Driving Shank: - 1/2"-20UNF "
Drill Chuck Capacity: - 1,5 - 13 mm
Vibration Level, Drilling into metal: - ≤ 2,5 m/s²
Vibration Uncertainty (K Factor), Drilling into metal: - 1,5 m/s²
Vibration Level, Impact Drilling into Concrete: - 8,0 m/s²
Vibration Uncertainty (K Factor), Impact Drilling into Concrete: - 1,5 m/s²
Sound Power Level (LWA): - 99 dB(A)
Sound Pressure Level (LpA): - 88 dB(A)
Noise Uncertainty (K Factor): - 3 dB(A)
Product Dimensions (L x W x H):: - 182 x 79 x 261 mm
Tool weight with battery: - 1,6 - 1,9 kg
Product net weight: - 1,2 kg

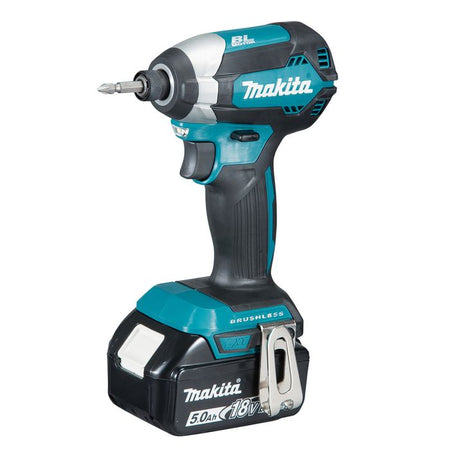

DTD153:
Nominal Battery Voltage: - 18 V
Battery Chemistry (Ni-Cd / Ni-MH / Li-ion): - Li-ion
No load speed:, - 0 - 3400 min⁻¹
Max Fastening Torque Impact Drill: - 170 Nm
Impacts per Minute (IPM): - 0 - 3600 min⁻¹
Tightening Capacity Standard Bolt: - M5 - M16
Driving Shank: - 1/4 "
Sound Power Level (LWA): - 107 dB(A)
Sound Pressure Level (LpA): - 96 dB(A)
Noise Uncertainty (K Factor): - 3 dB(A)
Vibration Level, Impact Tightening of Fasteners of the Maximum Capacity of the Tool: - 13,0 m/s²
Vibration Uncertainty (K Factor), Impact Tightening of Fasteners of the Maximum Capacity of the Tool: - 1,5 m/s²
Product Dimensions (L x W x H):: - 126 x 79 x 238 mm
Tool weight with battery: - 1,3 - 1,6 kg
