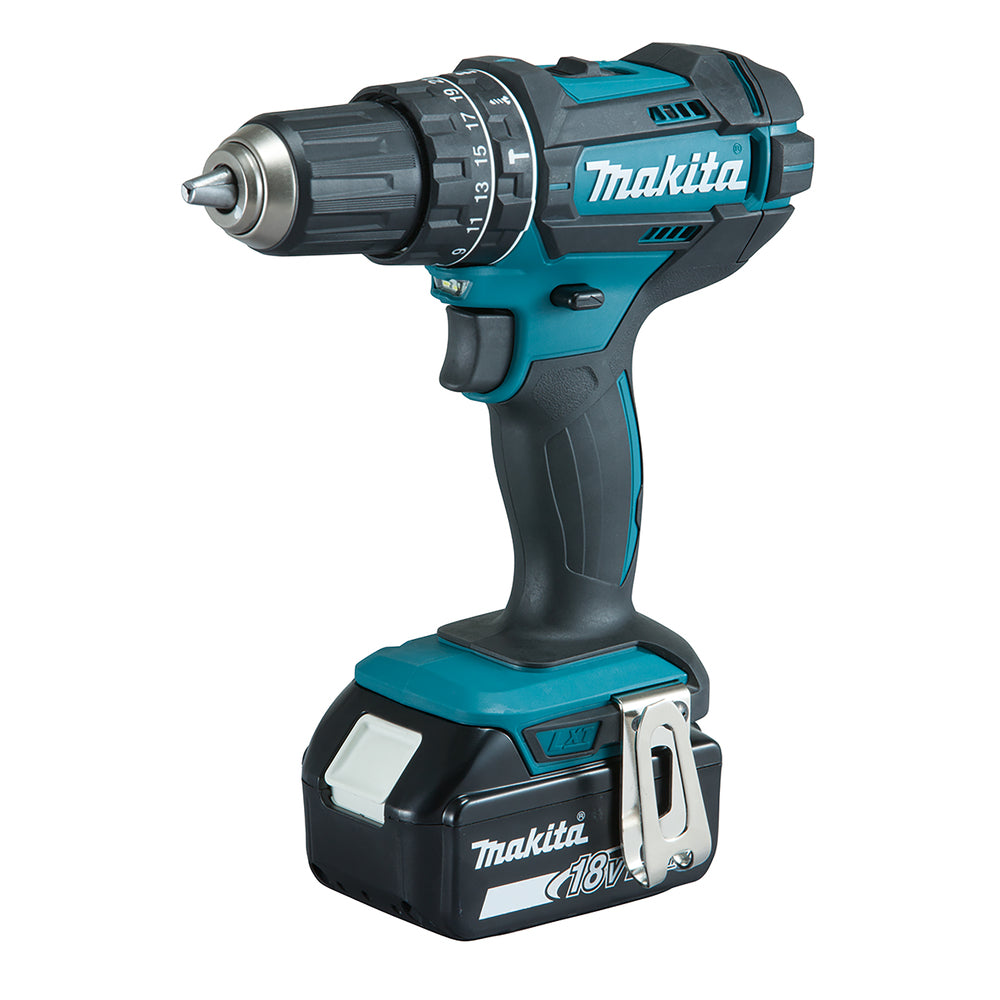

- Highly efficient and compact machine for professional use
- Battery protection system automatically shuts off power when the battery level is low
- Optimal handle design

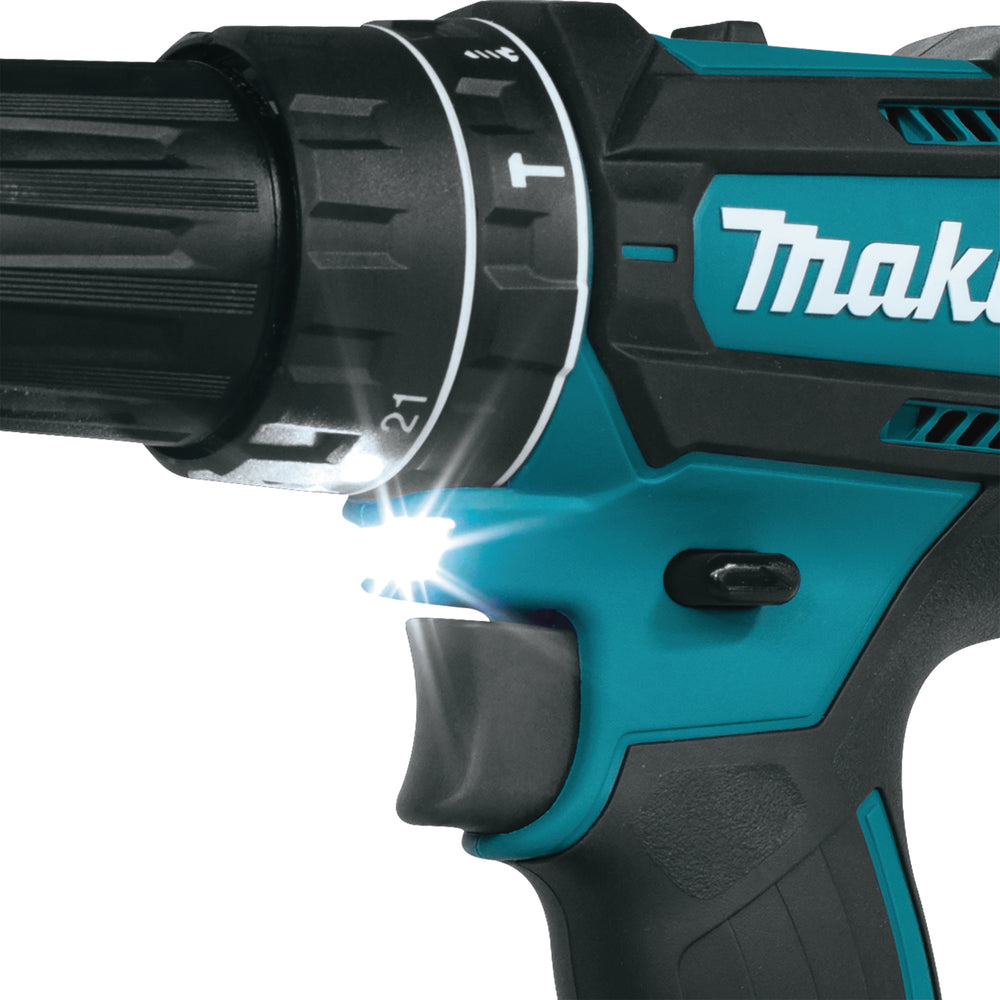

- LED light illuminates the work site
- Ergonomic handle for easy maneuvering
Technical Specification:
Nominal Battery Voltage - 18 V
Battery Chemistry (Ni-Cd / Ni-MH / Li-ion - Li-ion
No load speed - 0 - 600 / 1900 min⁻¹
Max. fastening torque Hard/Soft - 62 / 36 Nm
Max Torque - 64 Nm
Torque setting - 21
Impacts per Minute (IPM) - 0 - 9000 / 28500 min⁻¹

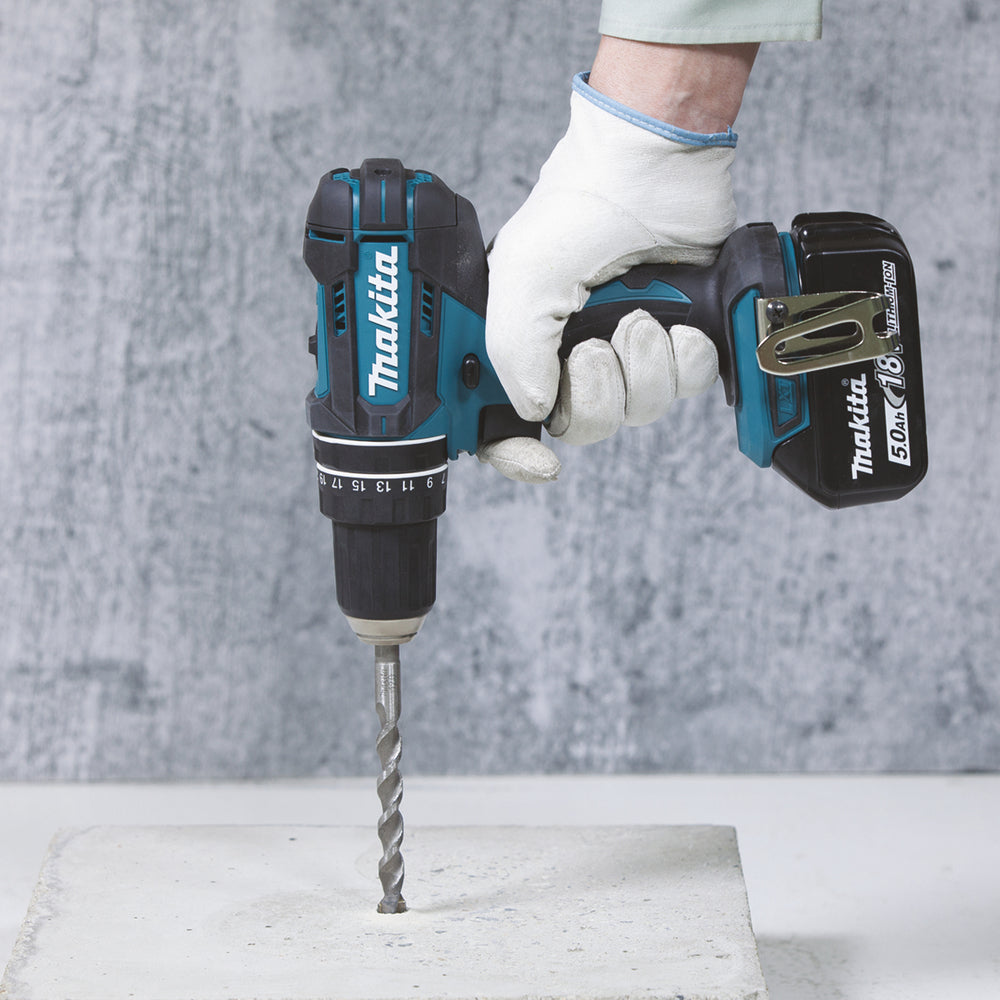

Max. Drilling Diameter in Masonry - 13 mm
Max. Drilling Diameter in Concrete - 13 mm
Max. Drilling Diameter in Steel - 13 mm

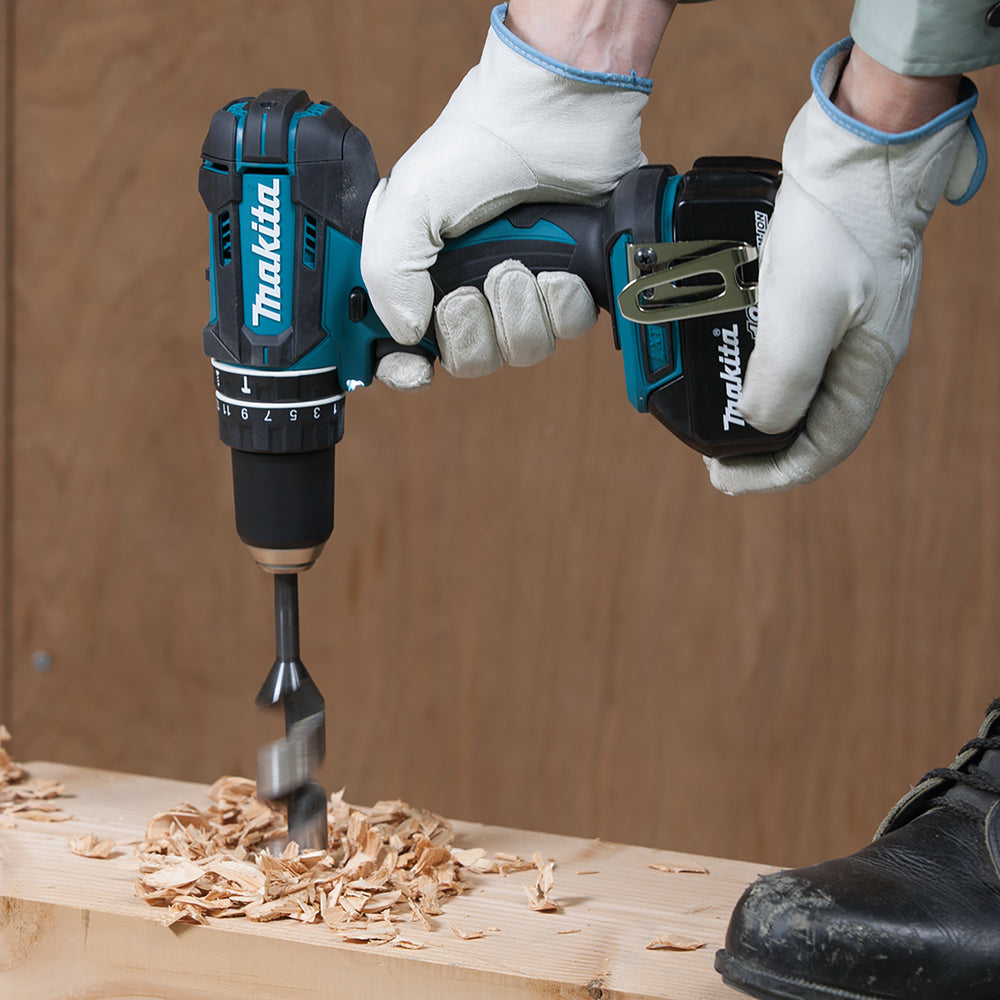

Drilling Capacity Wood (Auger Bit) - 38 mm
Drilling Capacity Wood (Self-feed bit) - 51 mm
Drilling Capacity Flat bit - 38 mm
Drilling Capacity Hole Saw - 51 mm
Driving Shank - 1/2"-20UNF "
Drill Chuck Capacity - 1,5 - 13 mm
Vibration Level, Drilling into metal - ≤ 2,5 m/s²
Vibration Uncertainty (K Factor), Drilling into metal - 1,5 m/s²
Vibration Level, Impact Drilling into Concrete - 6,0 m/s²
Vibration Uncertainty (K Factor), Impact Drilling into Concrete - 1,5 m/s²
Sound Power Level (LWA) - 93 dB(A)
Sound Pressure Level (LpA) - 82 dB(A)
Noise Uncertainty (K Factor) - 3 dB(A)
Product Dimensions (L x W x H): - 198 x 79 x 249 mm
Tool weight with battery - 1,5 - 1,8 kg
Product net weight - 1,2 kg

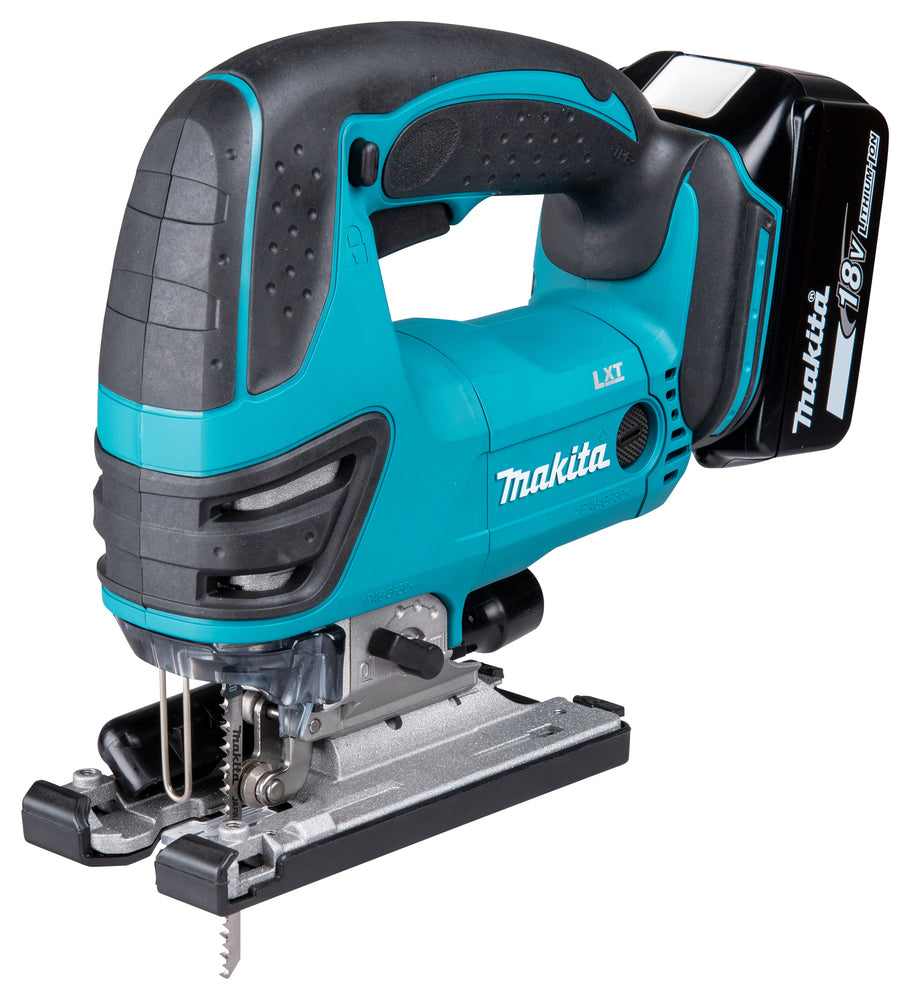

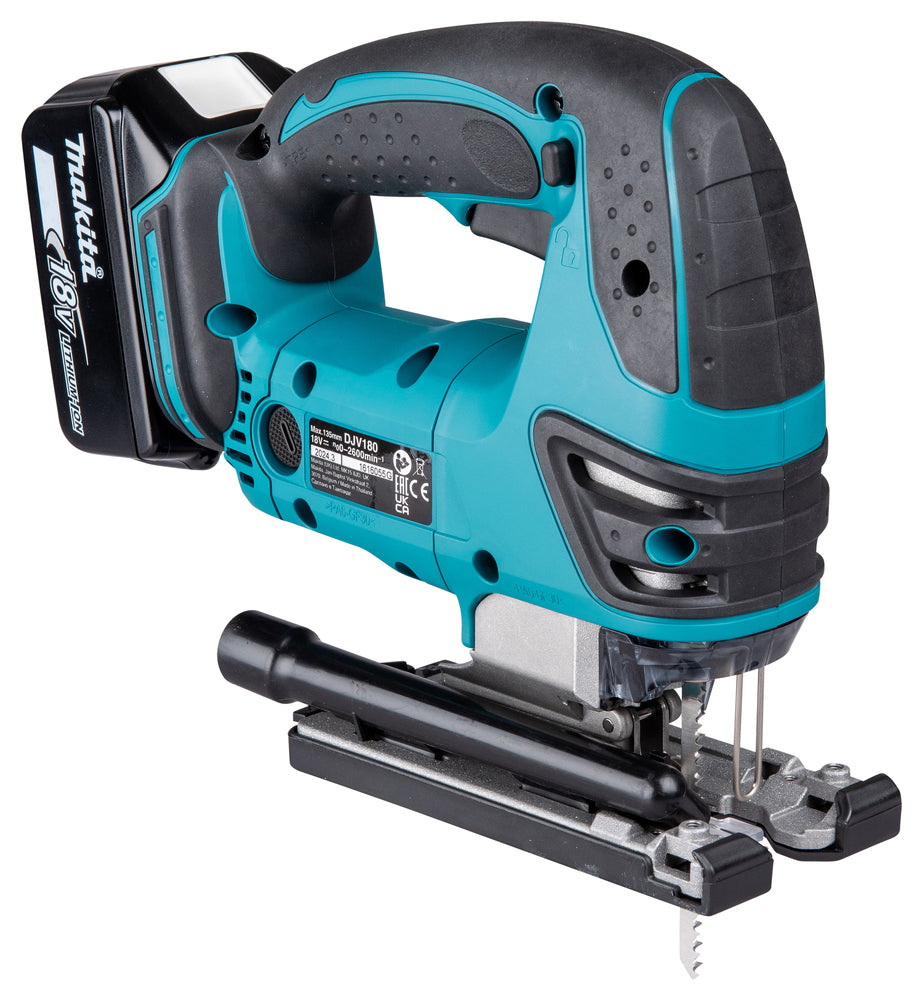

DJV180
Efficient jigsaw with tool-less blade change

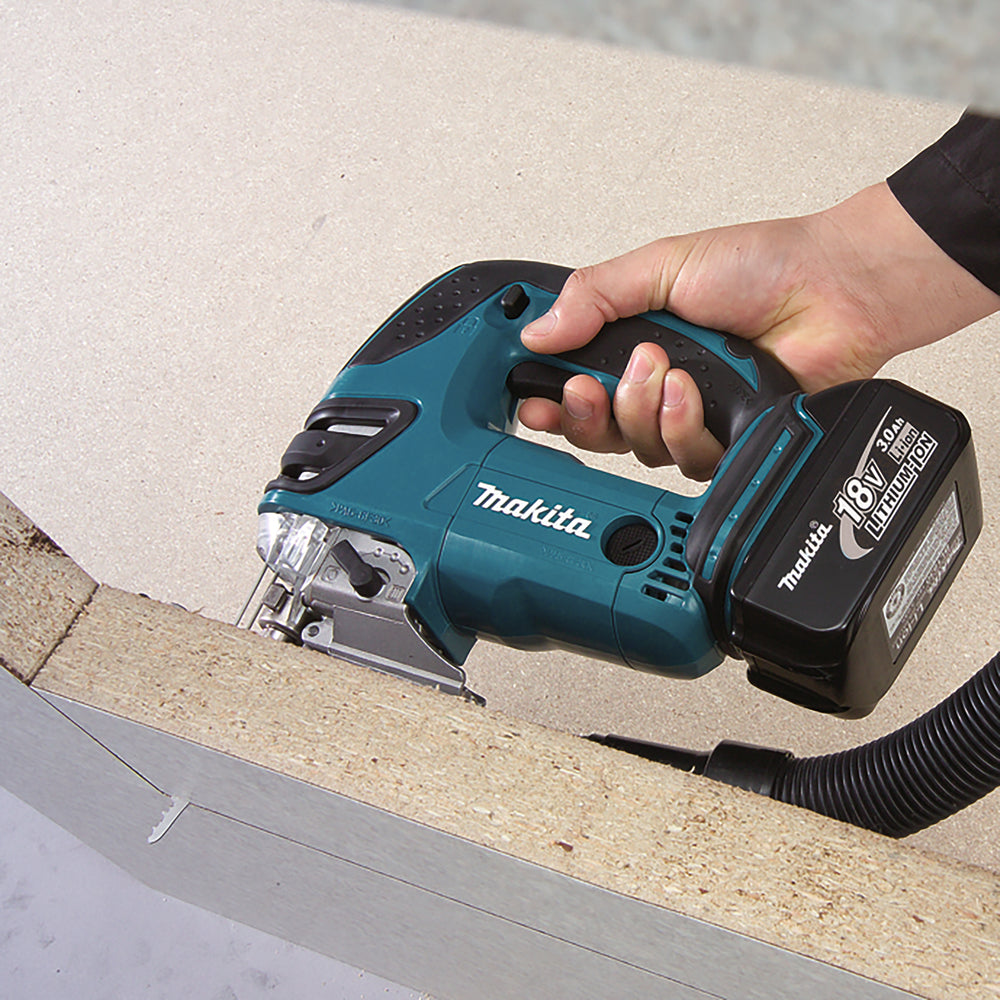

An efficient saw with three-stage pendulum action and tool-less blade change. Engine speed can be adjusted between 0 and 2 600 min-1 from a switch to suit the material. A stroke length of 26 mm and cutting capacity of 135 mm in wood and 10 mm in steel.

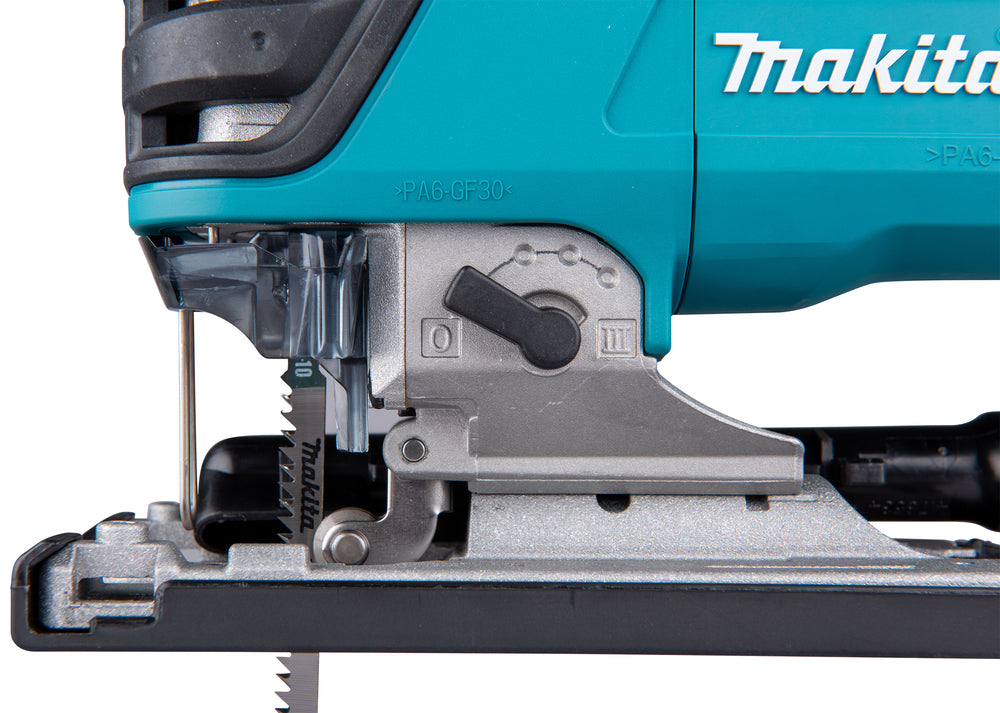

- 3 orbital settings

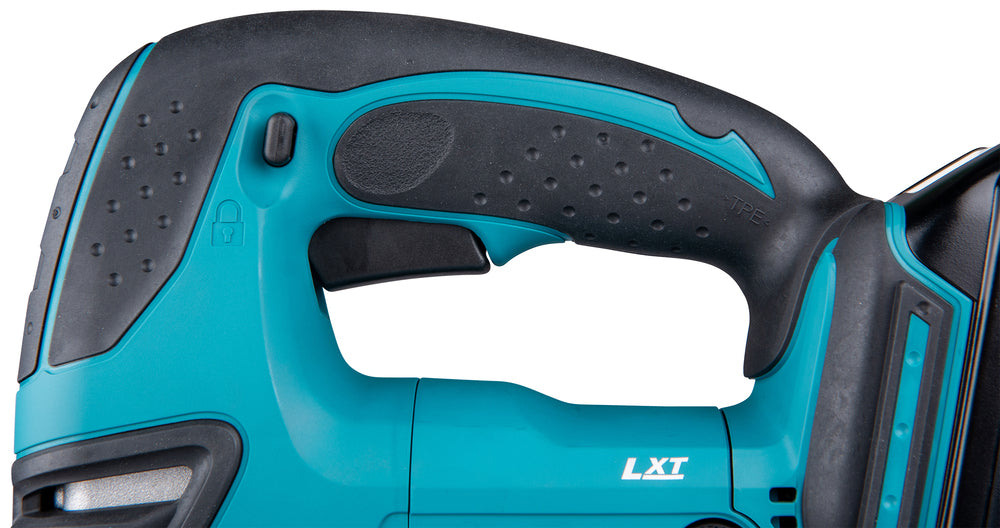

- The rubber coating on the handle ensures a firm working grip

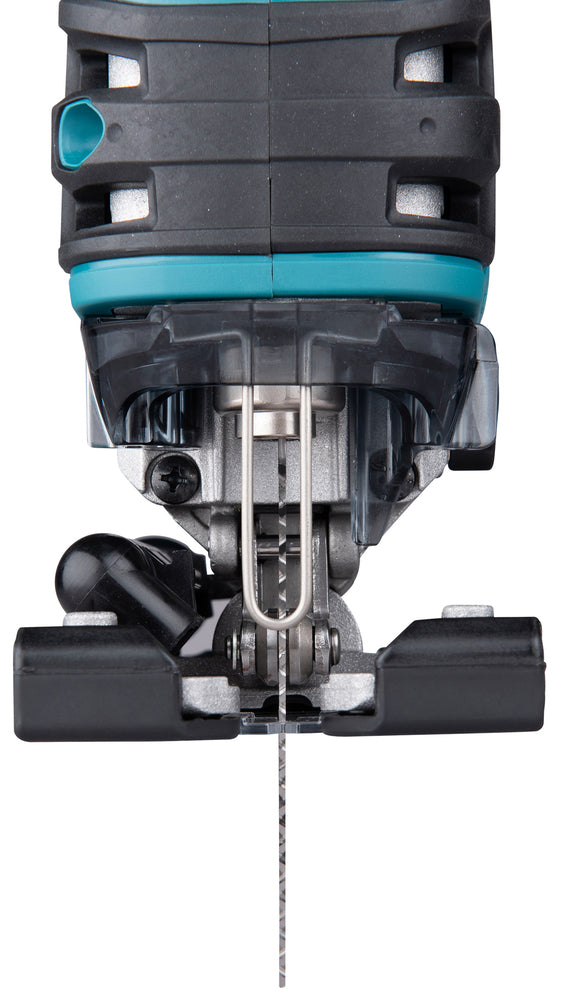

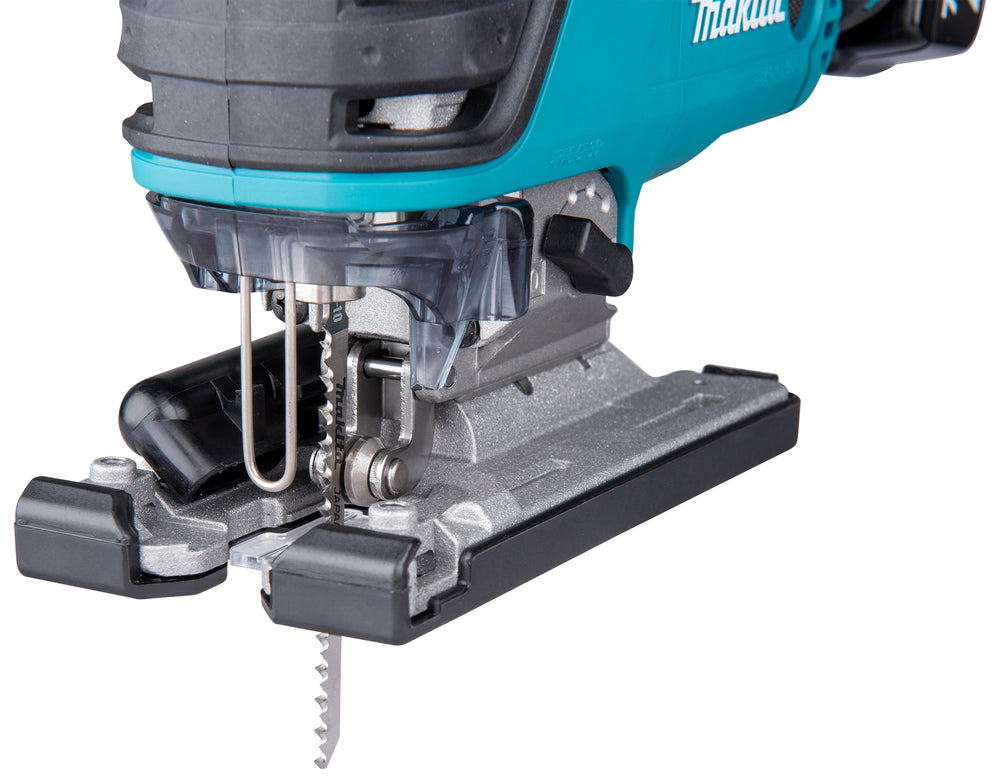

- Tool-less blade change for fast blade installation and removal
- LED light illuminates the work site
- Battery protection circuit protects against overloading, over-discharging and over-heating
Technical Specification:
Nominal Battery Voltage - 18 V
Strokes per Minute (SPM) - 0 - 2600 min⁻¹
Length of Stroke - 26 mm
Max. Cutting Capacity in Wood (90°) - 135 mm
Max. Cutting Capacity in Steel (90°) - 10 mm
Capacity Aluminium - 20 mm
Tool weight with battery - 2,7 - 3,0 kg
Product Dimensions (L x W x H): - 257 x 73 x 208 mm
Max. Bevel Range (Left) - 0 - 45 º
Vacuum cleaner connection Ø in / out - 25 / 31 mm
Vibration Level, Cutting Boards - 7,0 m/s²
Vibration Uncertainty (K Factor), Cutting Boards - 1,5 m/s²
Vibration Level, Cutting Sheet Metal - 3,5 m/s²
Vibration Uncertainty (K Factor), Cutting Sheet Metal - 1,5 m/s²
Sound Power Level (LWA) - 95 dB(A)
Sound Pressure Level (LpA) - 87 dB(A)
Noise Uncertainty (K Factor) - 3 dB(A)
Battery Chemistry (Ni-Cd / Ni-MH / Li-ion) - Li-ion
Max. Bevel Range (Right) - 0 - 45 º
