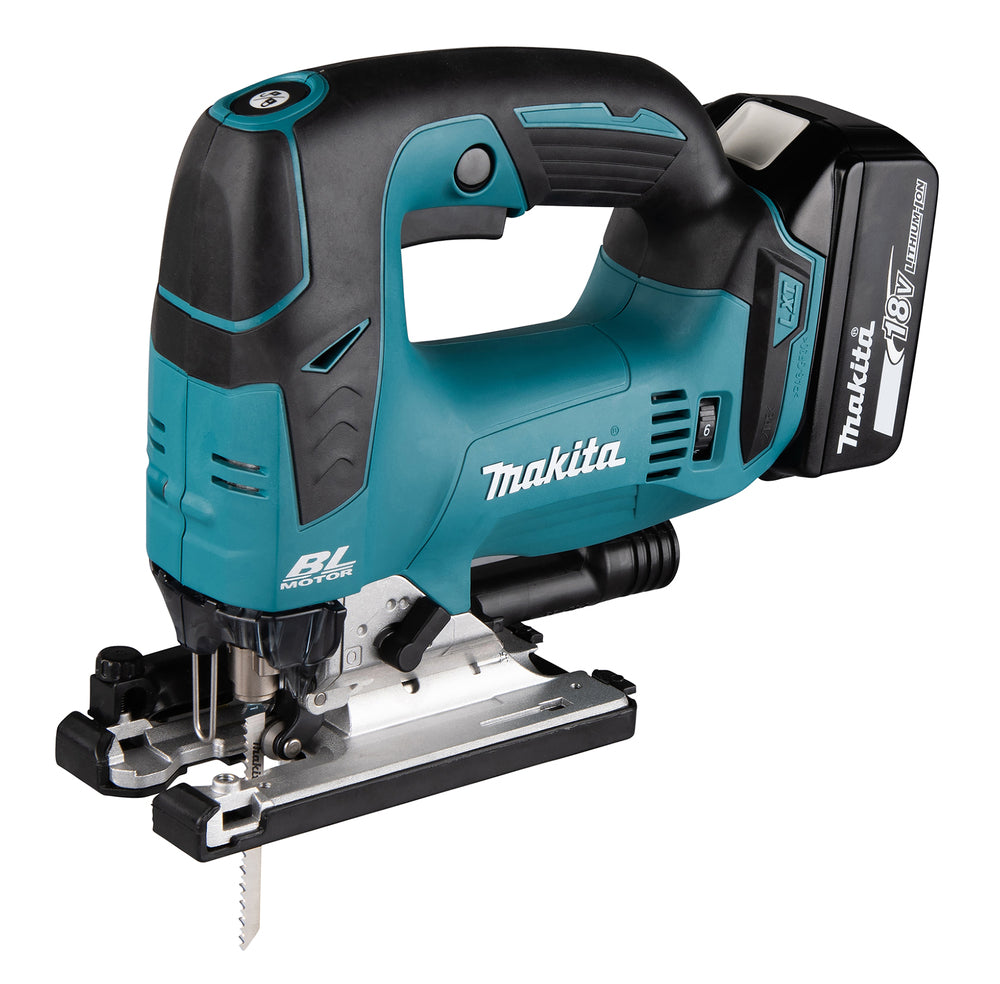

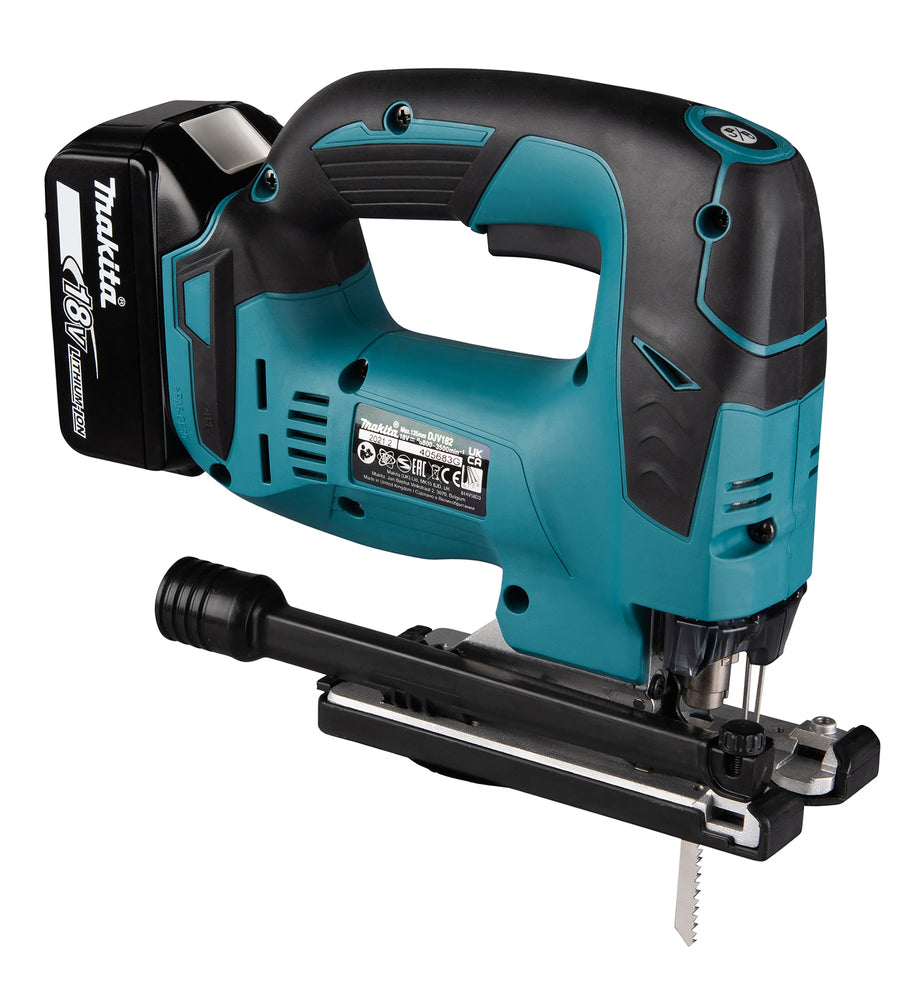

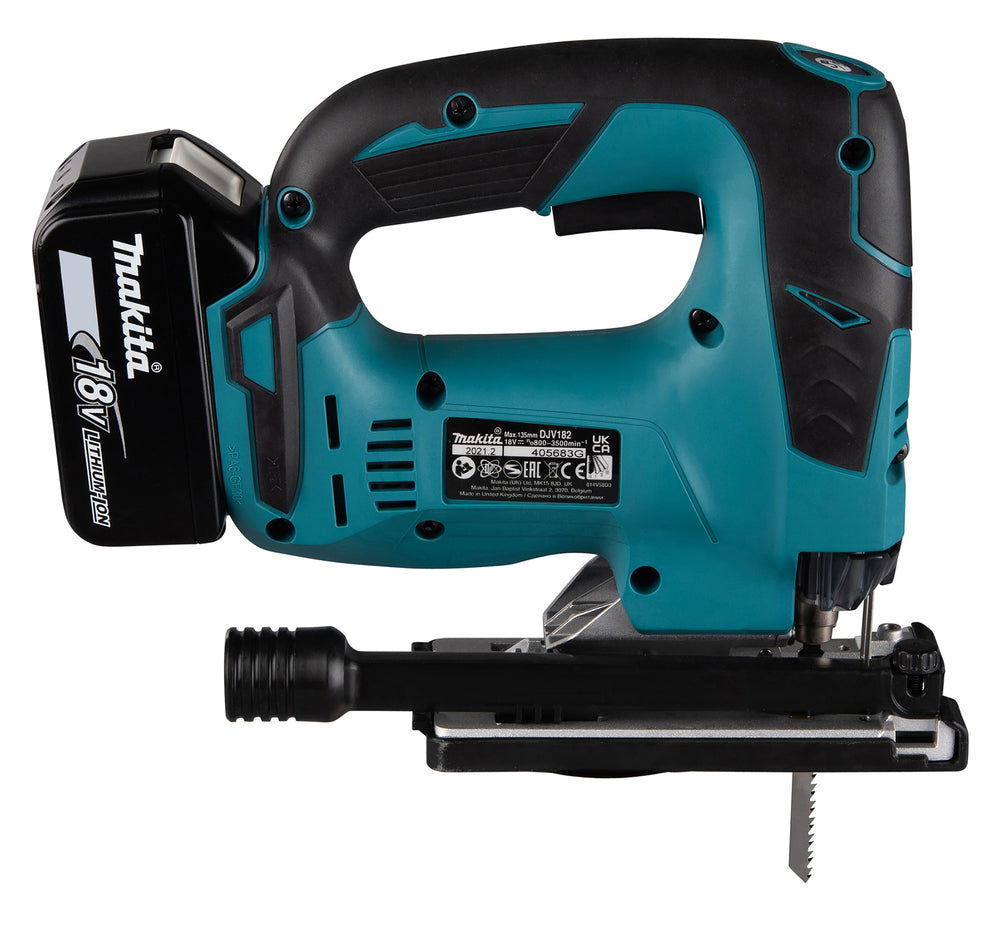

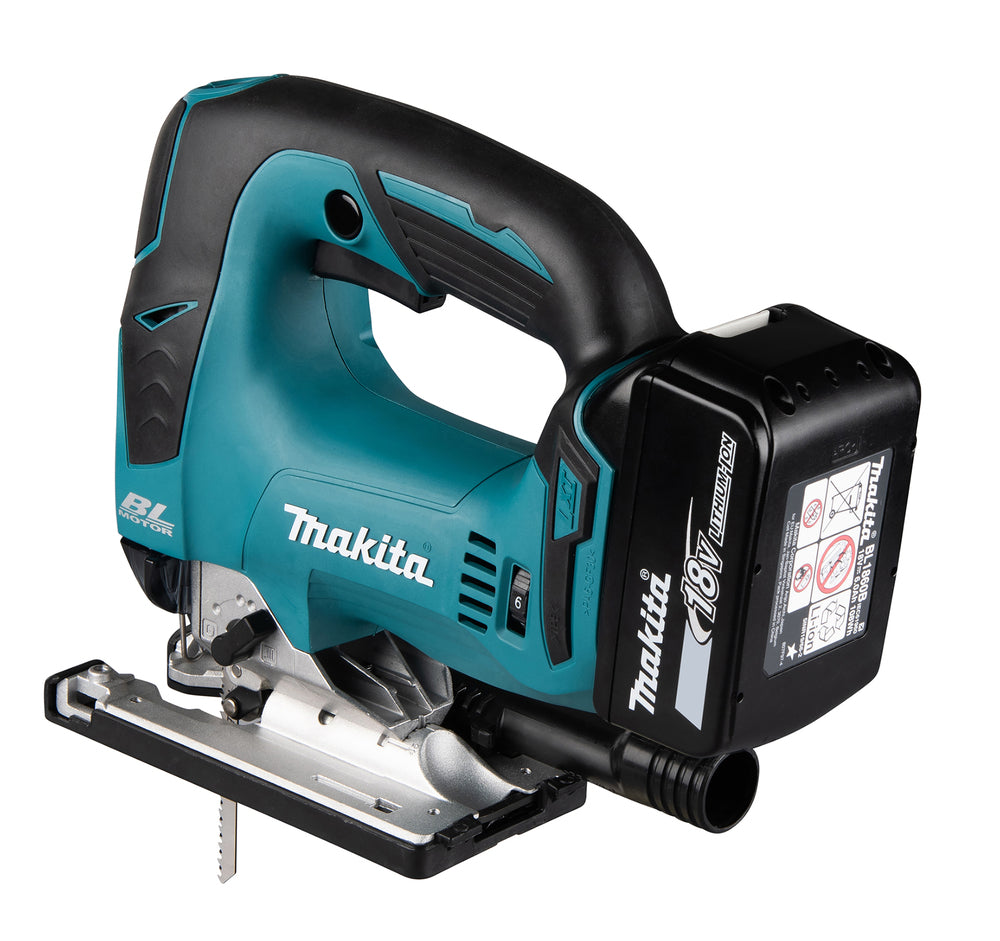

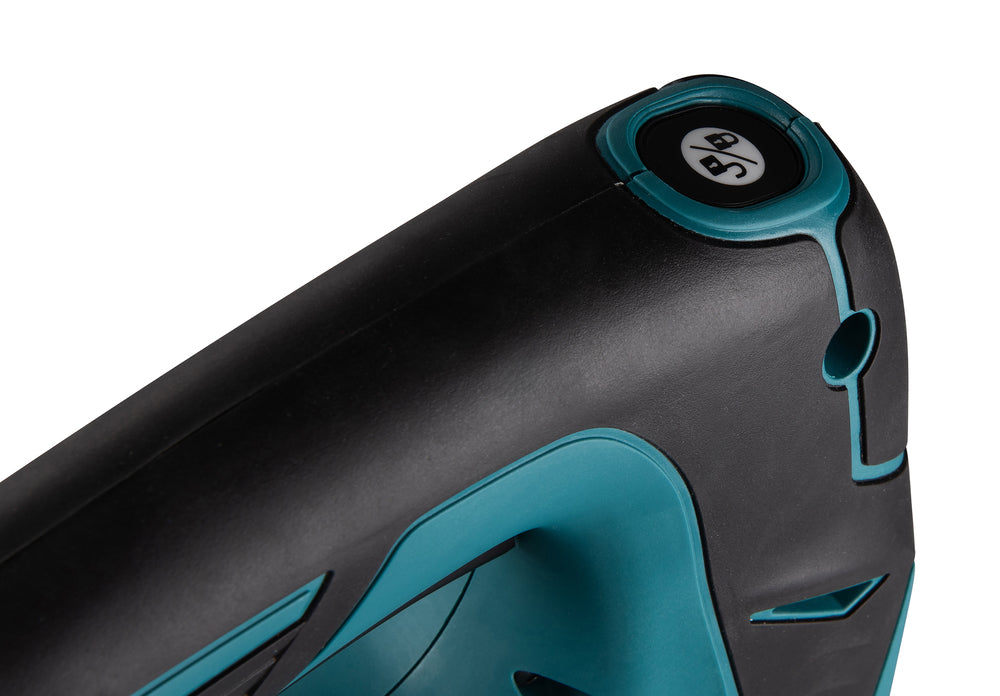

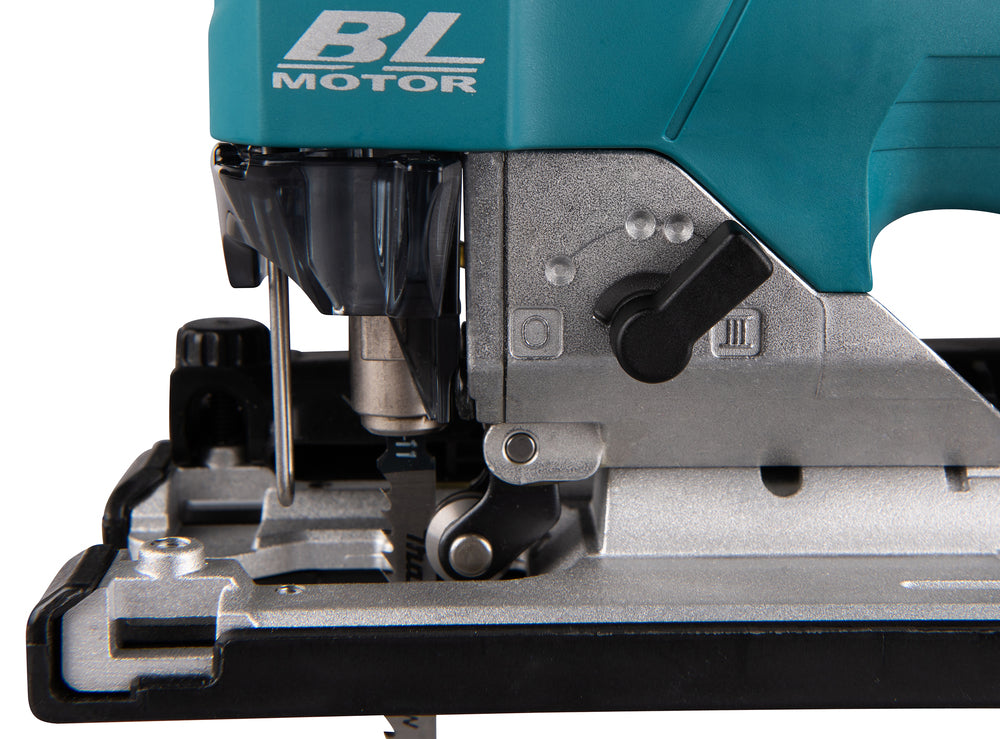

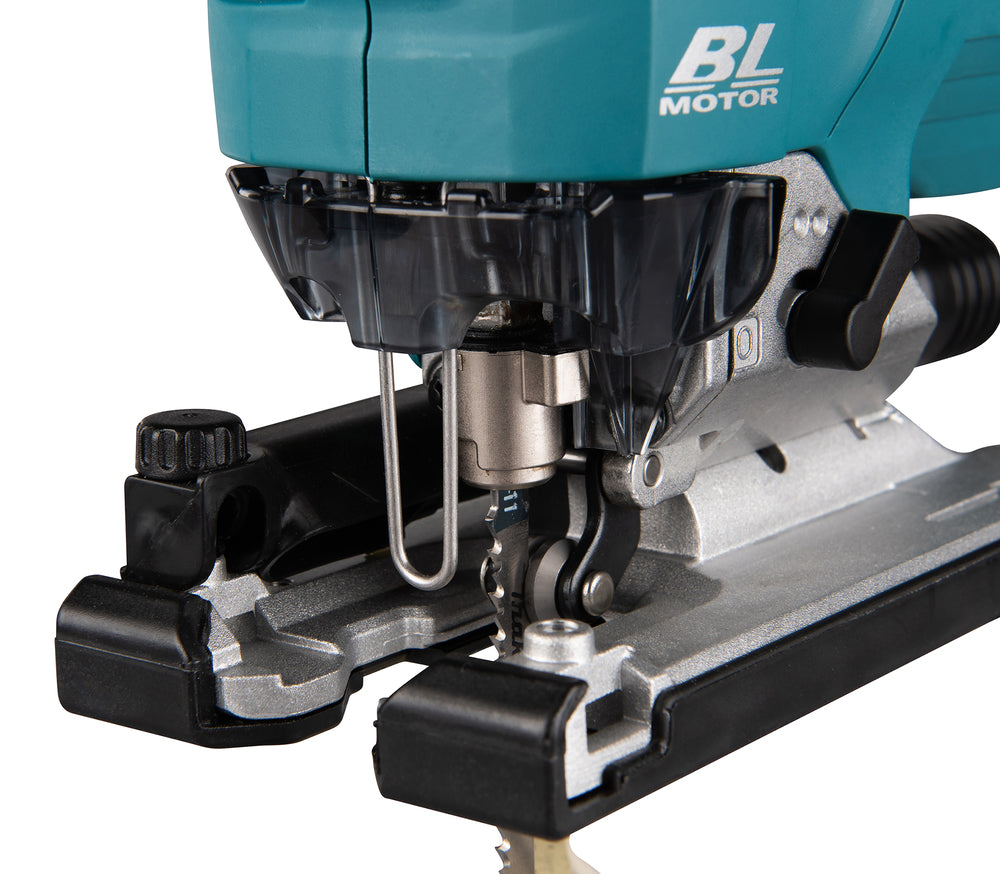

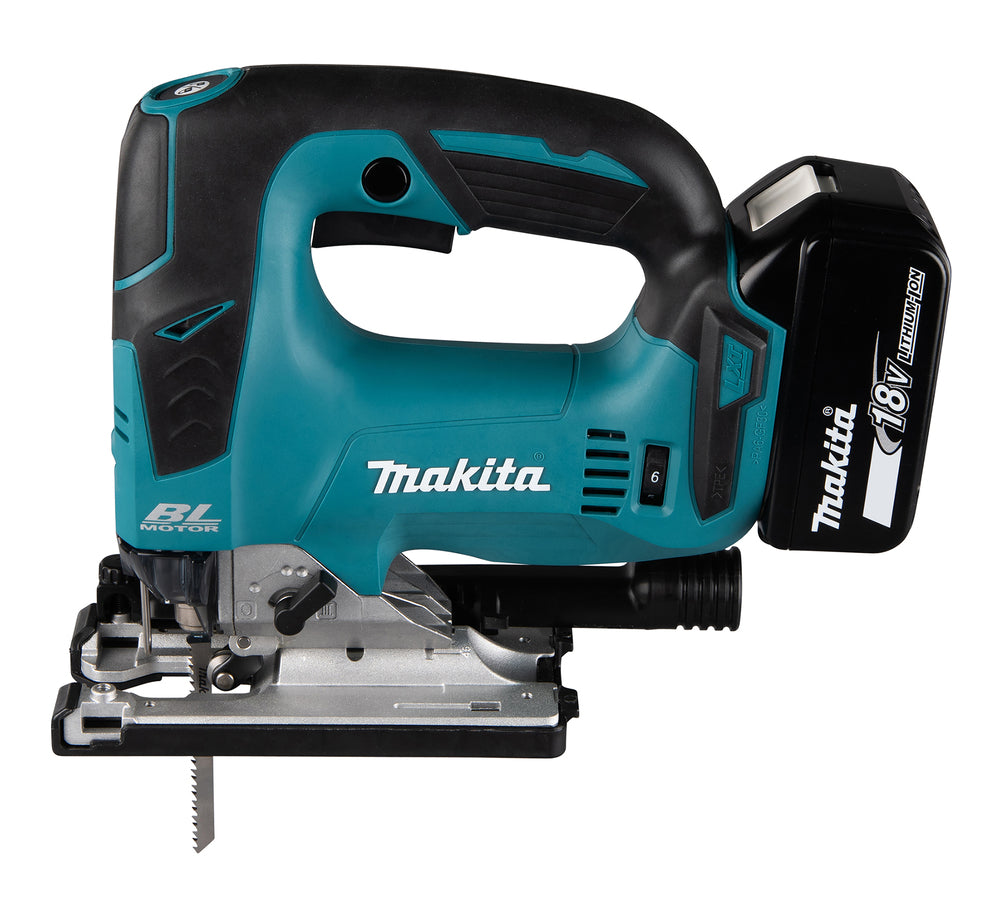

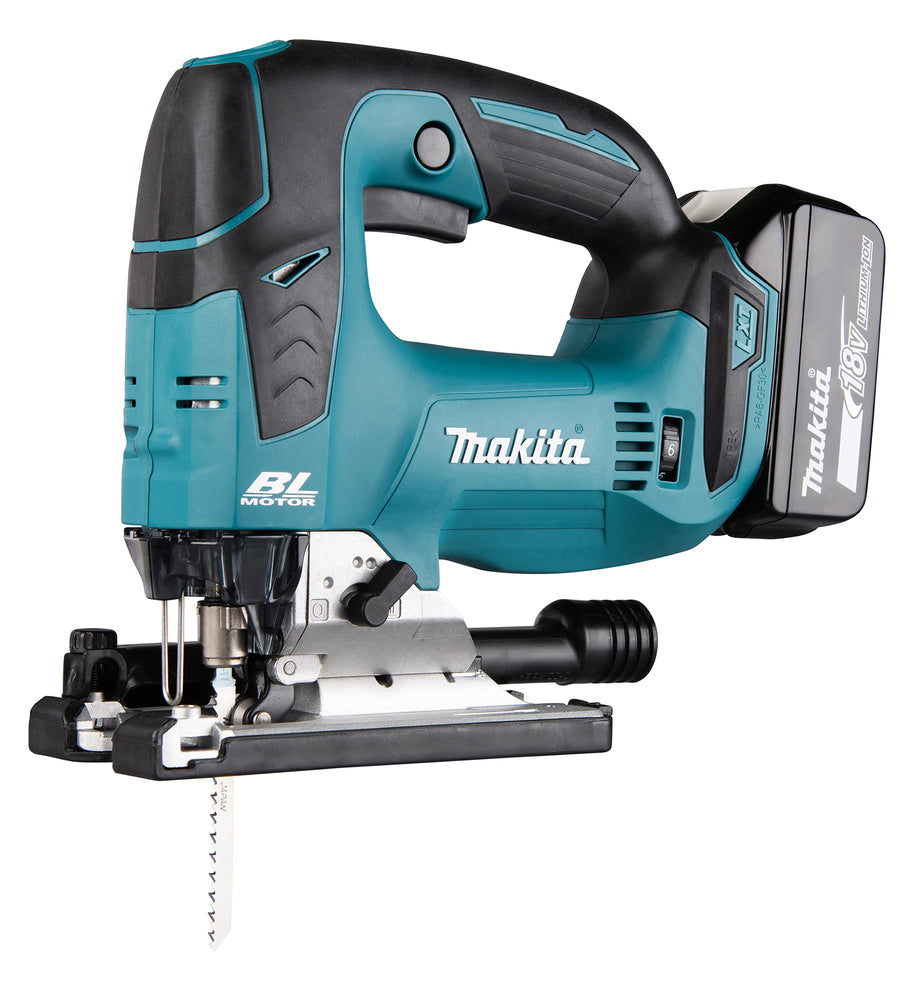

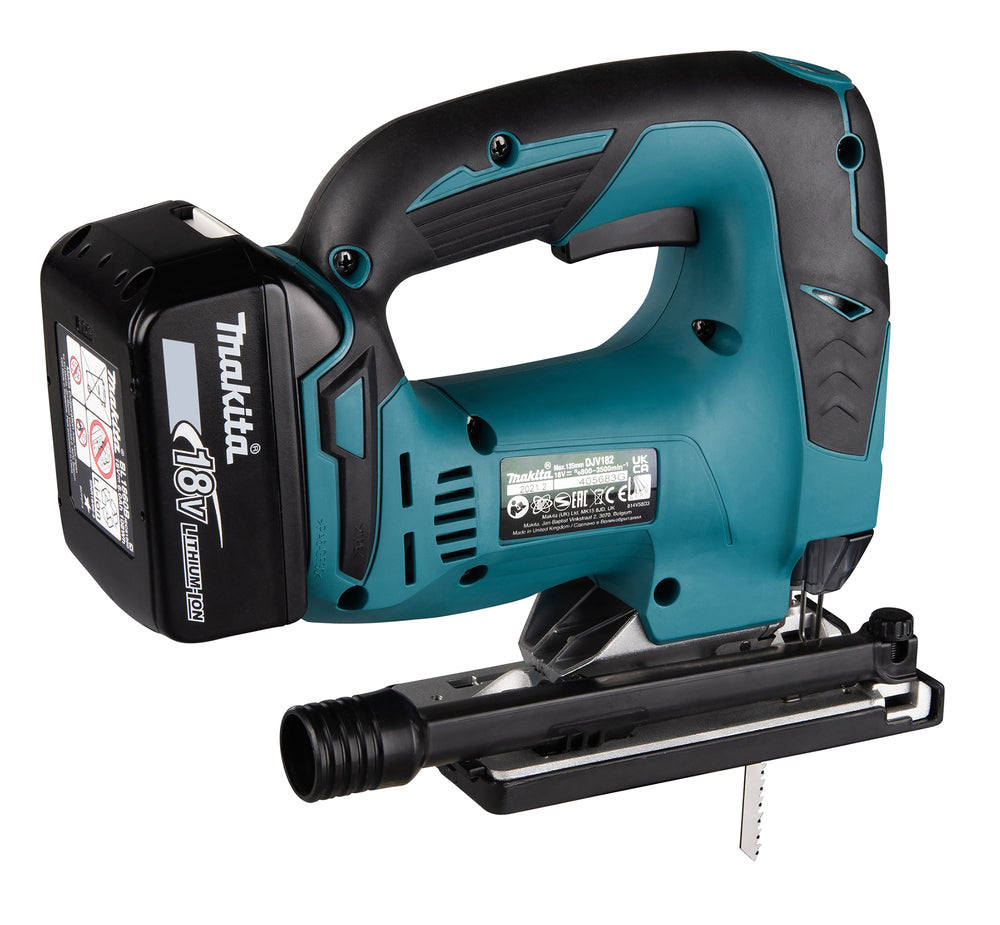

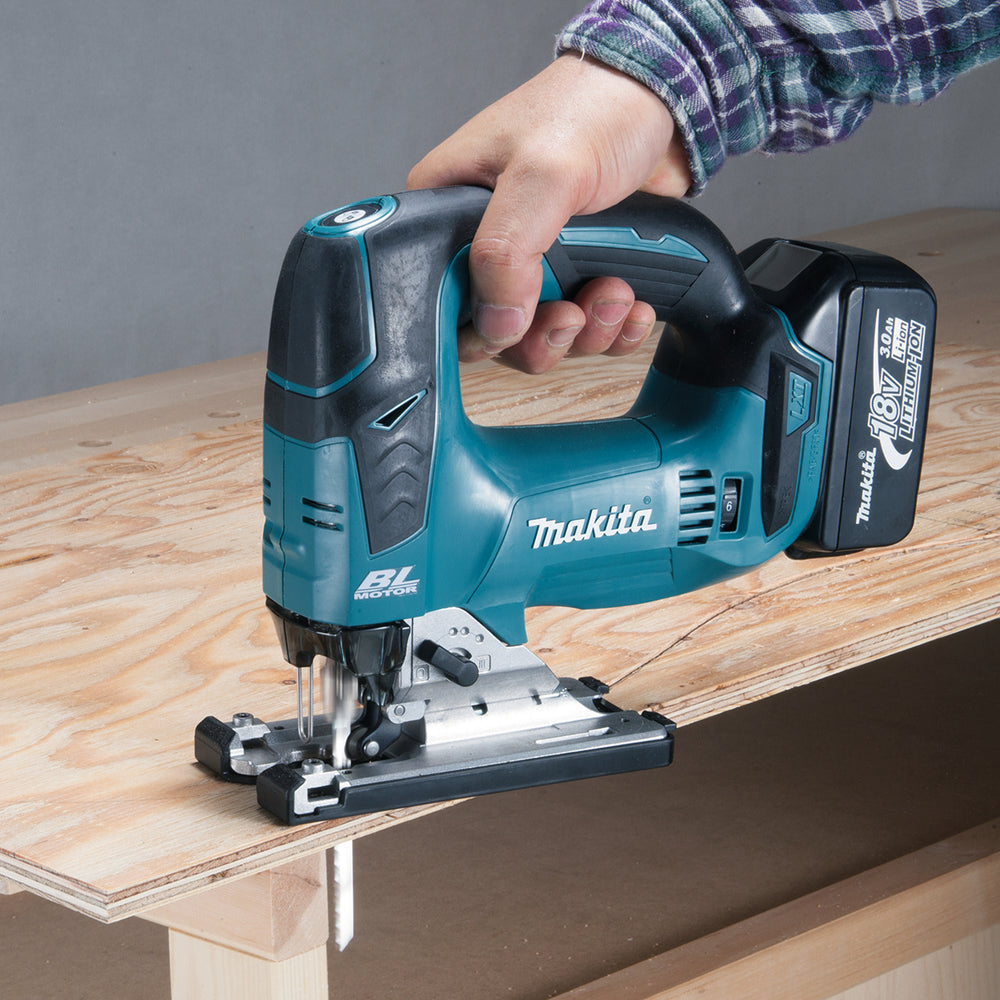

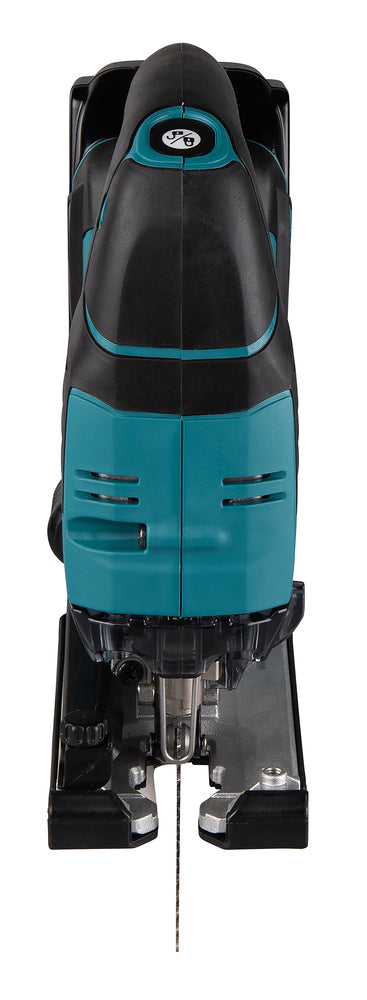

An efficient saw with three-stage pendulum action and tool-less blade change. Engine speed can be adjusted between 800 and 3 500 min-1 from a switch to suit the material. A stroke length of 26 mm and cutting capacity of 135 mm in wood and 10 mm in steel.
Features and Benefits:
- Brushless maintenance-free and long-life motor
- LED light illuminates the work site
- Soft no load speed
- Battery protection circuit protects against overloading, over-discharging and over-heating.
Technical Specification:

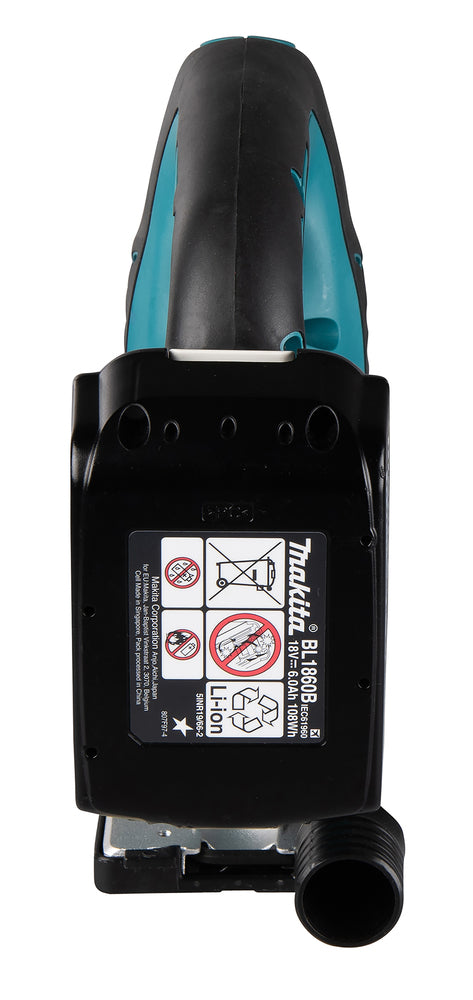

Nominal Battery Voltage - 18 V
Strokes per Minute (SPM) - 800 - 3500 minâ»Â¹
Length of Stroke - 26 mm
Max. Cutting Capacity in Wood (90°) - 135 mm
Max. Cutting Capacity in Steel (90°) - 10 mm
Capacity Aluminium - 20 mmÂ
Tool weight with battery - 2,4 - 2,7 kg
Product Dimensions (L x W x H): - 266 x 77 x 208 mm
 Max Output Power - 390 W
Max. Bevel Range (Left) - 45 º

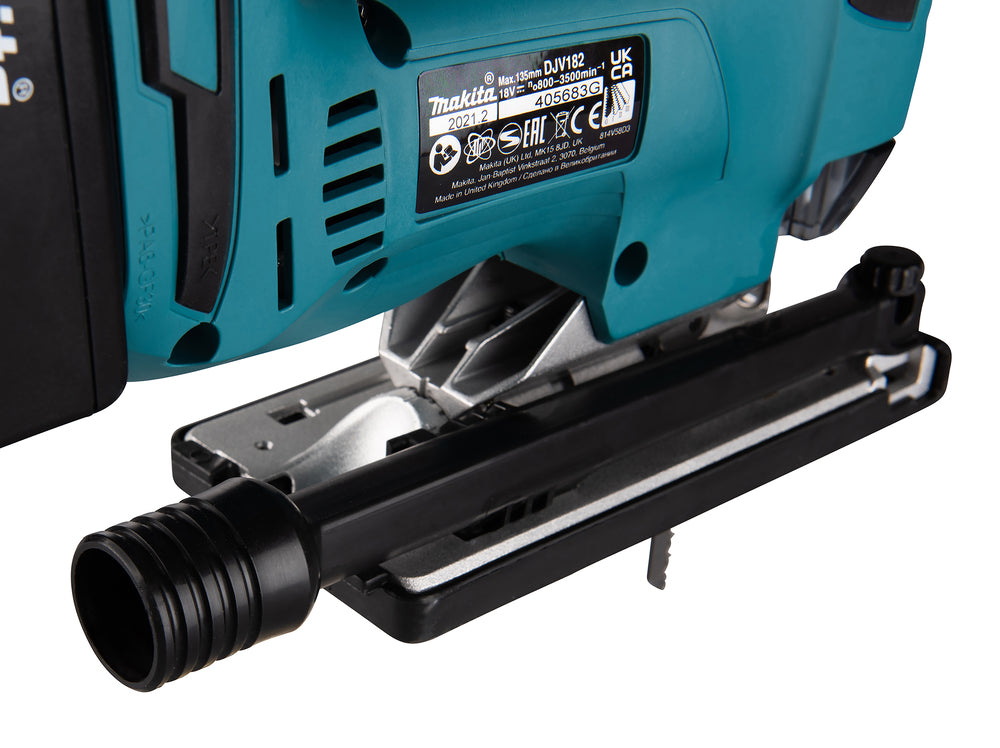

Vacuum cleaner connection Ø in / out - 23/28 mm
Vibration Level, Cutting Boards - 7,0 m/s²
Vibration Uncertainty (K Factor), Cutting Boards - 1,5 m/s²
Vibration Level, Cutting Sheet Metal - 3,5 m/s²
Vibration Uncertainty (K Factor), Cutting Sheet Metal - 1,5 m/s²
Sound Pressure Level (LpA) - 77 dB(A)
Noise Uncertainty (K Factor) - 3 dB(A)
