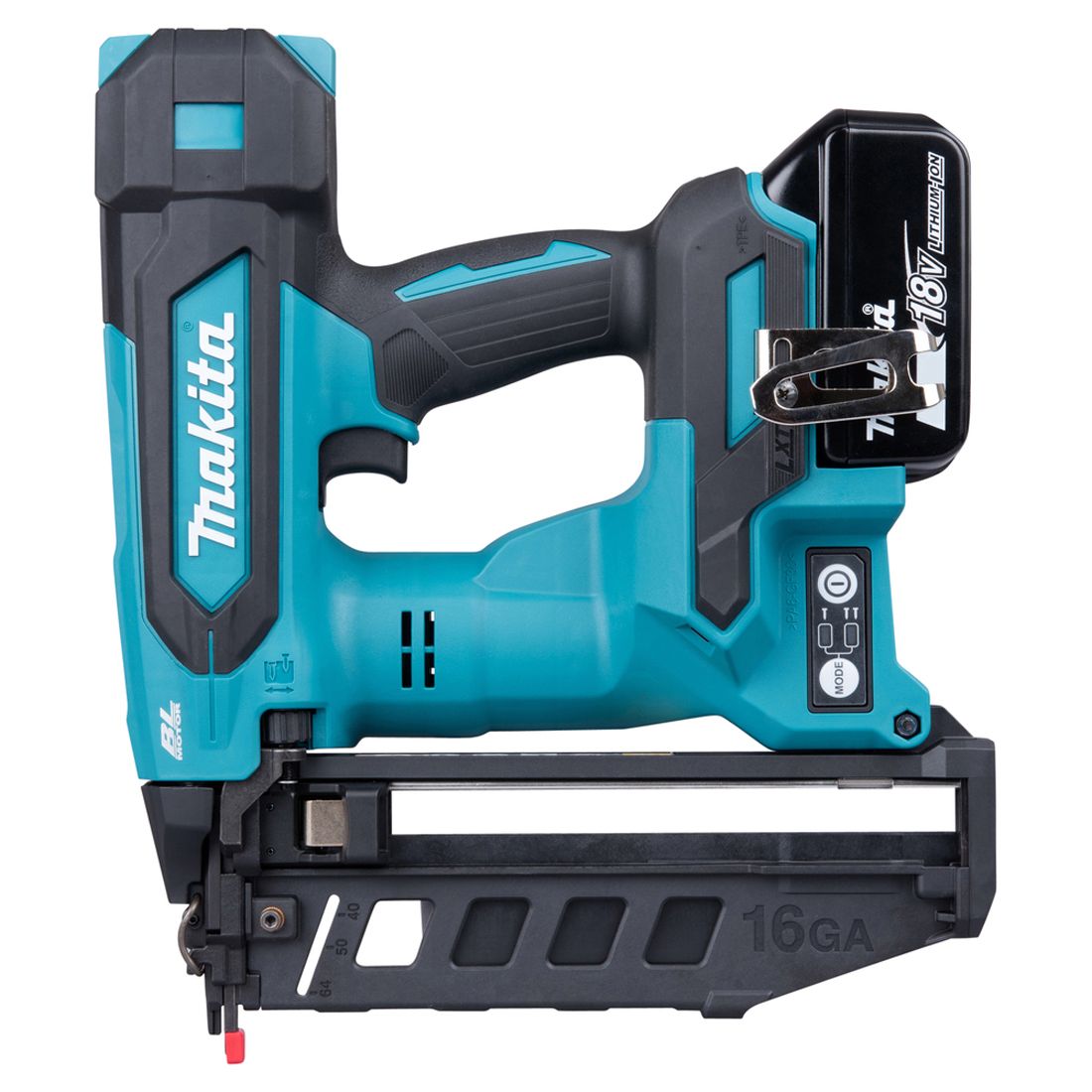

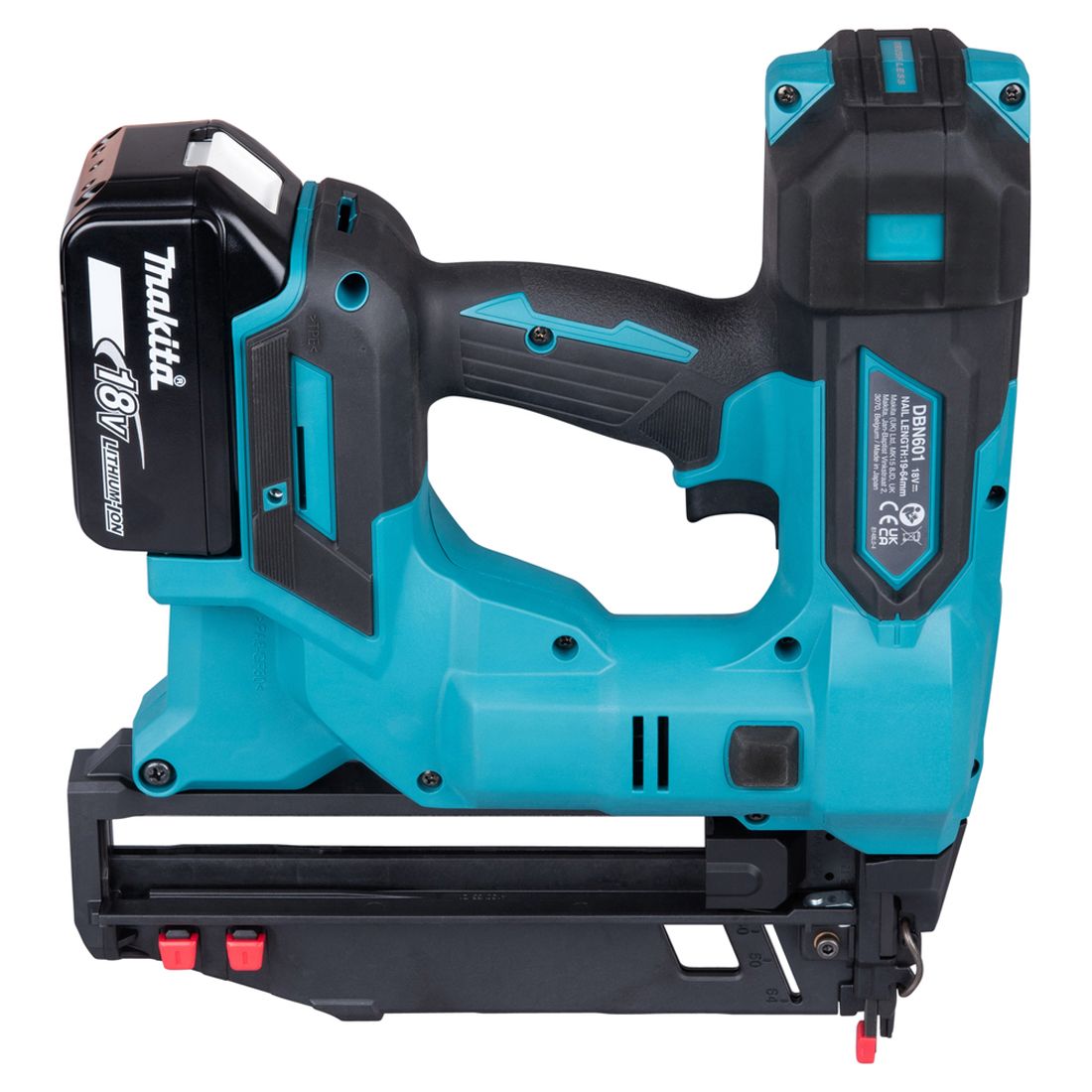

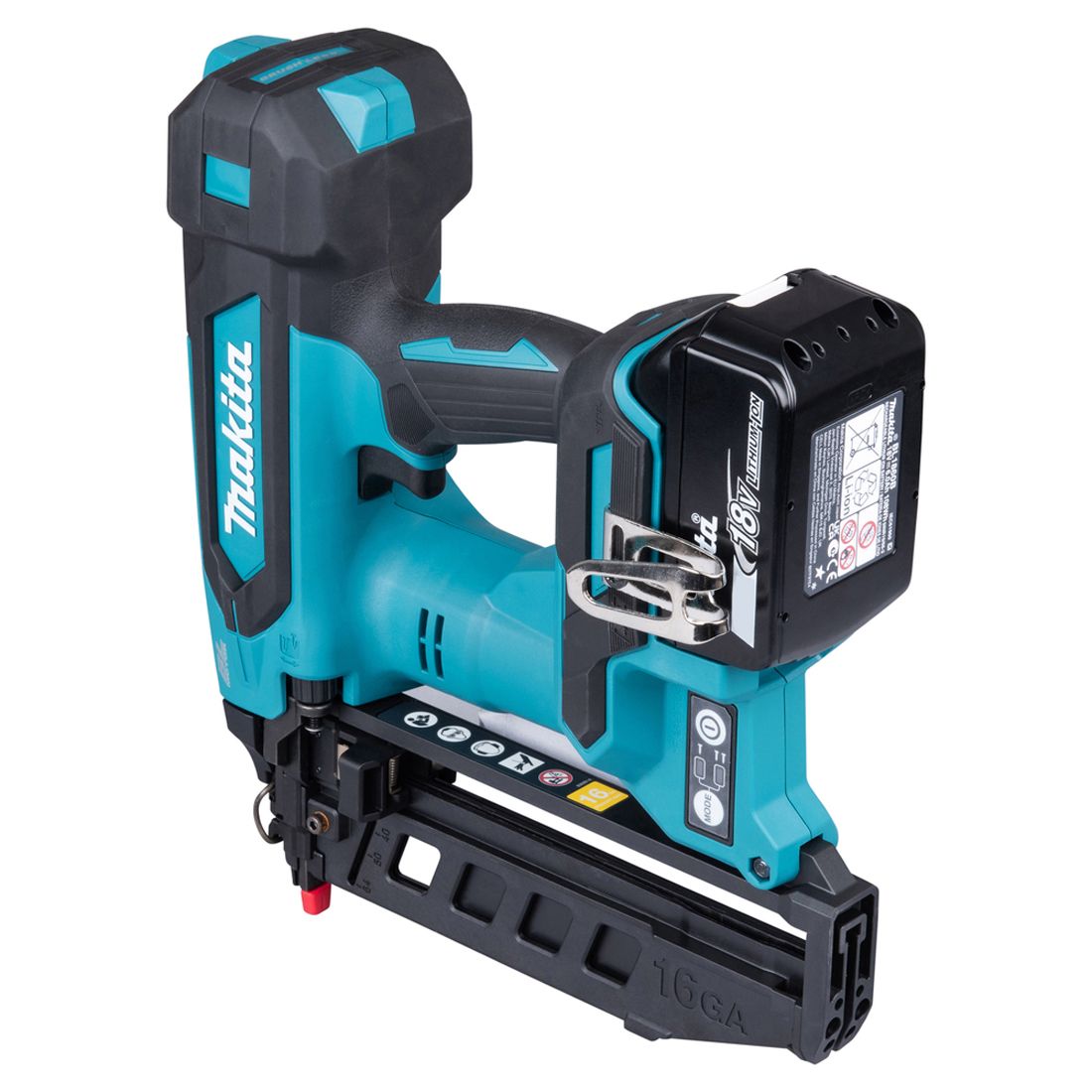

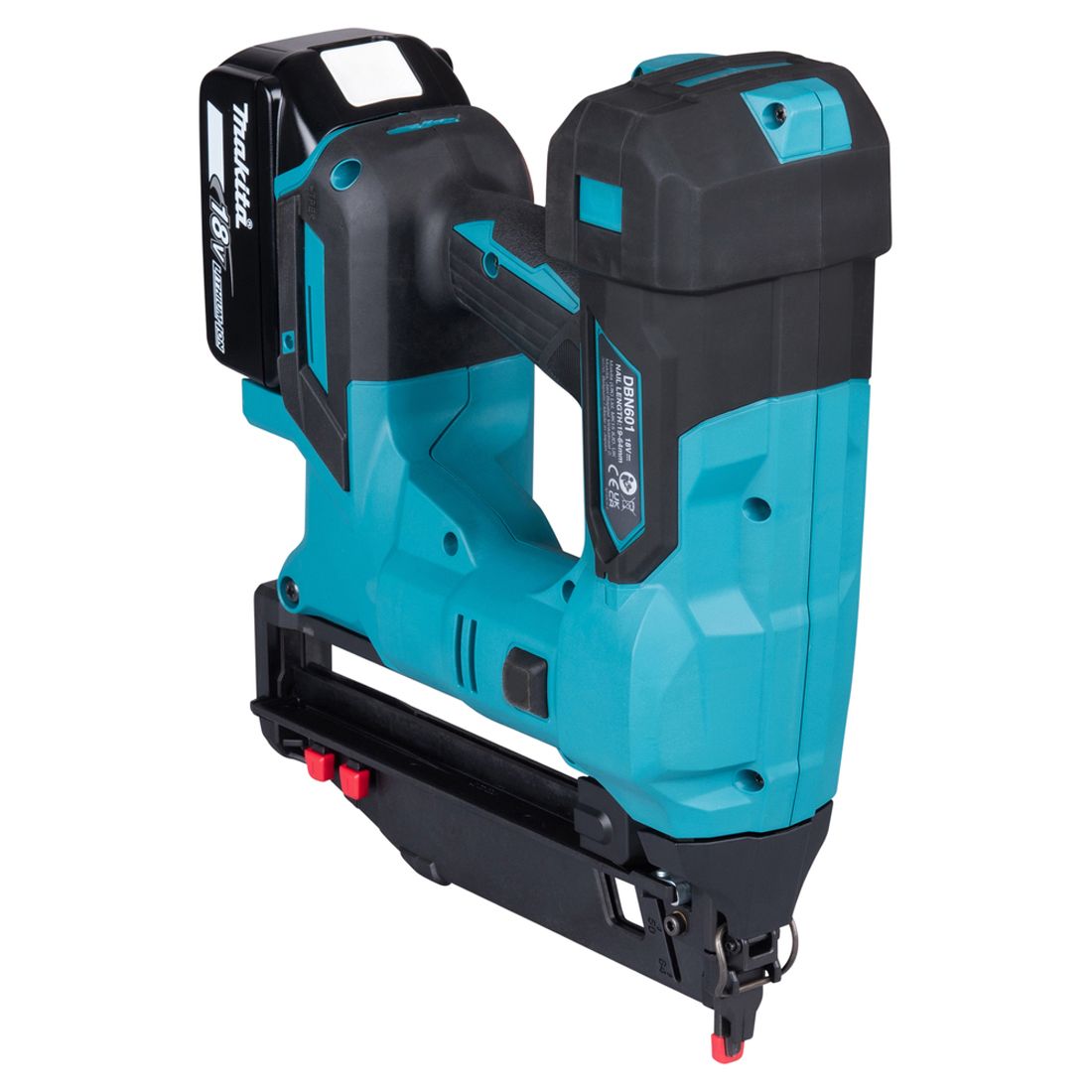

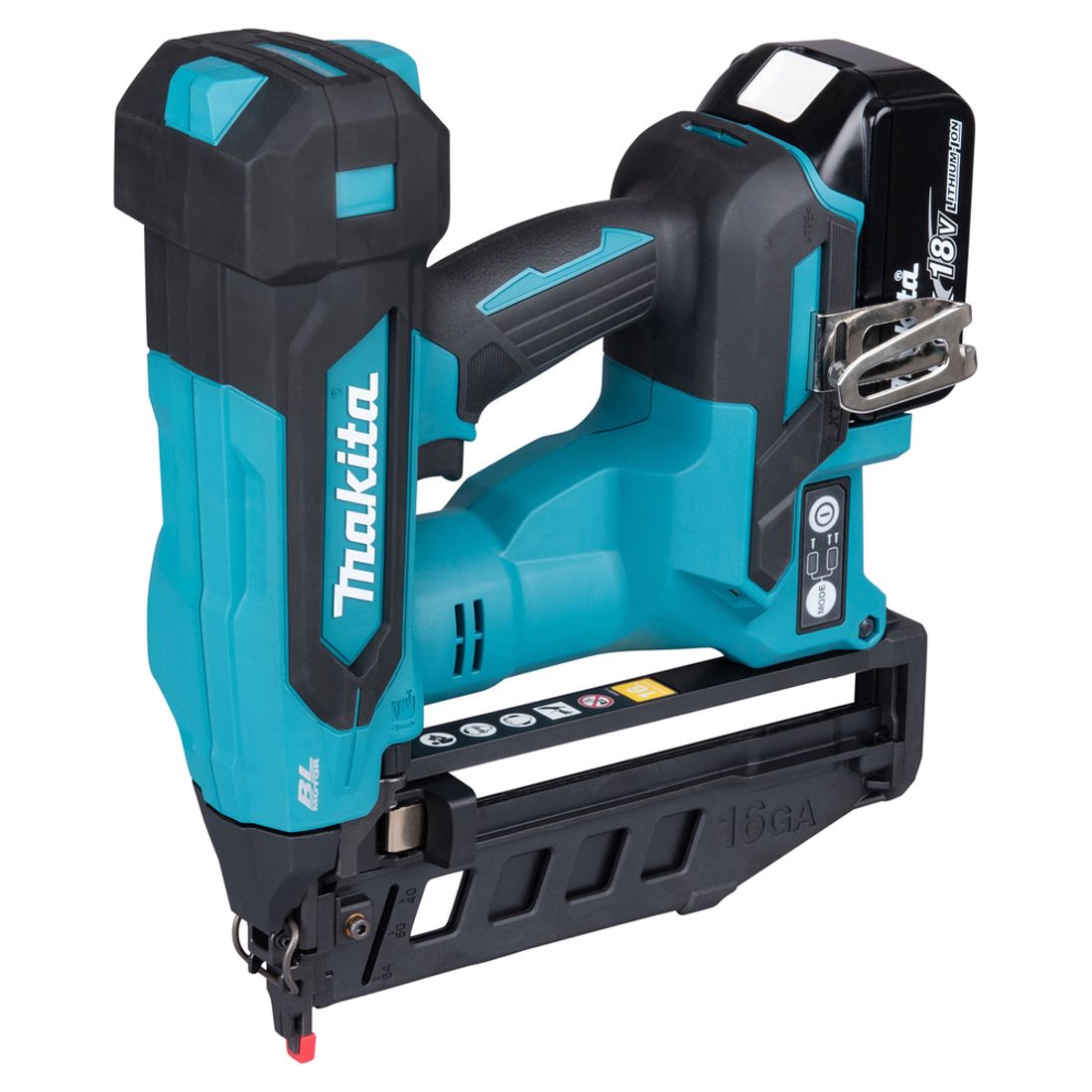

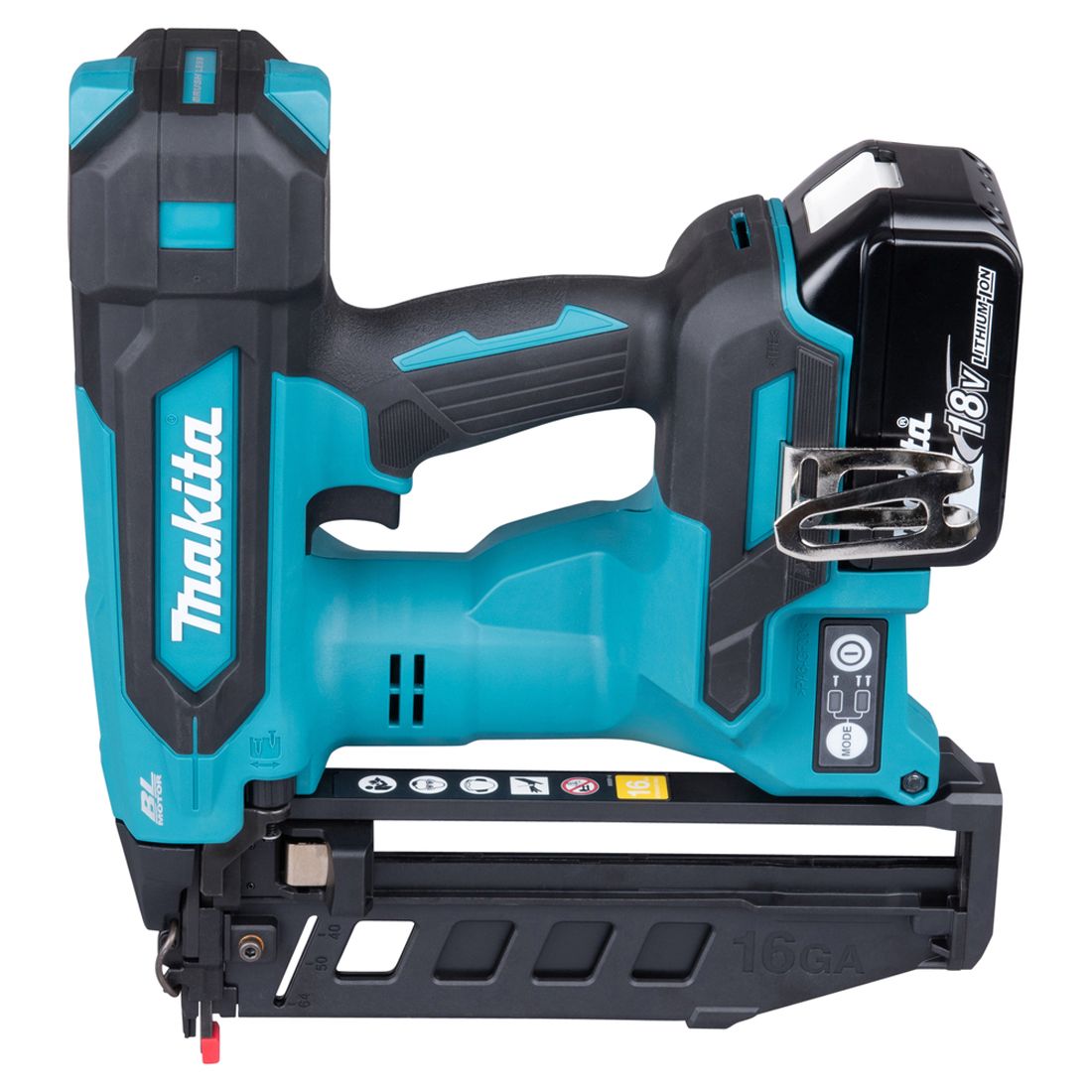

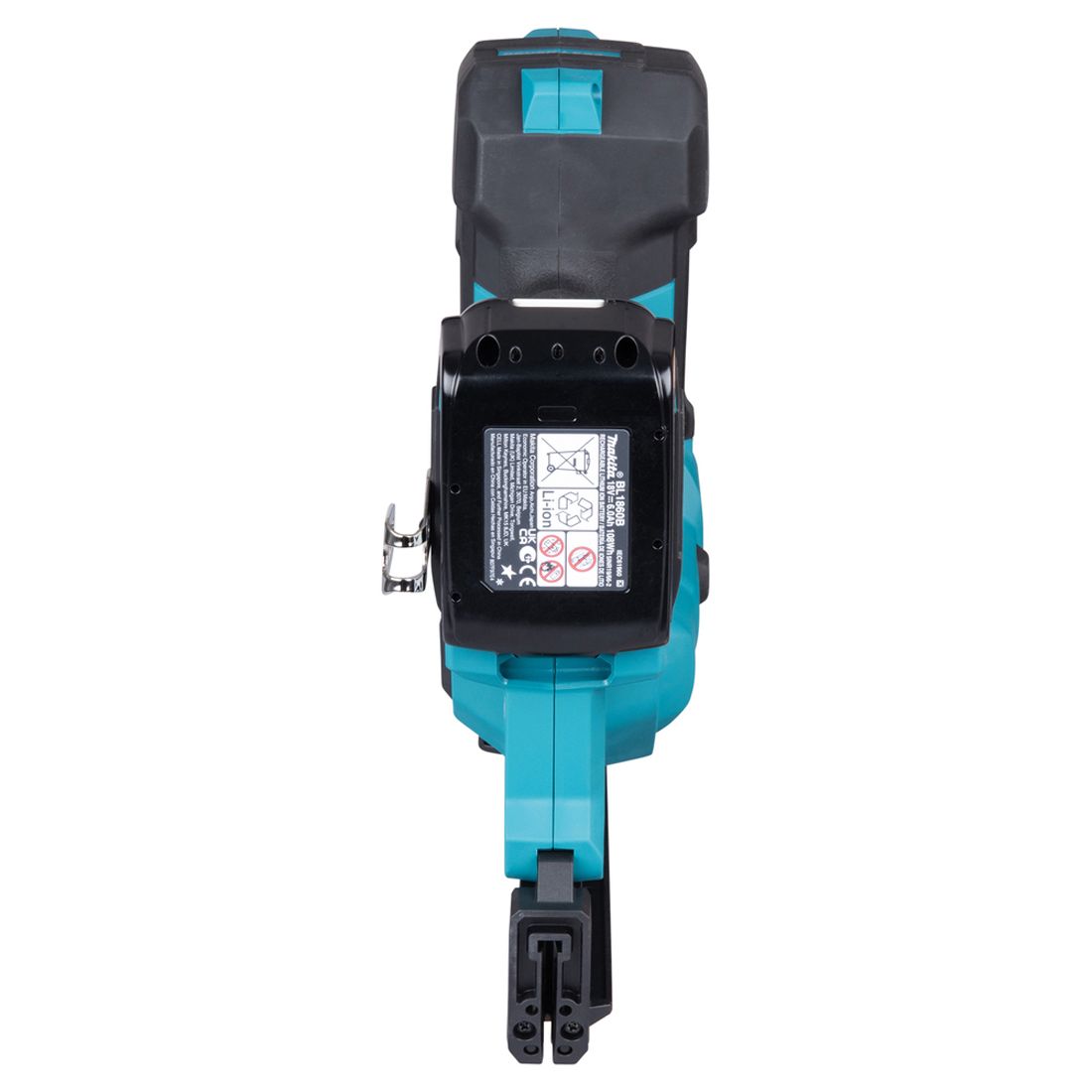

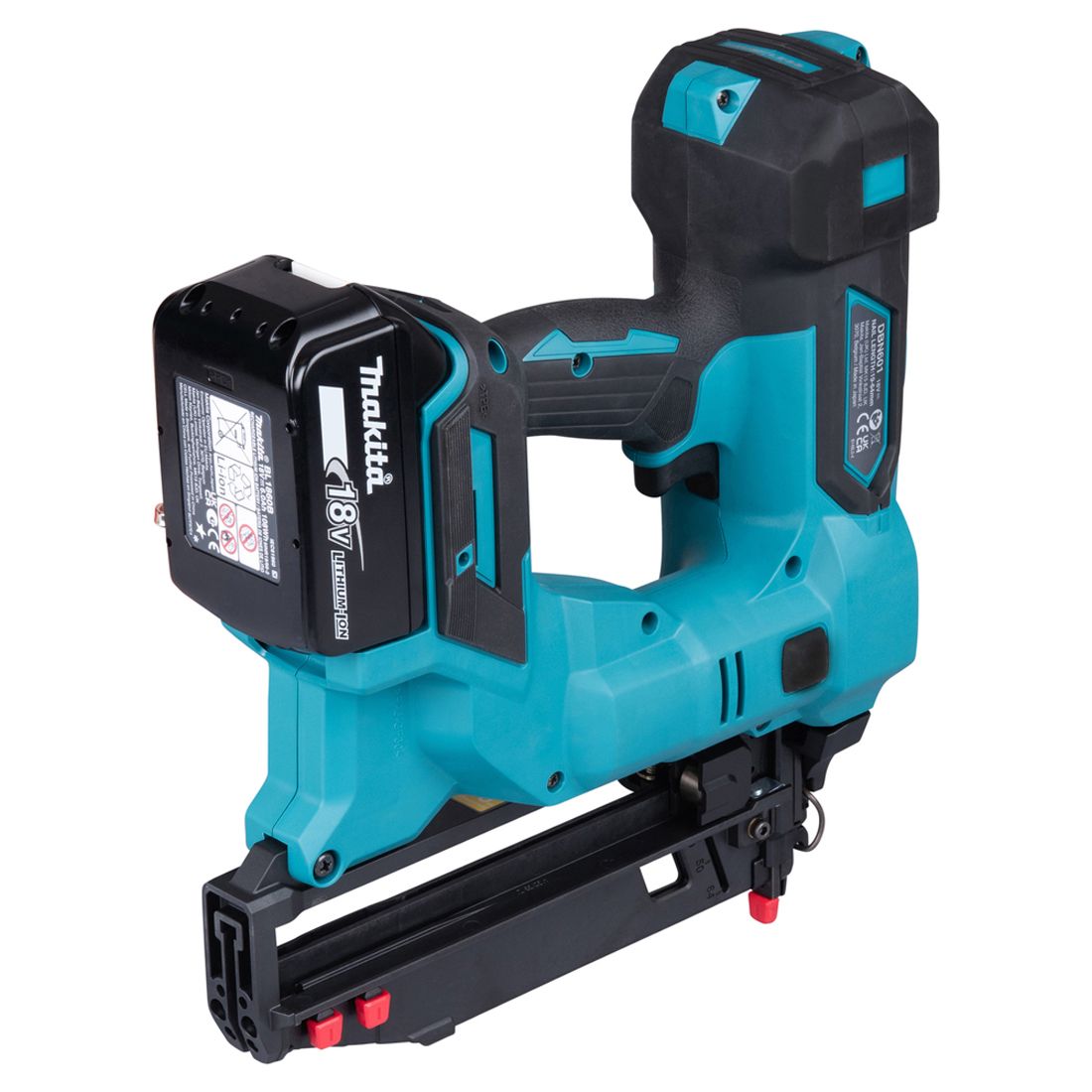

Model DBN601 is a finish nailer compatible with 16Ga finish nails (straight type) powered by an 18V LXT LI-Ion battery.

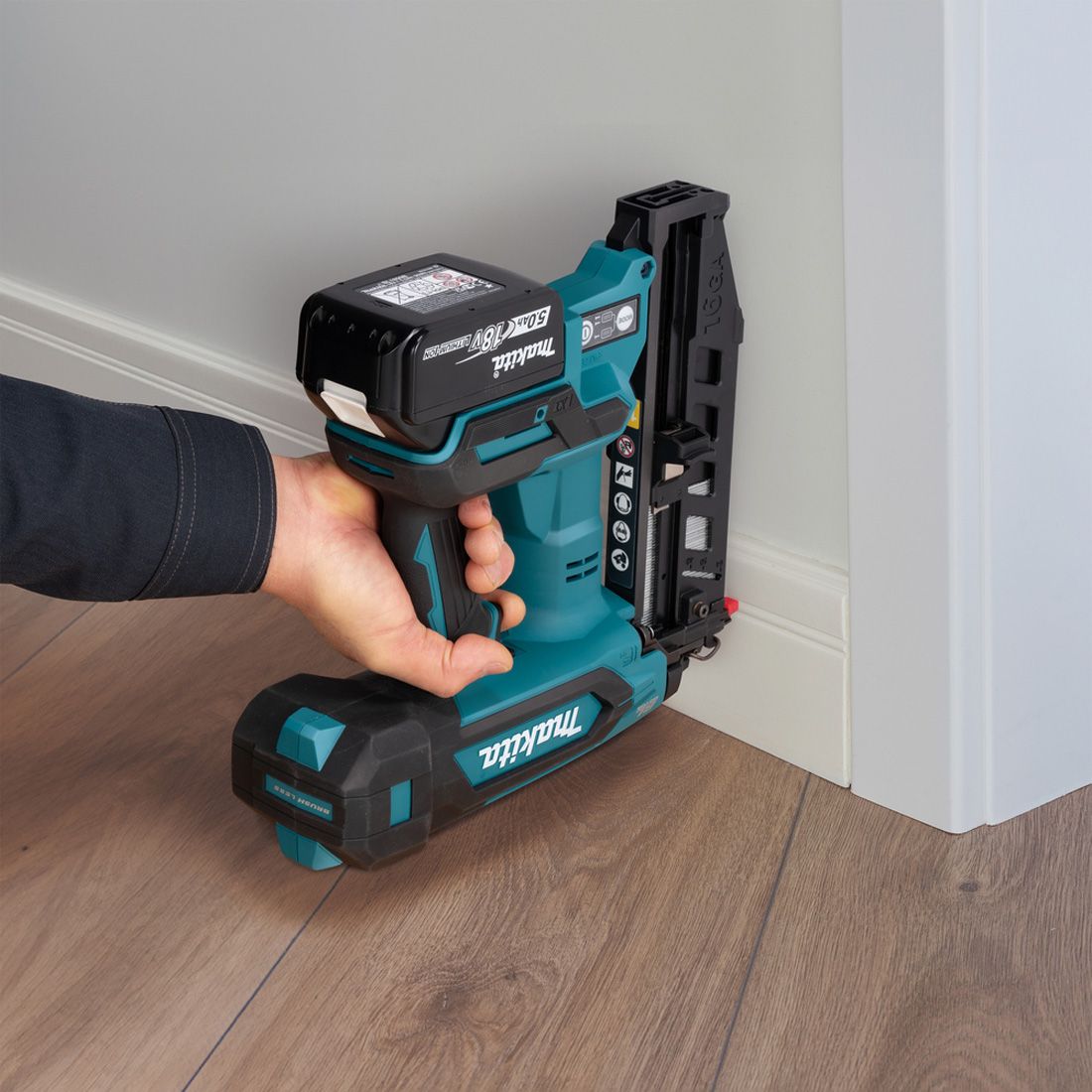

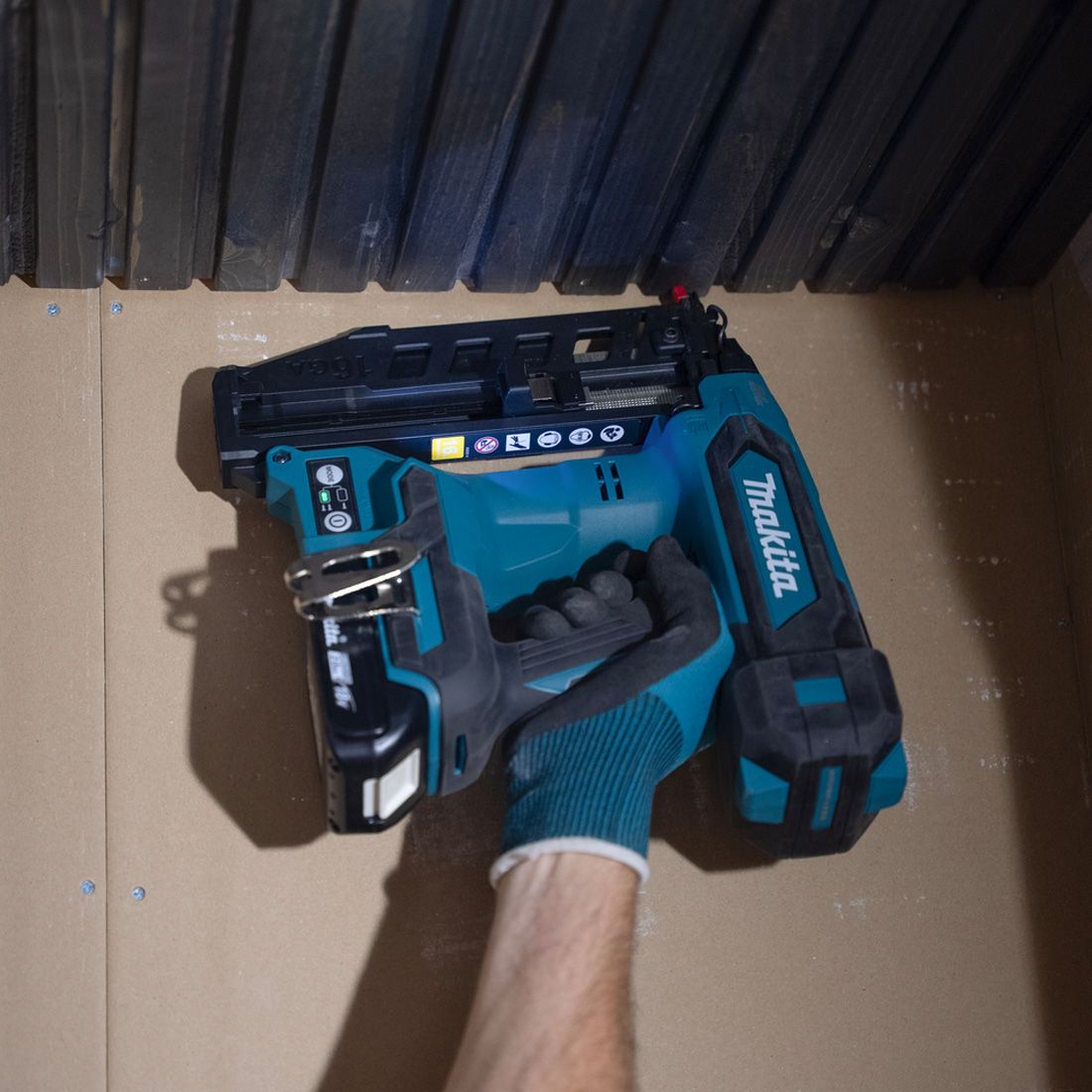

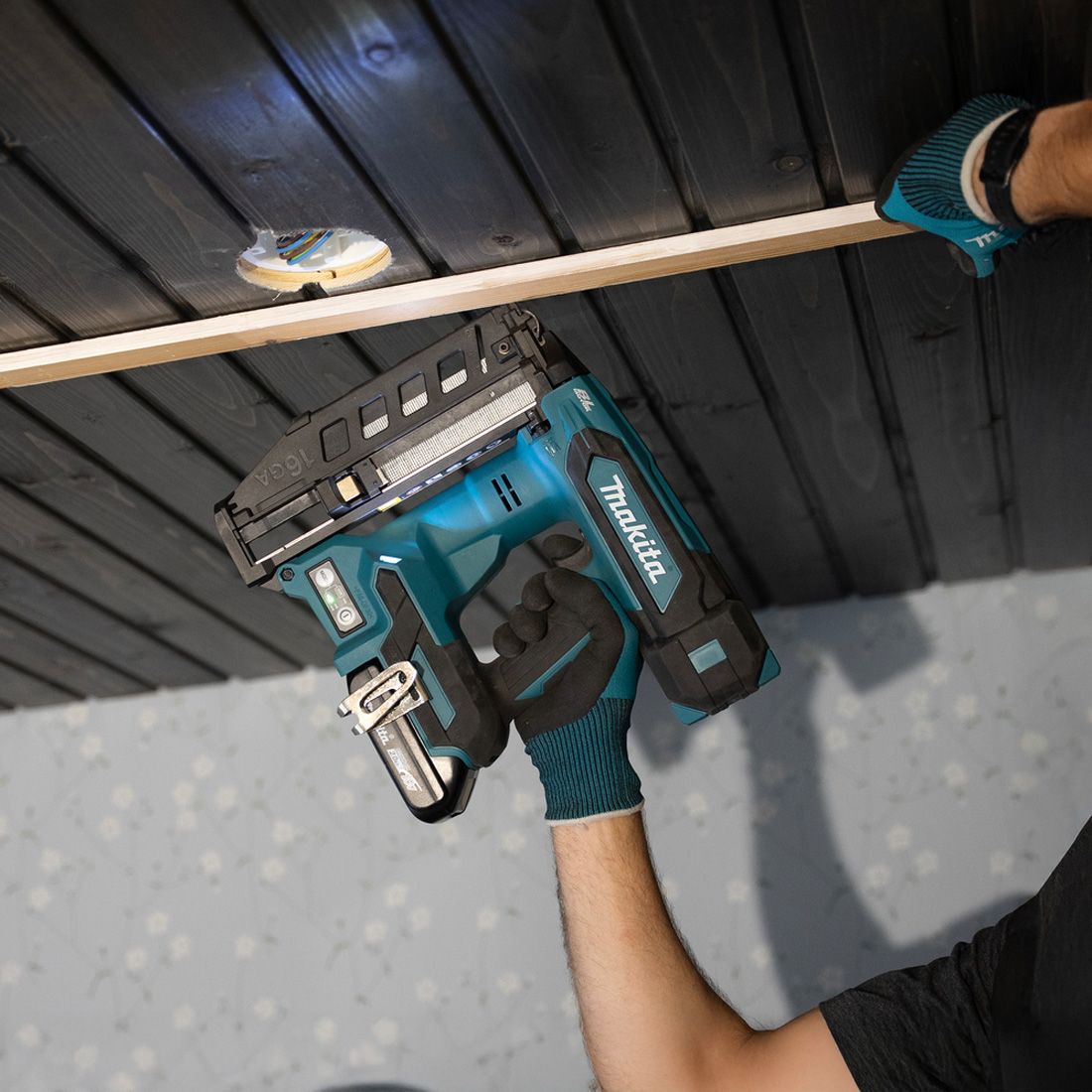

Featuring a pneumatic spring mechanism this machine offers a feel similar to a pneumatic nailer, making this suitable for interior work and other nailing tasks. This machine is also lightweight and offers better maneuverability. Main feature and benefits are Slim nose for easy aiming, Window for checking remaining nail quantity, Tool-less jammed nail clearing.
User benefits

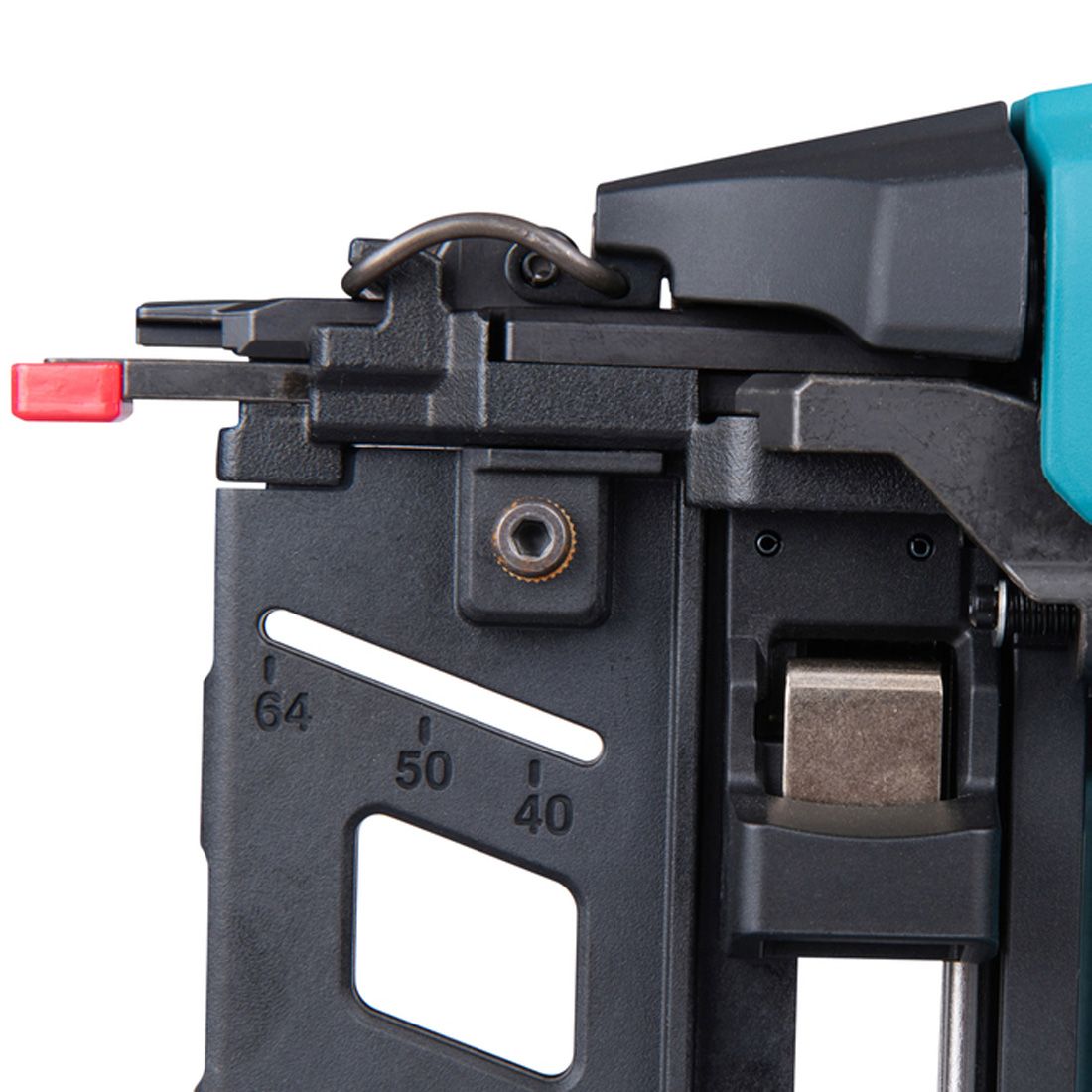

- Depth adjustment
- Brushless maintenance-free and long-life motor
- Built-in LED light illuminates the work area
- Anti-restart function minimises accidental start-up
- eXtreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions
Technical Specification:

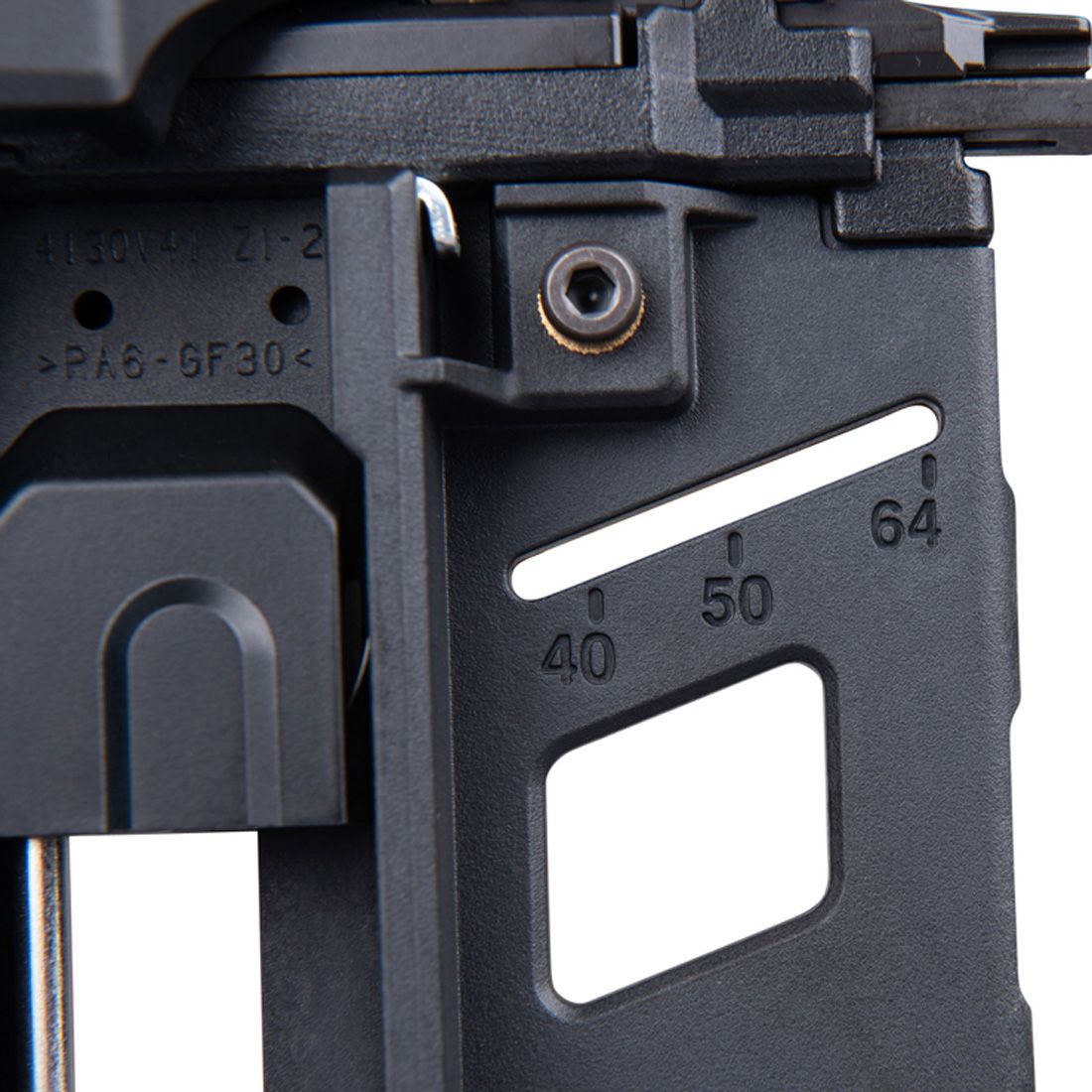

Nail Length - 19 - 64 mm
Nail Diameter - 1,6 mm
Fastener Magazine Capacity - 110
Nominal Battery Voltage - 18 V
Sound Power Level (LWA) - 94 dB(A)
Sound Pressure Level (LpA) - 83 dB(A)
Noise Uncertainty (K Factor) - 3 dB(A)
Vibration Level (3 axes) - ≤ 2,5 m/s²
Vibration Uncertainty (K Factor) - 1,5 m/s²
Tool weight with battery - 2,9 - 3,3 kg
Product Dimensions (L x W x H): - 276 x 98 x 320 mm
Fastener Gauge - 16 Ga
Battery Chemistry (Ni-Cd / Ni-MH / Li-ion) - Li-ion
Magazine Angle - 0 º
Product net weight - 2,6 kg

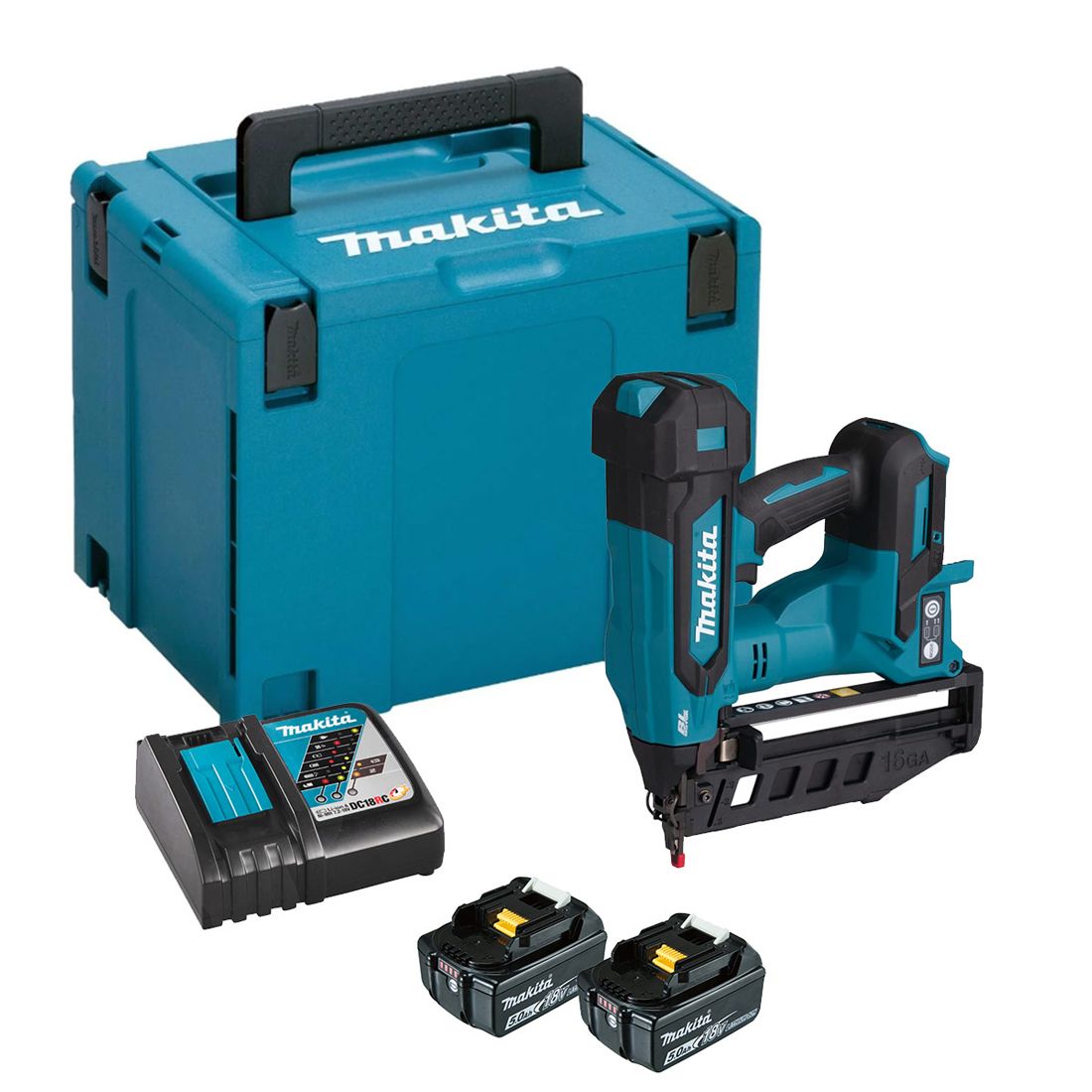

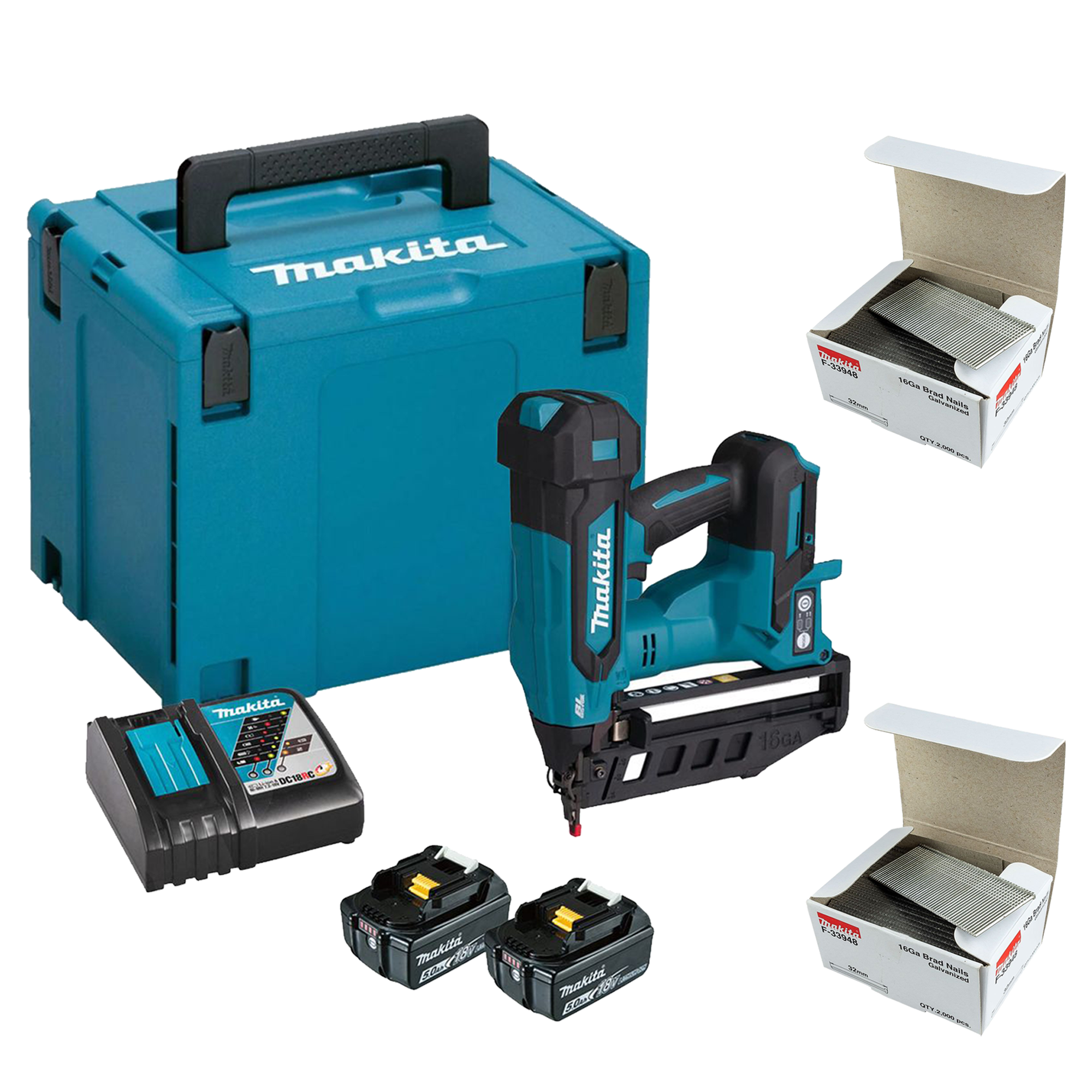

Supplied with 2x 5.0Ah BL1850B Batteries, 1x DC18RC Charger & 1x Carry Case

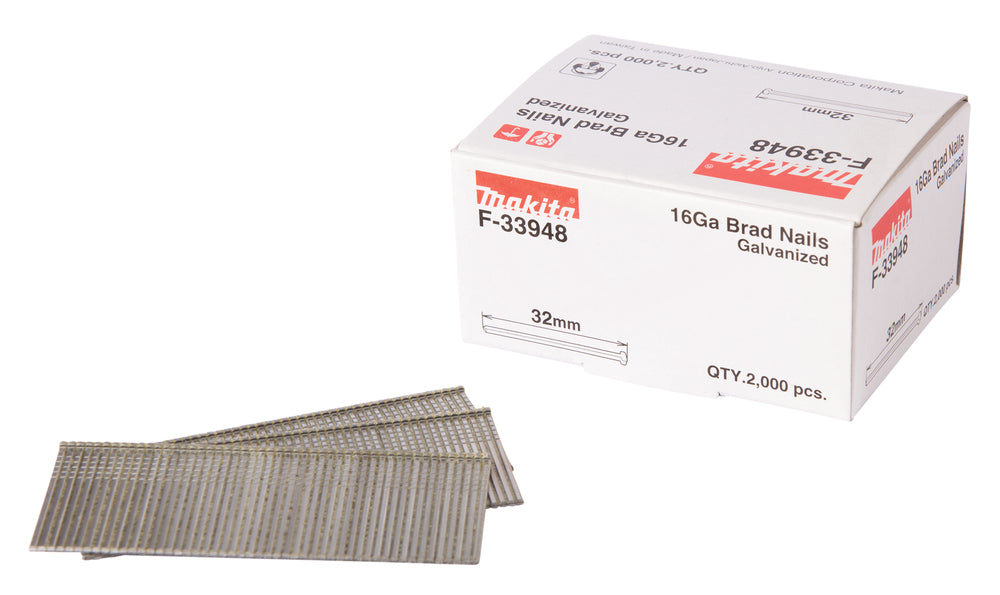

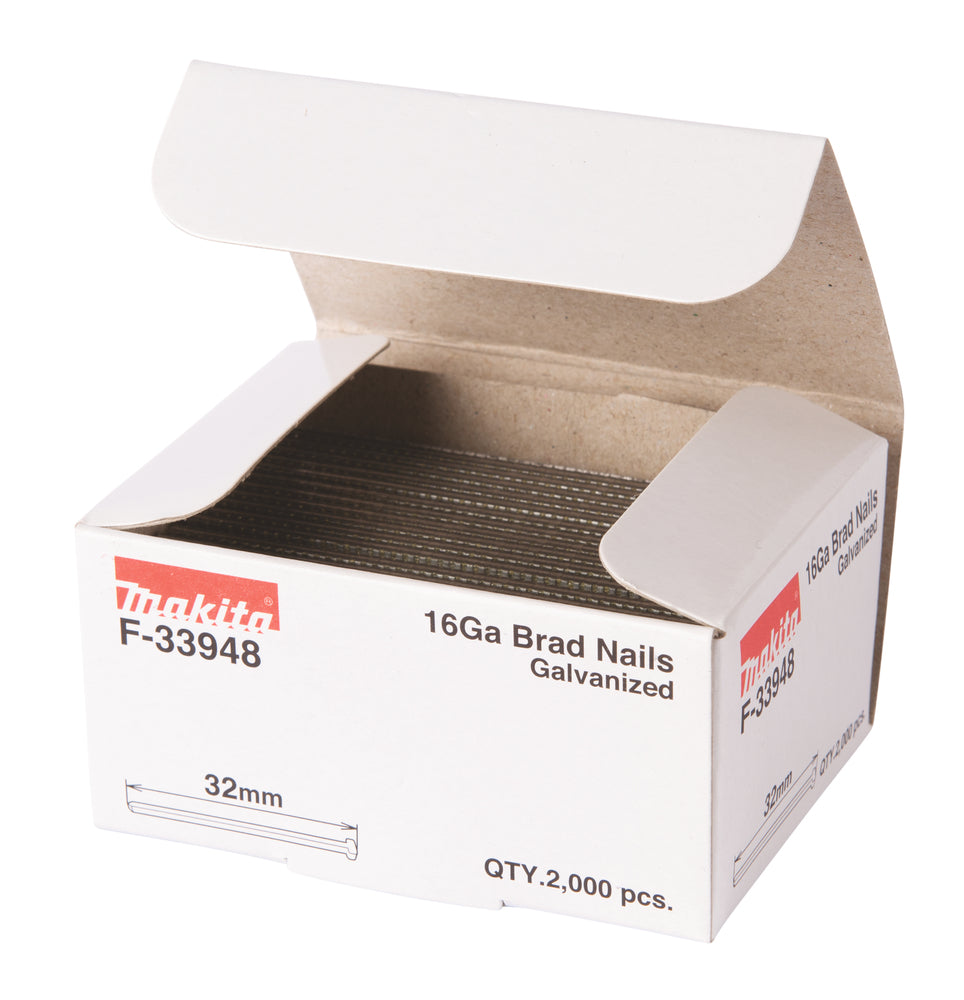

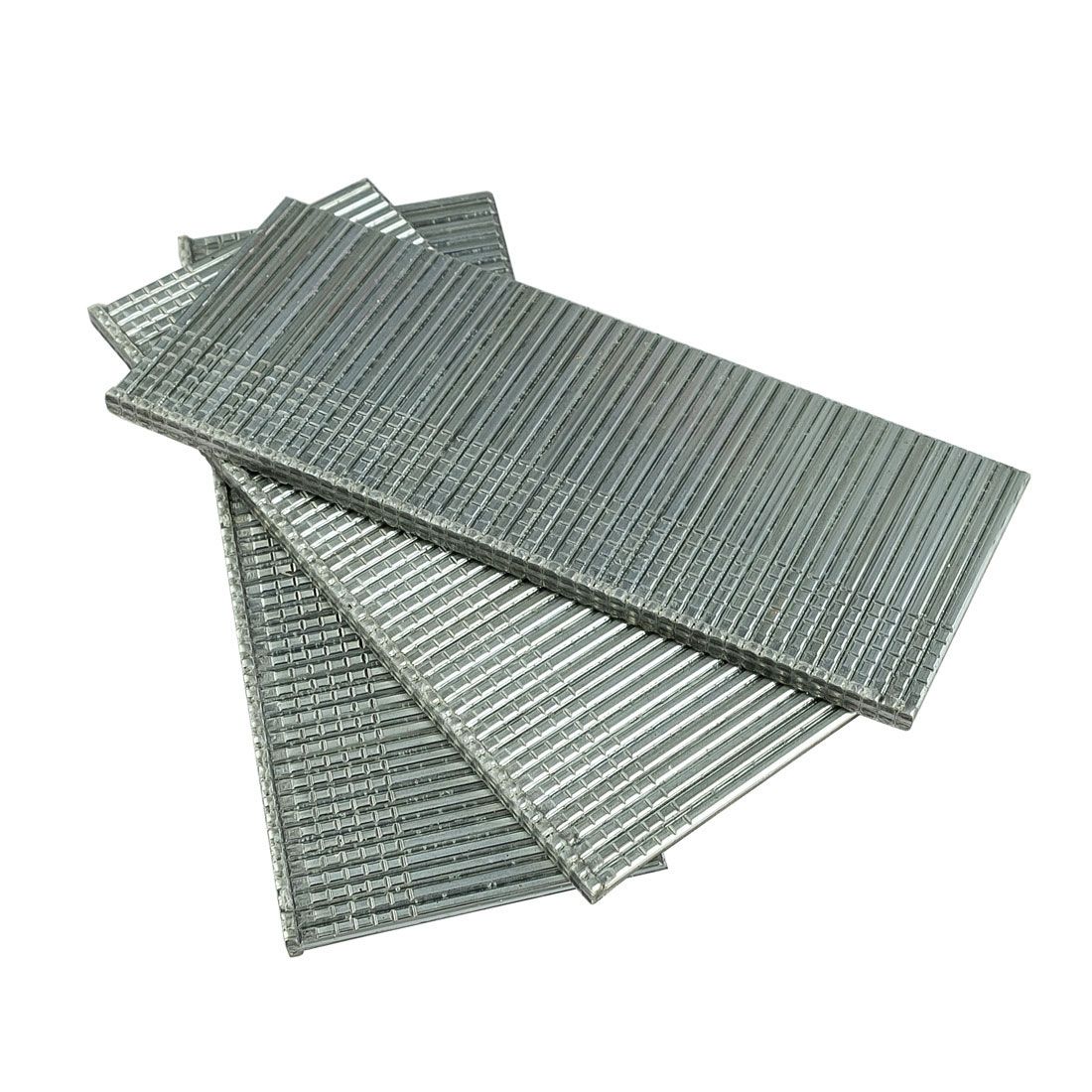

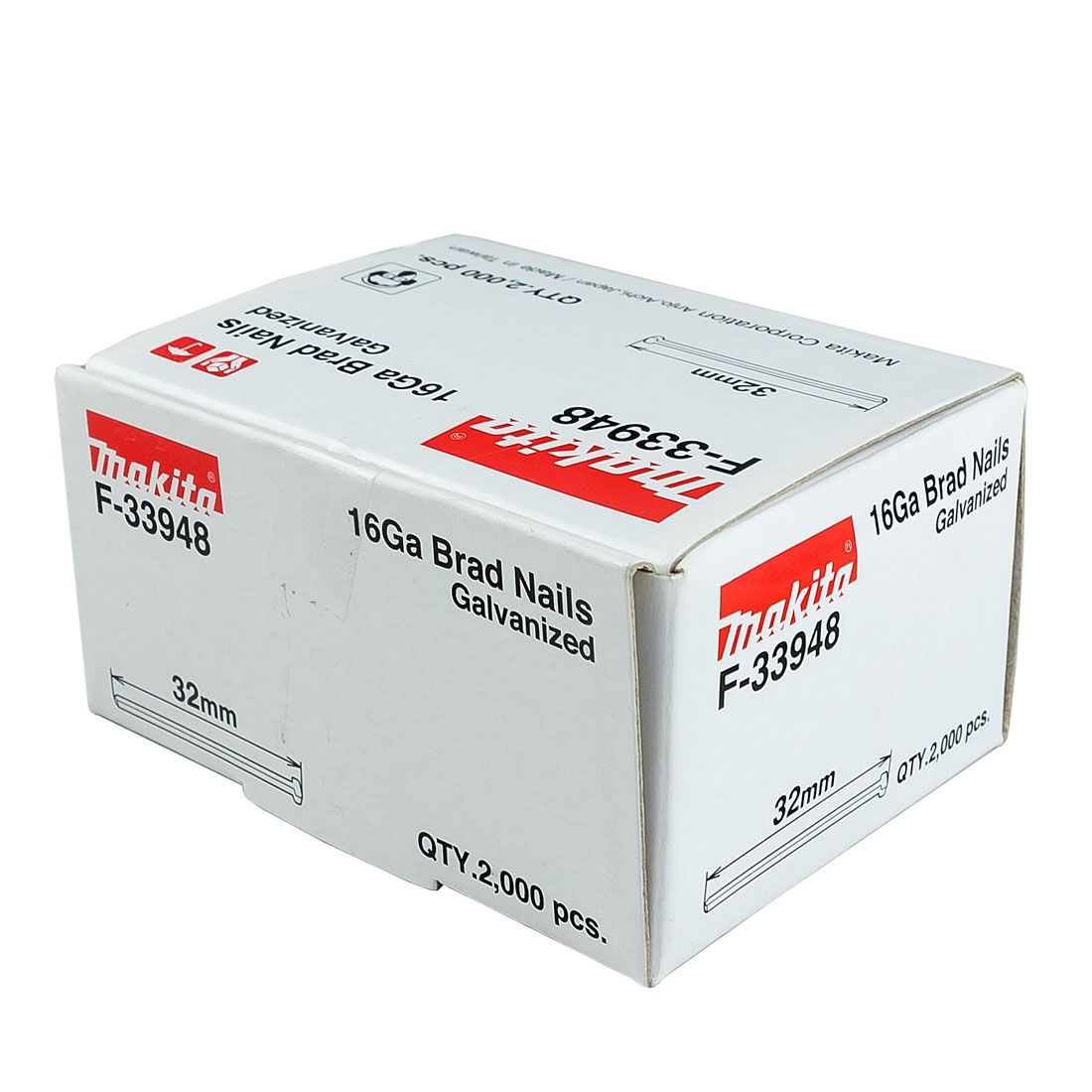

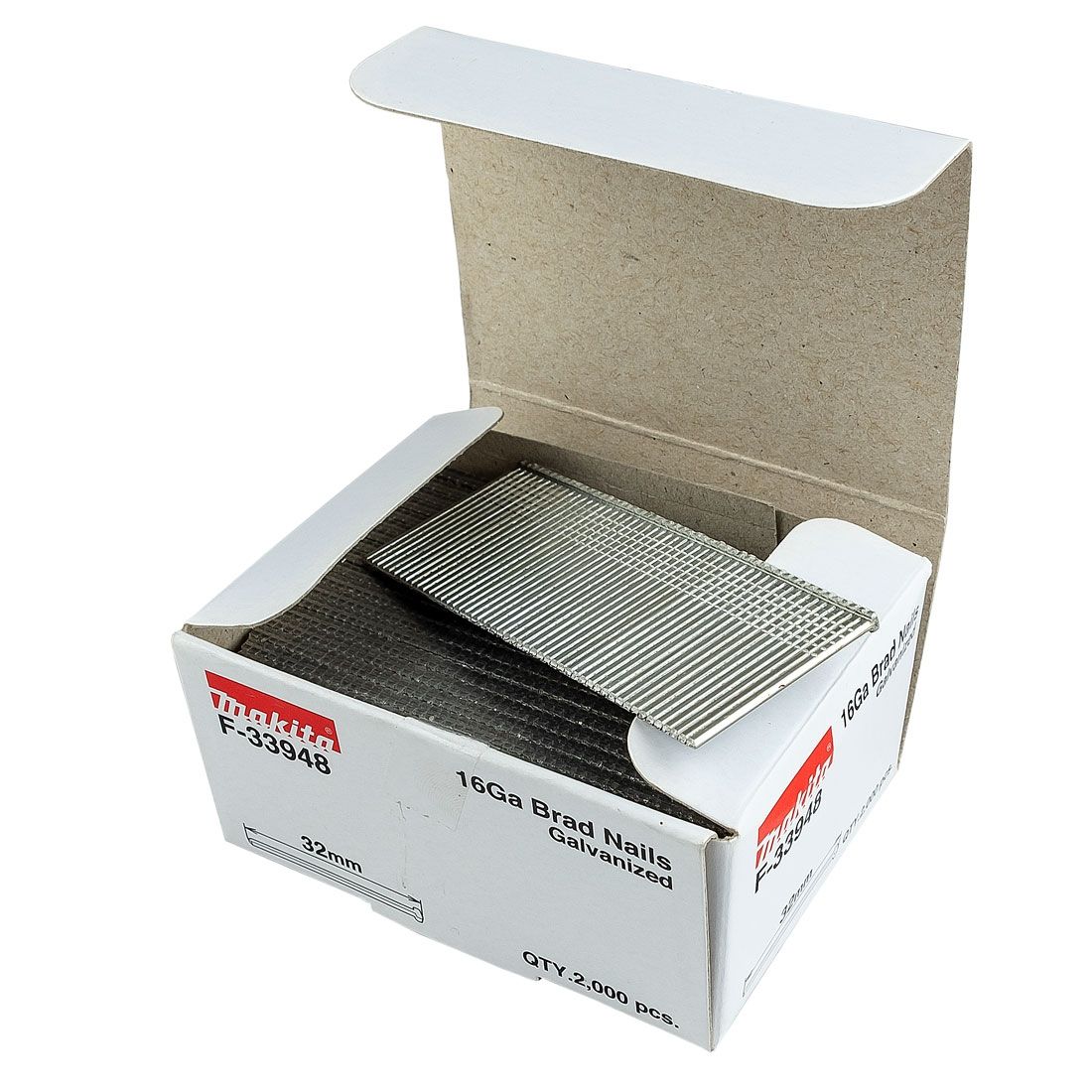

Brad Nails F-33948
Thickness - 1,6 mm
Fastener Gauge - 16 Ga
Length - 32 mm
Magazine Angle - 0 º
Quantity - 2 000
