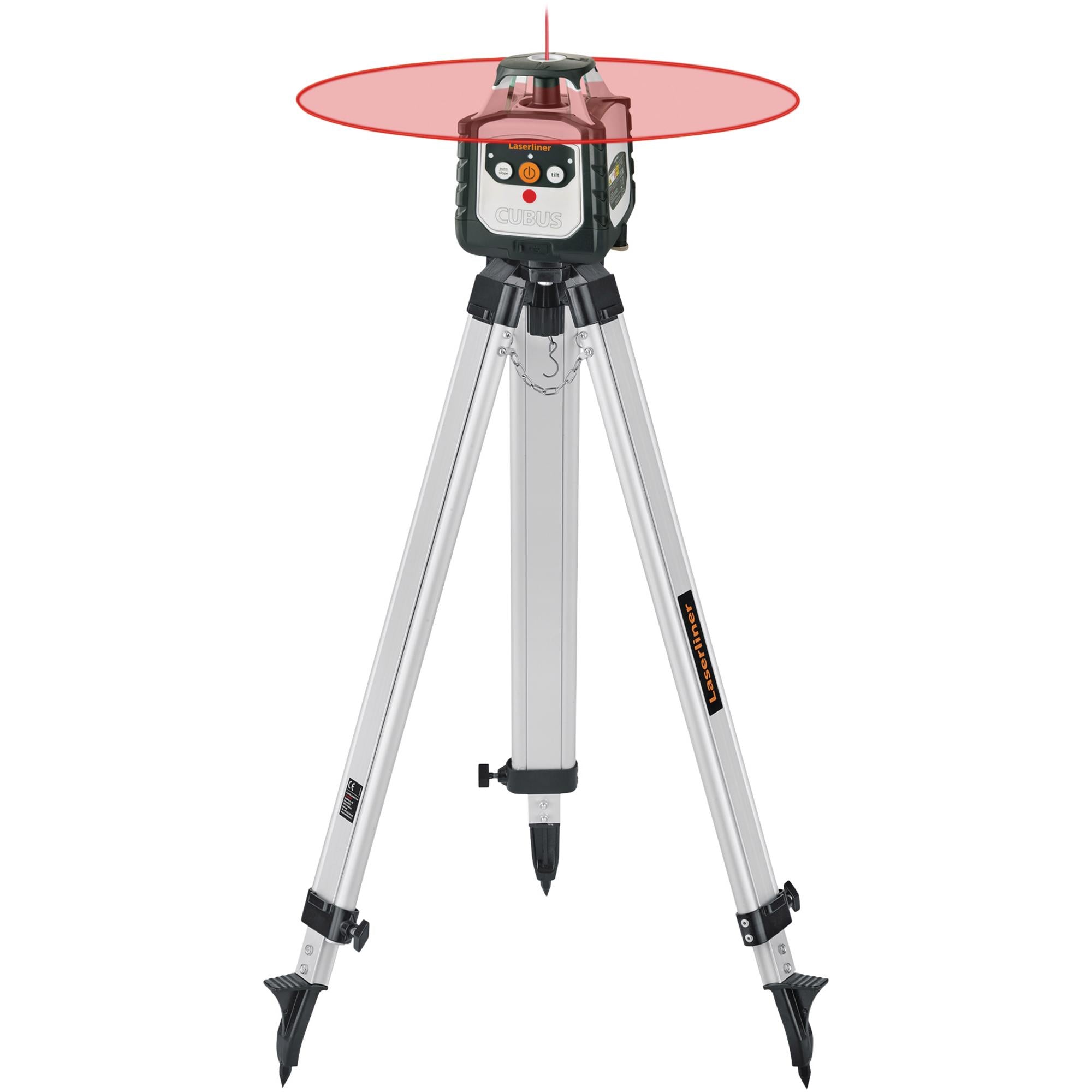

The sturdy, fully automatic rotary laser is perfect for precise alignment of horizontals. Furthermore, the device can be used for the levelling of verticals and slopes. Aligning partitions is easy thanks to an additional reference beam. The laser receiver can be easily attached to measuring staffs and allows a height reference to be marked. This has the advantage that the laser can be reset to the specified height at any time. The remote control for operating all of the functions at a distance of up to 40 metres is particularly handy. In the event of external influences, the automatic shut down prevents measurement errors. The HighCapacityPack with lithium-ion technology can be used and charged at the same time which means users can work without interruption.
Contents

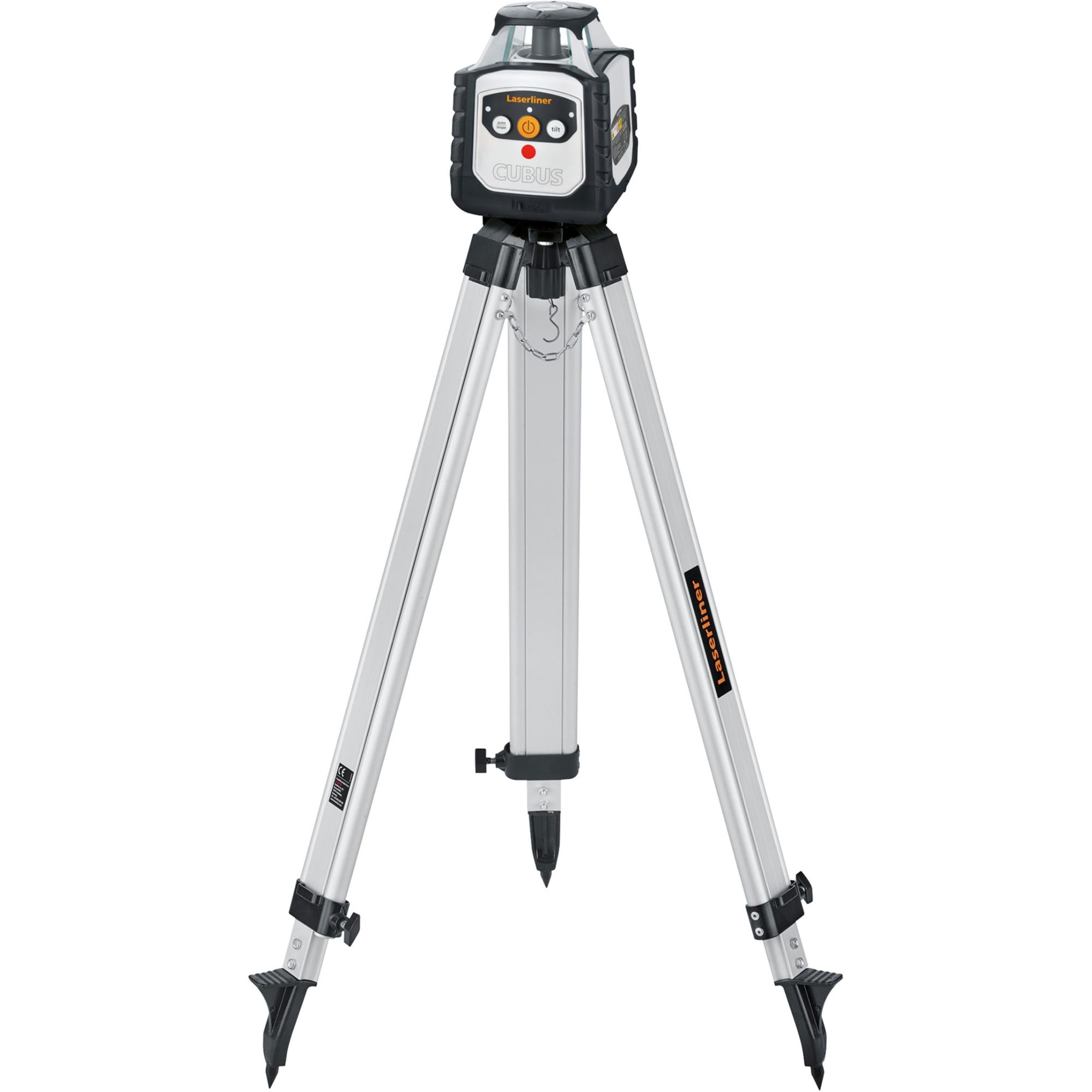

1 x Laserliner 052.325A Cubus 110 S Set Fully Automatic Rotating Laser, 150cm
1 x SensoLite 110
1 x Light-weight tripod 150 cm
1 x Tripod/wall bracket
1 x Universal mount
1 x Telescopic levelling staff LT 4 m
1 x Remote control
1 x HighCapacityPack (Li-Ion)
1 x Batteries
1 x Network/charging device incl. international adapter
1 x Carrying strap
1 x Carrying case
Specifications
Horizontal/vertical/angle levelling: Yes
Hand receiver mode: Yes
Scan mode: Yes
Spot mode: Yes
Manual slope function: Yes
Precision sensor levelling: Yes
Battery and mains operation: Yes
Anti-Drift-System (ADS): Yes
Tilt warning function: Yes
Self-Levelling Range: ± 4°
Accuracy: ±0.15 mm/m
Levelling: Automatic horizontal / vertical levelling with electronic levels and motors
Laser Wavelength: 635 nm
Laser Class: 2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021)
Laser Reception Range: 1 - 100 m
Protection Class: IP 66
Power Supply: Li-ion battery pack 7.4V / 2.6Ah / 19.24Wh
Operating Time: approx. 20 hours
Battery Recharging Time: approx. 4 hours
Dimensions (W x H x D): 130 mm x 160 mm x 145 mm
Weight: 1300g
