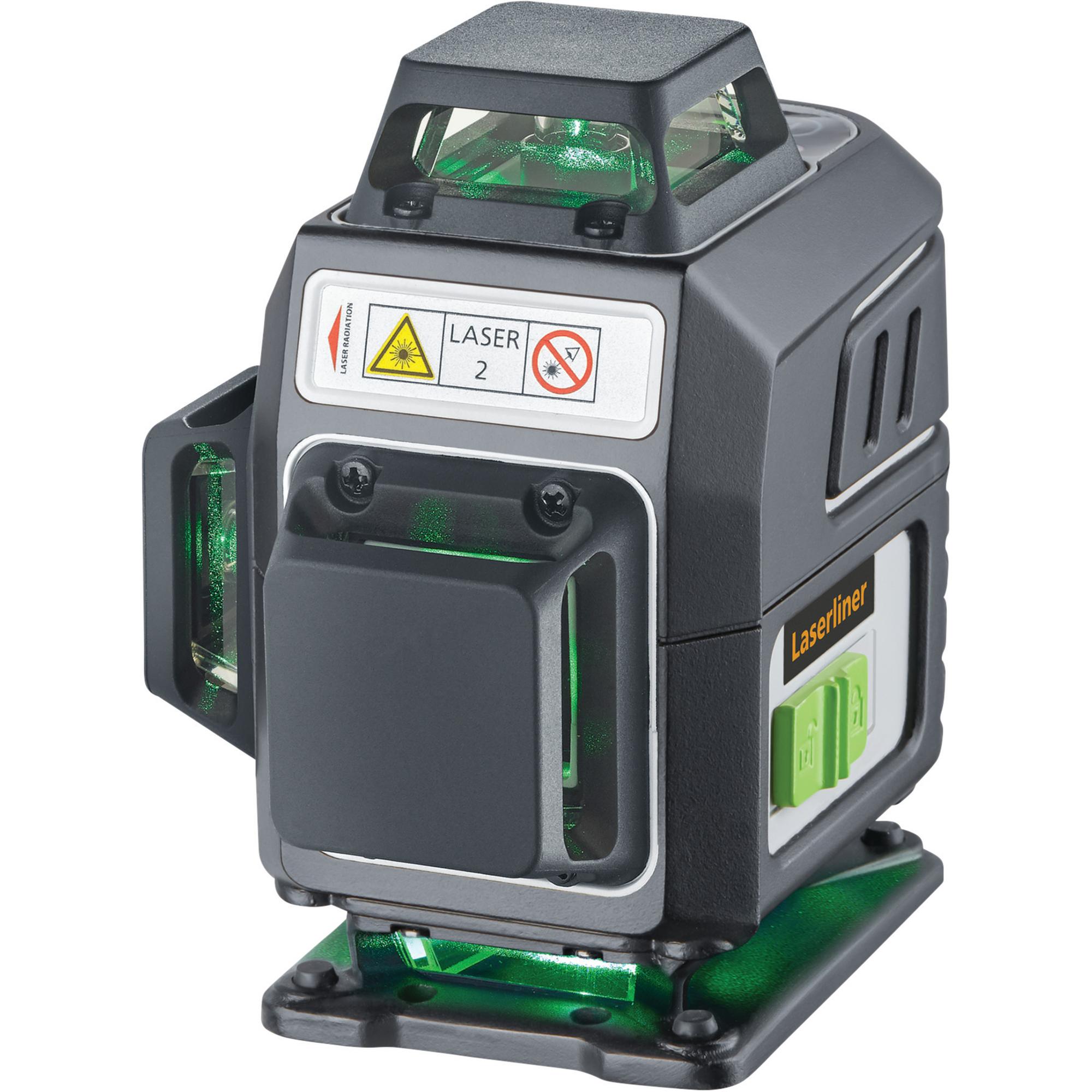

This three-dimensional, practical and highly visible green laser projects two horizontal and two vertical laser circles for precise alignment of objects. Thanks to the horizontal laser circle at the very bottom, the device is particularly suited to applications close to the floor, such as determining floor heights and aligning skirting boards. The laser crosses form a plumb function for working simultaneously on floors and ceilings. A manual slope mode is available for creating gradients. This laser is an extremely useful tool for demanding projects due its the comprehensive range of accessories. The PocketWallHolder is a multi-functional, height-adjustable, magnetic bracket for attaching the laser to walls, metal items and tripods with a 1/4” or 5/8” thread. Battery not supplied.

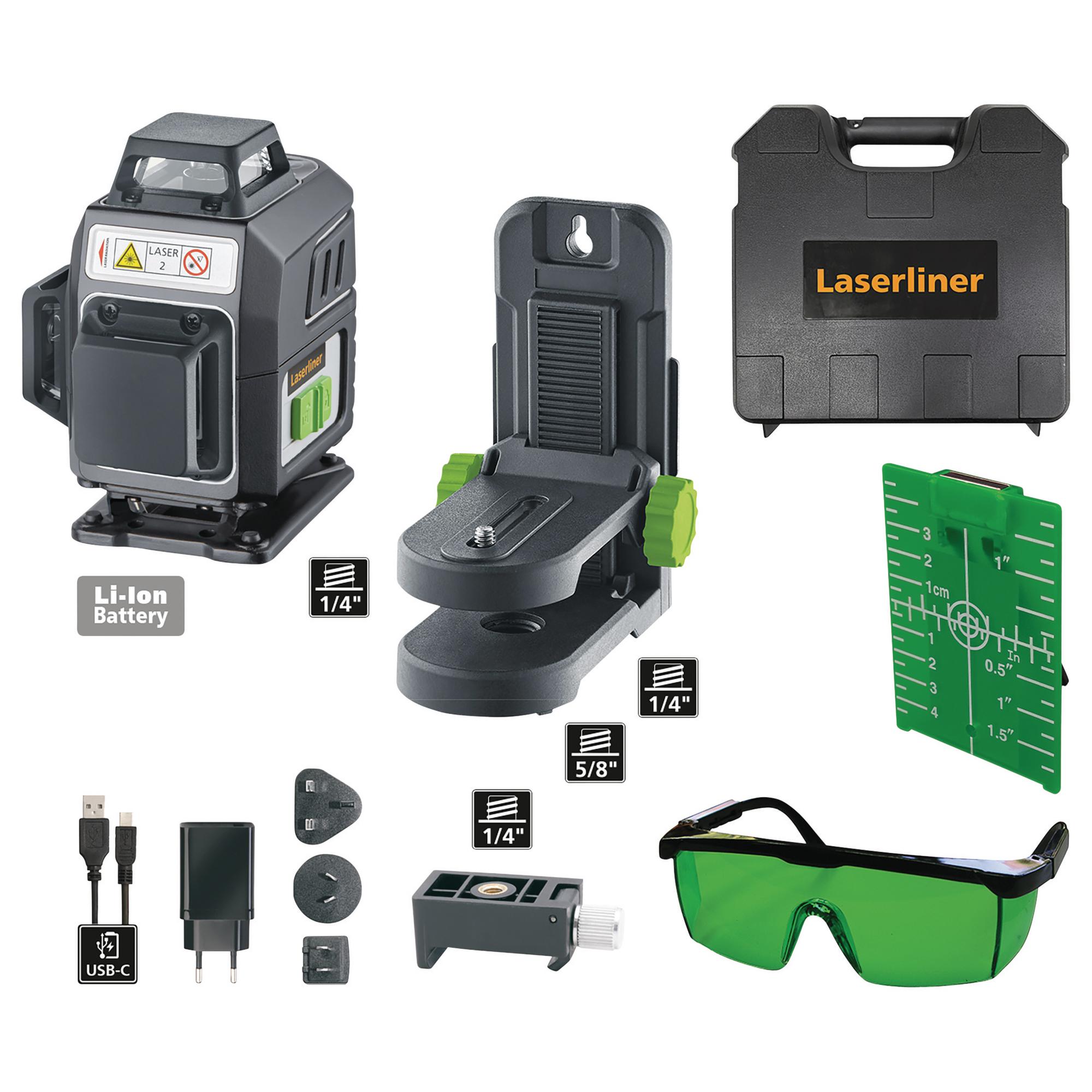

Contents
1 x Laserliner 036.705A PocketPlane-Laser 4G Three-Dimensional Laser
1 x PocketWallHolder
1 x TopHolder
1 x Magnetic target plate green
1 x Laser enhancement glasses
1 x Network/charging device incl. international adapter
1 x USB-C-cable
1 x Carrying case
Specifications
Horizontal/vertical levelling: Yes
Manual slope function: Yes
Battery and mains operation: Yes
Hand receiver mode: Yes
Self-Levelling Range: ± 3.5° (horizontal)
Accuracy: ±0.3 mm/m
Levelling: Automatic
Visibility (Typical)*: 30 m
Laser Wavelength: 515 nm
Laser Class: 2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021)
Power Supply: Li-ion battery pack 3.7V / 4.0Ah / 14.8Wh
Operating Time; with 3 laser levels: approx. 7 hours
Operating Conditions: 0°C 50°C
Storage Conditions: -10°C 70°C
Dimensions (W x H x D): 103 mm x 106 mm x 76 mm
Weight: 464g
