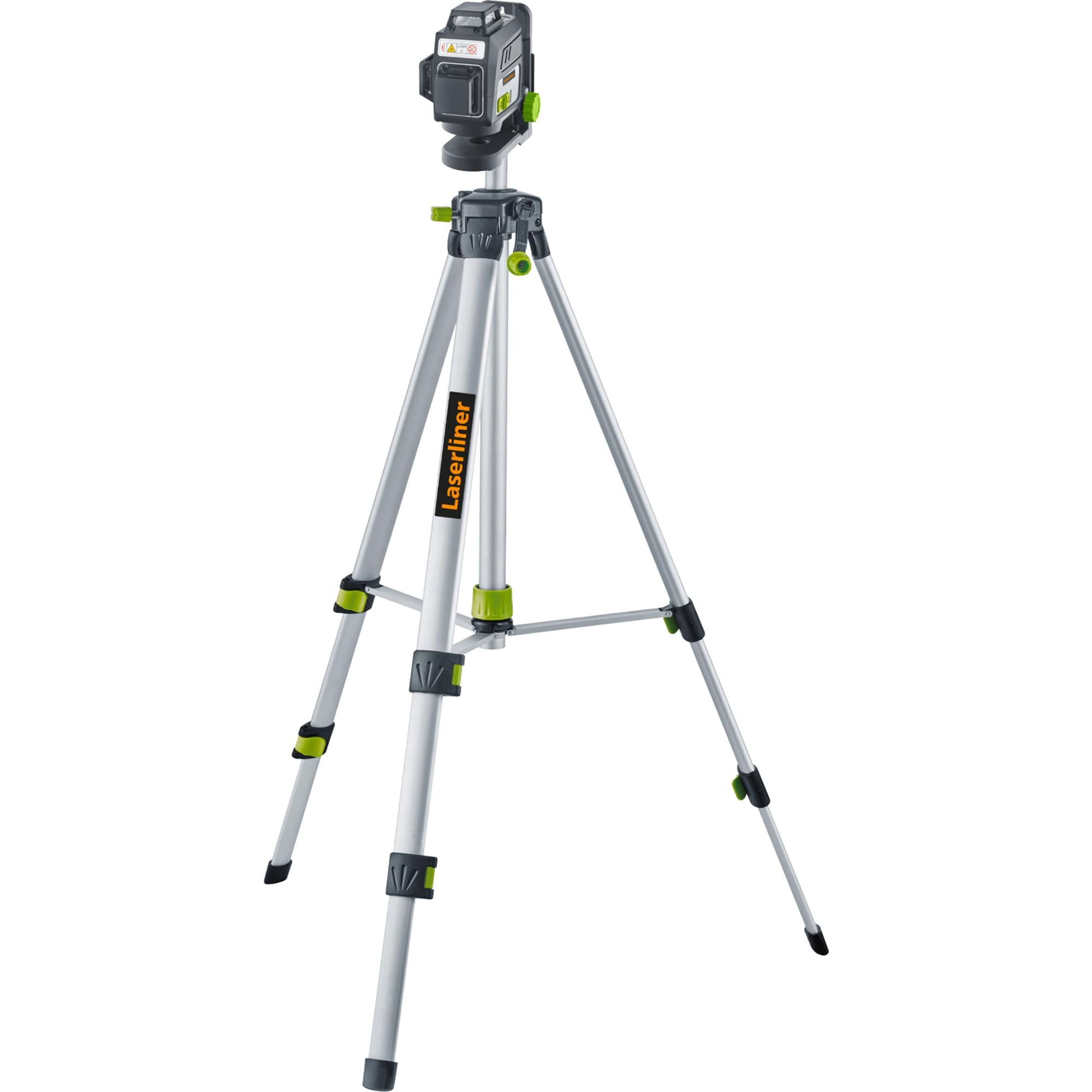

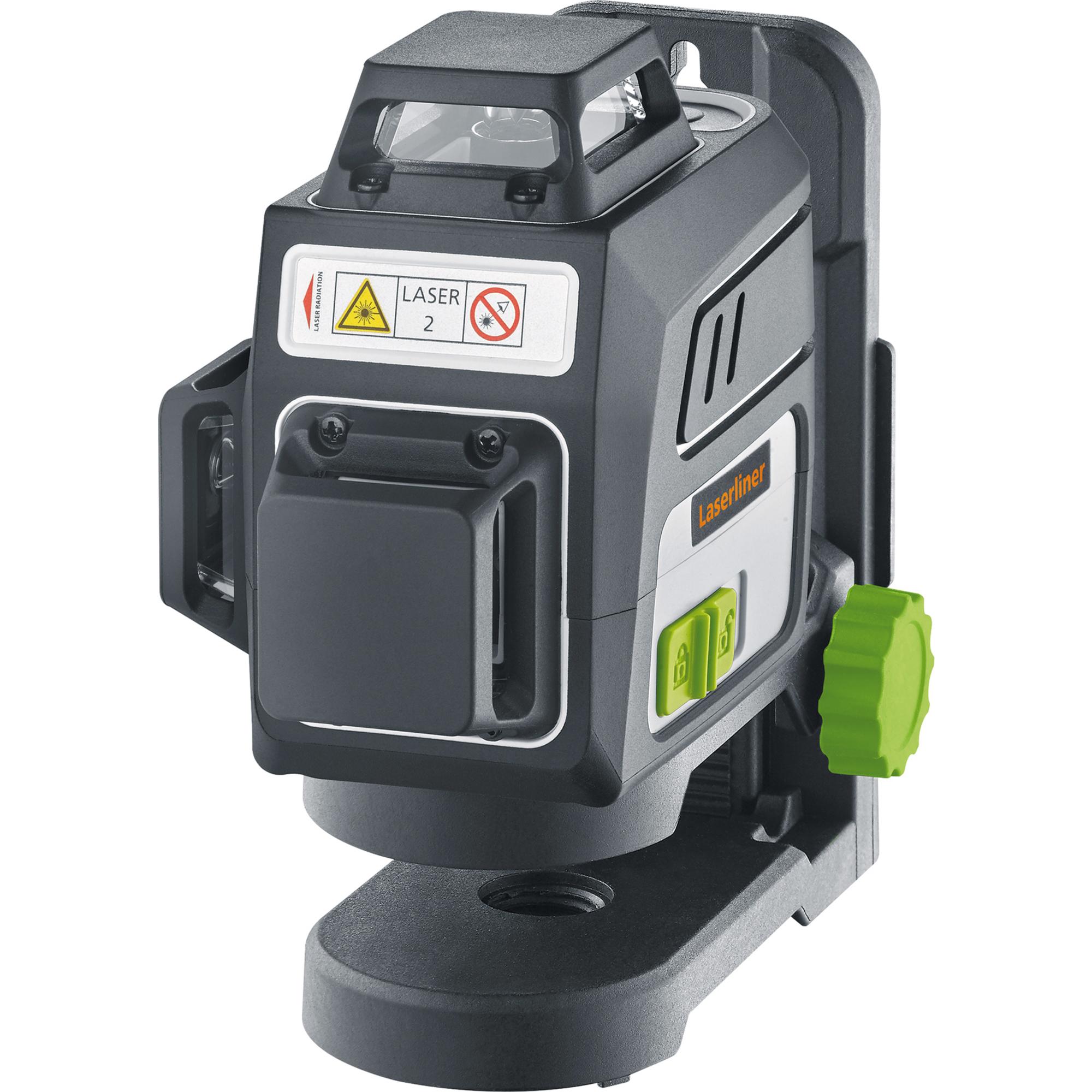

This three-dimensional, compact and highly visible green laser projects one horizontal and two vertical laser circles for precise alignment of objects. The laser crosses form a plumb function for working simultaneously on floors and ceilings. A manual slope mode is available for creating gradients. This laser is all you need for demanding projects thanks to the comprehensive range of accessories. Multi-section telescopic tripod legs and a 30 cm crank on this compact tripod provide an extensive adjustment range. The PocketWallHolder is a multi-functional, height-adjustable, magnetic bracket for attaching to walls, metal items and tripods with a 1/4” or 5/8” thread. Supplied with battery.
Contents
1 x Laserliner 036.703A PocketPlane-Laser 3G Set Three-Dimensional Laser, 150cm
1 x Compact tripod 150 cm
1 x PocketWallHolder
1 x Magnetic target plate green
1 x Laser enhancement glasses
1 x Li-ion battery pack
1 x Network/charging device incl. international adapter
1 x USB-C-cable
1 x Carrying case
Specifications
Horizontal/vertical levelling: Yes
Manual slope function: Yes
Battery and mains operation: Yes
Hand receiver mode: Yes
Self-Levelling Range: ± 3.5° (horizontal)
Accuracy: ±0.3 mm/m
Levelling: Automatic
Visibility (Typical)*: 30 m
Laser Wavelength: 515 nm
Laser Class: 2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021)
Power Supply: Li-ion battery pack 3.7V / 3.6Ah / 13.32Wh, Power adapter 5V / DC / 2A
Operating Time: with 3 laser levels: approx. 9 hours
Operating Conditions: 0°C 50°C
Storage Conditions: -10°C 70°C
Dimensions (W x H x D): 104 mm x 97 mm x 76 mm
Weight: 388g (incl. Akkupack)
