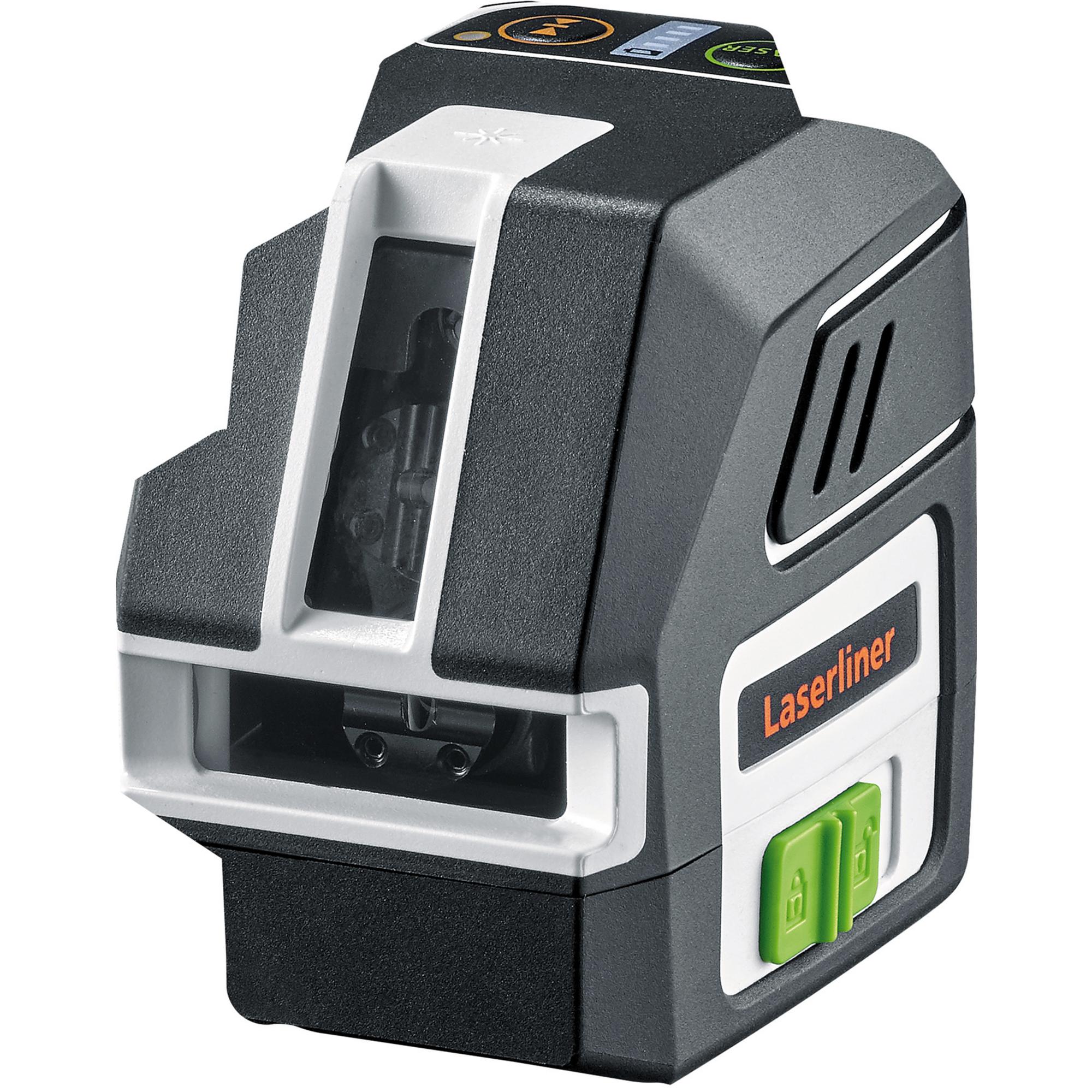

This cross-line laser projects a highly visible green laser cross for precise horizontal and vertical alignment of objects. It also has a manual slope function for setting creating gradients. A versatile range of accessories means this laser is the solution for any precision alignment job. The compact tripod has a wide adjustment range due to the multi-section telescopic legs and a crank (30 cm stroke). The PocketWallHolder, a multi-functional, height-adjustable magnetic bracket, is suitable for attaching to walls, metal items, and tripods with a 1/4” or 5/8” thread. Battery pack supplied.
Contents
1 x Laserliner 036.713A PocketCross-Laser 2G Set Cross-Line Laser, 150cm

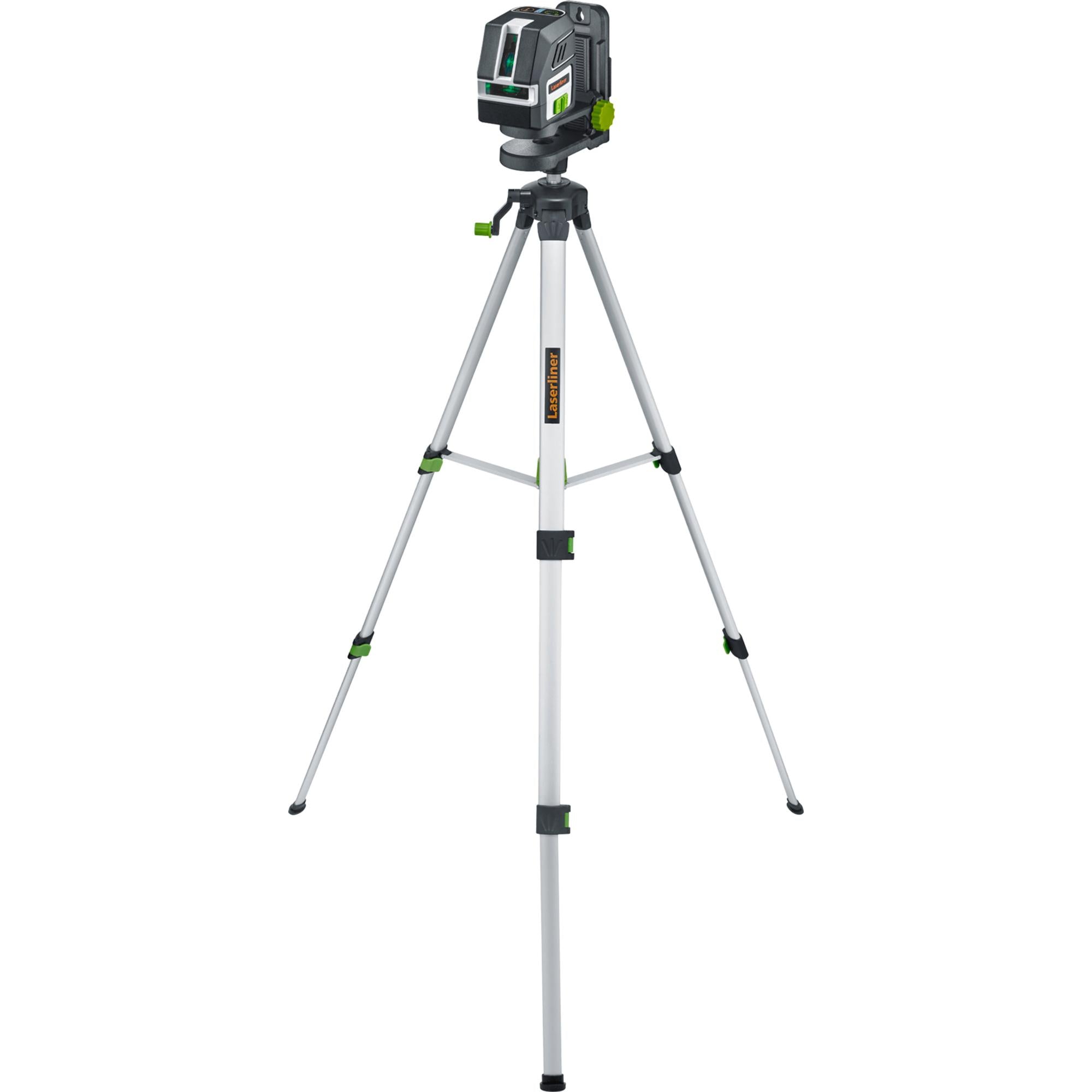

1 x Compact tripod 150 cm
1 x PocketWallHolder
1 x Magnetic target plate green
1 x Laser enhancement glasses
1 x Li-ion battery pack
1 x Network/charging device incl. international adapter
1 x USB-C-cable
1 x Carrying case
Specifications
Horizontal/vertical levelling: Yes
Manual slope function: Yes
Battery and mains operation: Yes
Hand receiver mode: Yes
Self-Levelling Range: ± 3.5° (horizontal)
Accuracy: ±0.3 mm/m
Levelling: Automatic
Visibility (Typical)*: 55 m
Laser Wavelength: 515nm
Laser Class: 2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021)
Power Supply: Li-ion battery pack 3.7V / 3.6Ah / 13.32Wh, Power adapter 5V / DC / 2A
Operating Time: approx. 15 hours
Operating Conditions: 0°C 50°C
Dimensions (W x H x D): Dimensions (W x H x D)
Weight: 334g (incl. Akkupack)
