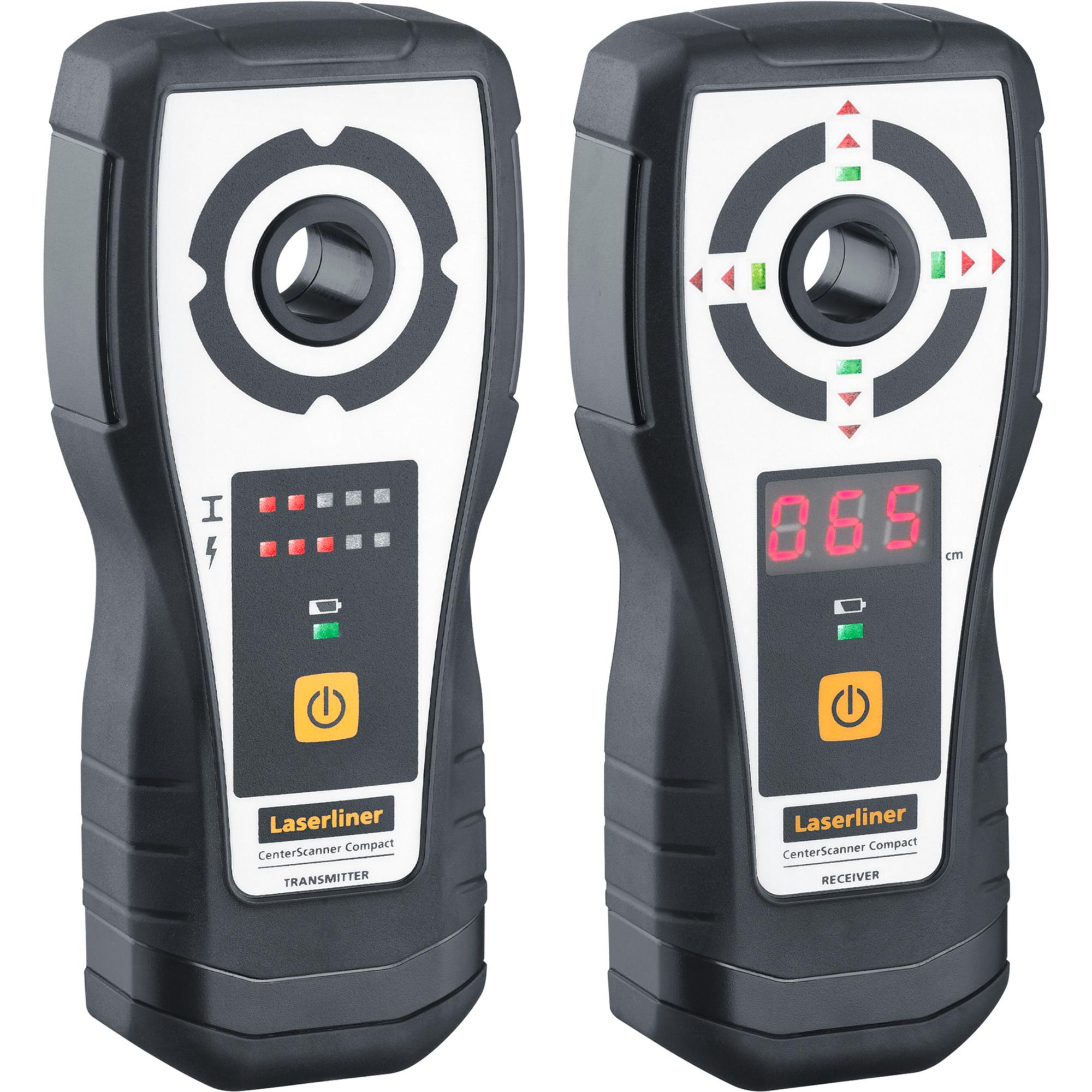

This highly accurate drill guide consists of a transmitter and a receiver and provides safe alignment of the drill channel when drilling through walls and ceilings up to a depth of 120 cm. Easily visible LED indicators and acoustic signals that can be switched off provide the location. Highly accessible marking aids in the sender and receiver provide the centring. The required drilling depth can be determined up to 150 cm using the integral LCD display. A visual and acoustic warning is sent when foreign objects are detected. The sender and receiver fit comfortably in the hand thanks to their ergonomic design. Supplied with receiver RECV, adhesive kit, sliding pads (x4) batteries
& a carrying case.
Contents
1 x Laserliner CenterScanner Compact Drilling Guide Device
1 x Receiver RECV
1 x Adhesive kit
1 x Sliding pads (x4)
1 x Batteries
1 x Carrying case
Specifications
Operating instructions: Yes
Drill channel alignment: Yes
Wall thickness display: Yes
Measuring depth display: Yes
Warning for 230 V wires: Yes
Metal detection: Yes
Accuracy: typically 3% of measured depth
Detection Range AC: 2 cm
Power Supply: RECV: 3 x 1.5V LR03 (AAA) / TX: 3 x 1.5V LR03 (AAA)
Operating Time: RECV: approx. 20 hours / TX: approx. 12 hours
Storage Conditions: -20°C 60°C, Luftfeuchtigkeit max. 85% rH, nicht kondensierend
Dimensions (W x H x D): 77 mm x 179 mm x 31 mm
Weight: 507g (RECV und TX inc. Batteries)
