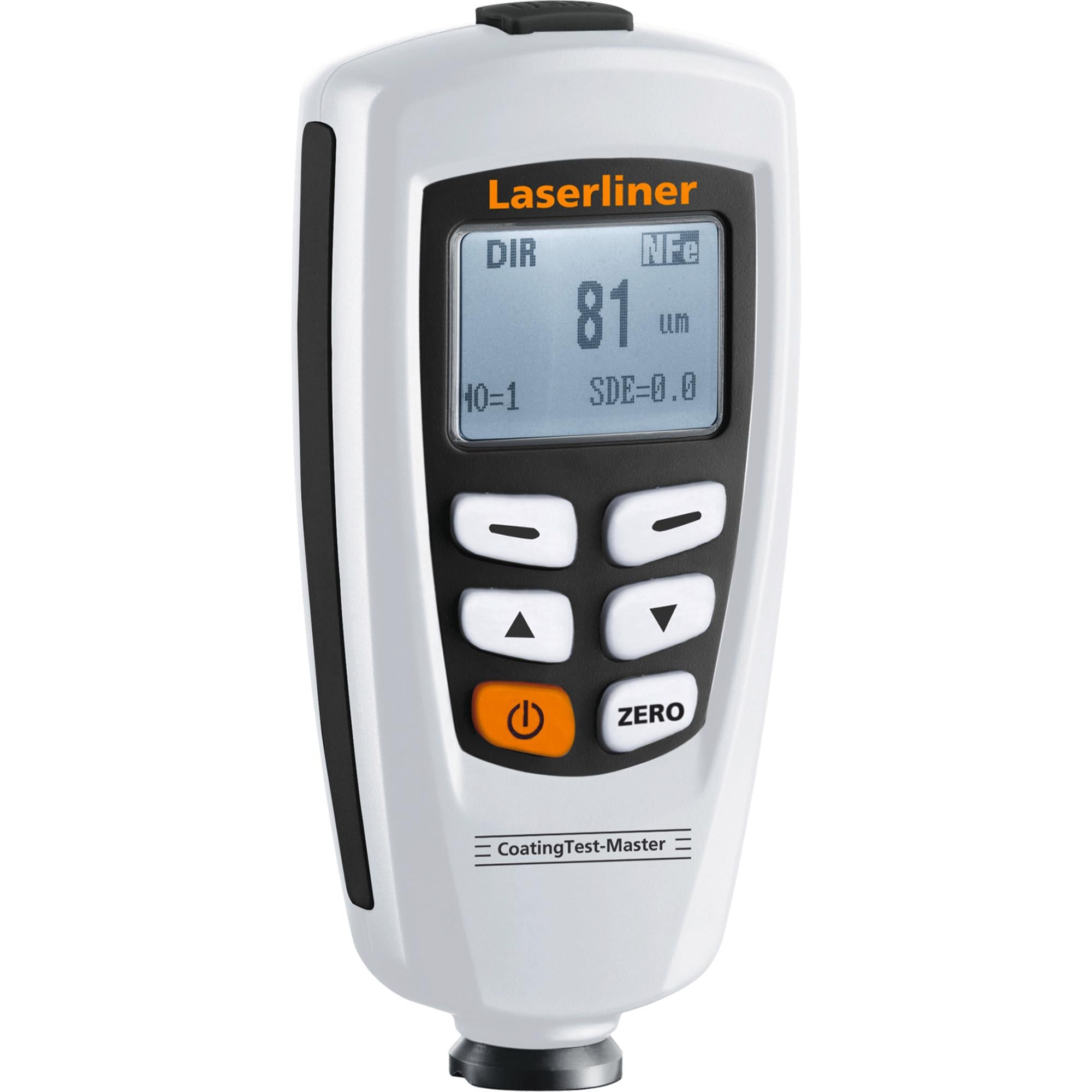

This point precise coating thickness measuring instrument is suitable for insulating and non-magnetic coatings on non-ferrous metals. The base material is identified automatically (ferrous/ferromagnetic, non-ferrous/non-ferromagnetic). The device features one-point or two-point calibration to increase the measuring accuracy. 400 measured values can be saved to the internal memory and transferred to a PC via the USB interface for further analysis. Supplied with USB cable, batteries and carrying case.
Contents
1 x Laserliner 082.150A CoatingTest-Master Coating Thickness Measuring Device
1 x Calibration references
1 x Software
1 x USB cable
1 x Batteries
1 x Carrying case
Specifications
Coating thickness: Yes
Ferrous and non-ferrous: Yes
Single and continuous measurement: Yes
Mean value: Yes
Standard deviation: Yes
Zero adjustment: Yes
User calibration Yes
Measured Variable: Coating thickness
Coating Thickness Measuring Range: 0 1250 µm
Sensor Type: Magnetic-inductive (Fe), eddy current (NFe)
Port: USB
Memory: 80 measurements / mode
Power Supply: 2 x 1.5V LR03 (AAA)
Dimensions (W x H x D): 23 mm x 110 mm x 50 mm
Weight: 116g
