This precision noise level measuring instrument uses frequency weighting filters according to dB (A) and dB (C) standard curves. A choice of two time weighting factors (fast/slow) allows optimum adaptation to noise dynamics The selectable analogue indicator provides a visual assessment of the test area. The measurement is taken with a long-term recording function with 16,000 storage points or real-time logging on a PC using the supplied software. The device has analogue DC and AC outputs and an illuminated display. Calibration and adjustment is by means of a standard 94 dB/1 kHz noise level calibrator. Supplied with USB cable, batteries and carrying case.
Contents

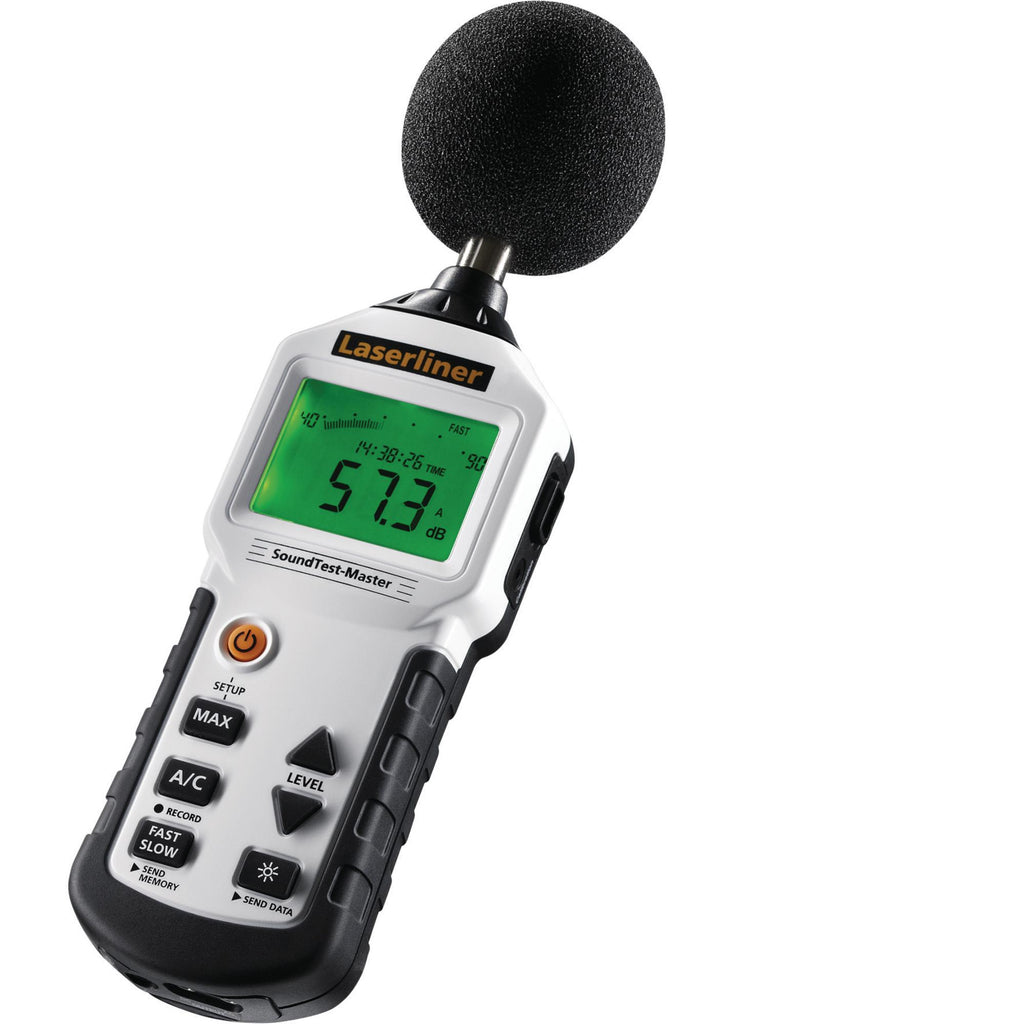

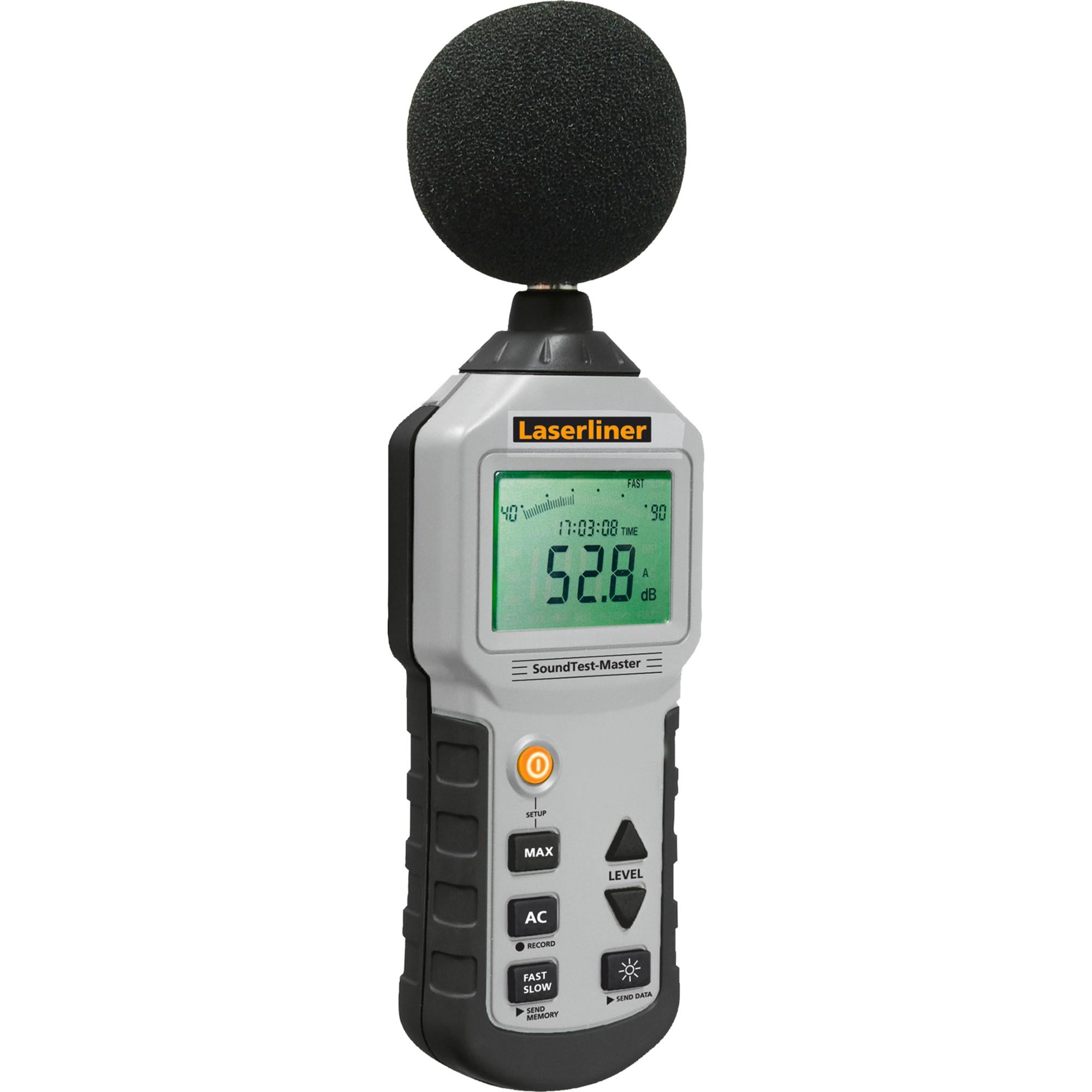

1 x Laserliner 082.070A SoundTest-Master Noise Level Measuring Instrument
1 x Software
1 x USB cable
1 x Batteries
1 x Carrying case
Specifications
Sound level dB(A)/dB(C): Yes
Time weighting fast/slow: Yes
Real time display: Yes
Time stamp: Yes
Data transfer: Yes
Long-term storage: Yes
Measured Variable: Sound pressure level
Sensor Type: Microphone: Electret condenser
Frequency Range Sound Pressure Level: 31.5 Hz 8 kHz
Port: Optoinsulated RS232
Memory: 16000 measurements
Power Supply: 6 x 1.5V LR03 (AAA)
Dimensions (W x H x D): 35 mm x 80 mm x 245 mm
Weight: 350g
