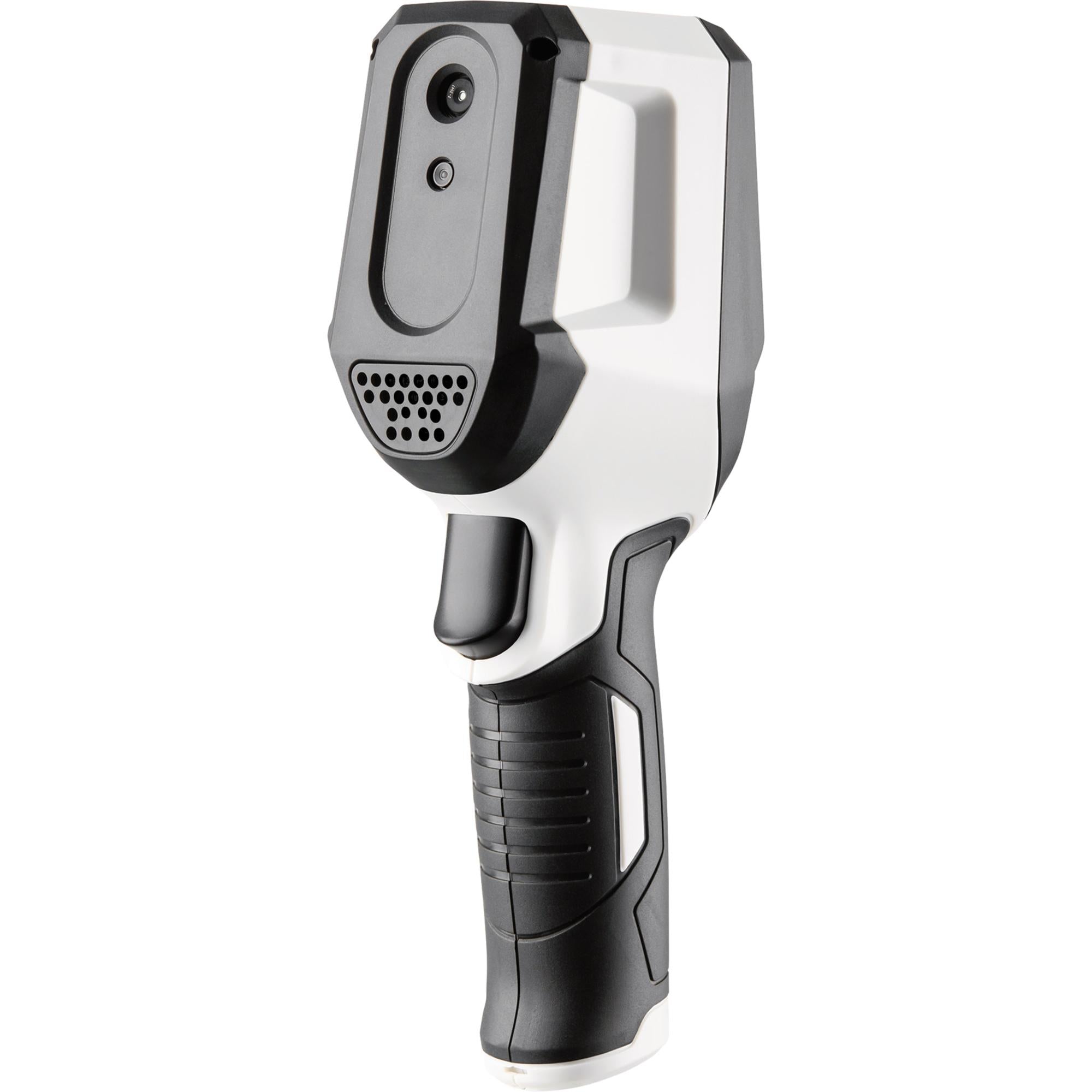

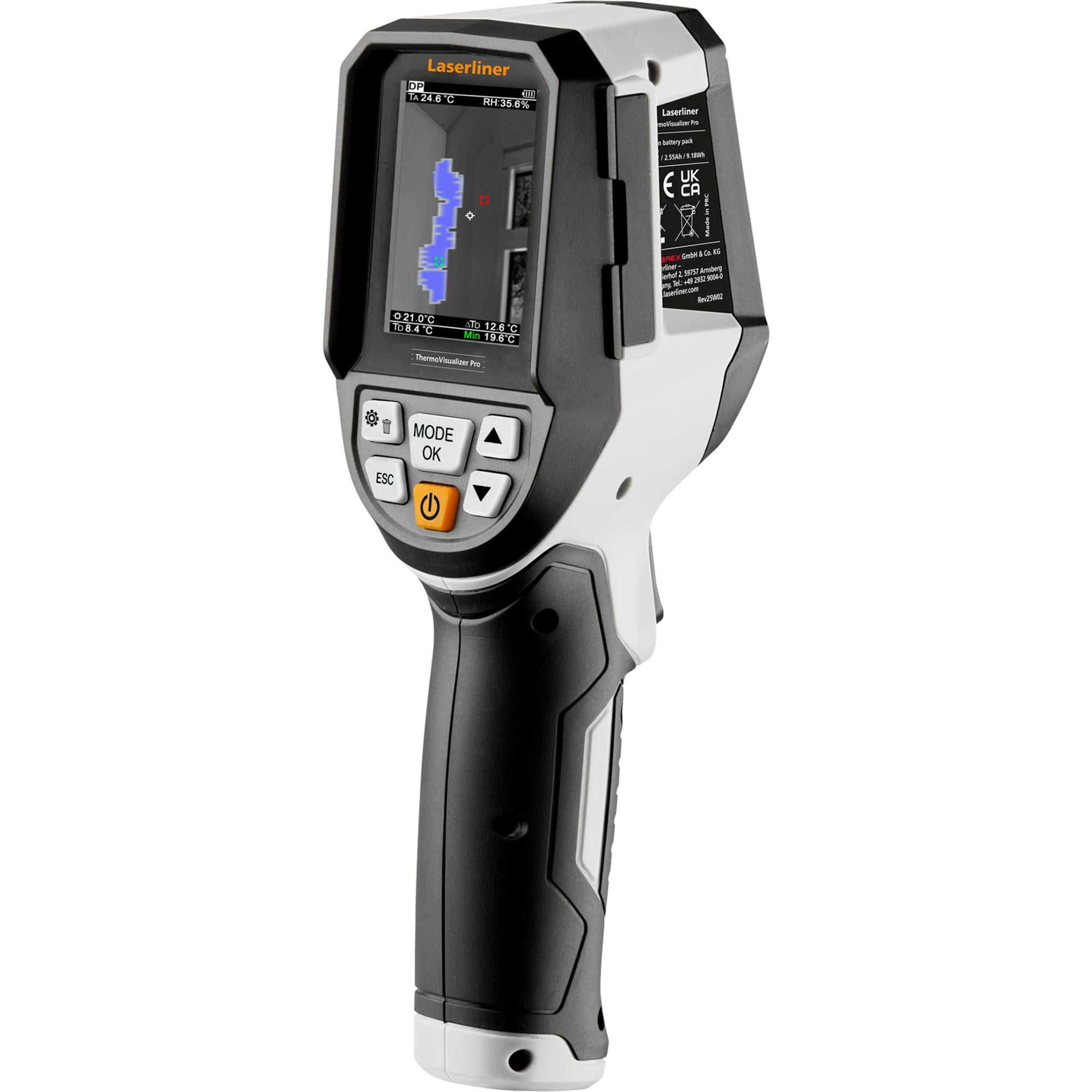

This innovative thermal camera determines surface temperatures, relative humidity, ambient temperature and dew point temperature. It reliably visualises temperature curves, thermal bridges and condensation. A fusion from the thermal camera, digital camera and hydrometer forms the visual dew point function. It generates reliable thermal images with precise marking of surfaces that have reached or fallen below the dew point, ideal for critical interior space inspections. In addition to building inspections, the many possible uses include working on electrical systems, machines, heating and ventilation systems as well as locating heat sources or cold spots. Supplied with battery pack, USB-C-cable and softbag.
Contents
1 x Laserliner 082.078A ThermoVisualizer Pro Thermal Imaging Camera
1 x Micro SD card
1 x Integrated Li-ion battery pack
1 x USB-C-cable
1 x Softbag
Specifications
Image recording: Yes
Data transfer: Yes
Digital camera: Yes
Time stamp: Yes
Adjustable emissions level: Yes
Humidity: Yes
Min/Max: Yes
MIX image: Yes
Ambient temperature: Yes
Thermal image: Yes
Thermal bridge warning :Yes
Dew point temperature: Yes
Mains operation: Yes
Screen Type: 2,4" Colour TFT
Sensor Type: uncooled microbolometer
Display Resolution: 320 x 240 pixels
Image Frequency: 9 Hz
Thermal Sensitivity (NETD): 60 mK @25°C
Measuring Range Infrared Temperature: -20°C 150°C, 0°C 400°C
Power Supply: Li-ion battery pack 3.6V / 2.55Ah / 9.18Wh
Operating Time: approx. 4 hours
