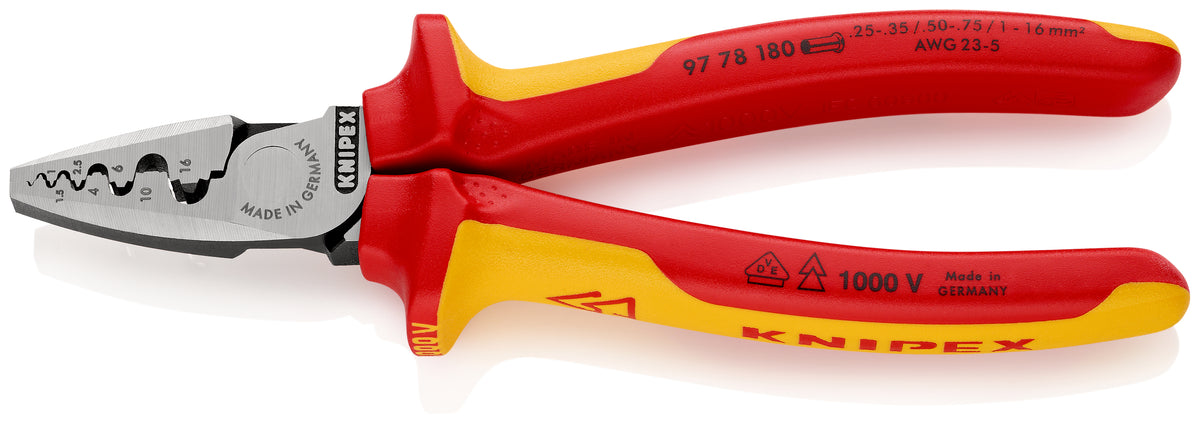

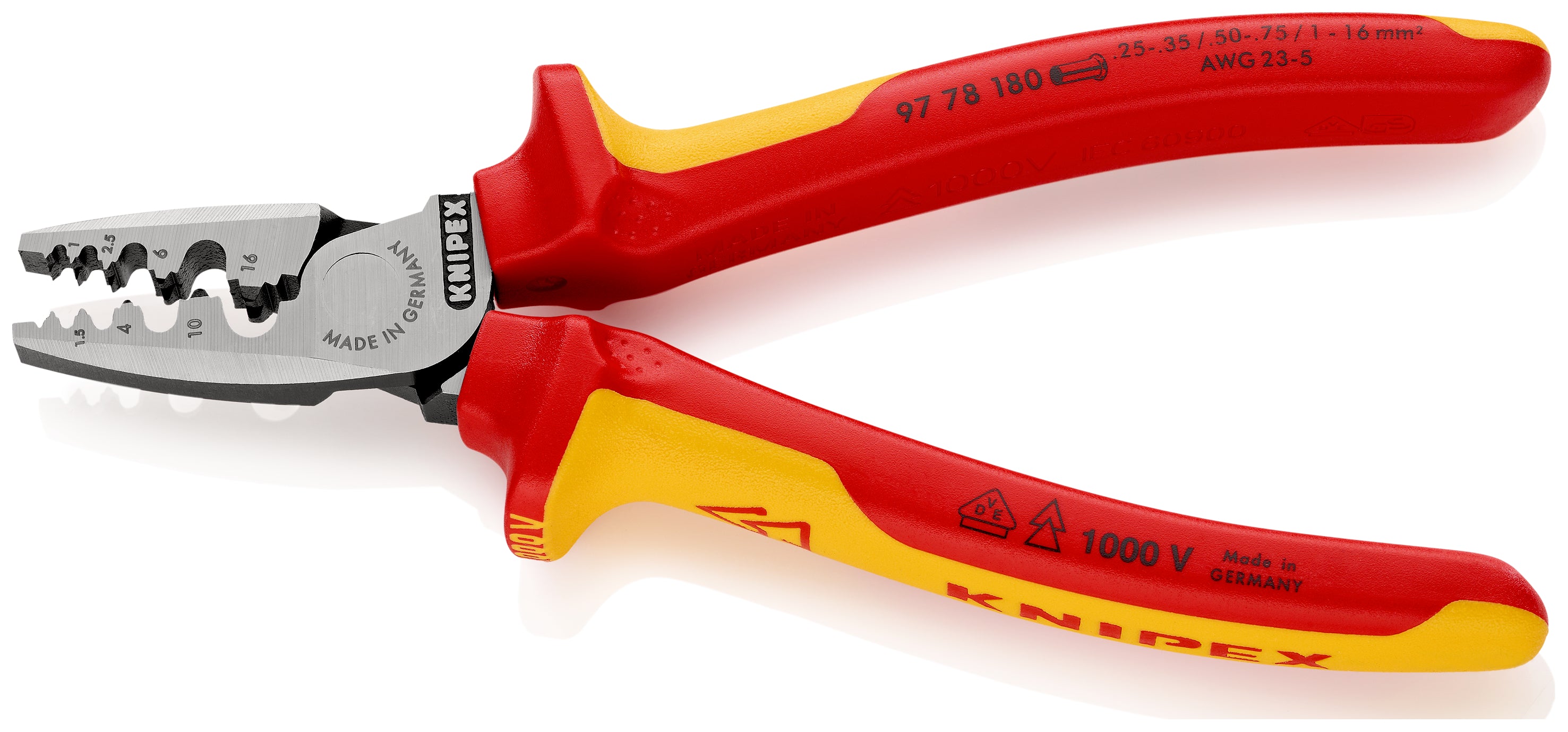

light and slim design. also as VDE version. easy crimping due to optimised transmission ratio. For crimping wire ferrules according to DIN 46228 parts 1 + 4 from 0.25 to 16 mm². Crimping in marked half-round dies for reliable connections between the sleeve and the conductor. 9 particularly deep dies with conical side faces.
Application: Wire ferrules
Capacity in square millimetres: 0.25 — 16.0 mm²
Number of crimping positions: 9
AWG: 24 — 6 Technical Specifications:
- For crimping wire ferrules according to DIN 46228 parts 1 + 4 from 0.25 to 16 mm²
- Crimping in marked half-round dies for reliable connections between the sleeve and the conductor
- 9 particularly deep dies with conical side faces
