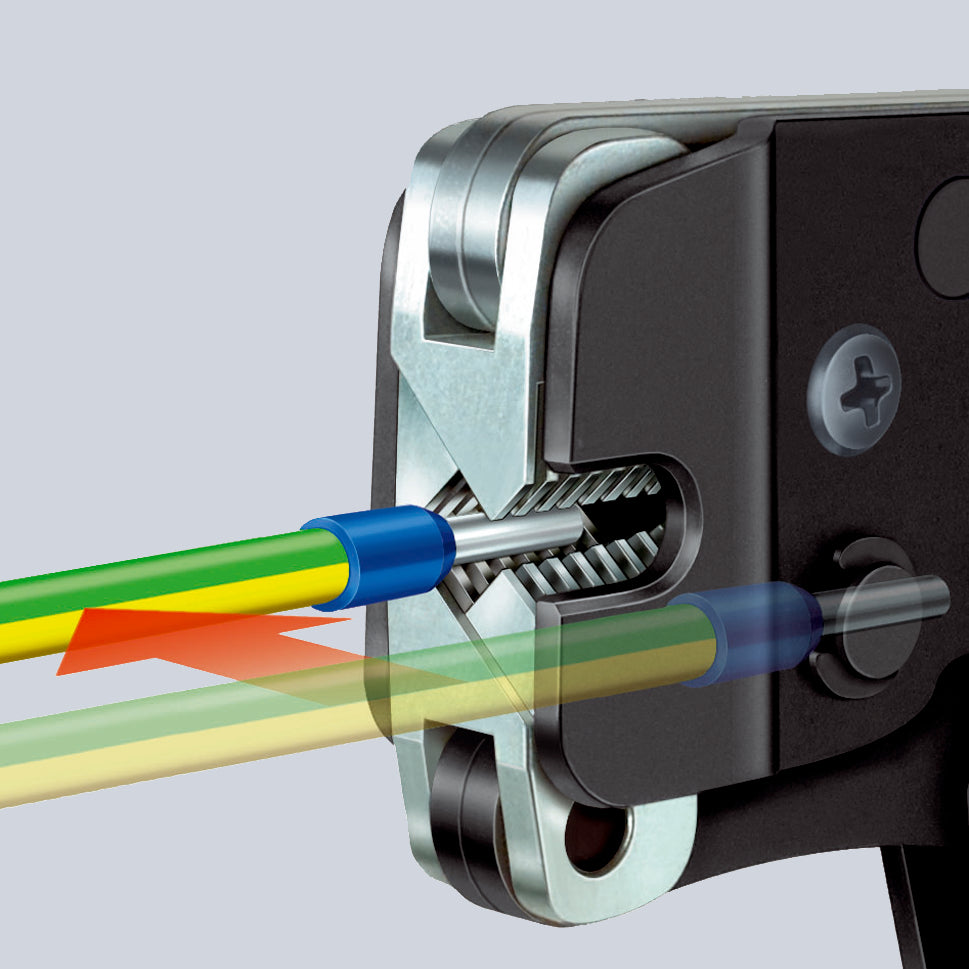

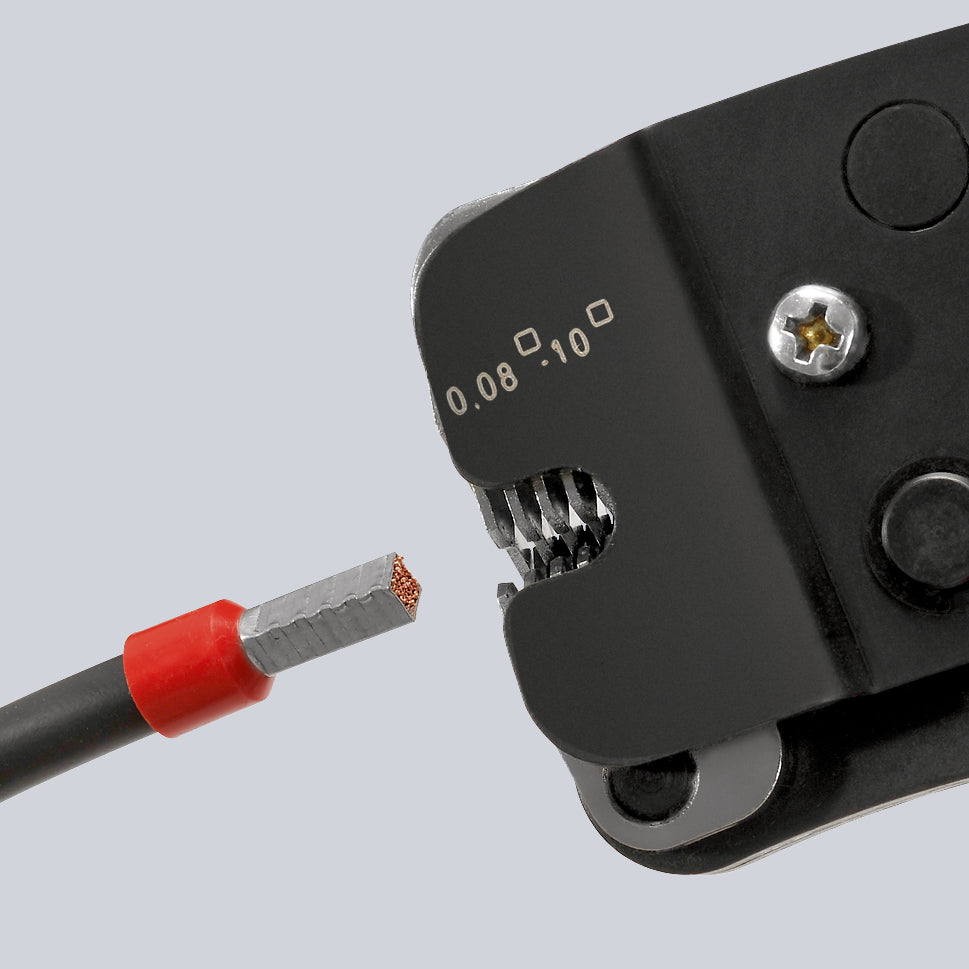

For crimping wire ferrules according to DIN 46228 parts 1 + 4. Self-adjusting adaptation to the desired wire ferrule size: no wrong crimps caused by using the wrong die. Frontal insertion of the wire ferrules into the pliers. Repetitive, high crimping quality due to ratchet mechanism (unlockable). Tools have been set precisely (calibrated) in the factory. Optimum transmission of force thanks to toggle lever for fatigue-reduced operation. Handy shape and low weight provide high operation comfort. . . compression from 0.08 - 10.0 mm² in one profile. wire ferrules up to 2.5 mm² can also be loaded parallel from the side. suitable in particular for all twin wire ferrules up to 2 x 4 mm² or 2 x AWG 12.
Application: Wire ferrules
Capacity in square millimetres: 0.08 — 10 mm²
Number of crimping positions: 1
AWG: 28 — 8 Technical Specifications:
- For crimping wire ferrules according to DIN 46228 parts 1 + 4
- Self-adjusting adaptation to the desired wire ferrule size: no wrong crimps caused by using the wrong die

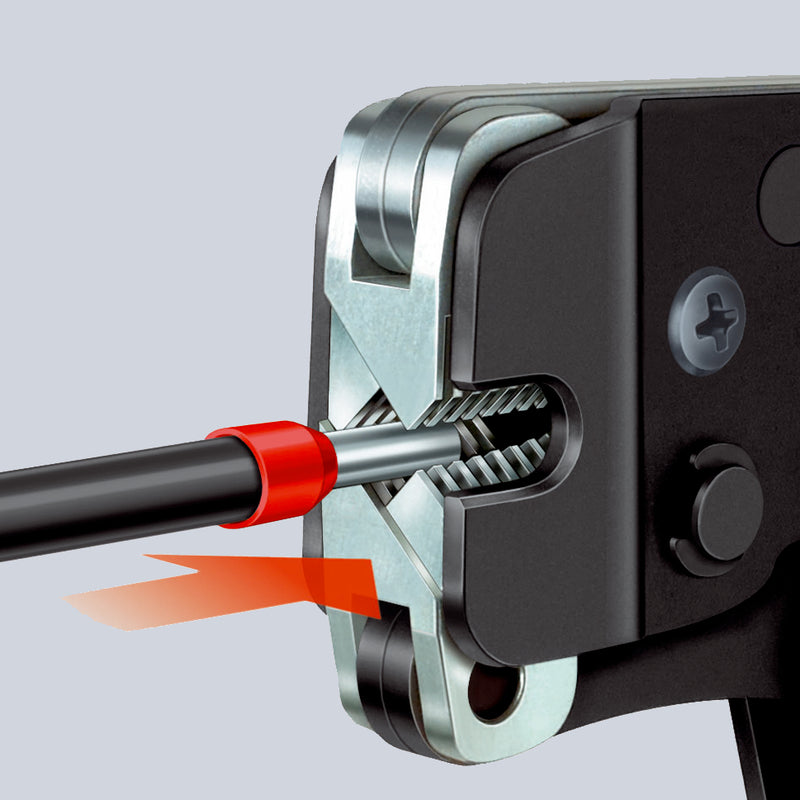

- Frontal insertion of the wire ferrules into the pliers
- Repetitive, high crimping quality due to ratchet mechanism (unlockable)
- Tools have been set precisely (calibrated) in the factory
- Optimum transmission of force thanks to toggle lever for fatigue-reduced operation
- Handy shape and low weight provide high operation comfort
