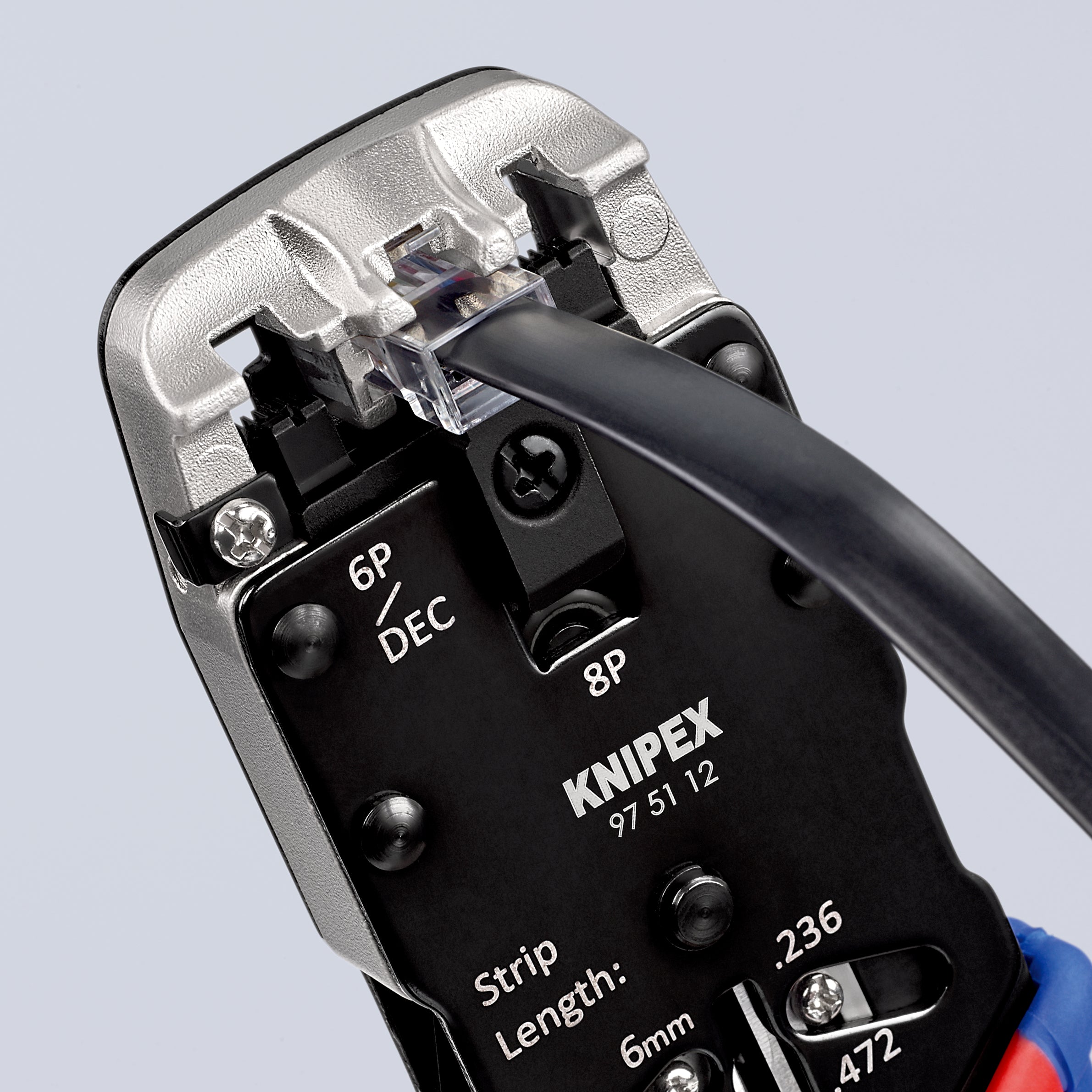

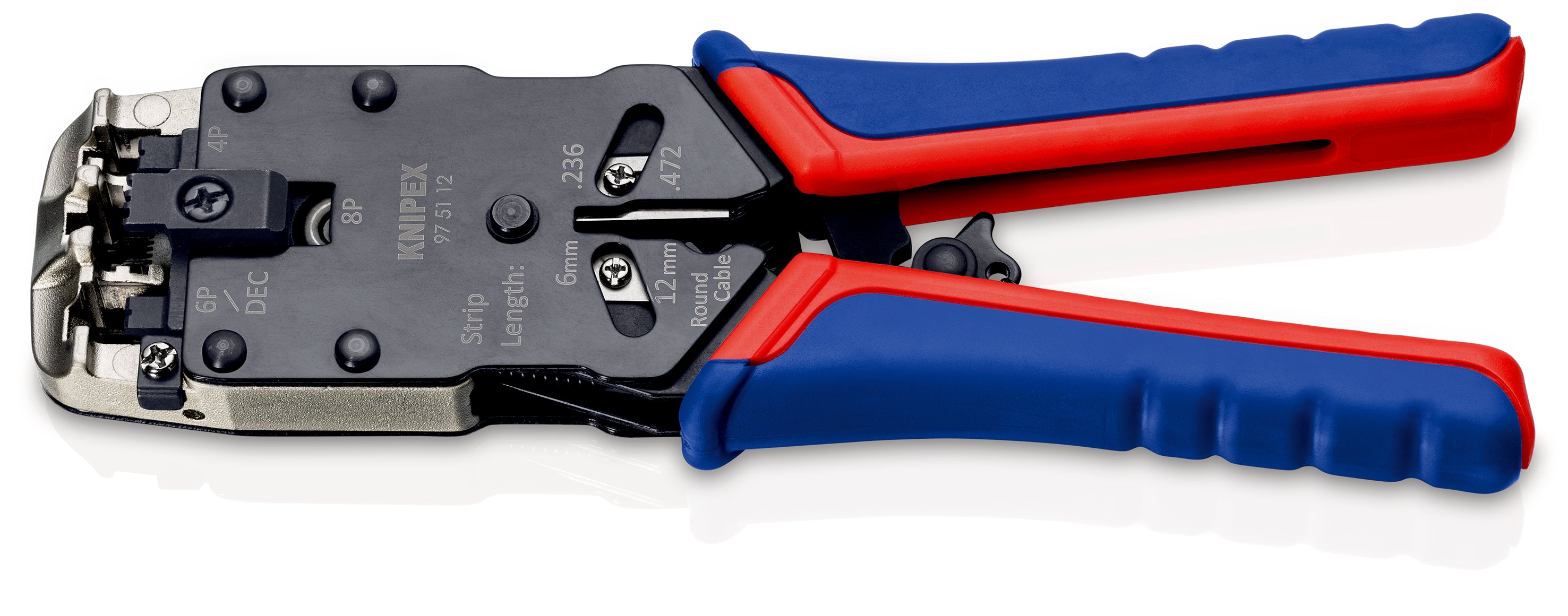

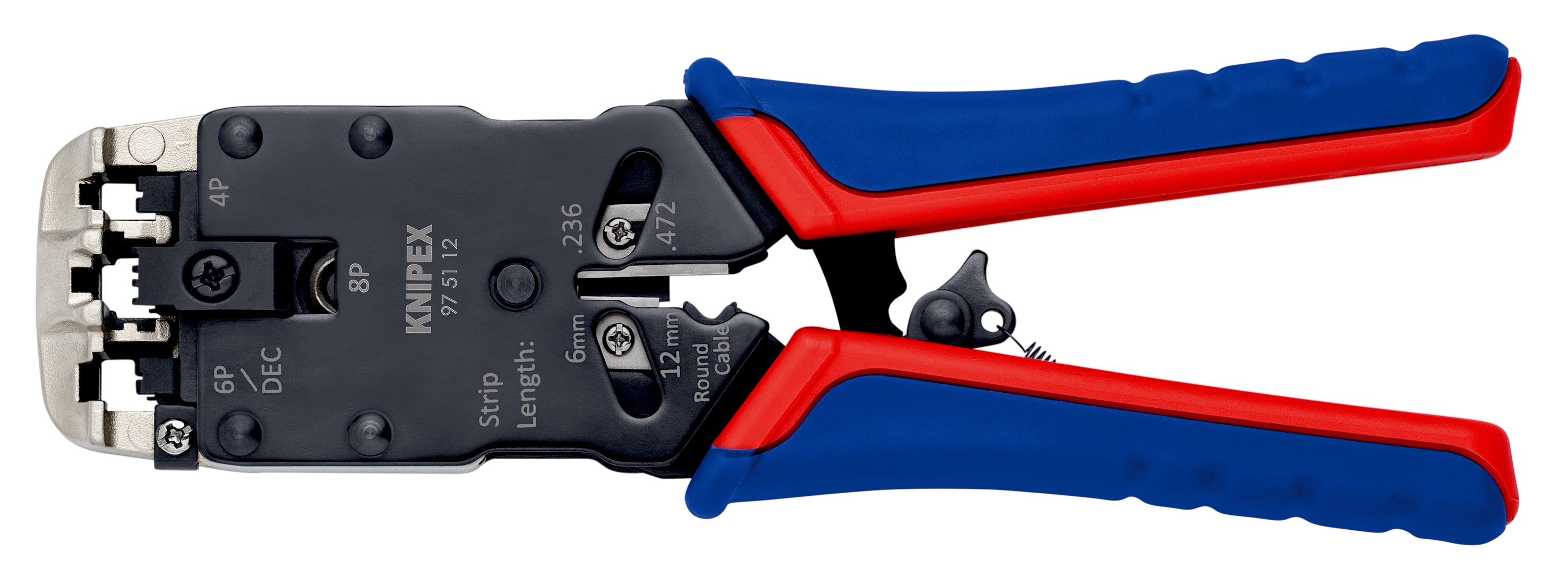

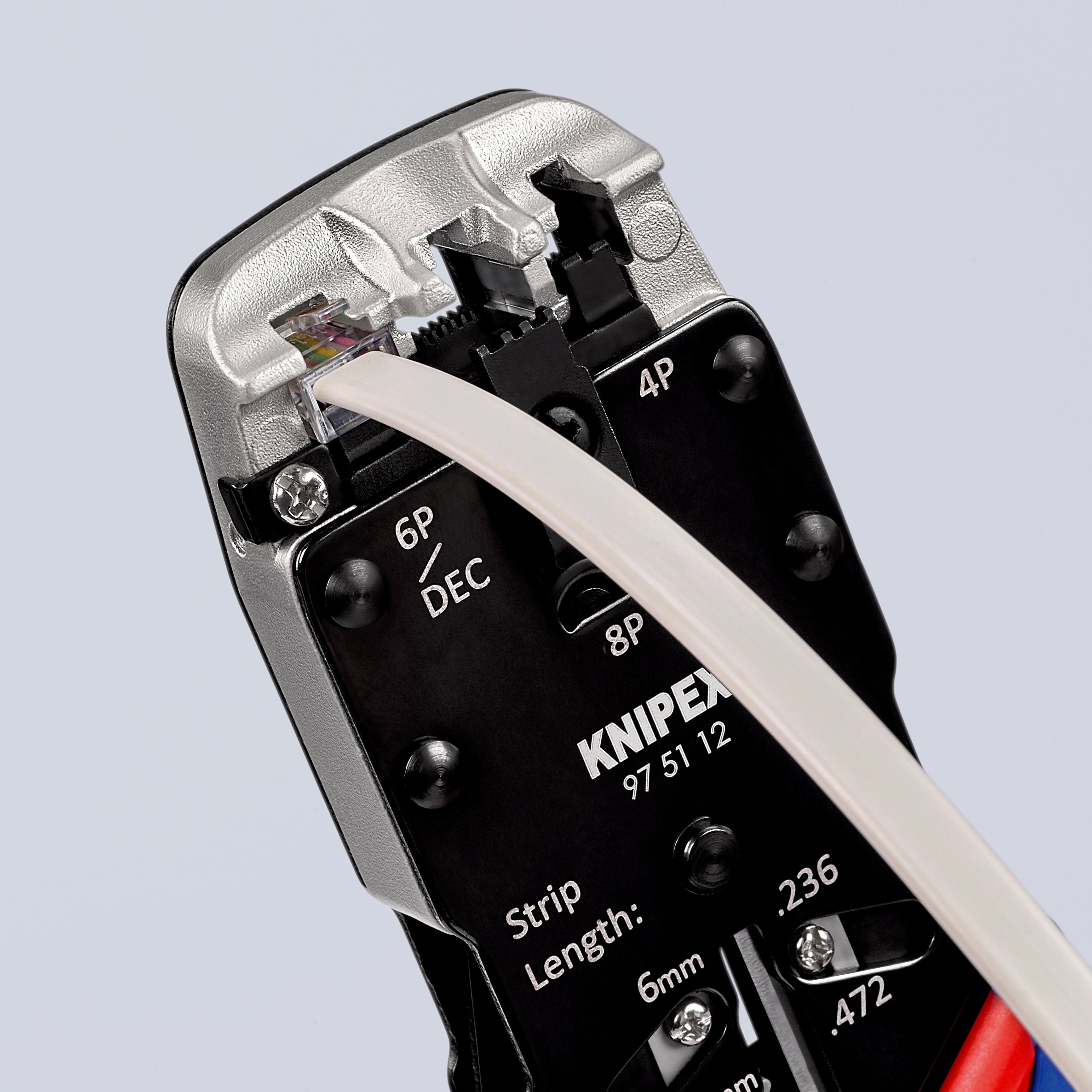

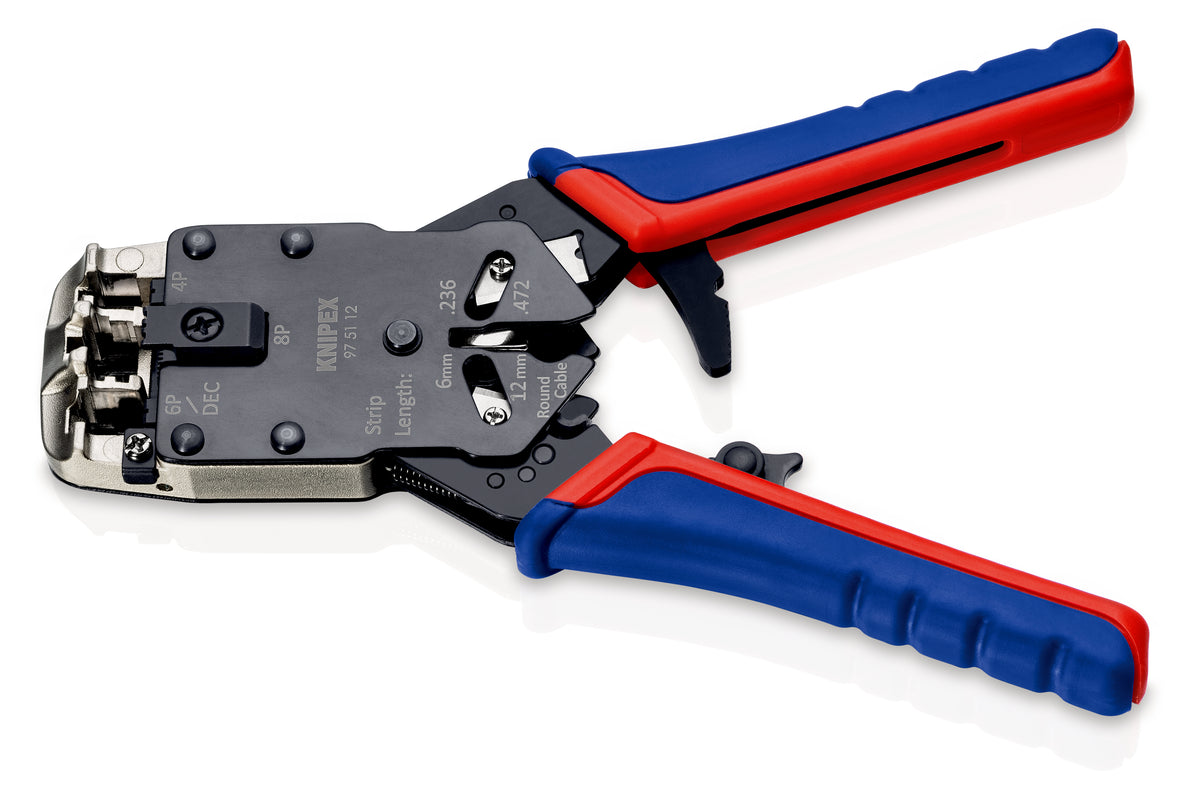

Improved opening mechanism, optimised design, less weight. Can be used to crimp 4-, 6- and 8-pin Western plugs. for cutting and stripping unshielded ribbon telephone cables. Precise crimping process thanks to parallel crimping. Repetitive, high crimping quality due to ratchet mechanism (unlockable). Optimum transmission of force due to lever action for fatigue-reduced operation. For Western plug type RJ 10 (7.65 mm wide), RJ 11/12 (9.65 mm wide) and RJ 45 (11.68 mm wide) long design. With length cutter and stripping knife for ribbon cables 6 and 12 mm length. Head burnished, handles with two-colour multi-component grips. With additional stripping device for round cables.
Capacity: RJ 10 (4-poles) 7.65 mm RJ 11/12 (6-poles) 9.65 mm RJ 45 (8-poles) 11.68 mm
Number of crimping positions: 3
Range of applications: Western plugsTechnical Specifications:
- Precise crimping process thanks to parallel crimping
- Repetitive, high crimping quality due to ratchet mechanism (unlockable)
- Optimum transmission of force due to lever action for fatigue-reduced operation
- For Western plug type RJ 10 (7.65 mm wide), RJ 11/12 (9.65 mm wide) and RJ 45 (11.68 mm wide) long design

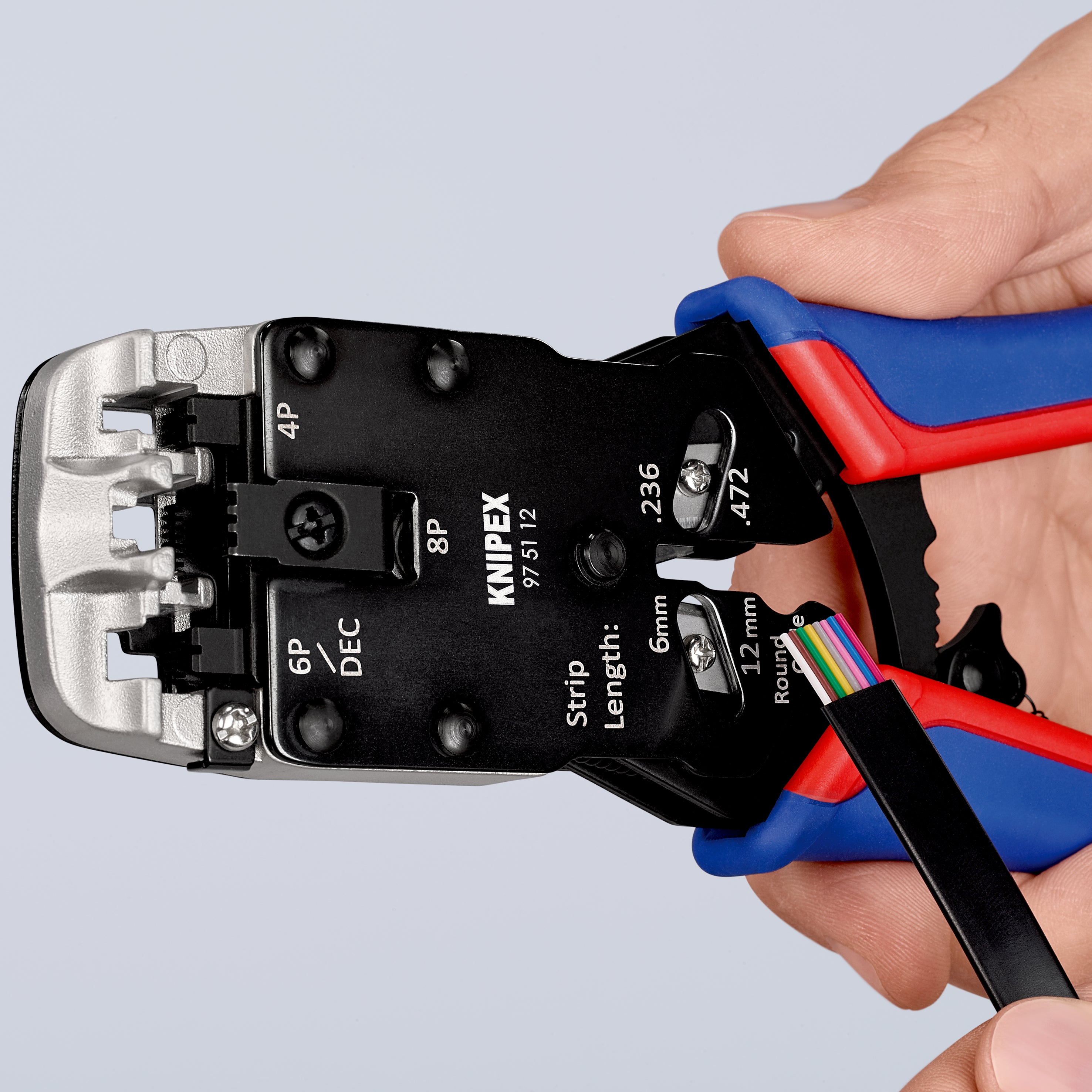

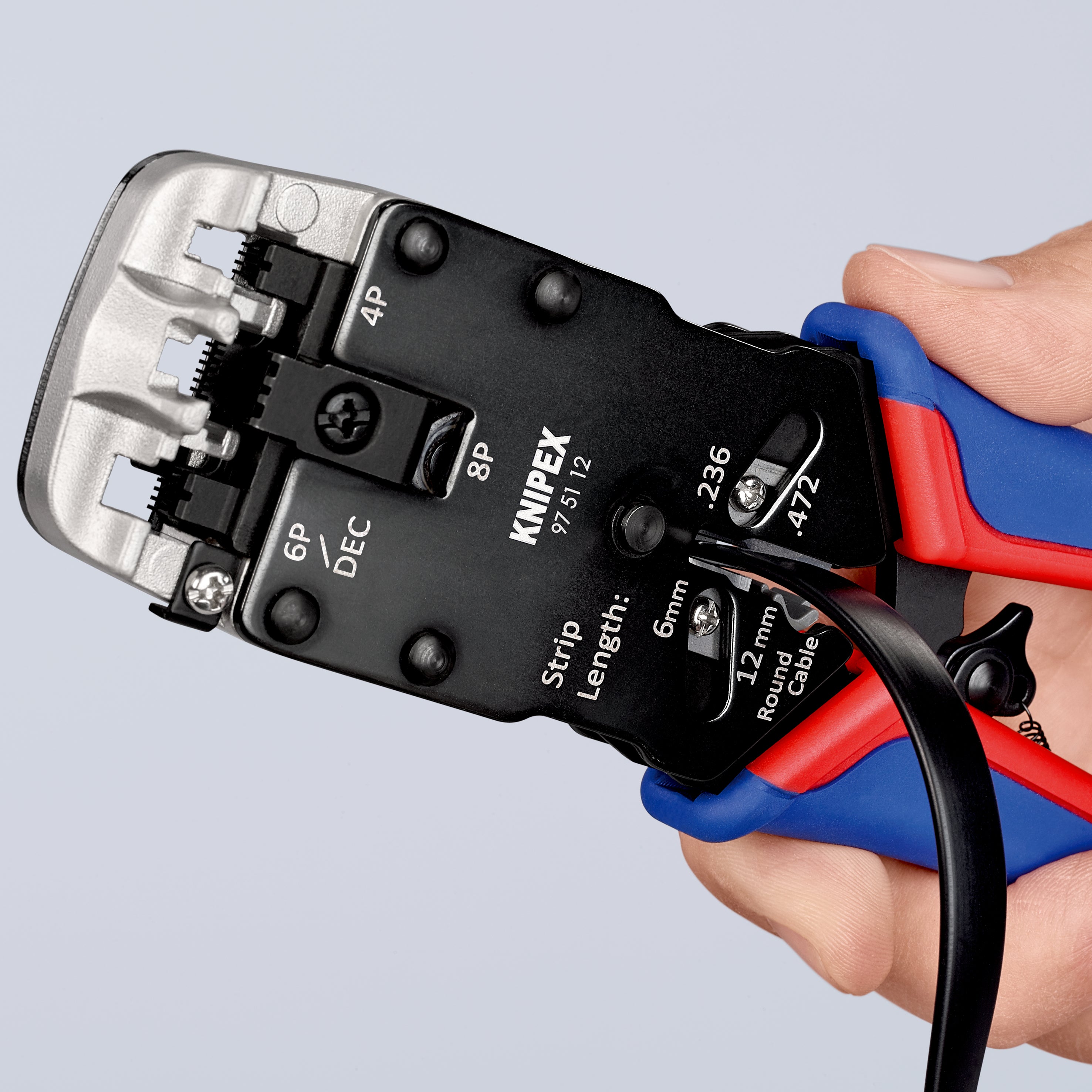

- With length cutter and stripping knife for ribbon cables 6 and 12 mm length
- Head burnished, handles with two-colour multi-component grips

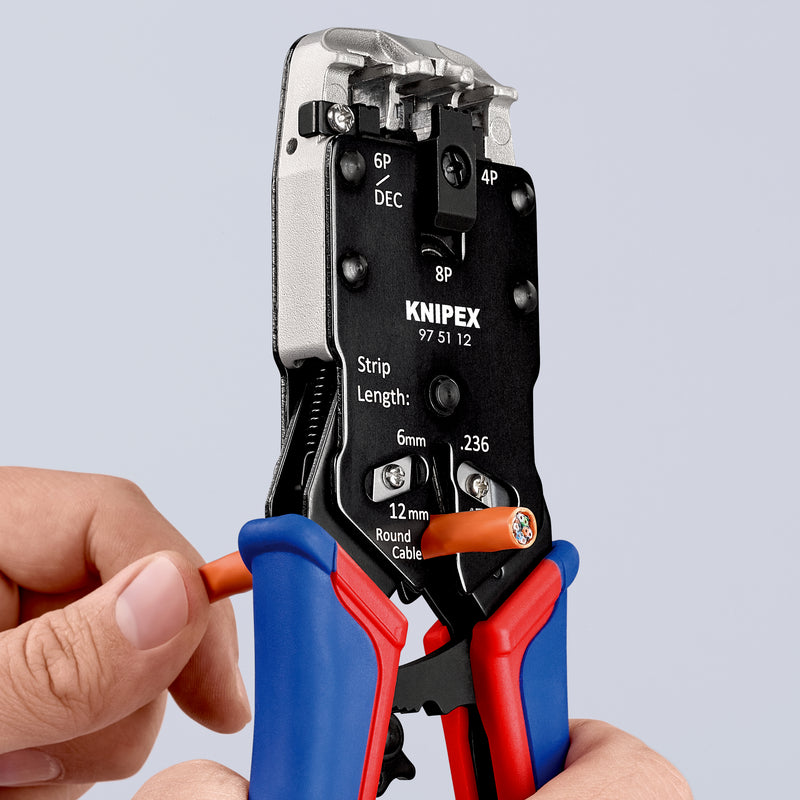

- With additional stripping device for round cables
