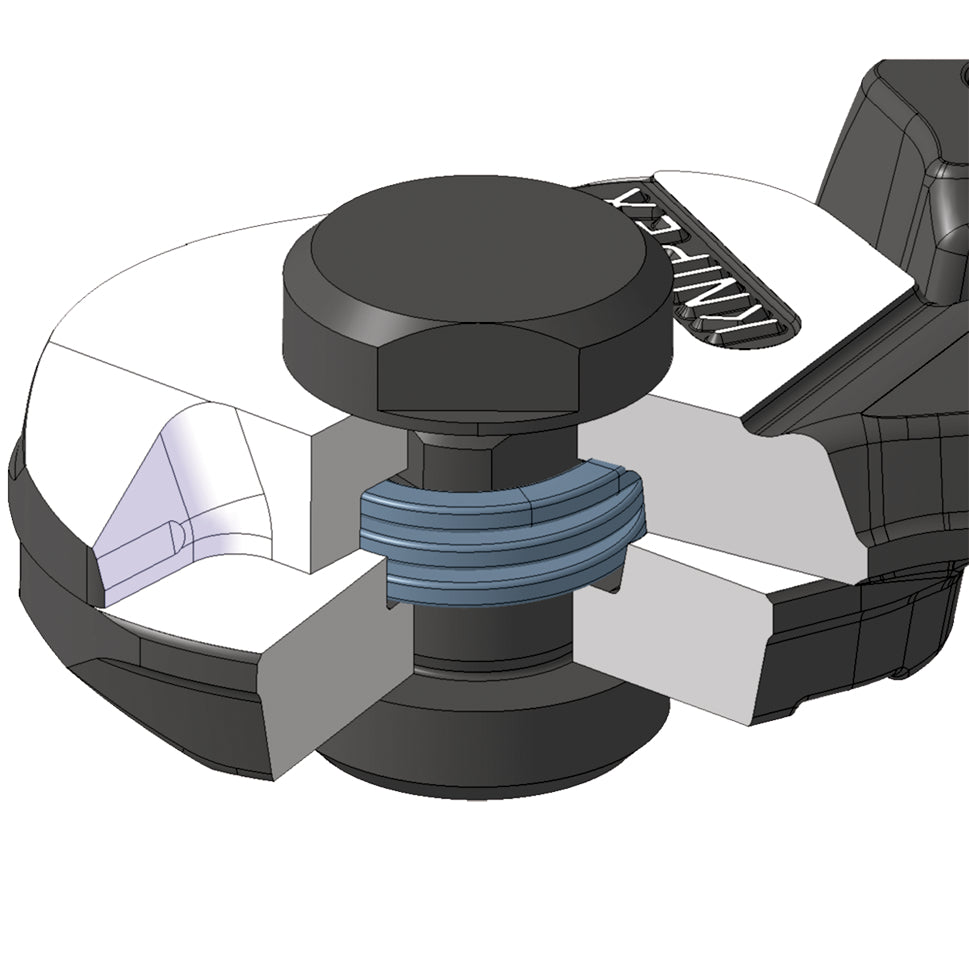

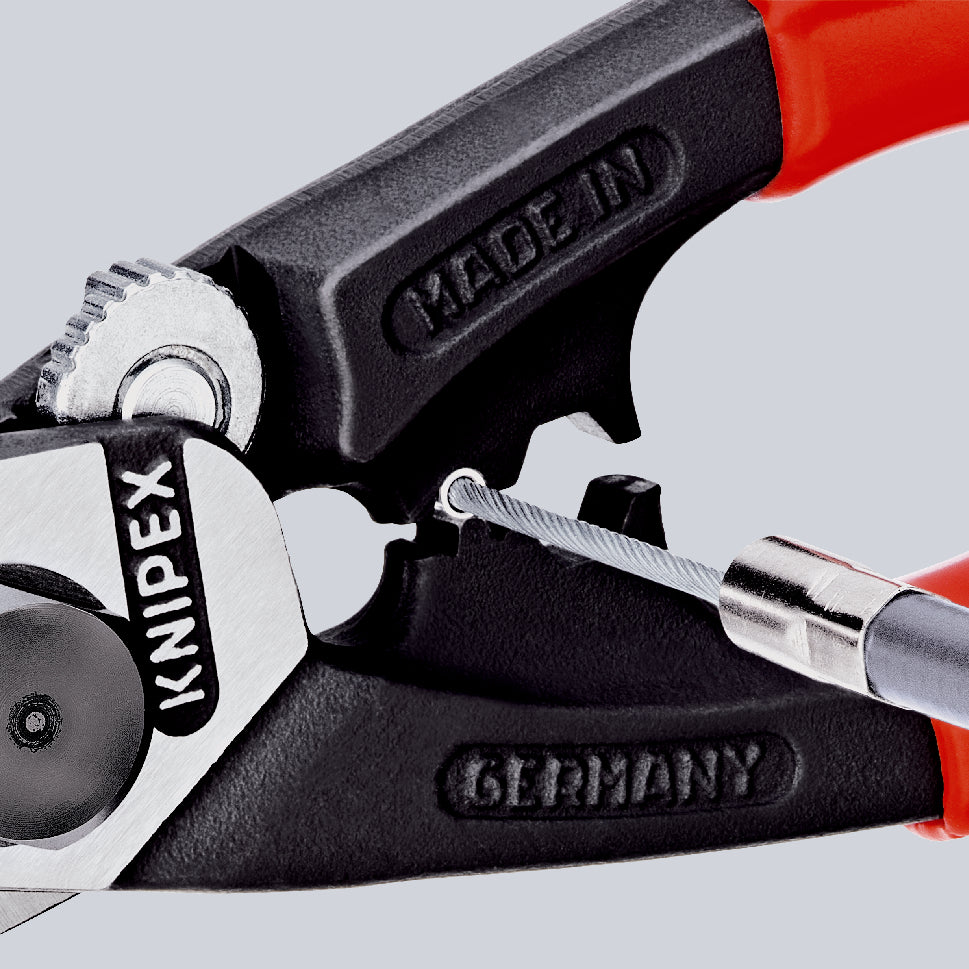

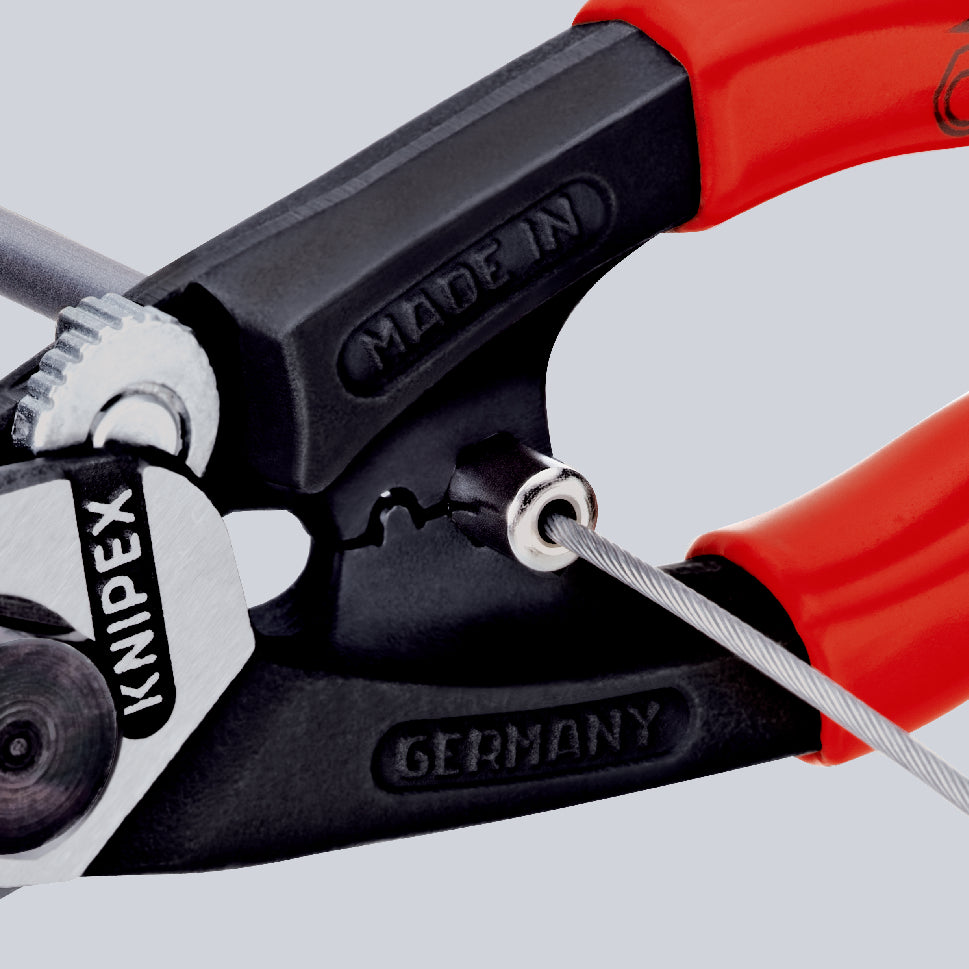

With two crimping dies for end caps on Bowden cable sheaths and end ferrules for traction cables. Comfortable work thanks to handy, slim design and internal opening spring. Bolted joint for precise blade guidance, re-adjustable. High leverage for reduced effort. Cutting edge hardness approx. 64 HRC.
Cutting capacity copper cable, multiple-stranded: 10 mm²
Cutting capacity copper cable, multiple-stranded (diameter): Ø 7.0 mm
Cutting capacity copper cable, fine-stranded (diameter): Ø 6.0 mm
Cutting capacities wire rope (diameter): Ø 5.0 mm
Cutting capacities medium hard wire (diameter): Ø 4.0 mm
Cutting capacities piano wire (diameter): Ø 2.5 mm
Cutting capacites iron (diameter): Ø 4 mm
AWG: 8 Technical Specifications:
- With two crimping dies for end caps on Bowden cable sheaths and end ferrules for traction cables
- Comfortable work thanks to handy, slim design and internal opening spring
- Bolted joint for precise blade guidance, re-adjustable
- High leverage for reduced effort
- Cutting edge hardness approx. 64 HRC
