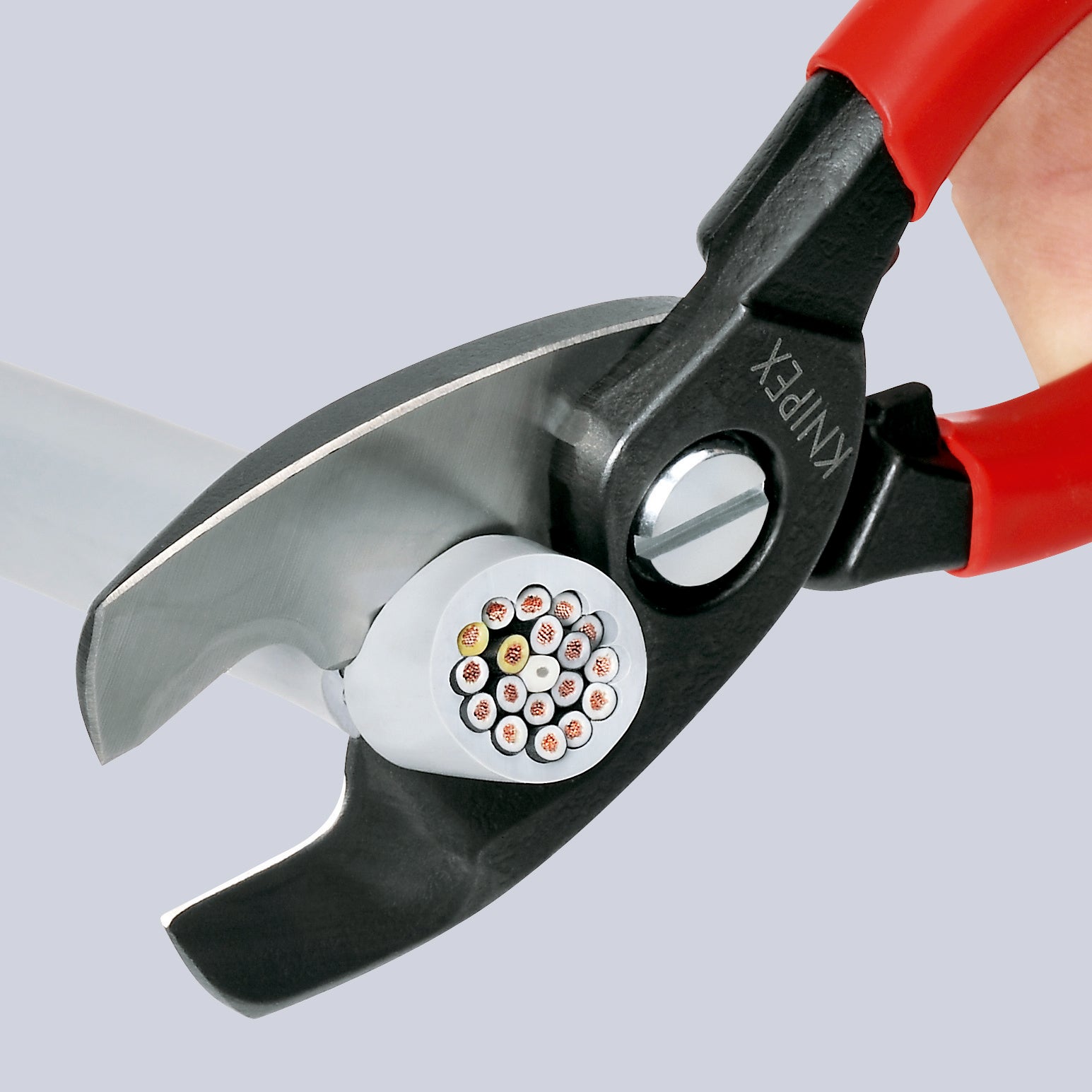

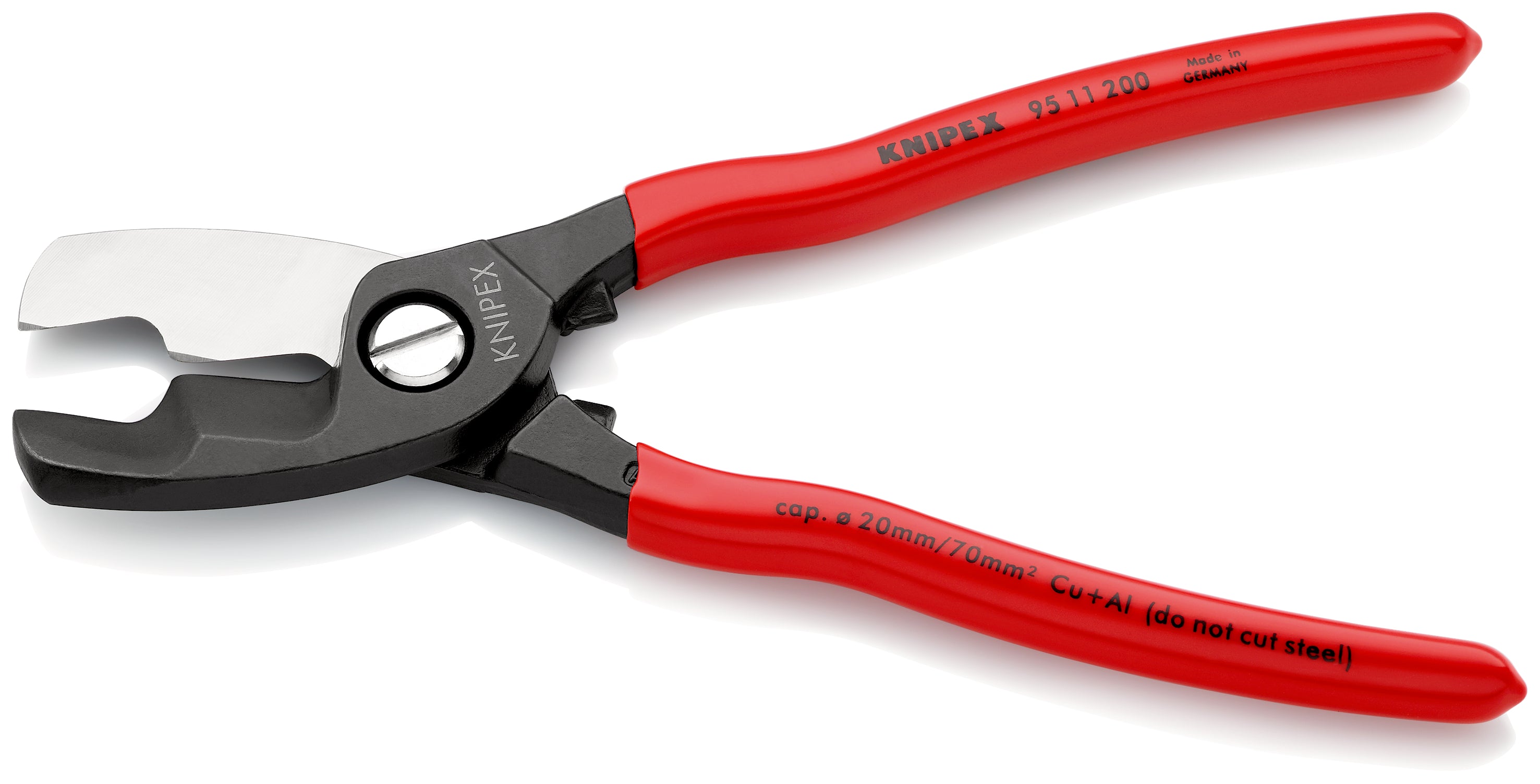

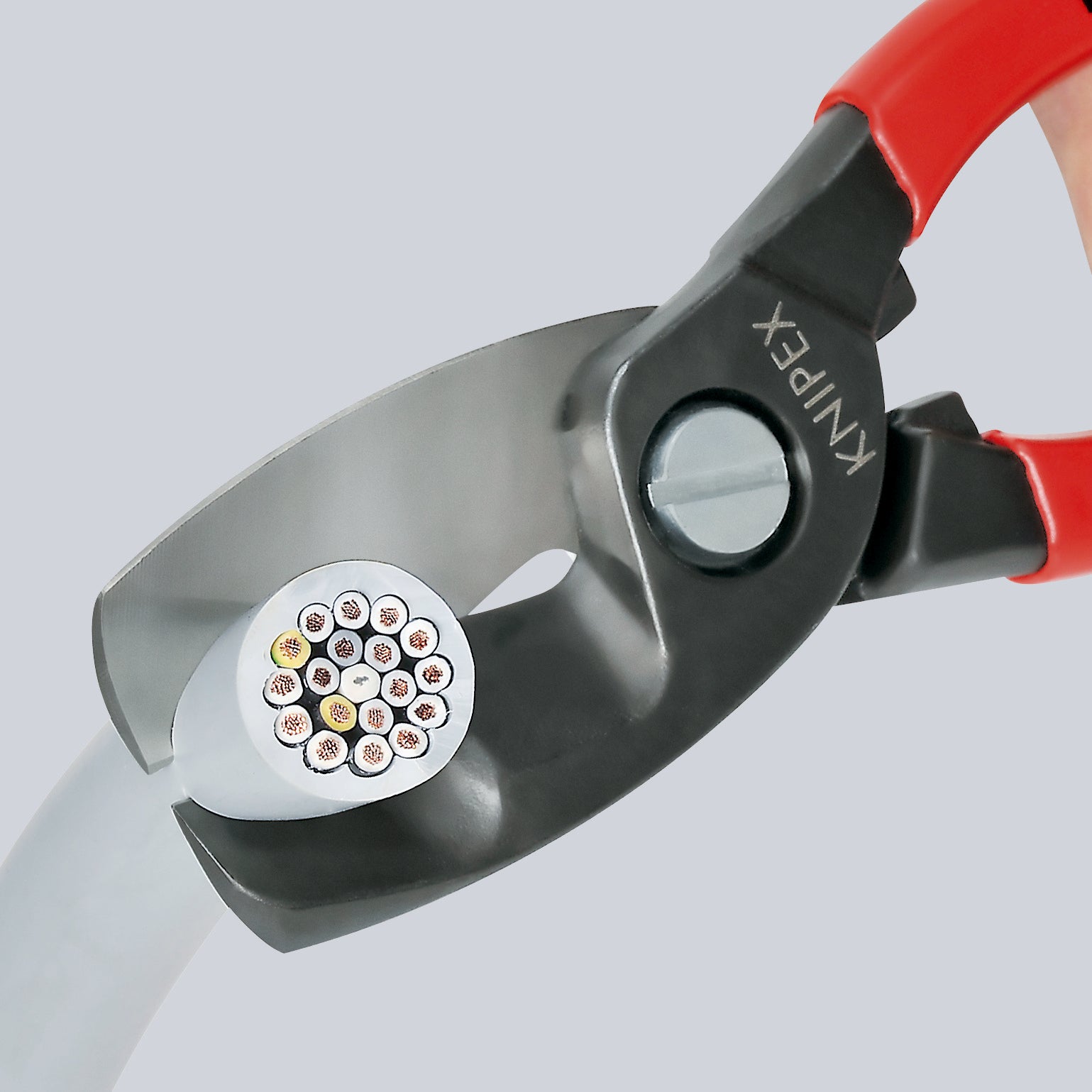

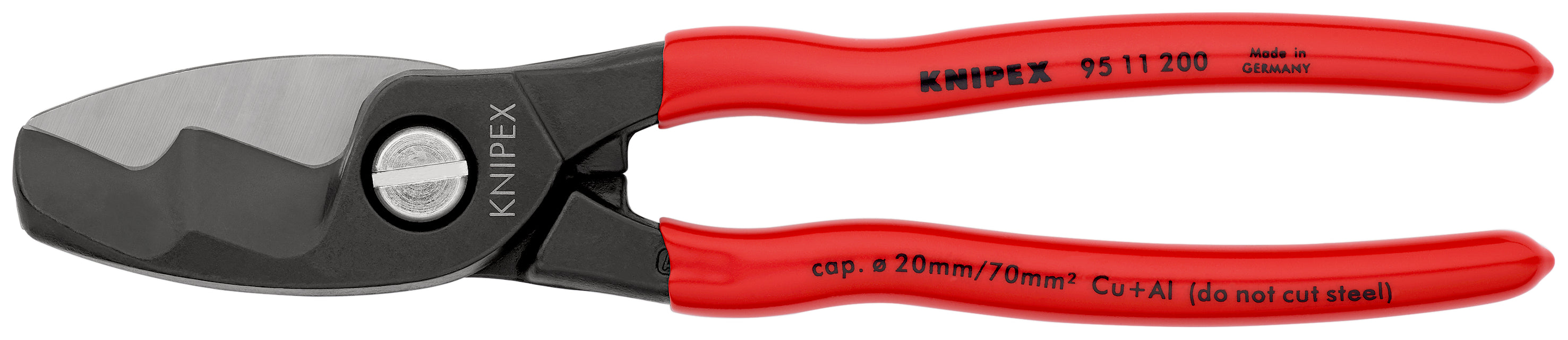

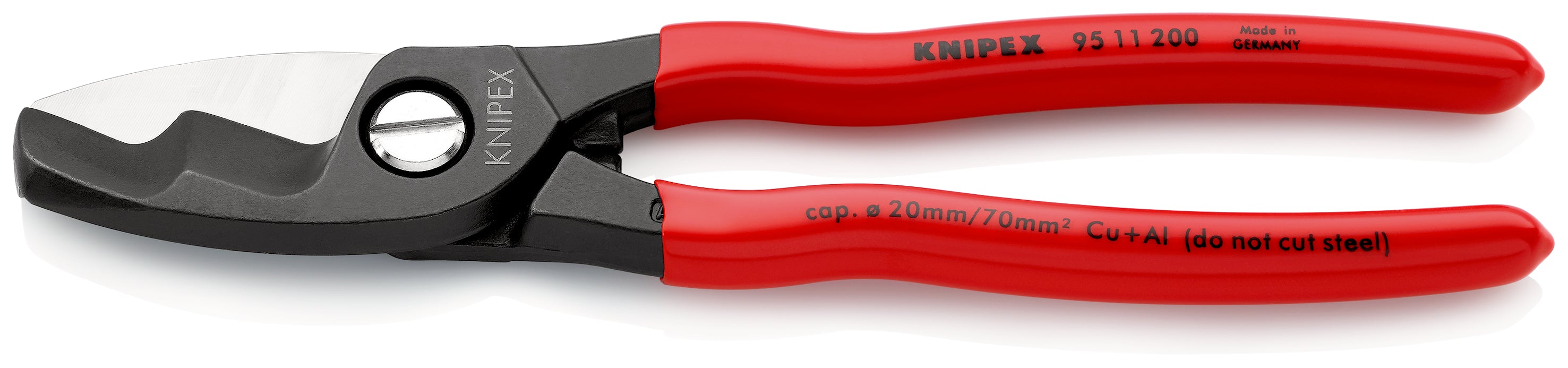

For cutting copper and aluminium cables. Not suitable for steel wire and hard drawn copper conductors. Precision-ground, hardened blades. Clean and smooth cut without crushing and deformation. By dividing the cutting actions into initial cut (insulating sheath in the front cutting area) and final cut (conductor in the back cutting area), cables up to Ø 20 mm can be cut in one-hand operation. Low handforce required due to favourable lever ratio and special blade geometry. Pinch guard prevents operators' fingers being pinched. Adjustable bolted joint, self-retaining screw.
Cutting capacity copper cable, multiple-stranded: 70 mm²
Cutting capacity copper cable, multiple-stranded: Ø 20 mm
AWG: 2 / 0 Technical Specifications:
- For cutting copper and aluminium cables
- Not suitable for steel wire and hard drawn copper conductors
- Precision-ground, hardened blades
- Clean and smooth cut without crushing and deformation
- By dividing the cutting actions into initial cut (insulating sheath in the front cutting area) and final cut (conductor in the back cutting area), cables up to Ø 20 mm can be cut in one-hand operation
- Low handforce required due to favourable lever ratio and special blade geometry
- Pinch guard prevents operators' fingers being pinched
- Adjustable bolted joint, self-retaining screw
