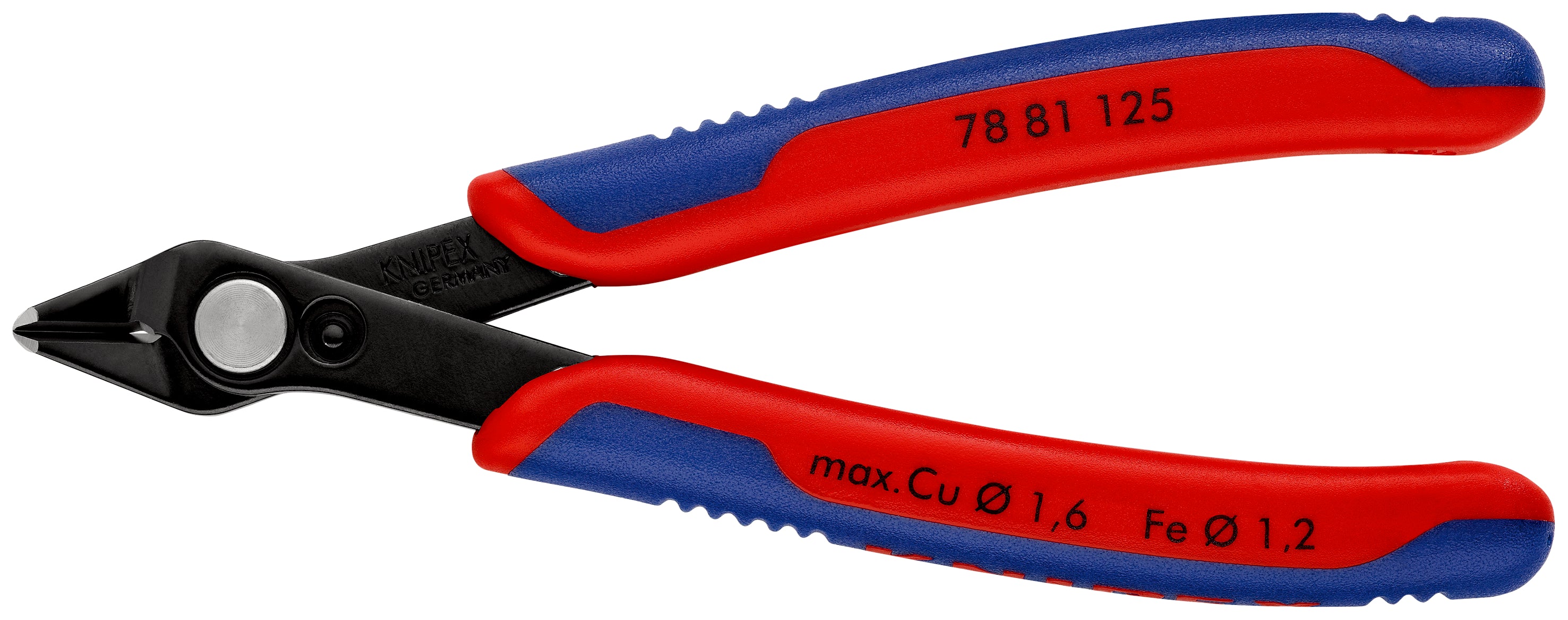

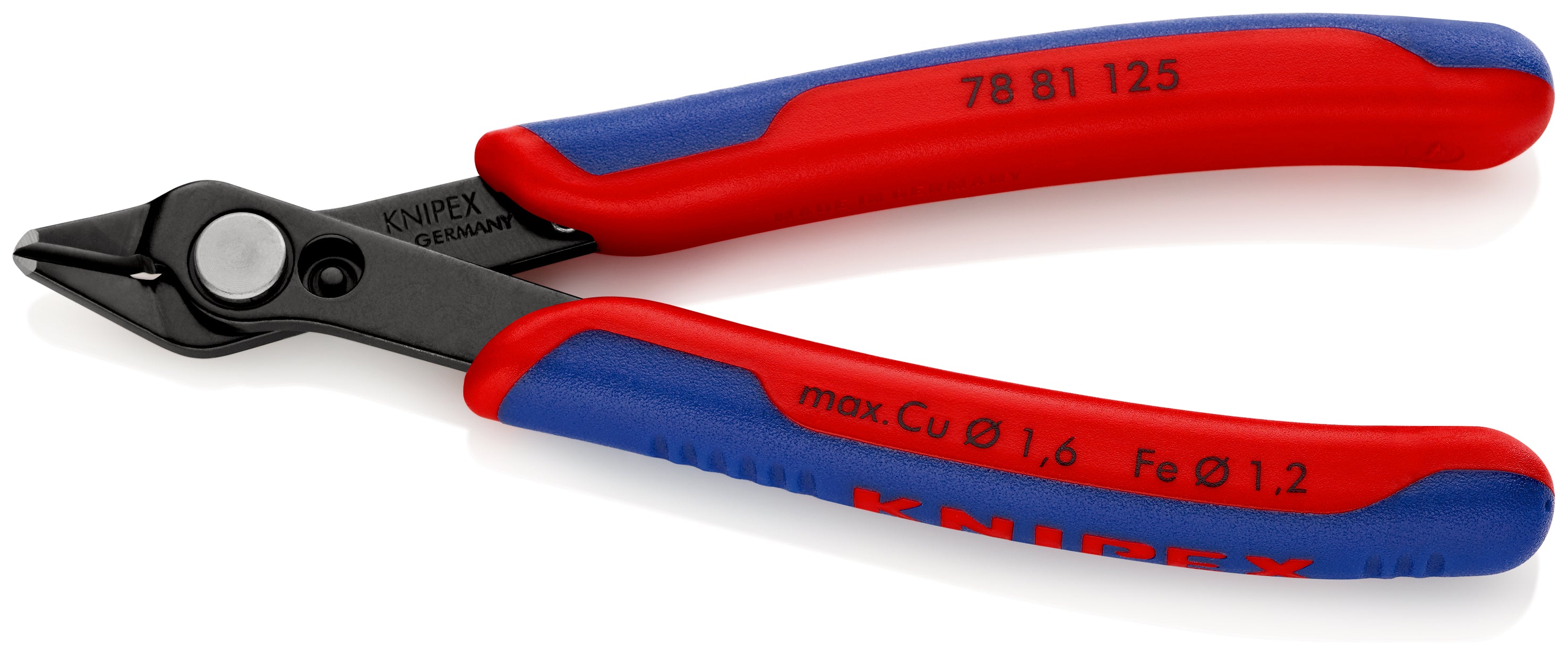

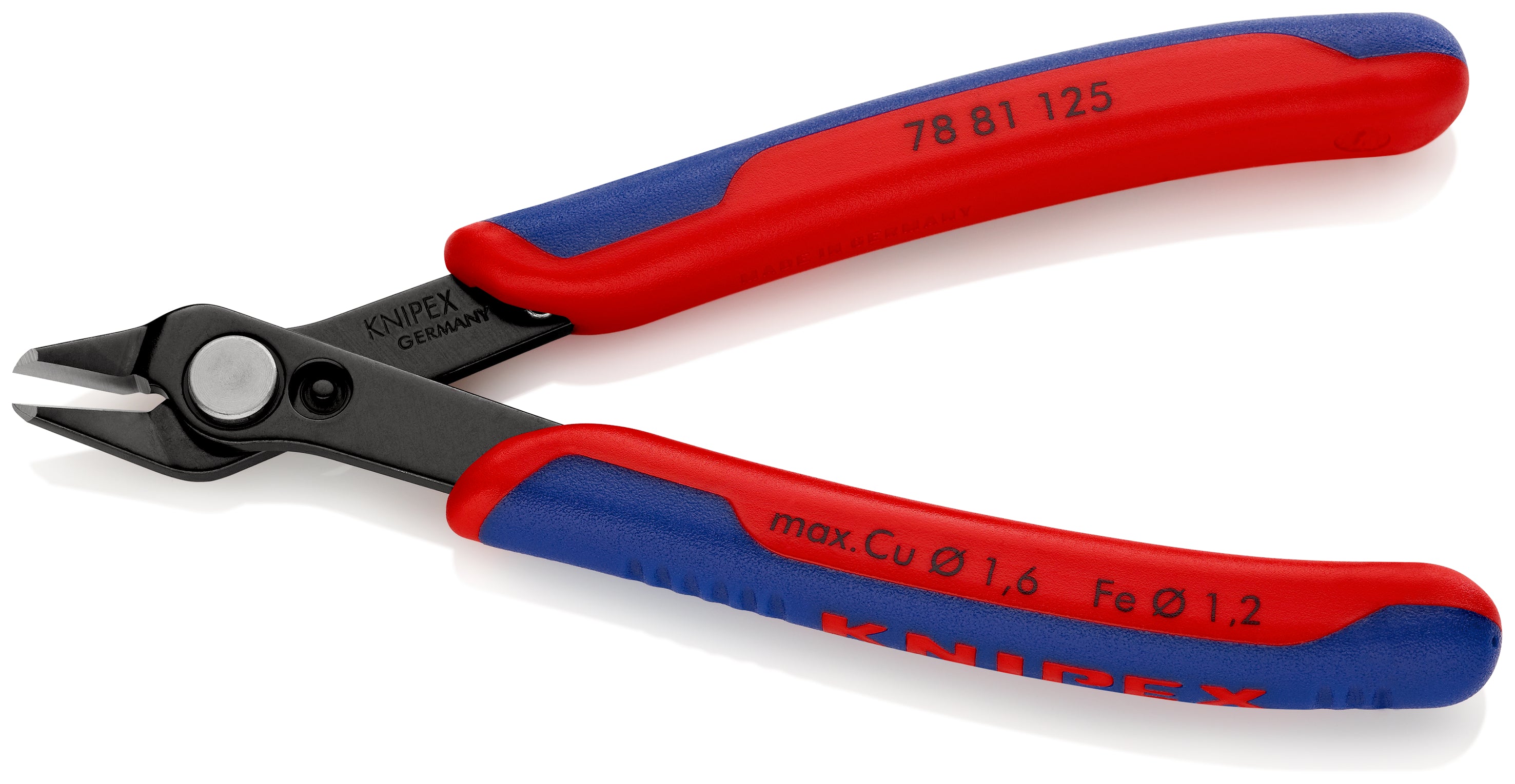

Precision pliers for ultra fine cutting work, e. g. in electronics and fine mechanics. Ground, very sharp cutting edges without bevel. Precisely shaped tips cut wires close to a surface from Ø 0.2 mm. Shear cut with controlled micro cutting edge misalignment for the most precise cutting of even the thinnest of wires and for a long service life. Joint with stainless steel rivet. Extremely smooth movement for minimum operator fatigue. With opening spring and opening limiter. precision-ground cutting edges with very small bevel suitable also for hard wire. cutting edges additionally induction-hardened, cutting edge hardness approx. 62 HRC. special tool steel, burnished.
Cutting capacities medium hard wire (diameter): Ø 1.2 mm
Cutting capacities hard wire (diameter): Ø 0.6 mm
Cutting capacities soft wire (diameter): Ø 0.2 – 1.6 mm
Jaw length (B): 9 mm
Jaw thickness (joint) (D): 7.5 mm
Head width (A): 13.5 mmTechnical Specifications:
- Precision pliers for ultra fine cutting work, e. g. in electronics and fine mechanics
- Ground, very sharp cutting edges without bevel
- Precisely shaped tips cut wires close to a surface from Ø 0.2 mm
- Shear cut with controlled micro cutting edge misalignment for the most precise cutting of even the thinnest of wires and for a long service life
- Joint with stainless steel rivet
- Extremely smooth movement for minimum operator fatigue
- With opening spring and opening limiter
