cuts finest strands as well as multi-core cables and piano wires. Powerful, light and universal. High cutting performance with minimum effort due to optimum coordination of the cutting edge angle and transmission ratio. Box-joint design: highest stability with low weight. Doubly supported joint axis for heavy duty. Large opening width for thicker cables. Cuts precisely, even through fine copper wires. Compact, low-weight construction. Universally usable, in the assembly, maintenance and production. 40% less force required compared with standard diagonal cutters of the same length. Pliers with integrated, insulated tether attachment point for a tool tether.
Cutting capacities soft wire (diameter): Ø 4.8 mm
Cutting capacities medium hard wire (diameter): Ø 3.8 mm
Cutting capacities hard wire (diameter): Ø 2.7 mm
Cutting capacities piano wire (diameter): Ø 2.2 mm
Cutting capacity copper cable, multiple-stranded: Ø 12.0 mm
Drop Protection System: yes Â
VDE tested: yes  Technical Specifications:
- High cutting performance with minimum effort due to optimum coordination of the cutting edge angle and transmission ratio
- Box-joint design: highest stability with low weight
- Doubly supported joint axis for heavy duty
- Large opening width for thicker cables

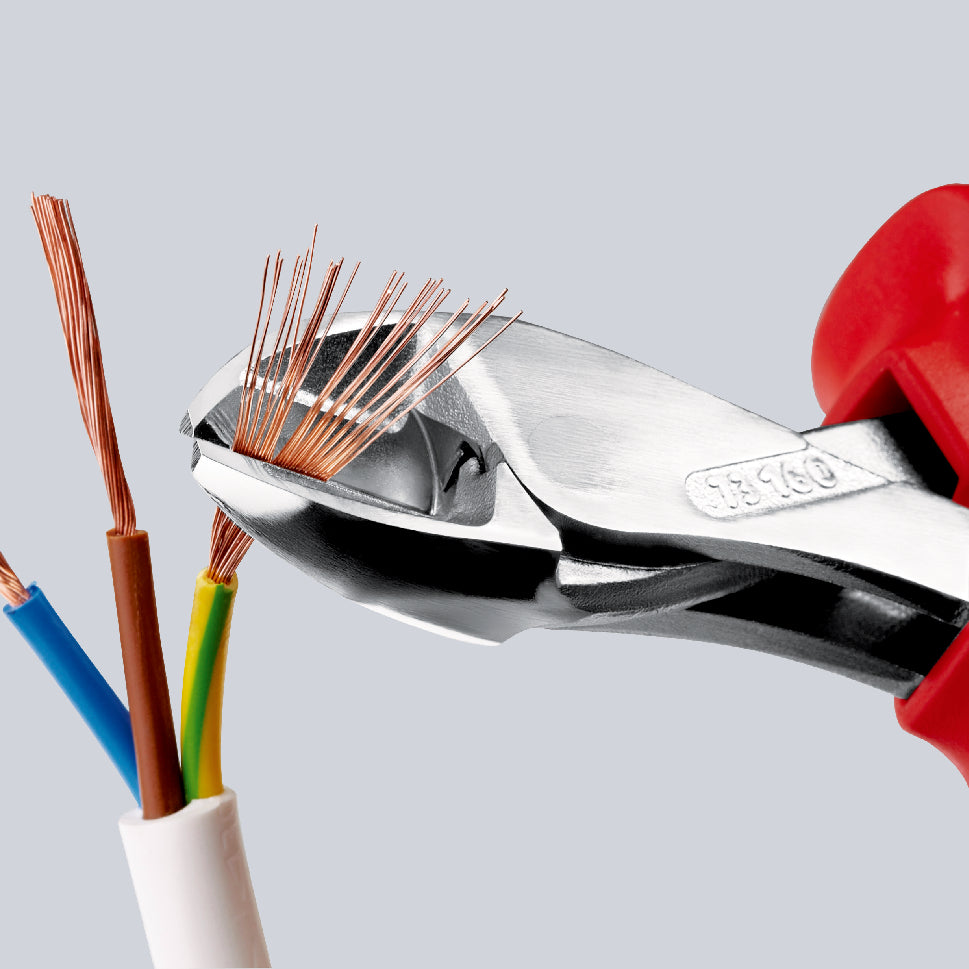

- Cuts precisely, even through fine copper wires
- Compact, low-weight construction
- Universally usable, in the assembly, maintenance and production
- 40% less force required compared with standard diagonal cutters of the same length
