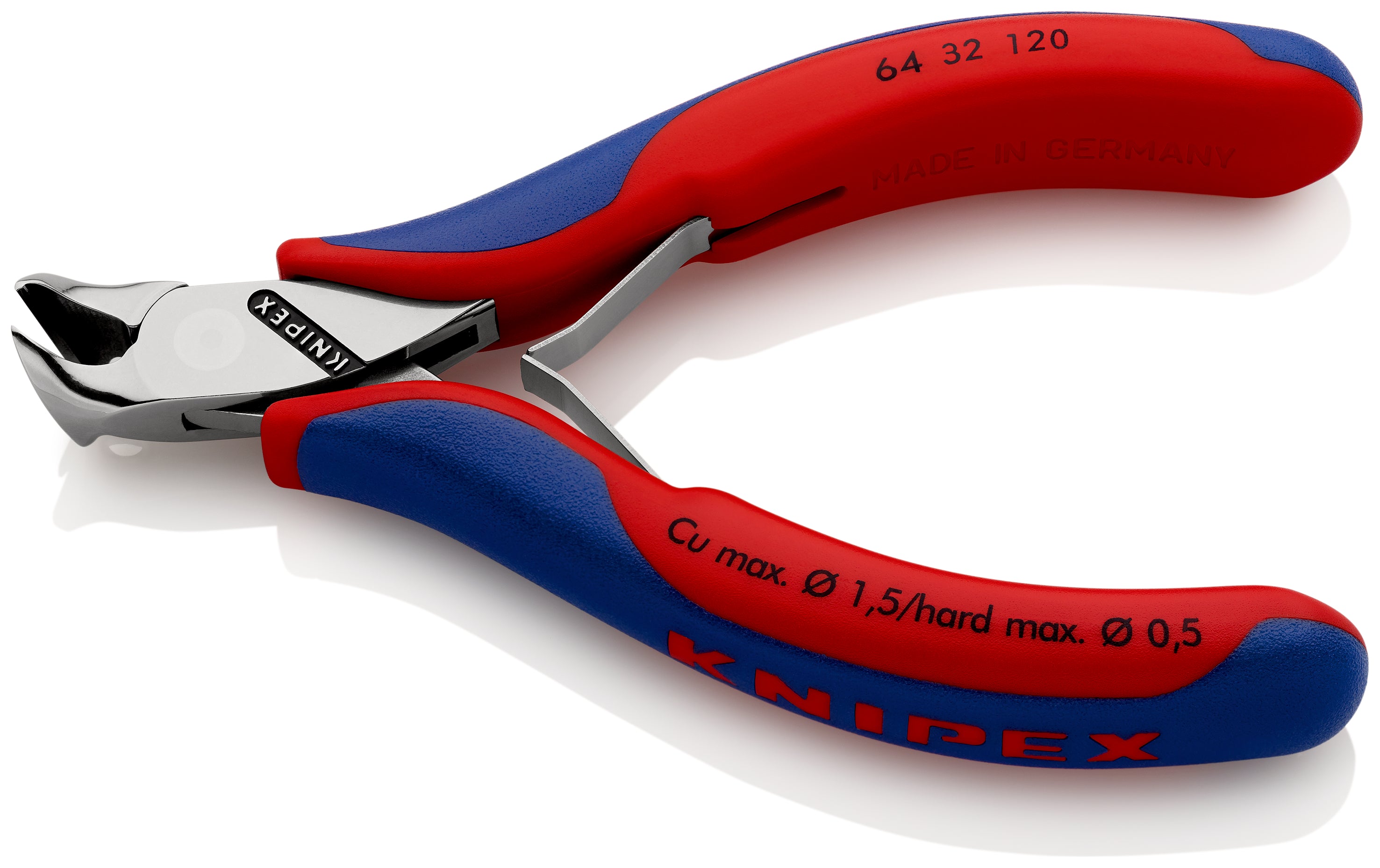

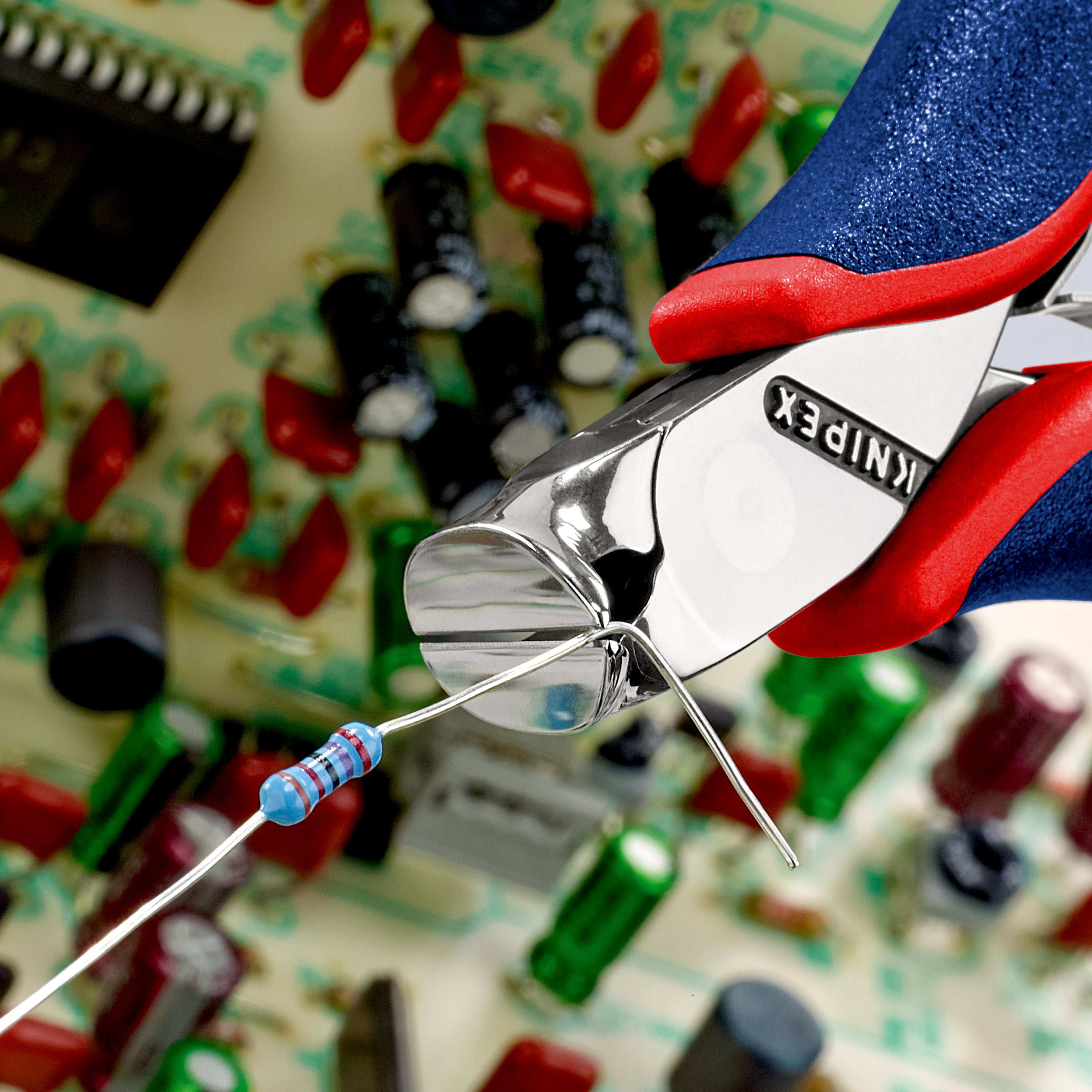

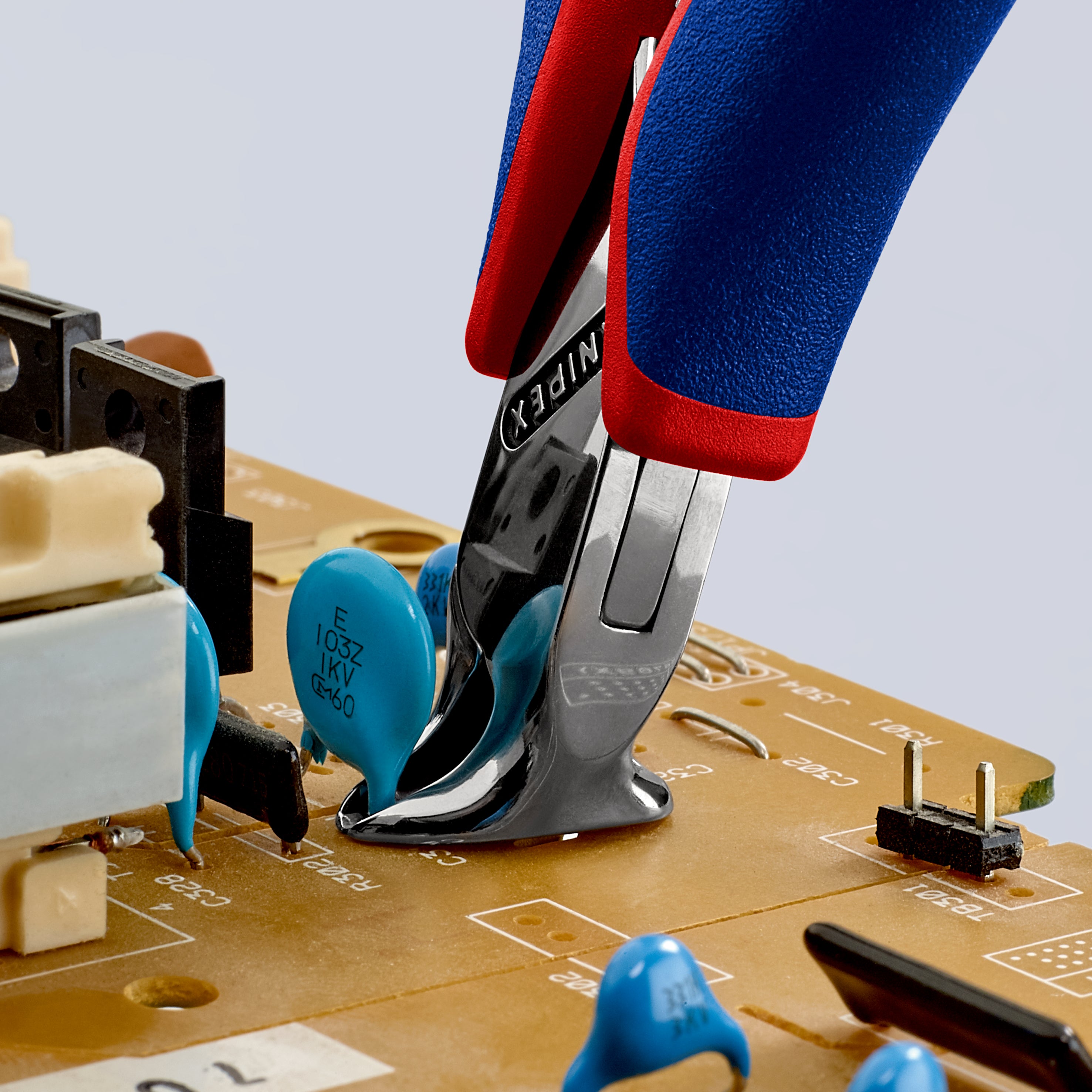

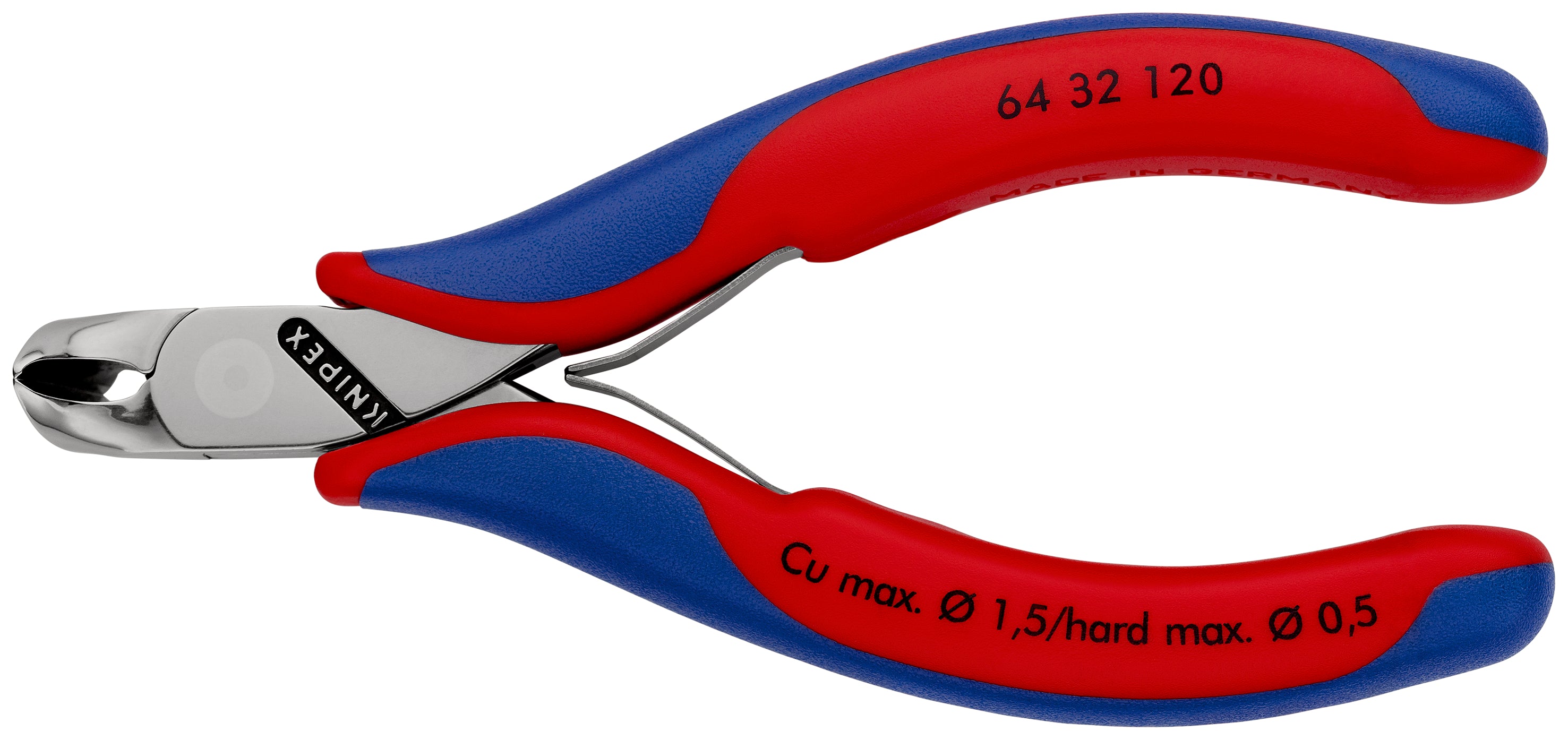

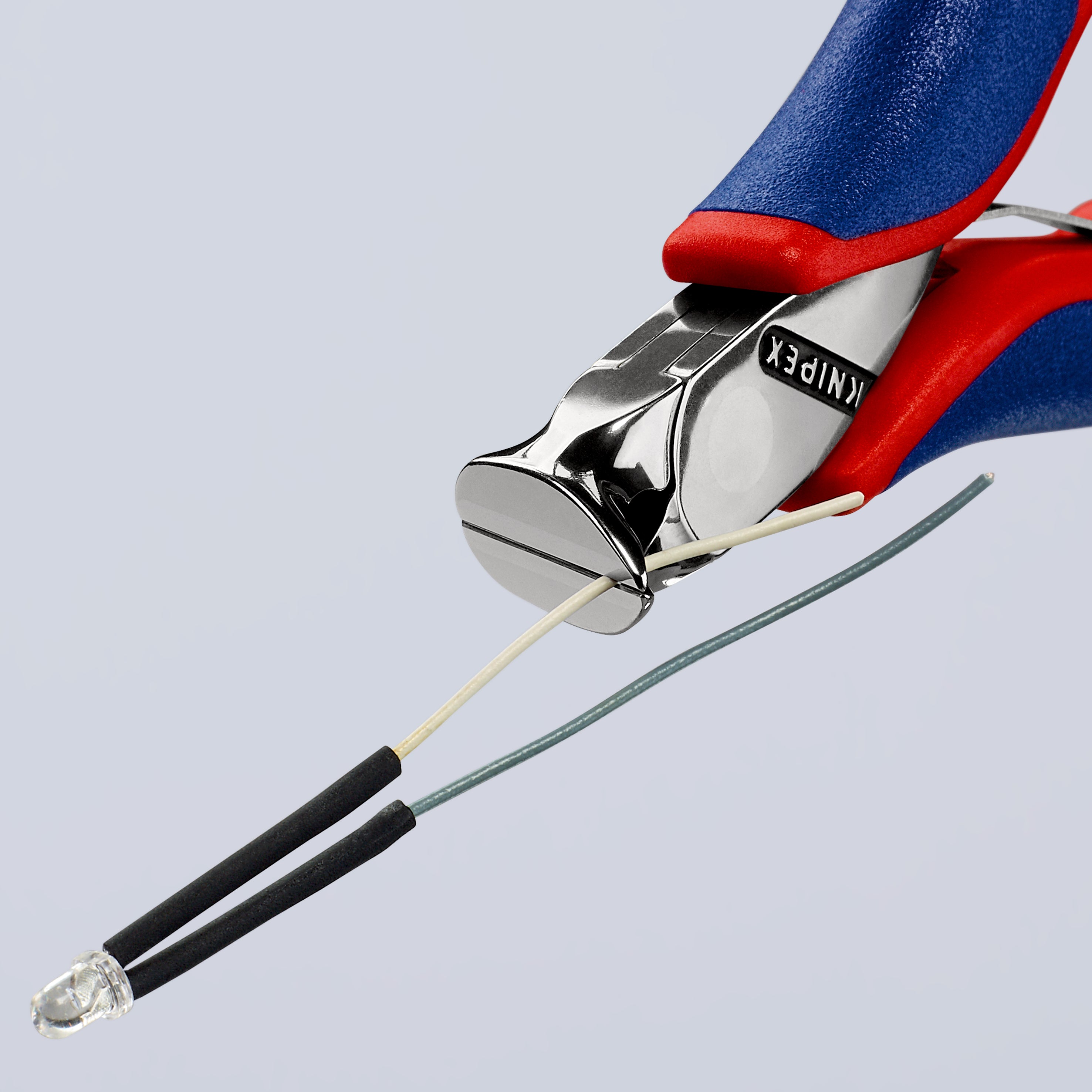

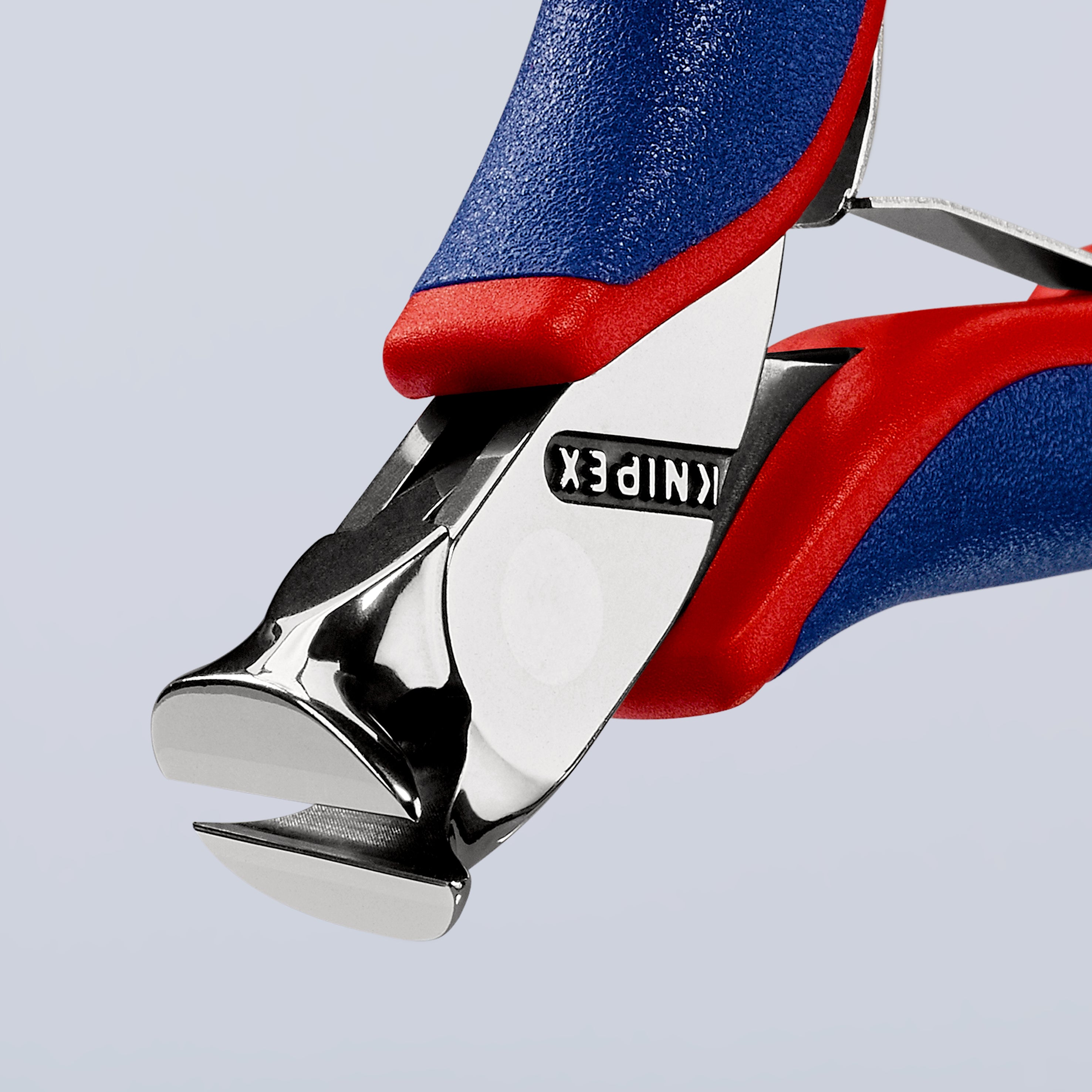

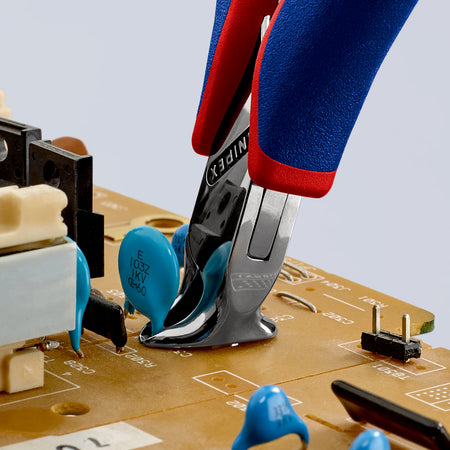

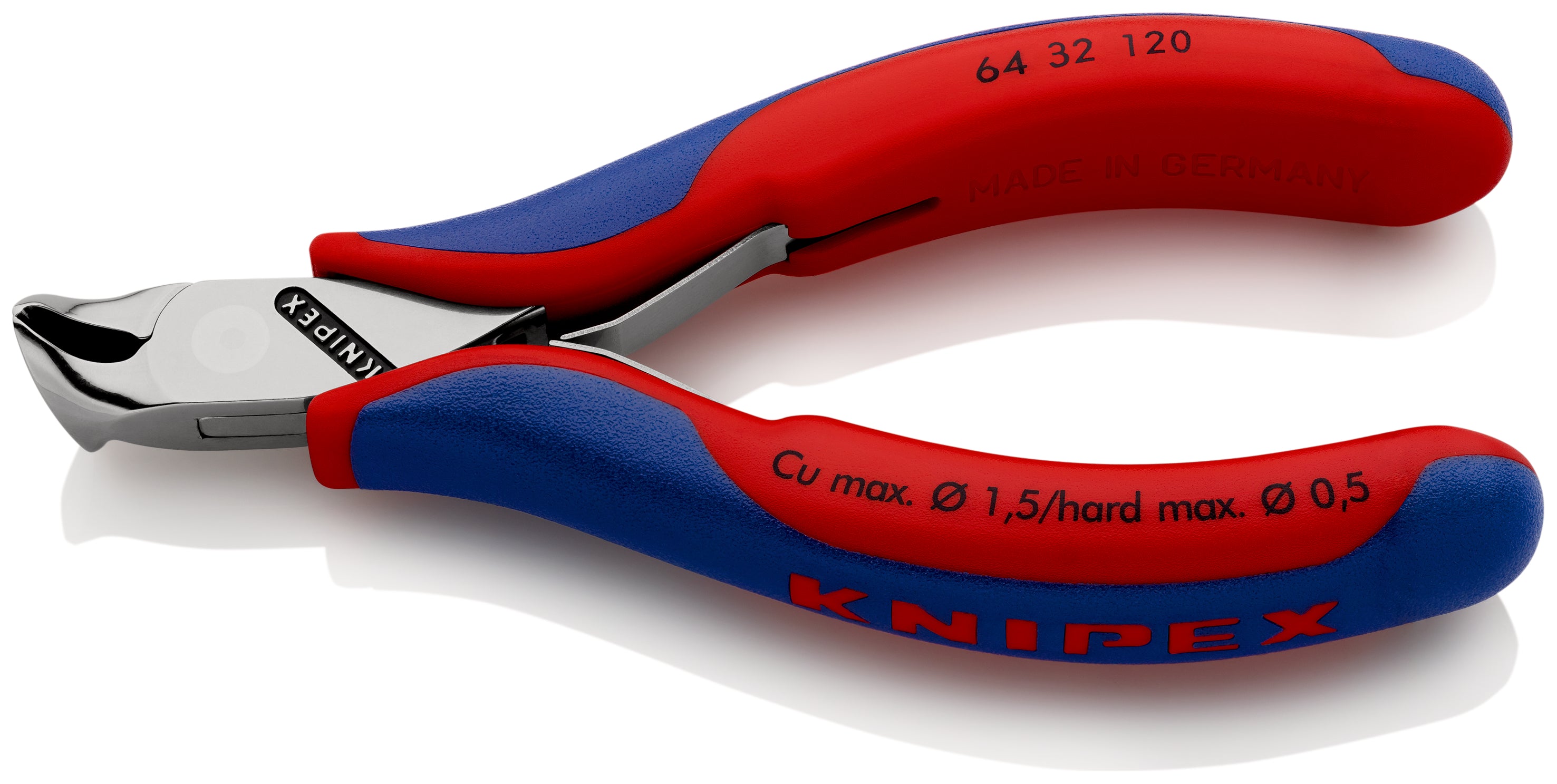

Precision pliers for ultra fine cutting work, e. g. in electronics and fine mechanics. Sturdy, zero backlash box joint. Low-friction double spring for gentle and even opening. The polish or mirror polish together with a fine film of oil offer effective rust protection - no circuit faults caused by peeling chrome from plated tools. Cutters additionally laser hardened, cutter hardness at least 56 HRC. Oblique End Cutter, short head, with small bevel, α = 15°.
Cutting capacities soft wire (diameter): Ø 1.5 mm
Cutting capacities medium hard wire (diameter): Ø 1.0 mm
Cutting capacities hard wire (diameter): Ø 0.5 mm
Head width (A): 11 mm
Jaw length (B): 10 mm
Jaw thickness (joint) (D): 7 mm
Cutting edge length mm (C): 17 mmTechnical Specifications:
- Precision pliers for ultra fine cutting work, e. g. in electronics and fine mechanics
- Sturdy, zero backlash box joint
- Low-friction double spring for gentle and even opening
- The polish or mirror polish together with a fine film of oil offer effective rust protection - no circuit faults caused by peeling chrome from plated tools
- Cutters additionally laser hardened, cutter hardness at least 56 HRC
