For flat cables up to 12 mm in width. For stripping all common round and damp-proof installation cables Ø 4.0 to 13.0 mm (e.g. NYM cable 3 x 1.5 mm² up to 5 x 2.5 mm²). Stripping device for cross-sections 0.8 / 1.5 / 2.5 mm² (AWG 20 / 16 / 14). With opening spring and locking device. For use in confined and difficult to access work areas. Also for use in conduit and distribution boxes.
Stripping capacities in square millimetres: 0.8 — 2.5 mm²
Stripping capacities (diameter): Ø 4 – 13 mm
Cable type: flat cable 12 mm / round cable Ø 4 - 13 mmTechnical Specifications:

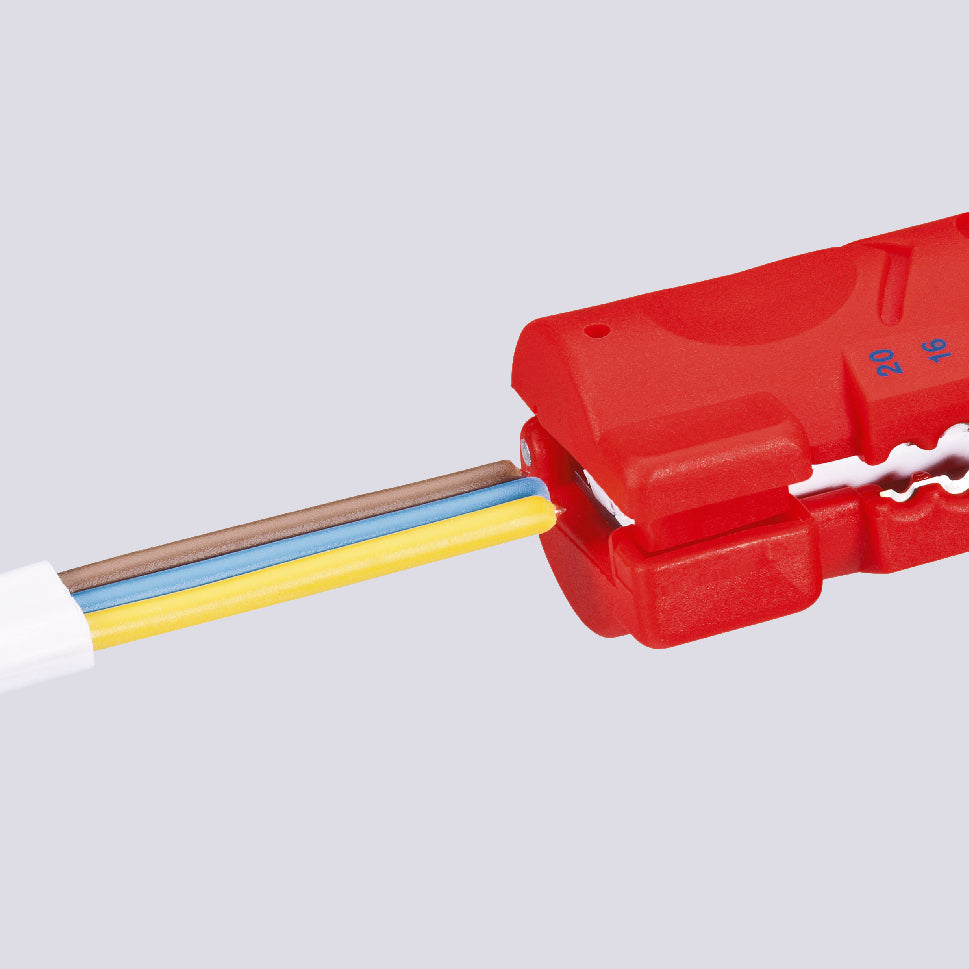

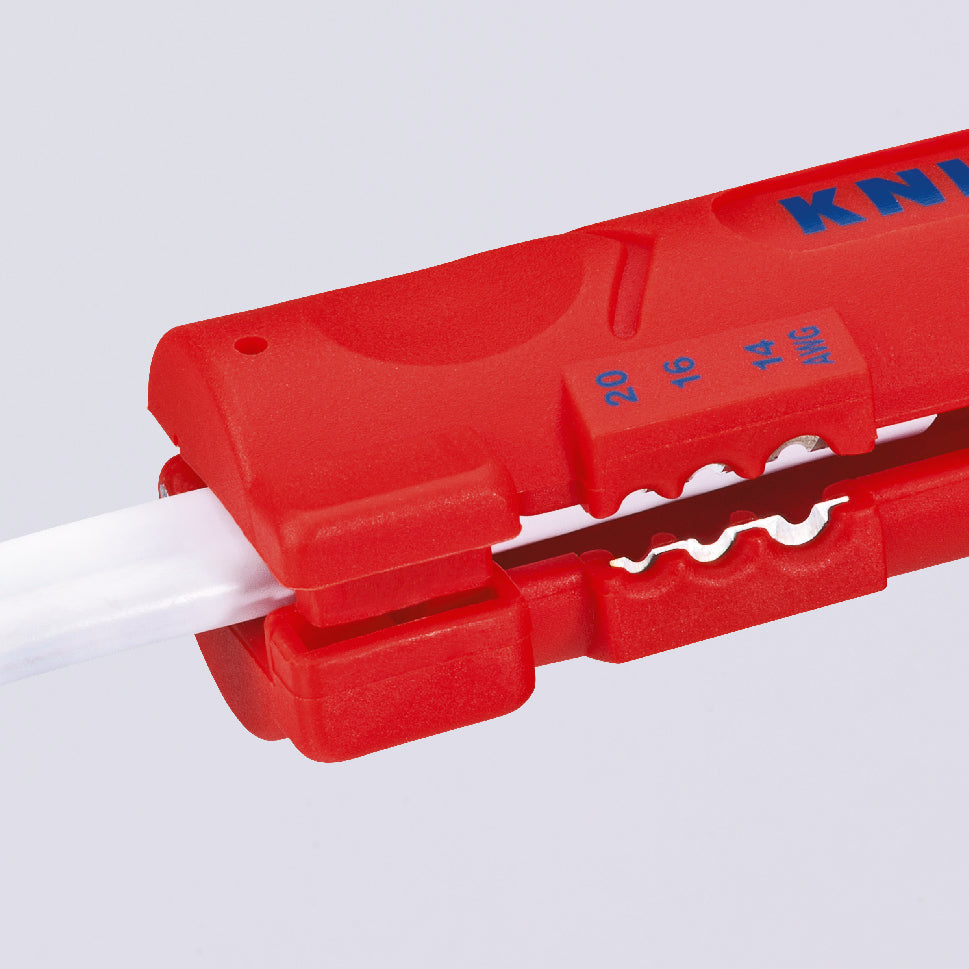

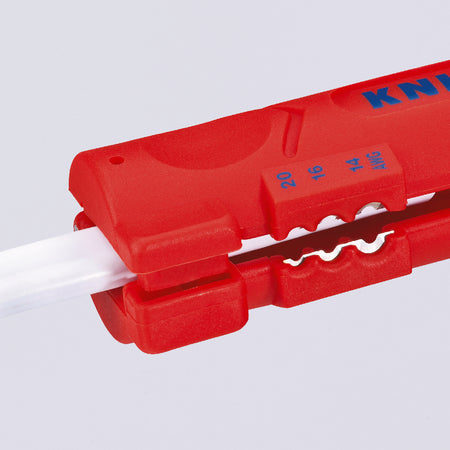

- For flat cables up to 12 mm in width
- For stripping all common round and damp-proof installation cables Ø 4.0 to 13.0 mm (e.g. NYM cable 3 x 1.5 mm² up to 5 x 2.5 mm²)

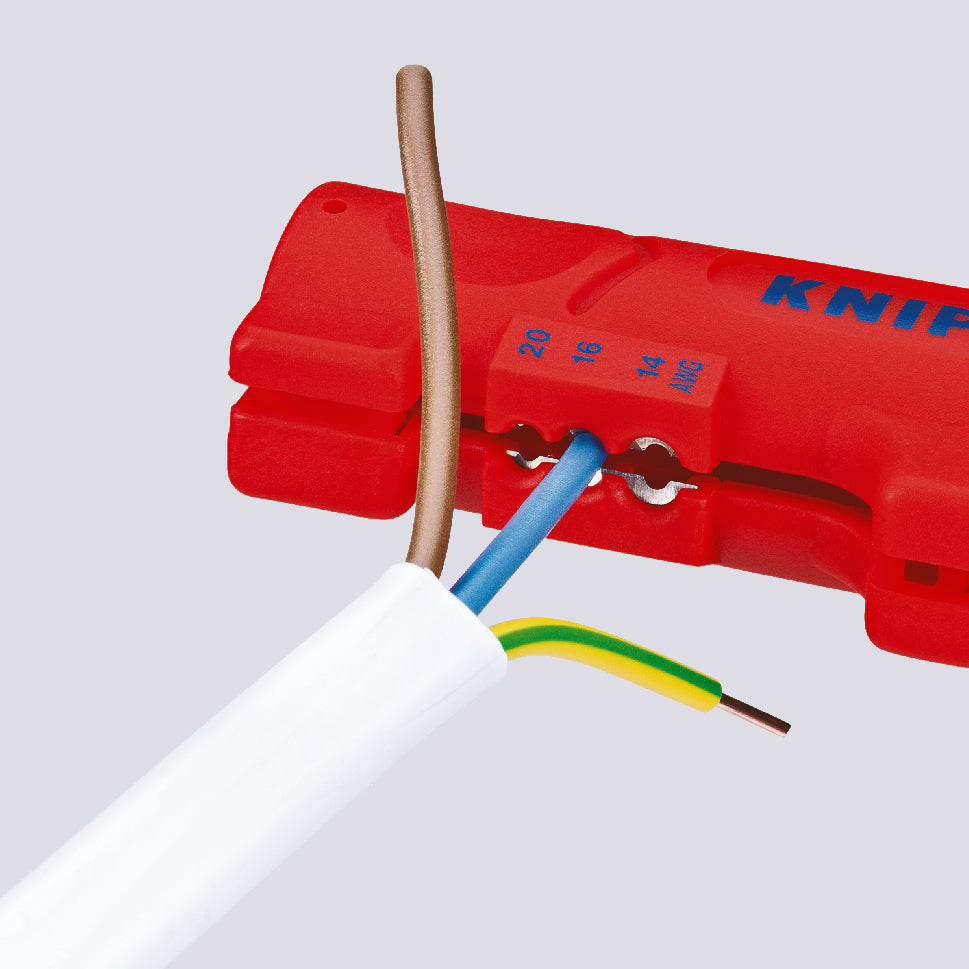

- Stripping device for cross-sections 0.8 / 1.5 / 2.5 mm² (AWG 20 / 16 / 14)

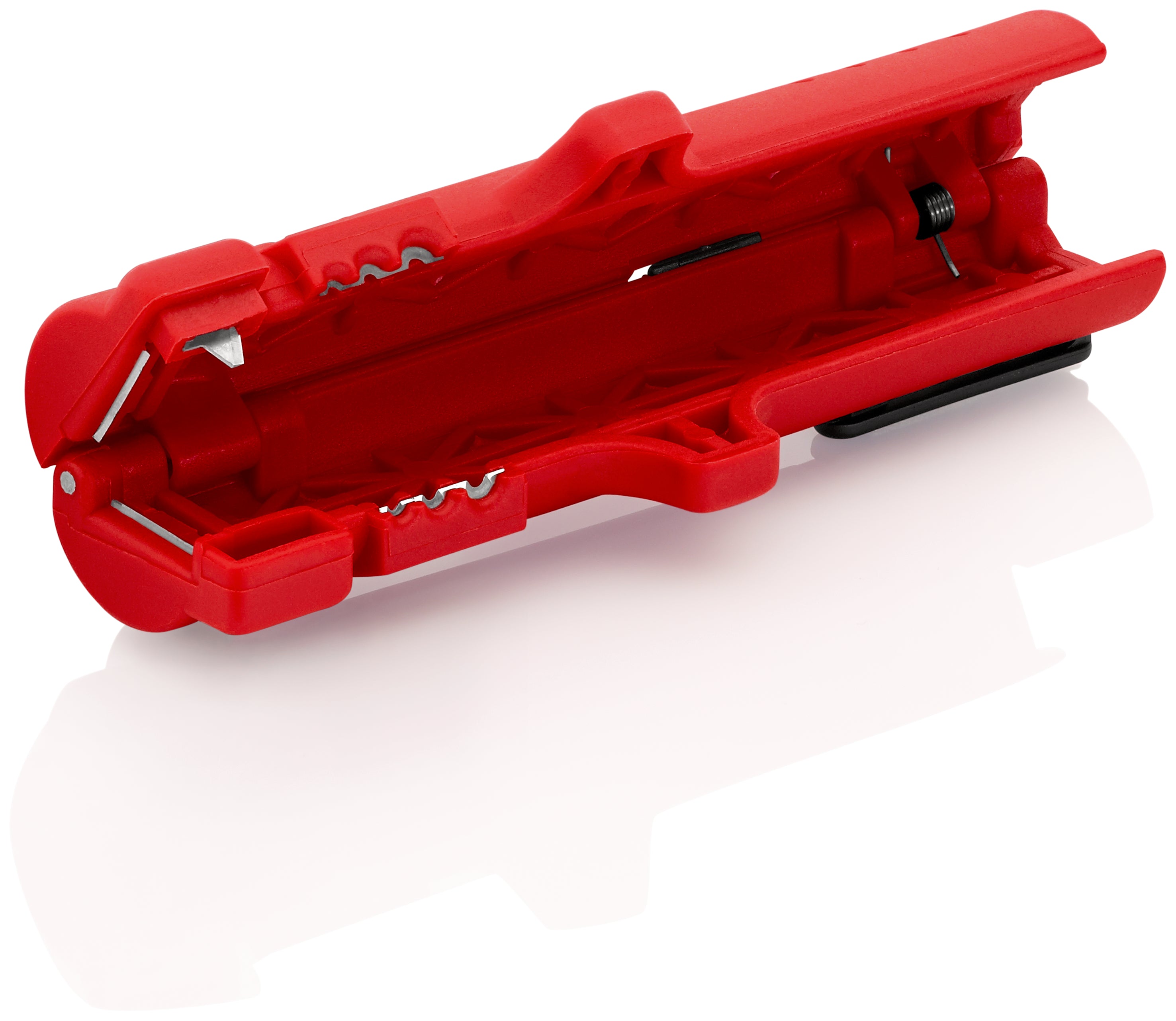

- With opening spring and locking device
- For use in confined and difficult to access work areas
- Also for use in conduit and distribution boxes
