Home » KNIPEX 13 66 180 StriX Insul. Stripper with Cable Shears
Knipex

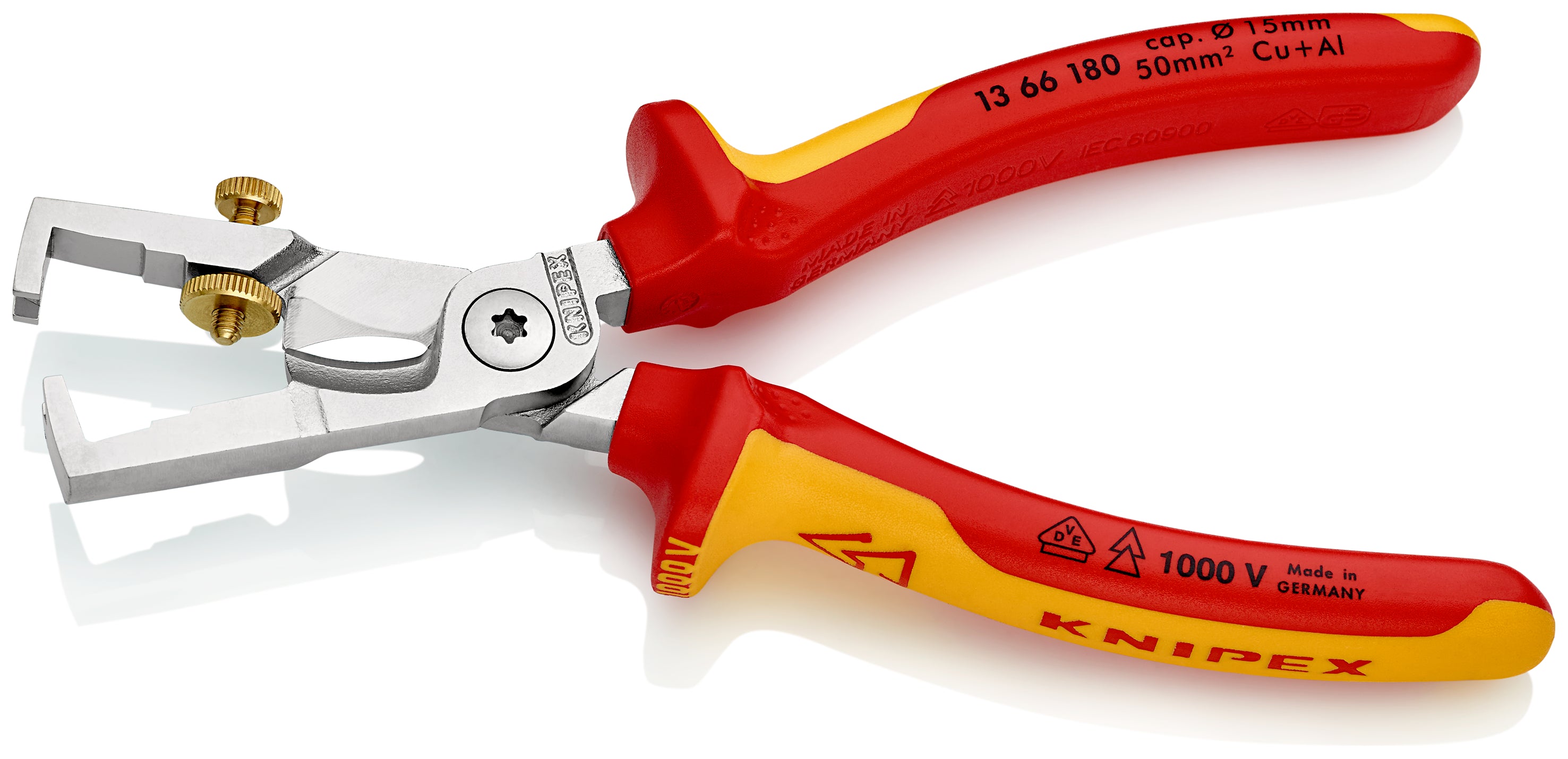

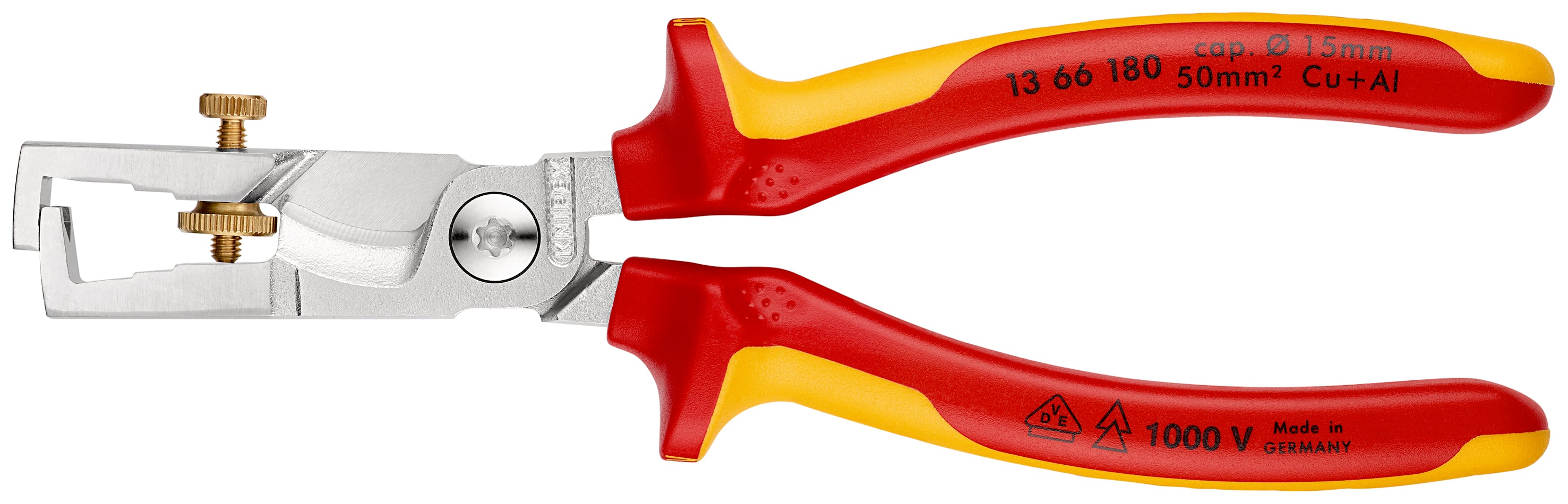

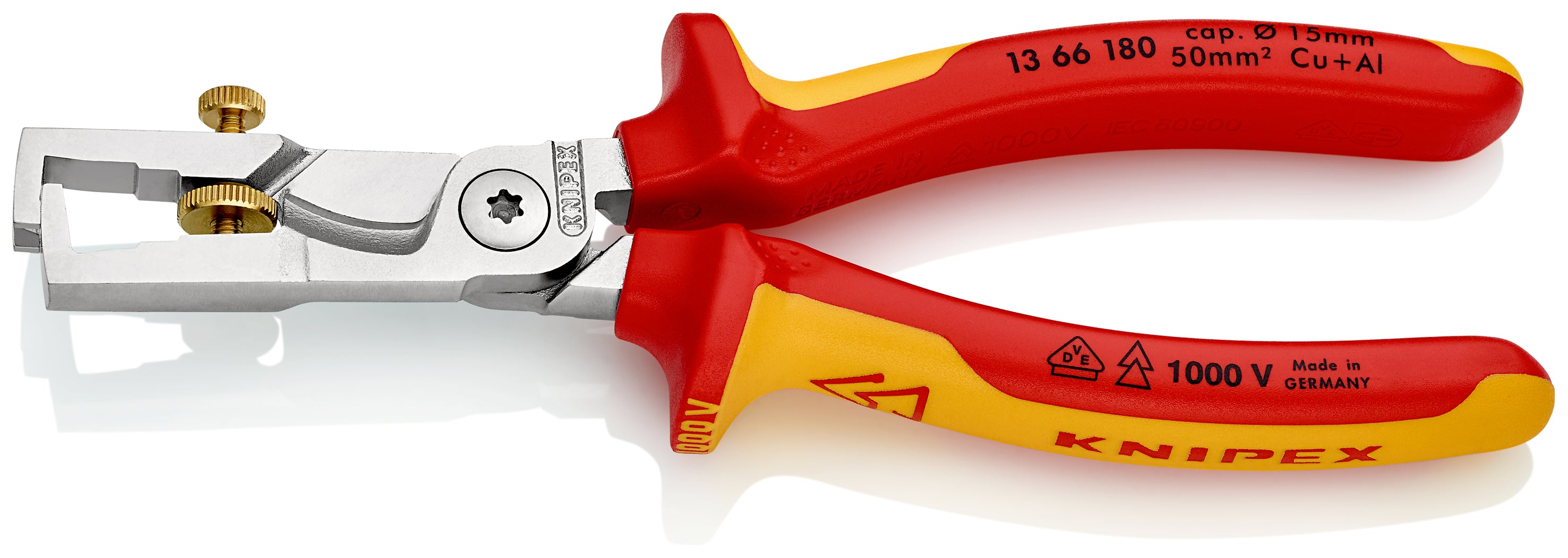

KNIPEX 13 66 180 StriX Insul. Stripper with Cable Shears

SKU: KNIPEX-13-66-180
£54.57
Sale £79.09 £54.57

Need help with this purchase?

Email 020 8561 8965

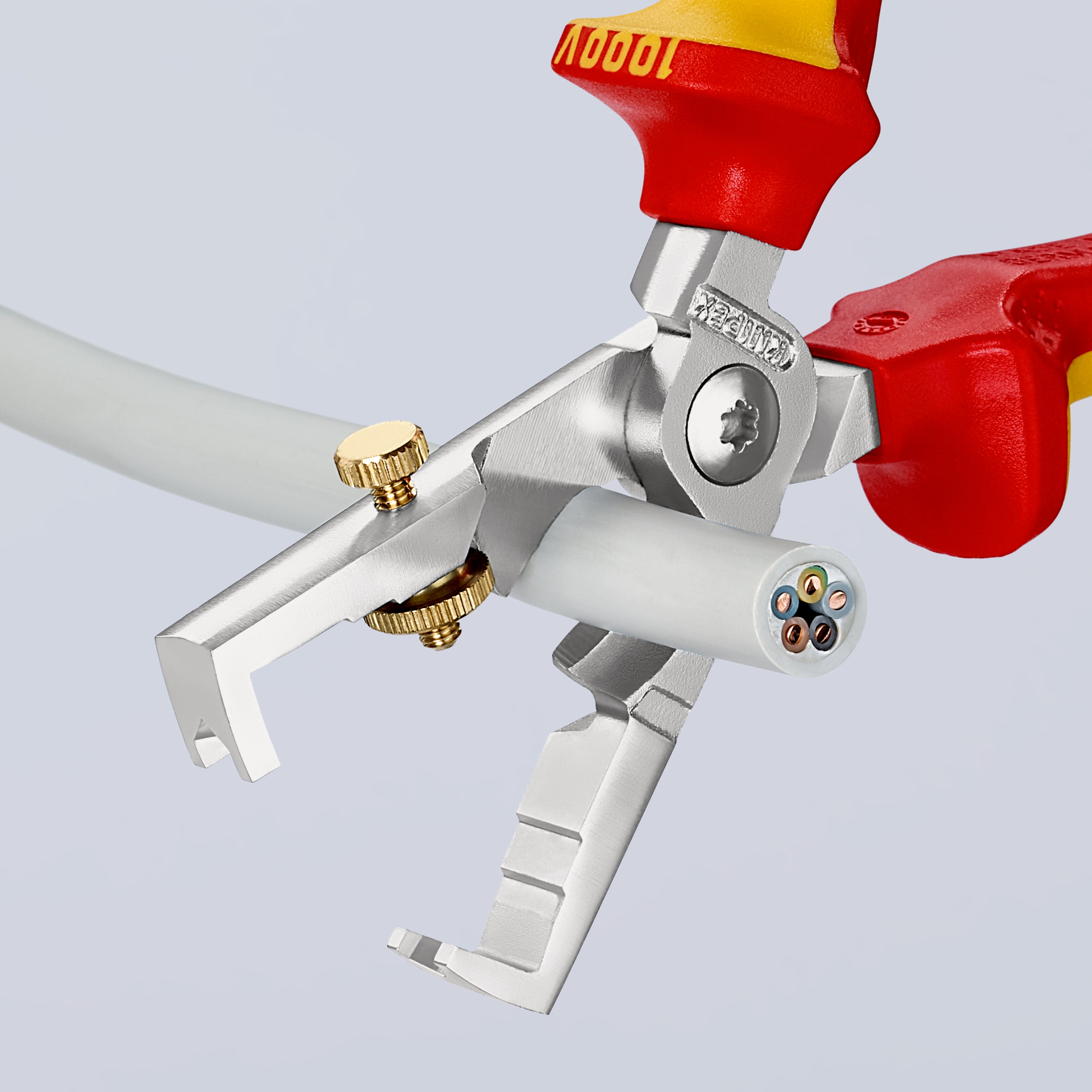

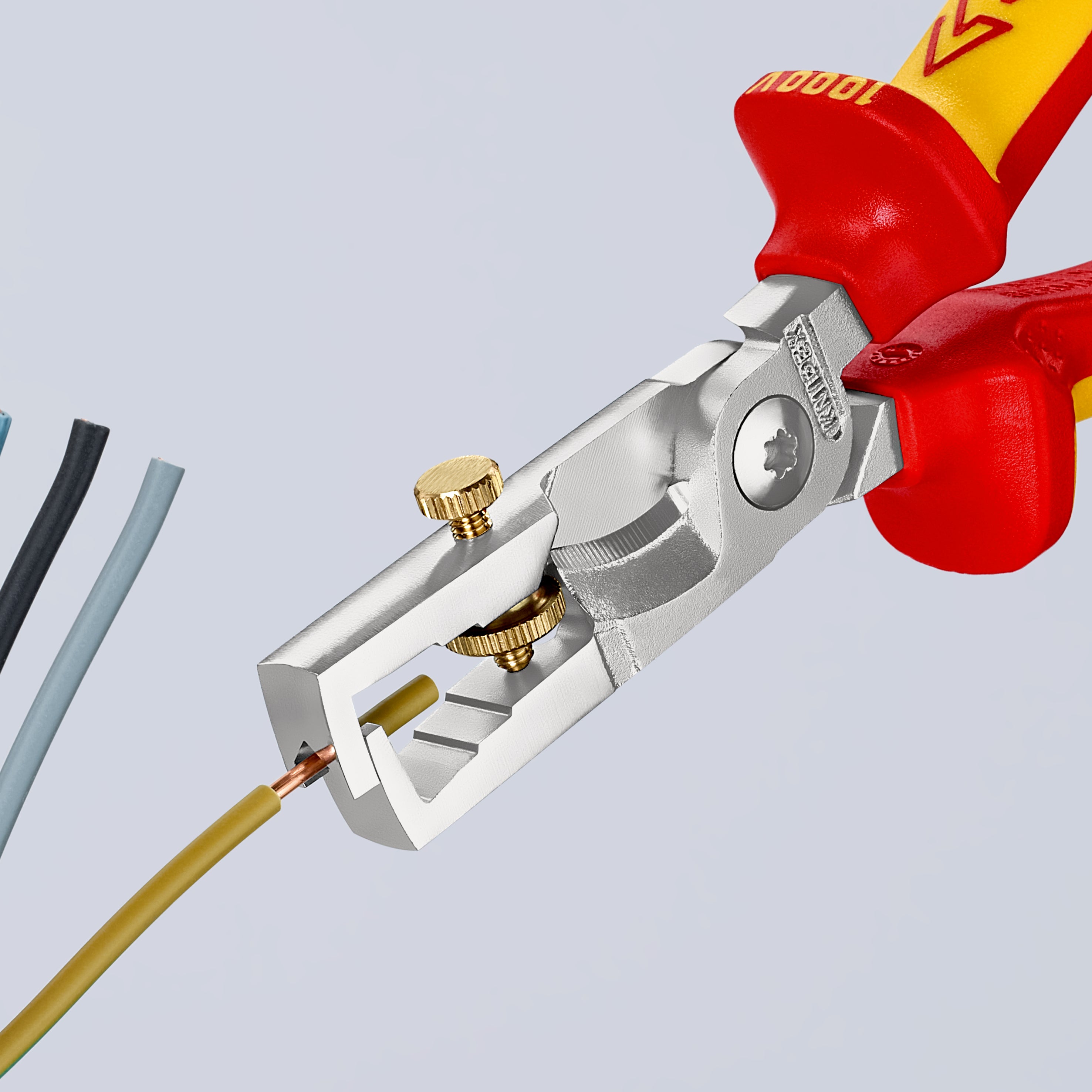

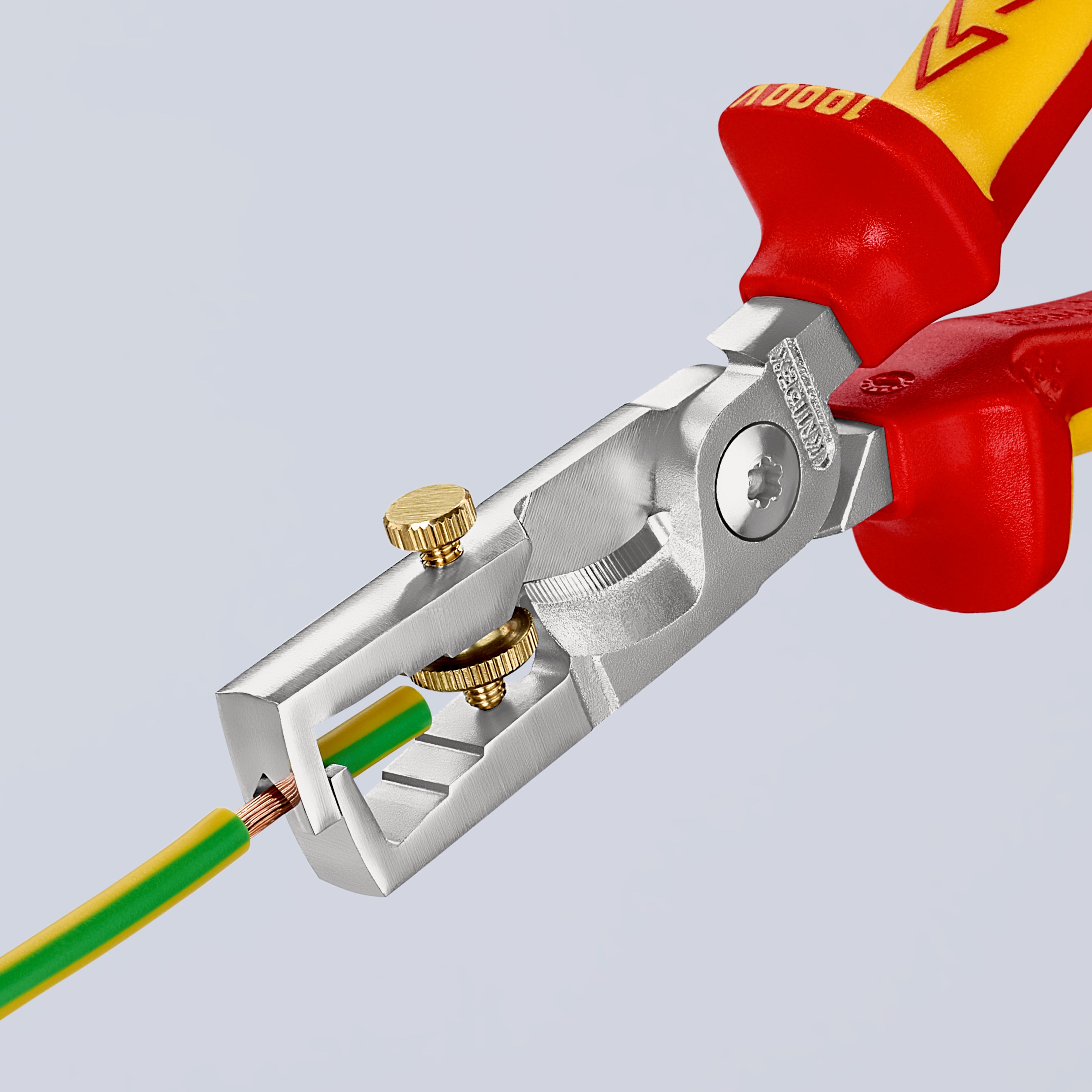

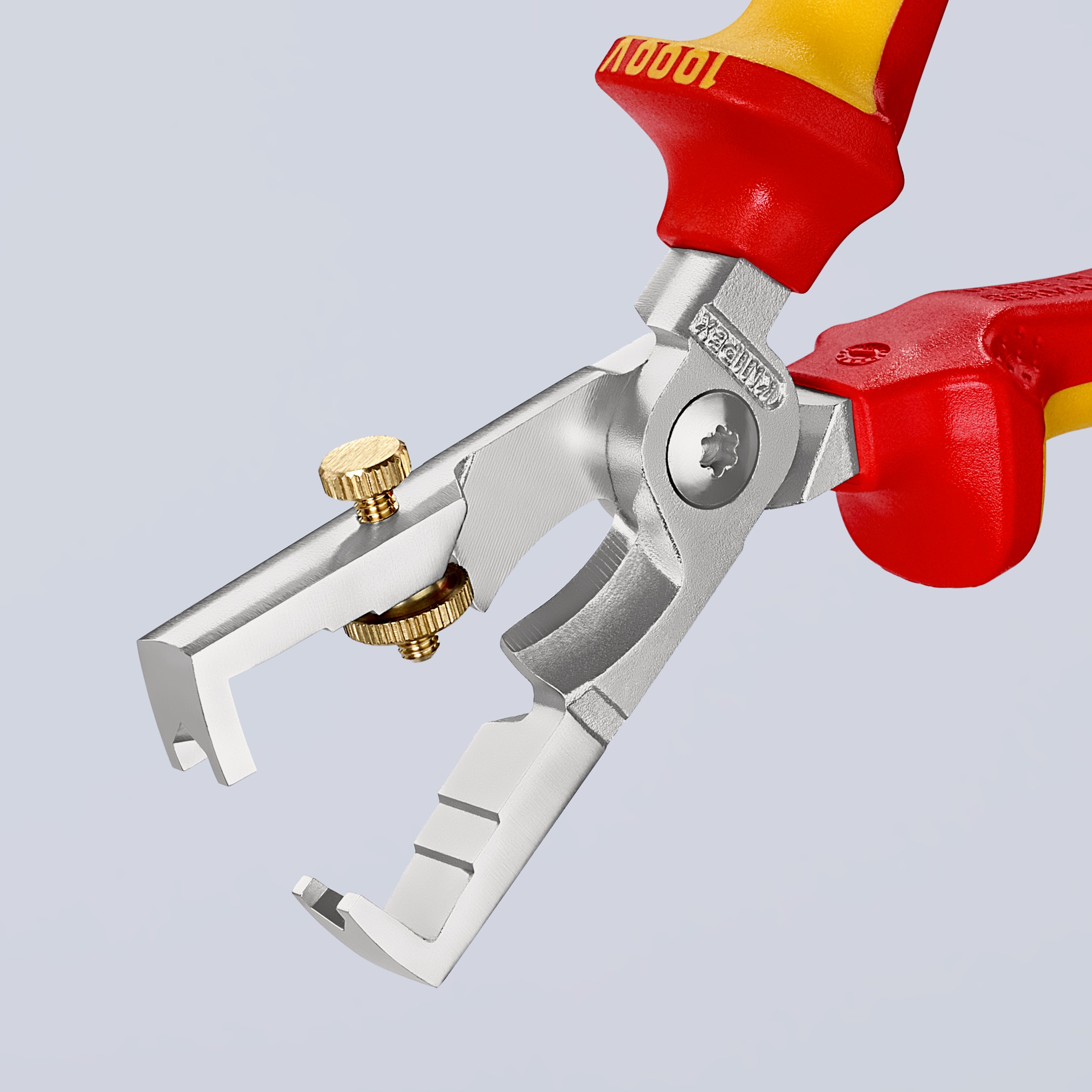

Wire stripper with cable shears – two essential electrical installations tools in one pair of pliers. Integrated cable shears for the clean cutting of Cu- and Al-cables without crushing. Cutting edges additionally induction-hardened, cutting edge hardness approx. 57 HRC. Universal adjustment of the stripping blades by means of a knurled screw. Slim dimensions for easy access. Stripping of single-, multi- and fine stranded conductors with plastic or rubber insulation up to Ø 5 mm or 10 mm² cross-section. Graduated jaw provides a visual orientation aid when stripping wire in standard lengths (11 mm and 16 mm).

  • Cutting capacity copper cable, multiple-stranded: 50 mm²
  • Cutting capacity copper cable, multiple-stranded: Ø 15 mm
  • Stripping capacities in square millimetres: 10.0 mm²
  • Stripping capacities (diameter): Ø 5.0 mm
  • AWG: 8
  • VDE tested: yes

    • Technical Specifications:

    • Integrated cable shears for the clean cutting of Cu- and Al-cables without crushing
    • Cutting edges additionally induction-hardened, cutting edge hardness approx. 57 HRC
    • Universal adjustment of the stripping blades by means of a knurled screw
    • Slim dimensions for easy access
    • Stripping of single-, multi- and fine stranded conductors with plastic or rubber insulation up to Ø 5 mm or 10 mm² cross-section
    • Graduated jaw provides a visual orientation aid when stripping wire in standard lengths (11 mm and 16 mm)
    • SKU KNIPEX-13-66-180
    • Barcode 4003773081319
