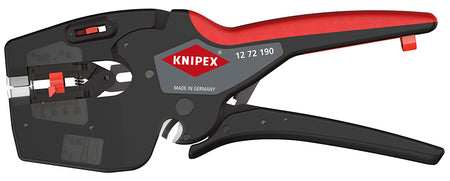

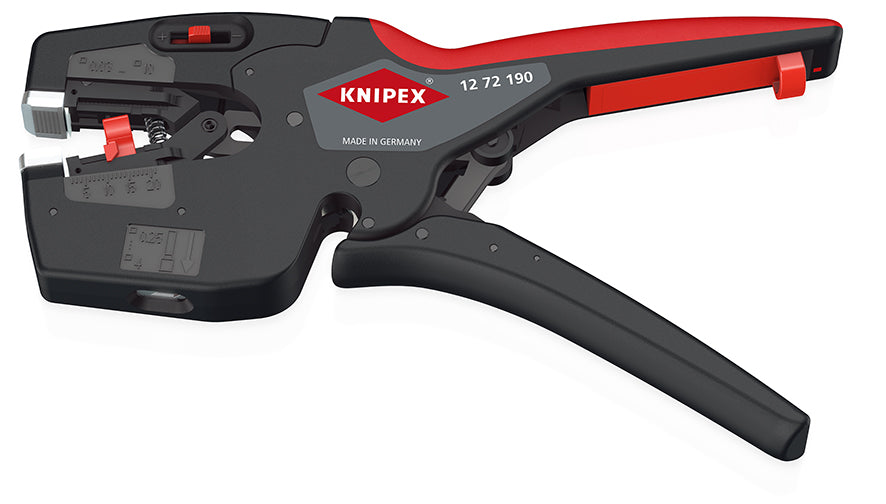

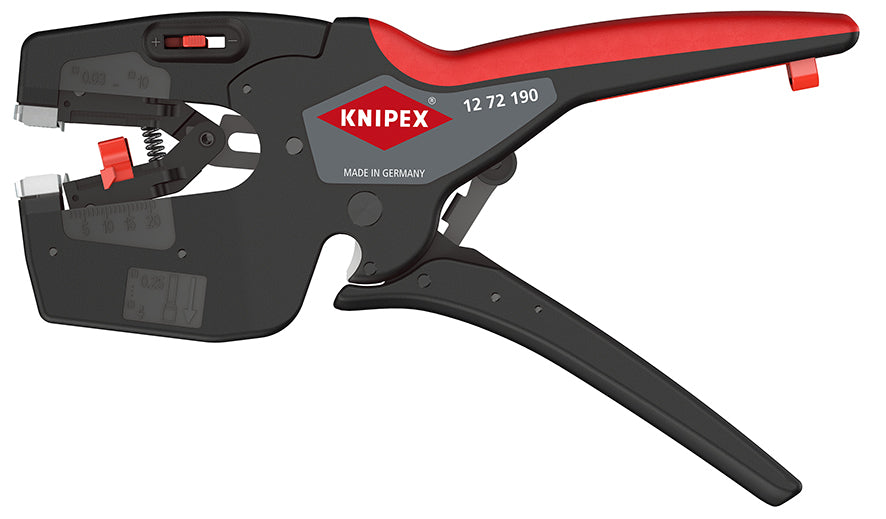

KNIPEX 12 72 190 KNIPEX NexStrip Multitool f Electricians

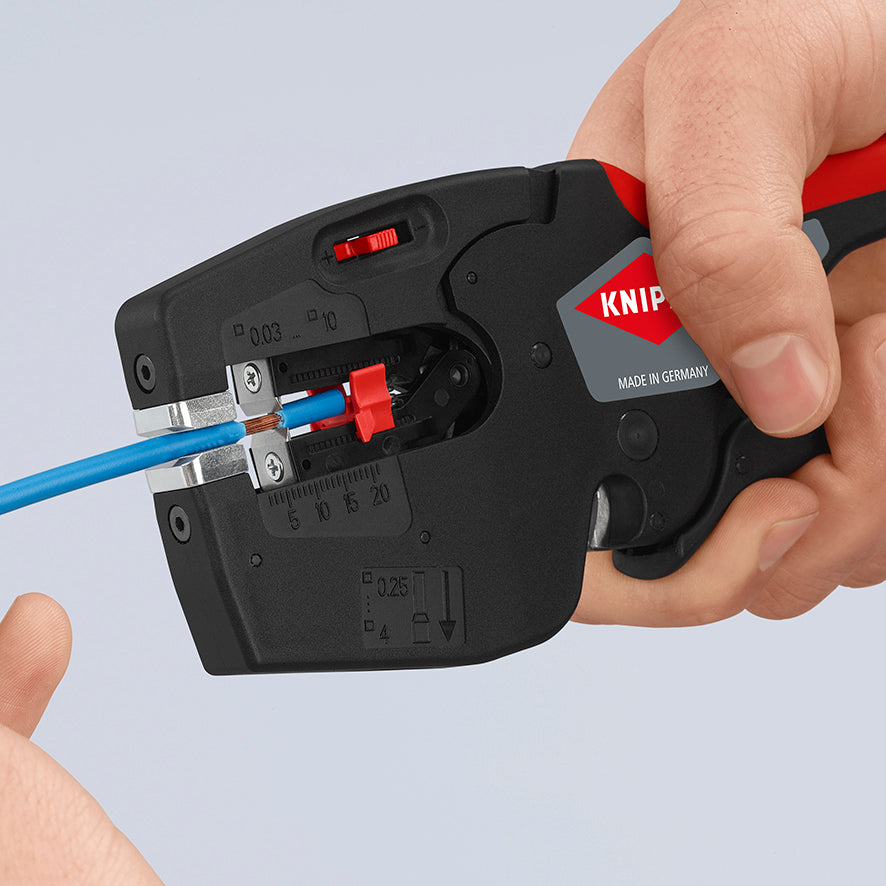

Perfect crimping: fast and even square crimping for individual wire ferrules, the ratchet crimping mechanism guarantees the required crimping pressure. Precise stripping: automatically adapts to the respective cable diameter and ensures consistent stripping lengths with the adjustable length stop especially with repetitive work. Multi-component grips ensure non-slip, comfortable handling. "Quick, precise square crimp of single wire ferrules according to DIN 46228 parts 1+4, self-adjusts for sizes 0.25 – 4 mm² / 2 x 2.5 mm² – allows for quick crimping between different sizes". Repetitive, high crimping quality due to ratcheting mechanism with a complete crimping cycle. Stripping with fine adjustment – for optimal adjustment to special materials or temperature conditions for flexible and solid conductors between 0.03 and 10 mm² (AWG 32-8). Cleanly cuts conductors up to 10 mm² (AWG 8). High-quality housing made of glass fibre reinforced plastic. "For the electrical trade: for domestic installations and wiring of electronical devices, such as PLC (programmable logic controller)". Wire stripper with three functions: stripping wire up to 10 mm², crimping capacity of 4 mm² or 2 x 2.5 mm² and cutting capacity of 10 mm².

Technical Specifications:

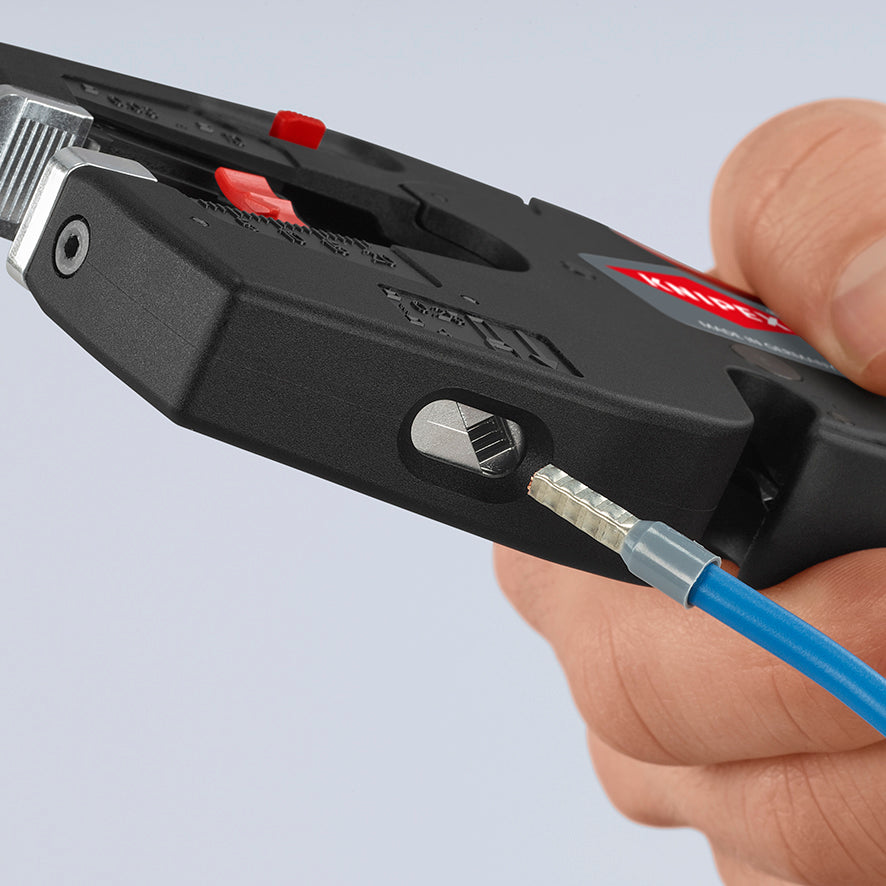

• "Quick, precise square crimp of single wire ferrules according to DIN 46228 parts 1+4, self-adjusts for sizes 0.25 – 4 mm² / 2 x 2.5 mm² – allows for quick crimping between different sizes"
• Repetitive, high crimping quality due to ratcheting mechanism with a complete crimping cycle

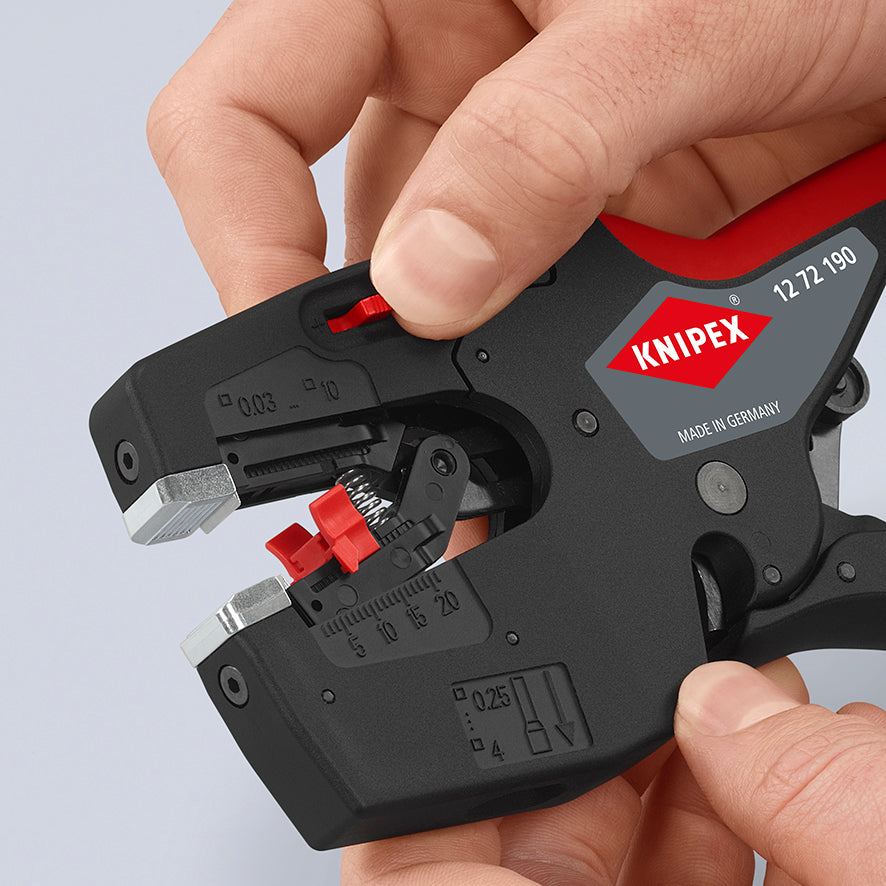

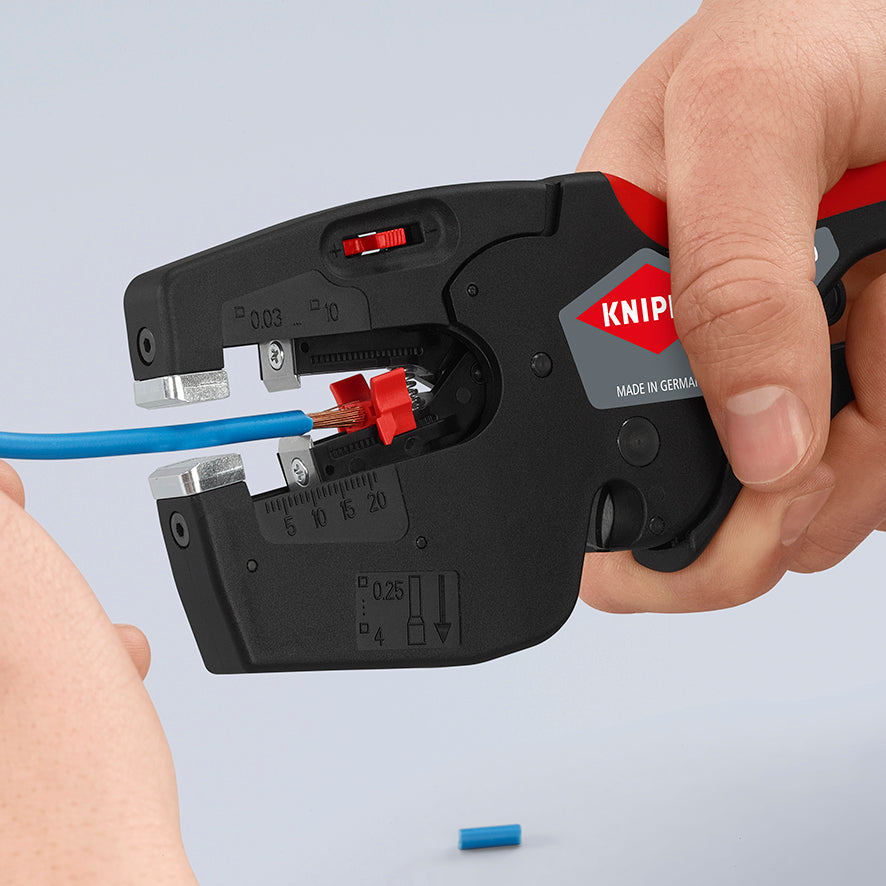

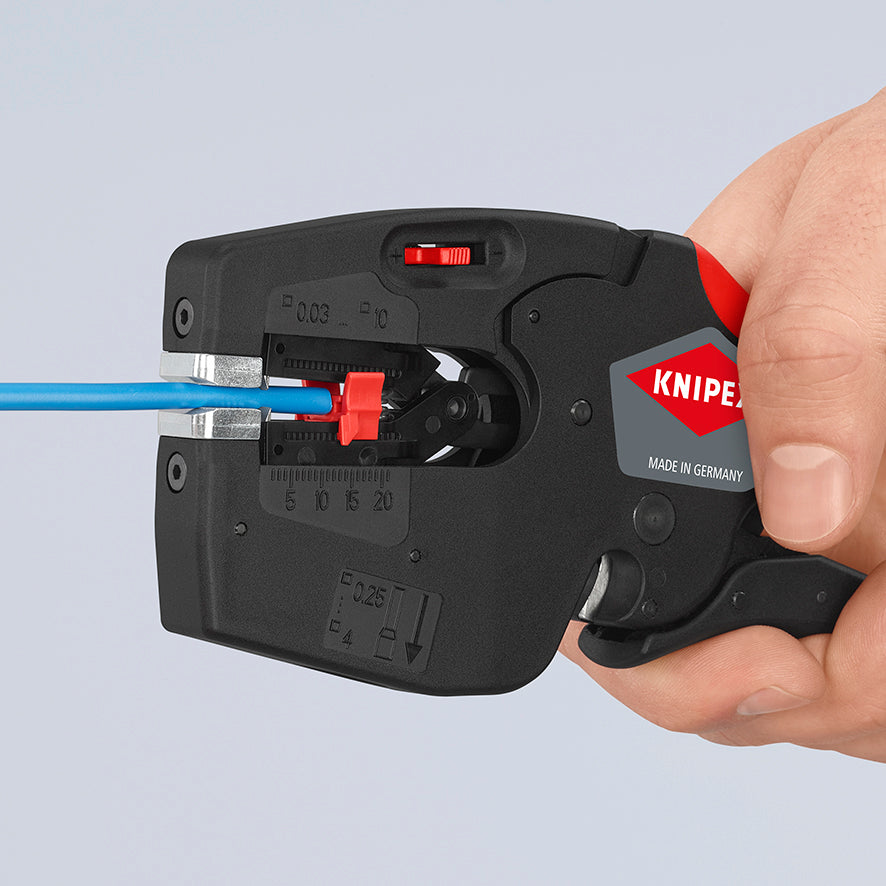

• Stripping with fine adjustment – for optimal adjustment to special materials or temperature conditions for flexible and solid conductors between 0.03 and 10 mm² (AWG 32-8)

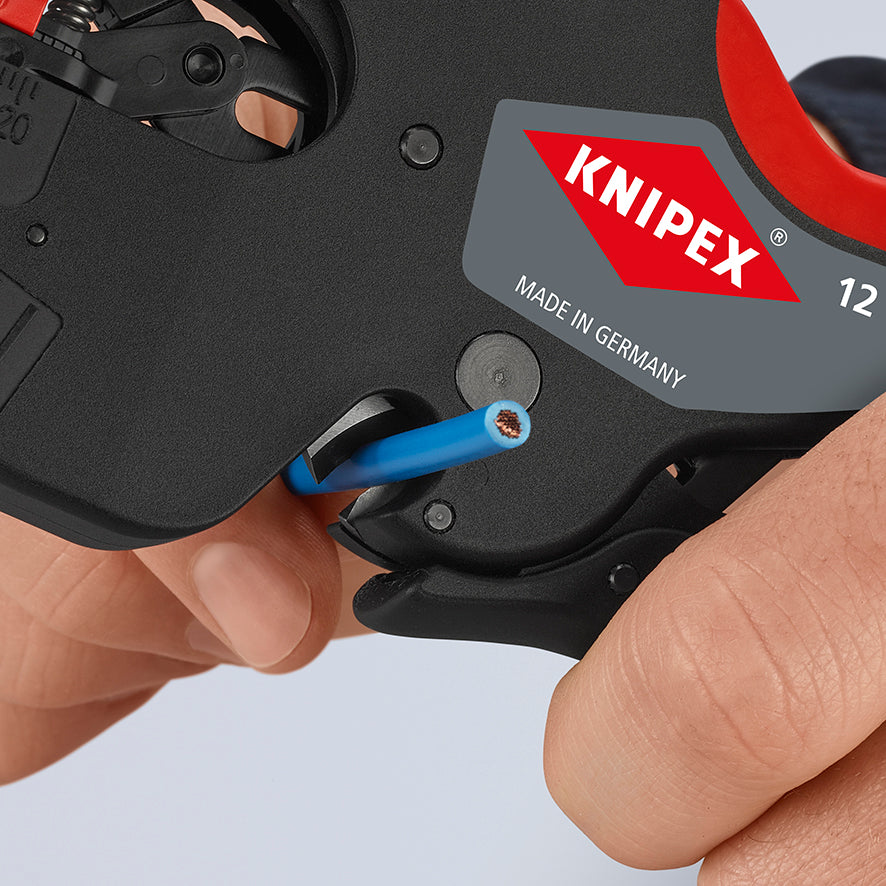

• Cleanly cuts conductors up to 10 mm² (AWG 8)
• High-quality housing made of glass fibre reinforced plastic
• "For the electrical trade: for domestic installations and wiring of electronical devices, such as PLC (programmable logic controller)"
• Wire stripper with three functions: stripping wire up to 10 mm², crimping capacity of 4 mm² or 2 x 2.5 mm² and cutting capacity of 10 mm²
