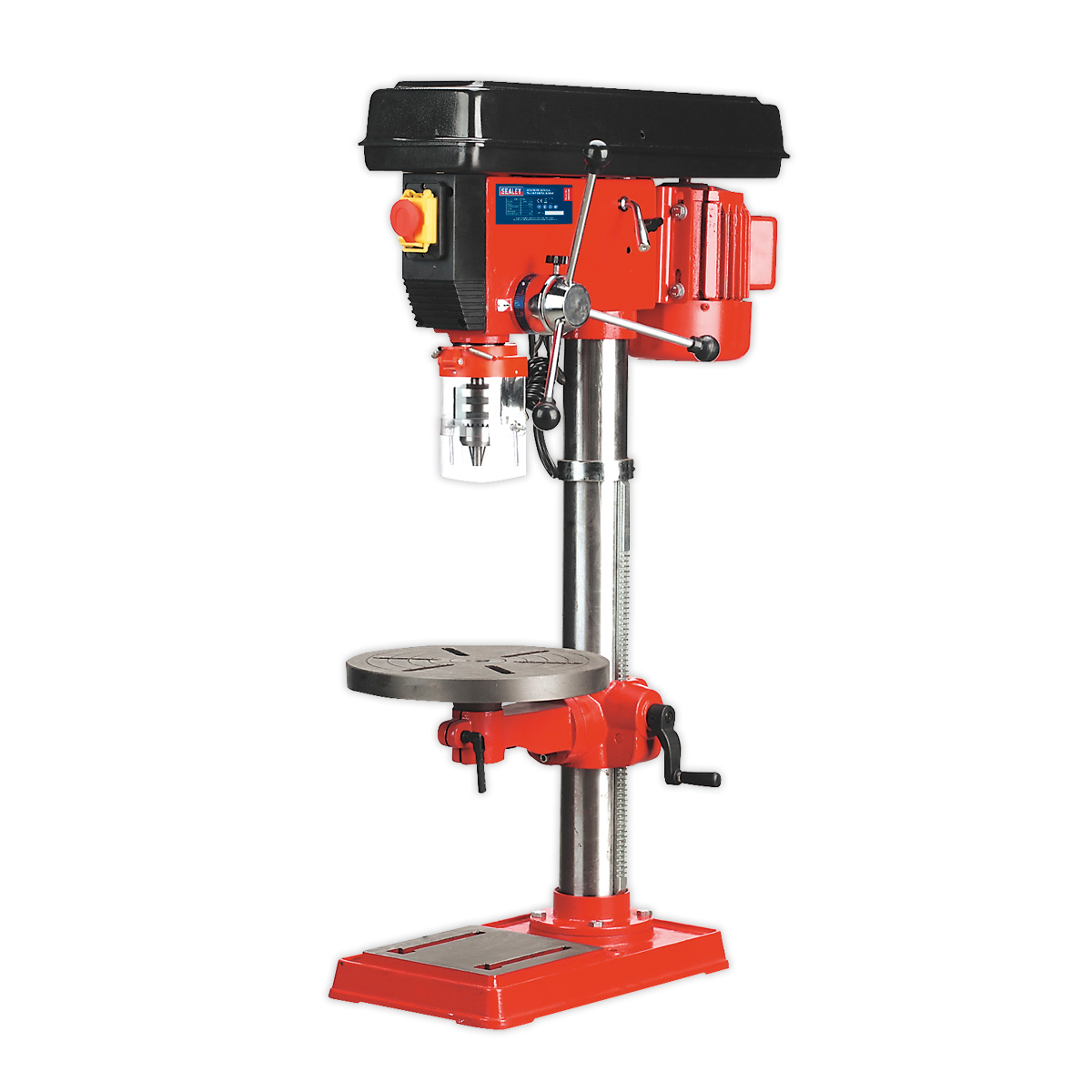

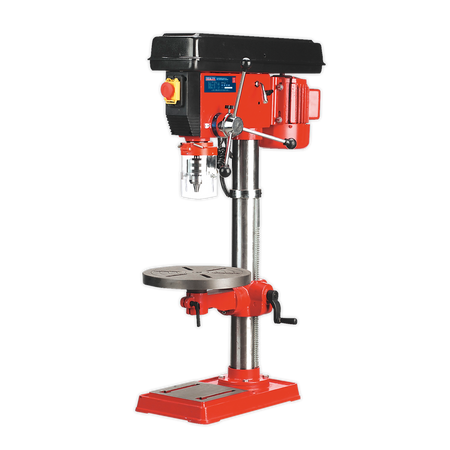

One of a comprehensive range of bench pillar drills to suit light industrial, agricultural and woodworking applications. Meets Safety of Machinery (Safety) Directives 1992 (and amendments). Fitted with rack and pinion feed shafts with adjustable preset depth control for repetitive work. Features multiple speed drives and Morse taper spindle housing for accepting taper shank drill bits. Safety devices fitted include a no-voltage release switch, allowing insurance company approval for use in educational establishments. Access to drive belts is denied during operation by mechanical protection. Mortise attachment available, order Model No. MA10.
Specification
- Suitable for industrial, agricultural and woodworking applications.
- Fully guarded and suitable for educational use.
- Fitted with rack and pinion feed shafts with preset depth control for repetitive work.
- Fitted with no-voltage switch and locking cover to prevent accidental starting.
- 16mm(5/8") Capacity chuck No. 2MT.
- Height: 1070mm.
- Spindle Centre to Column: 178mm.
- Motor Power: 450W, Input Power: 650W.
- Column Diameter: 80mm.
- Spindle Travel: 80mm.
- Weight: 60kg.
- Model No. GDM150B
