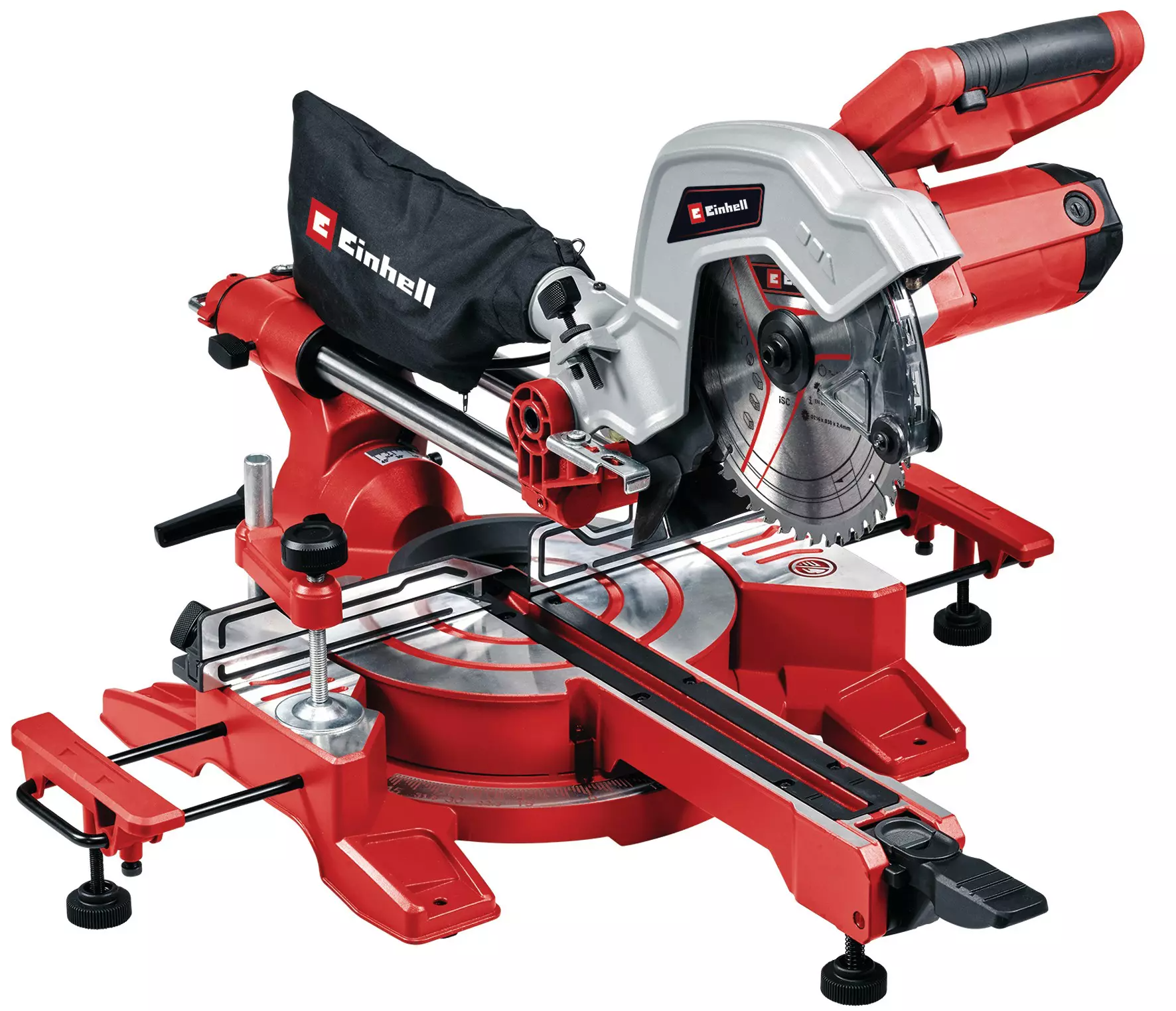

With the Einhell TC-SM 216 drag, crosscut and miter saw the ambitious DIY enthusiast is ideally equipped for cutting and crosscutting jobs in the home, workshed or garage. With a 1,600 W power rating the saw blade (Ø 216 external x ø 30 internal) has plenty of power to cut through material. This sturdy saw has a smooth draw function for wide workpieces. The turntable has a precise angle adjustment facility to make it easier to achieve good angular cuts. For the most common angles on do-it-yourself jobs, locking positions are provided on the turntable for adjusting the angle quickly and reliably. There are easy-to-read scales for the angles and widths. Also, the saw head can be tilted to the left for miter cuts. The cutting width is up to 305 millimeters with a 90° setting and up to 210 millimeters with an angle of 45°. The integrated cutting line laser is an enormous help when working. Supports for longer workpieces are provided on the left and right, and there is a practical clamping device for securing the workpieces. The high-grade carbide saw blade delivers perfect cuts. To make it easier to change the saw blade there is a spindle lock. For more effective removal of the sawdust there is a dust funnel behind the saw blade. The extractor connection which is provided has a diameter of 36 millimeters, or the supplied dust bag can be used as an alternative.
TC-SM 216:

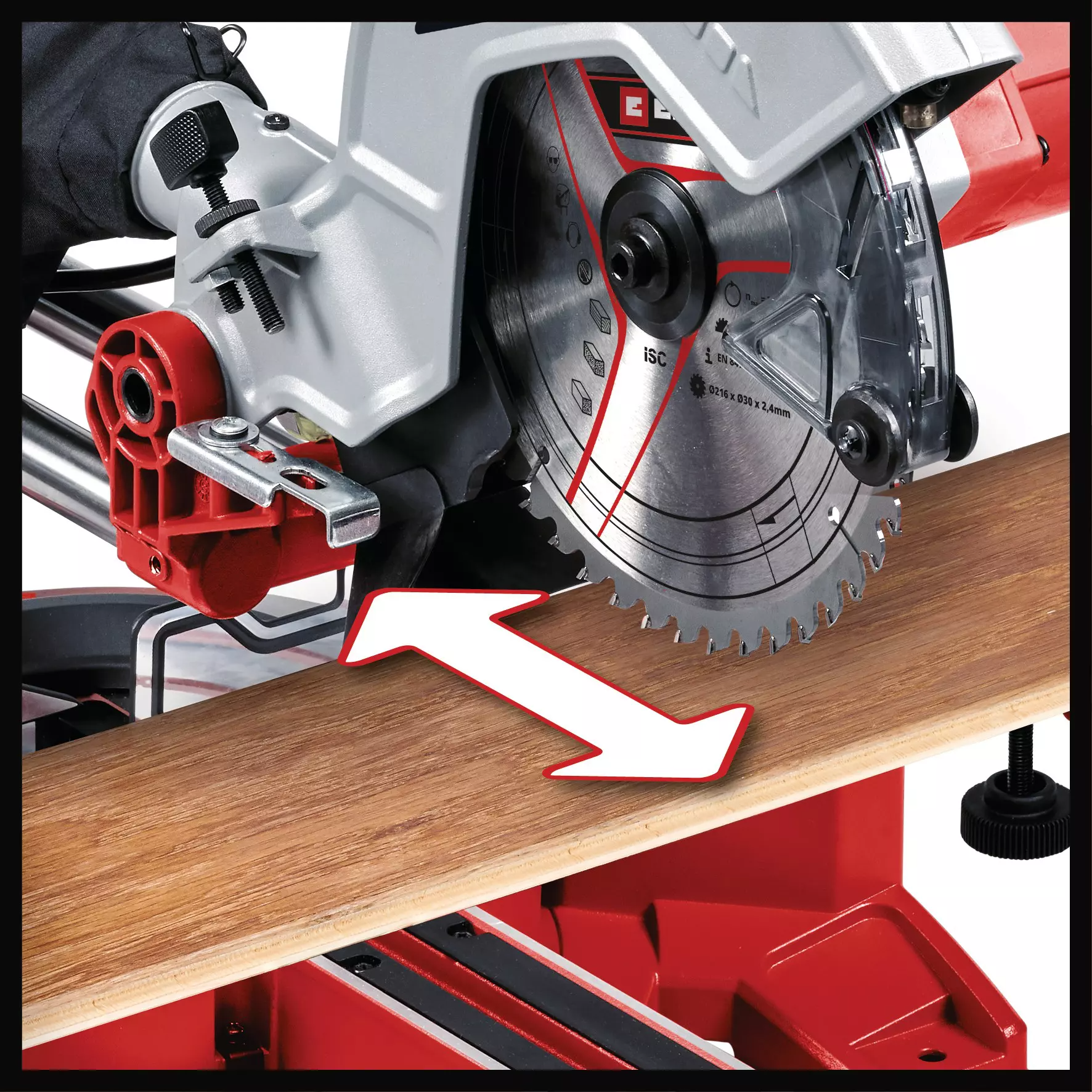

- Smoothly running drag function for wide workpieces

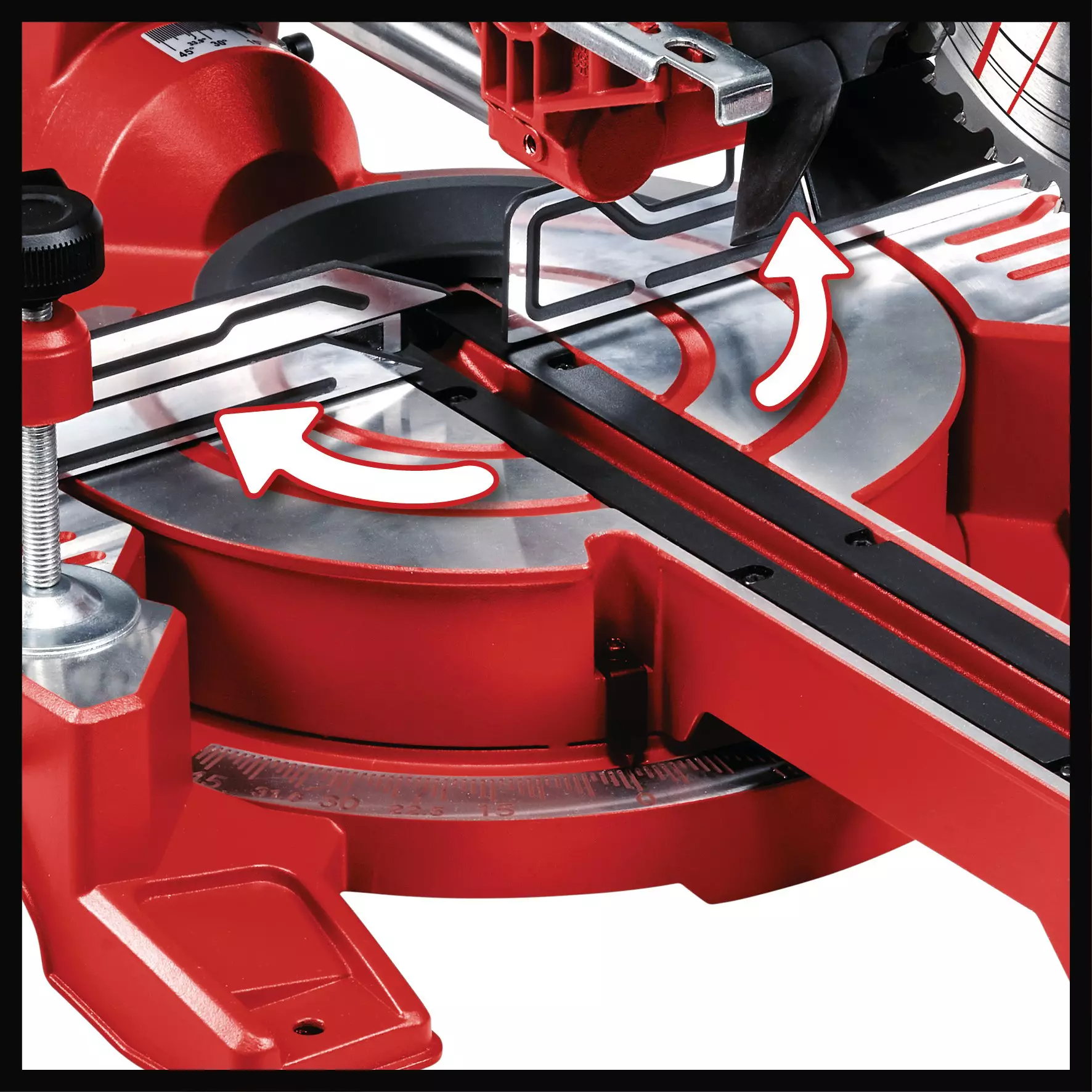

- Turntable with precise quick angle setting for angular cuts
- Turntable with accurate locking positions for all common angles
- Saw head tilts to the left for perfect mitre cuts
- The integrated laser is a welcome help for exactly cutting
- Workpiece supports on both sides for long workpieces
- High-grade carbide-tipped precision saw blade for the best cuts
- Spindle lock for an easy and fast saw blade change
- Clamping device for holding the workpiece securely in position
- Well readable scales for the angles and width

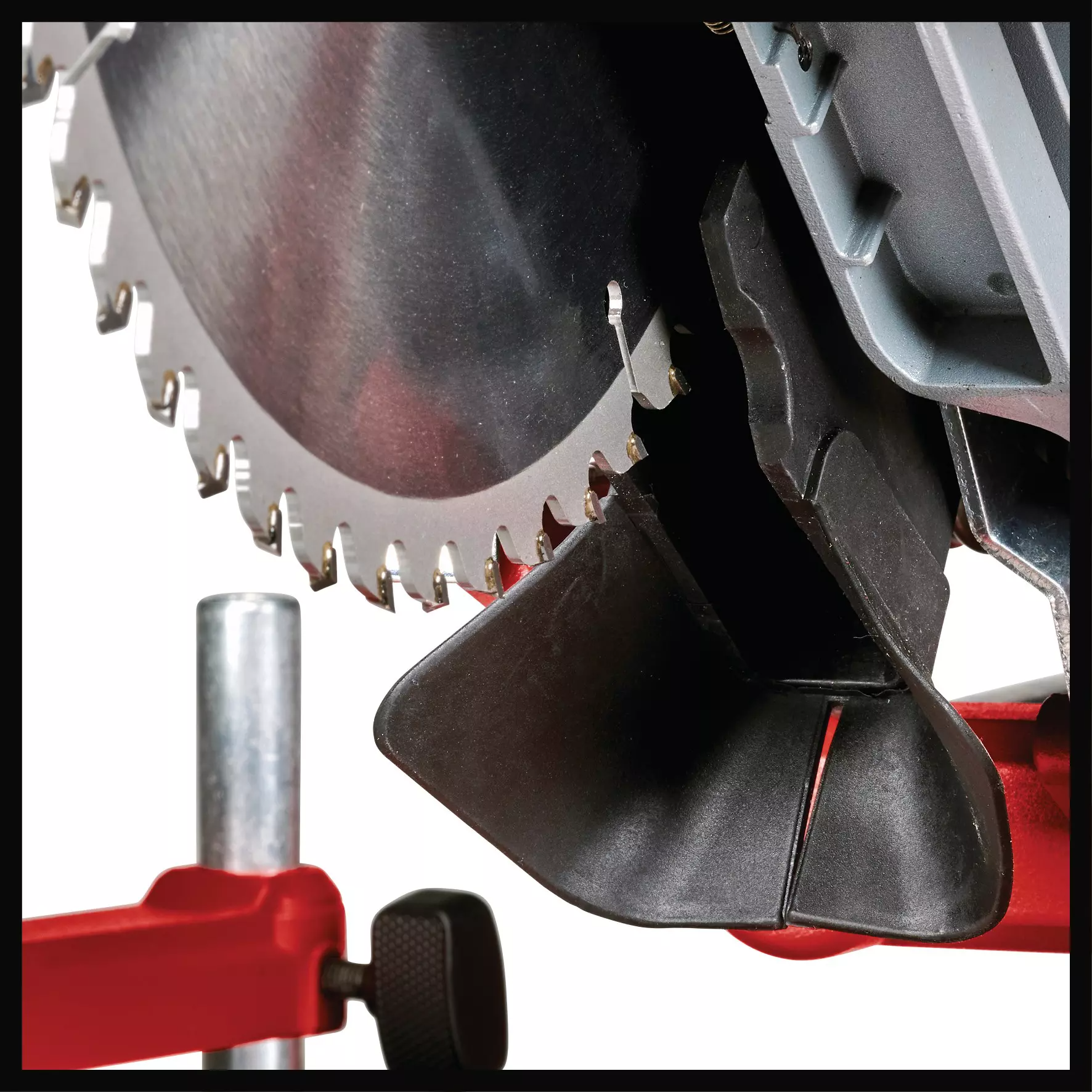

- Dust funnel behind the saw blade for improved saw dust absorption
Technical Specifications:
- % power S6 - 25 %
Cutting depth 45° x 45° - 35 mm
Cutting depth 90° x 90° - 65 mm
Cutting width 45° x 45° - 215 mm
Cutting width 90° x 90° - 305 mm
Idle speed max. - 5200 min^-1
Max. swivel range (saw head) - 45 °
Max. swivel range (saw table) - 47 °
Min. swivel range (saw head) - 0 °
Min. swivel range (saw table) - -47 °
Number of saw blade 1 teeth - 48 pcs
Power S6 - 1600 W
Product weight - 12.05 Kg
Saw blade 1 diameter - 216 mm
Saw blade holder diameter - 30 mm

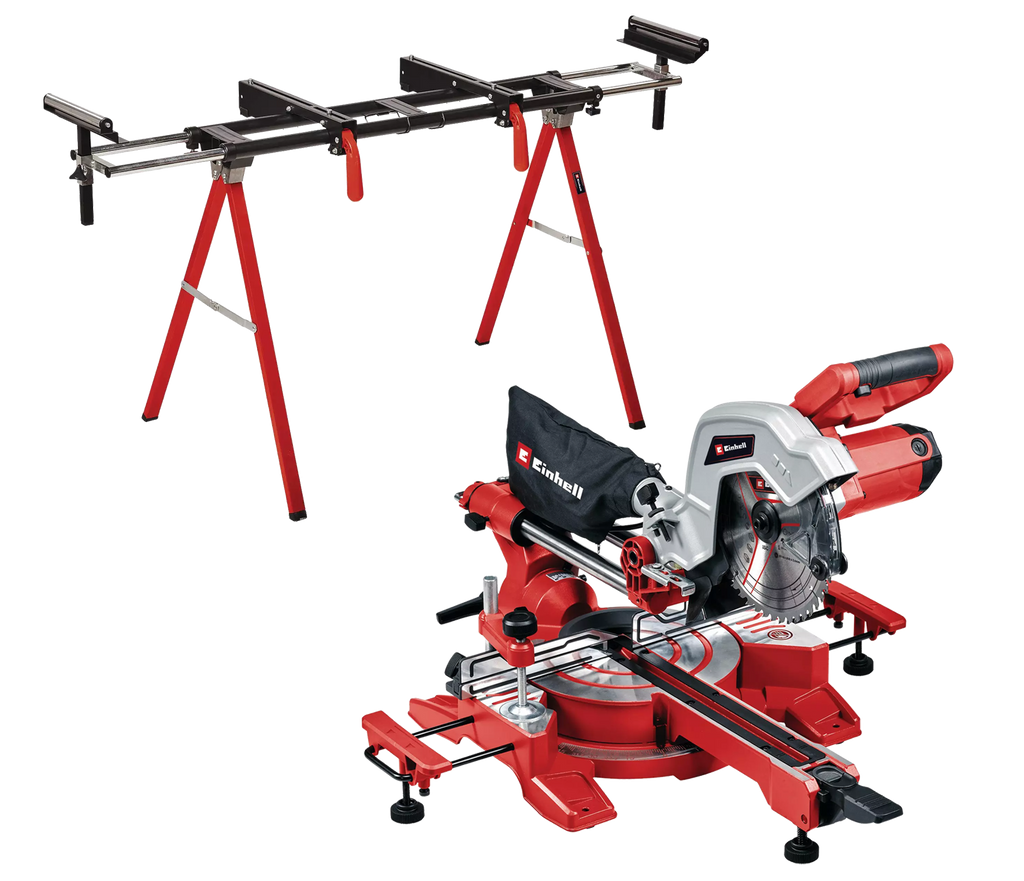

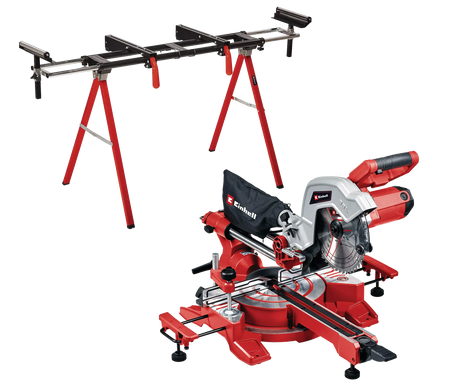

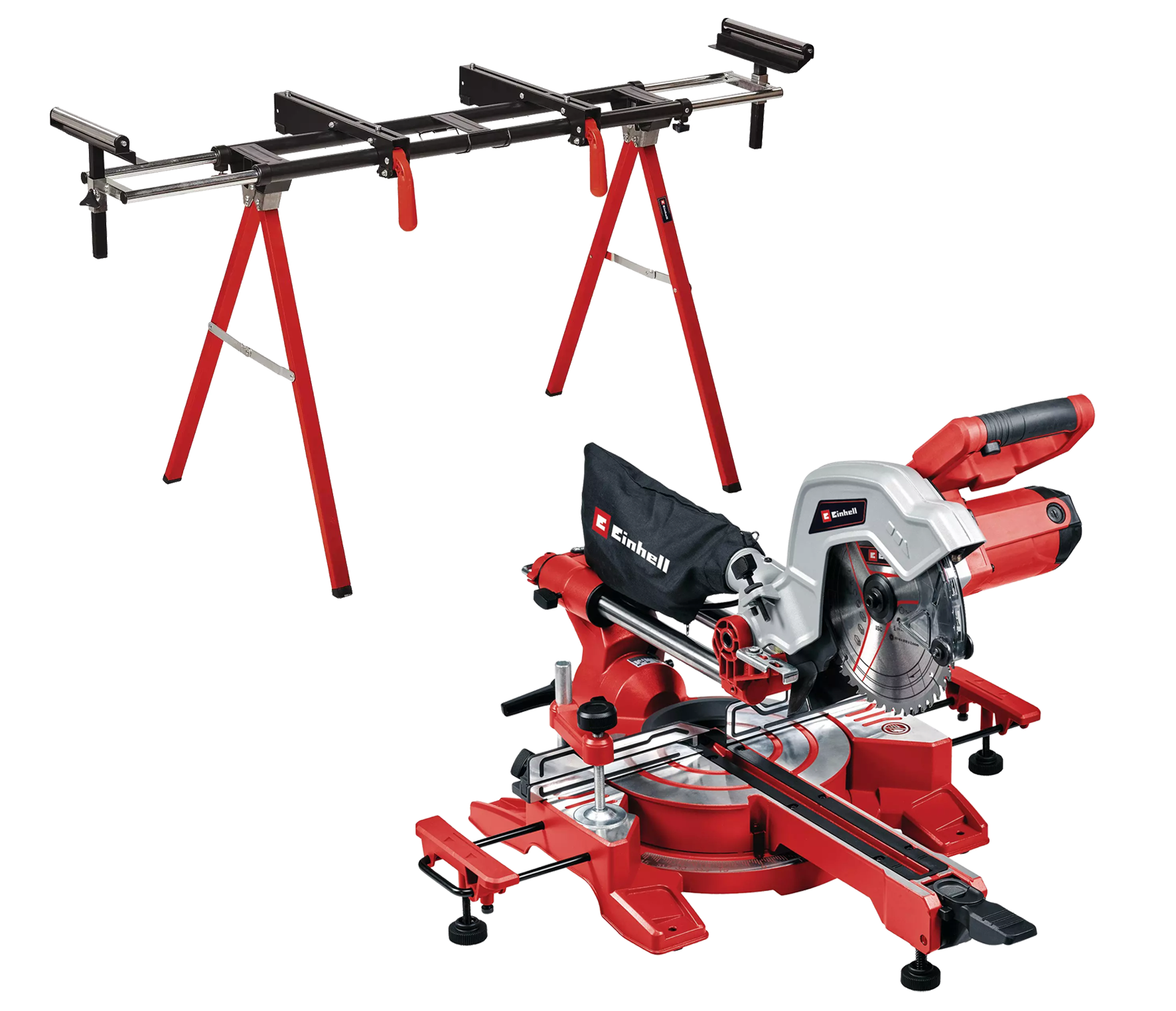

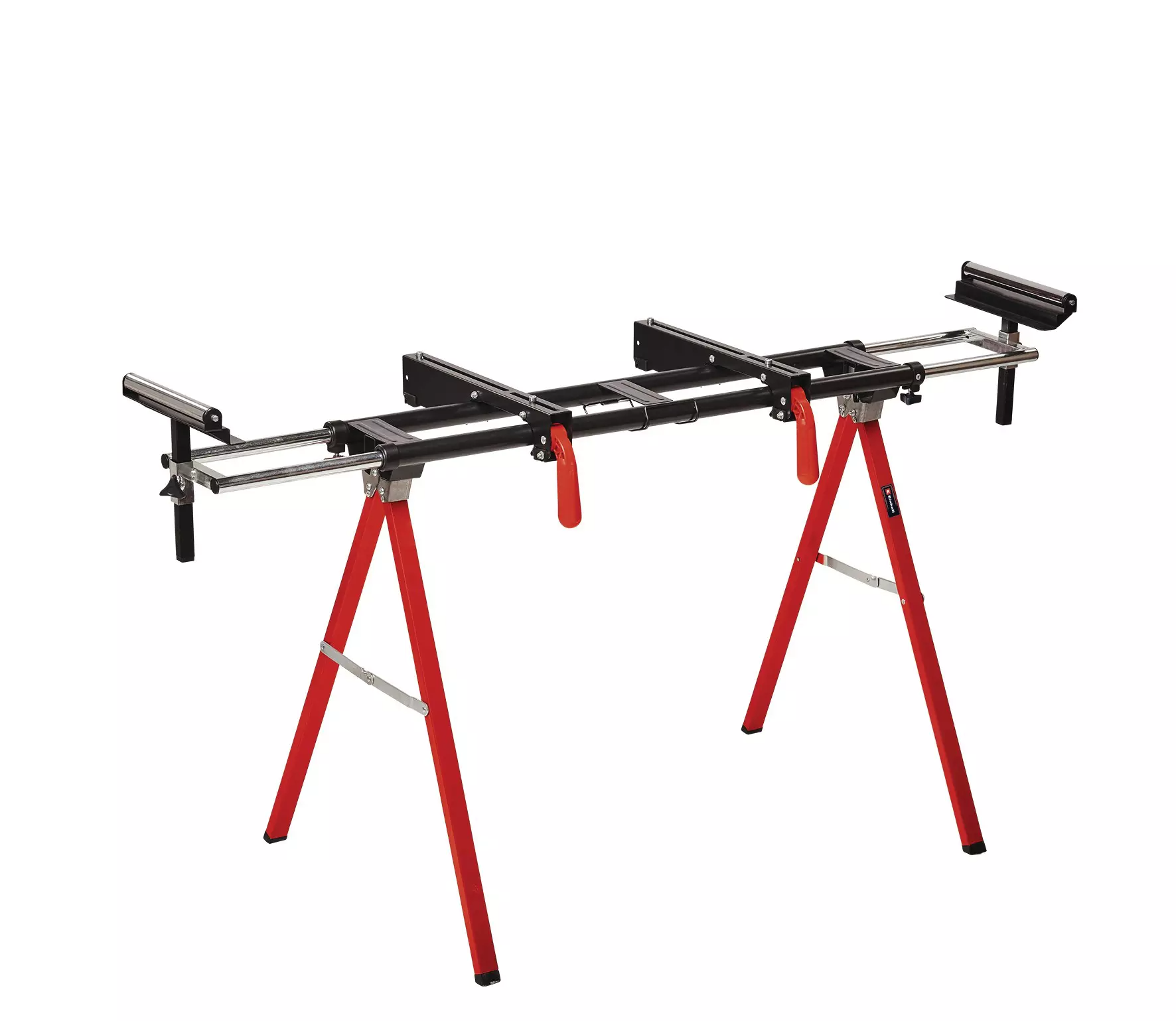

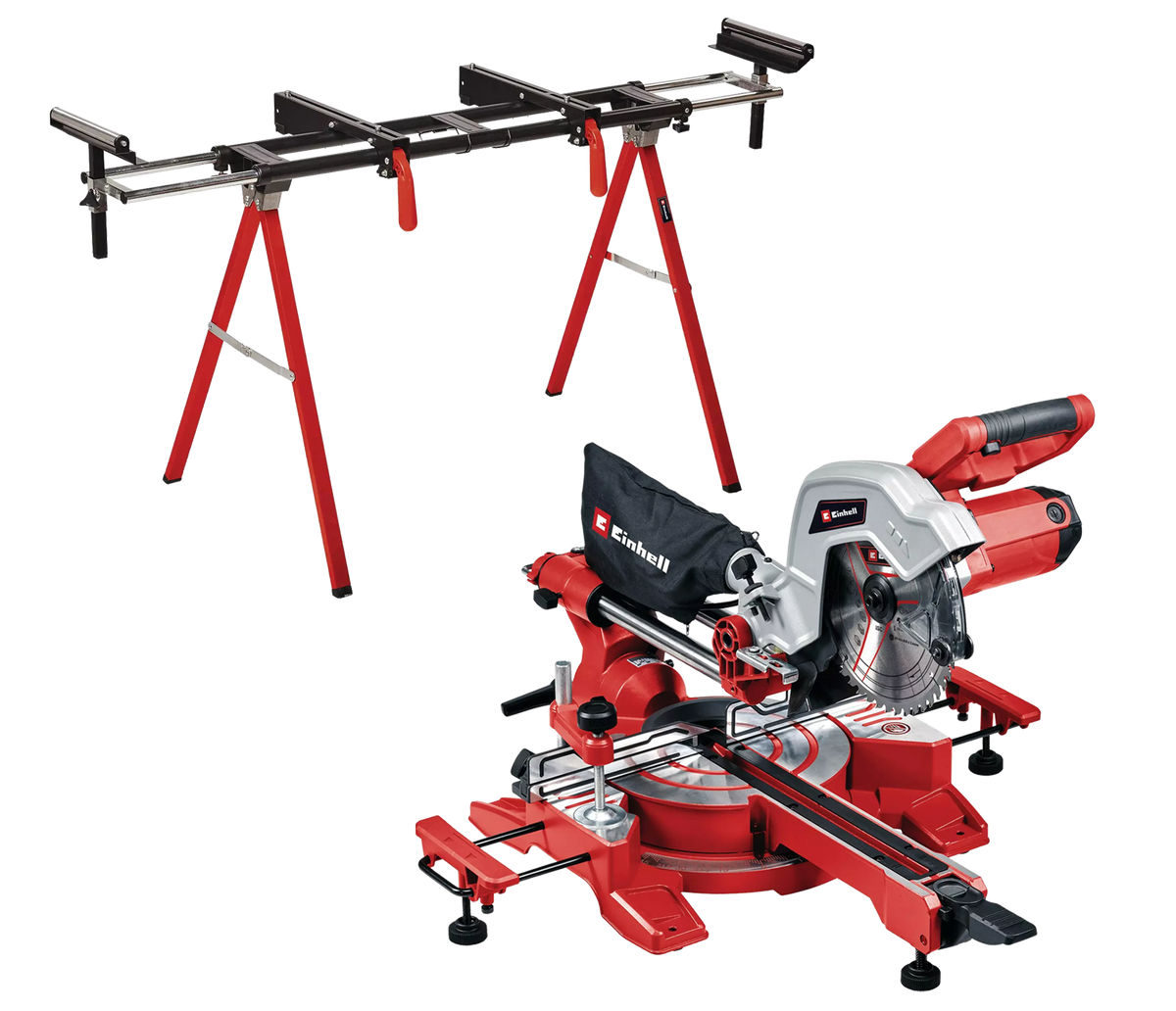

MSS 1608:
- Sturdy, high-quality design
- Mitre saw frame can be folded to save space
- Extendable workpiece supports for larger workpieces
- Workpiece-friendly rollers on the two-sided supports
- Adjustable workpiece supports for ergonomic work
- Material base frame - Steel
- Working height - 755 mm
