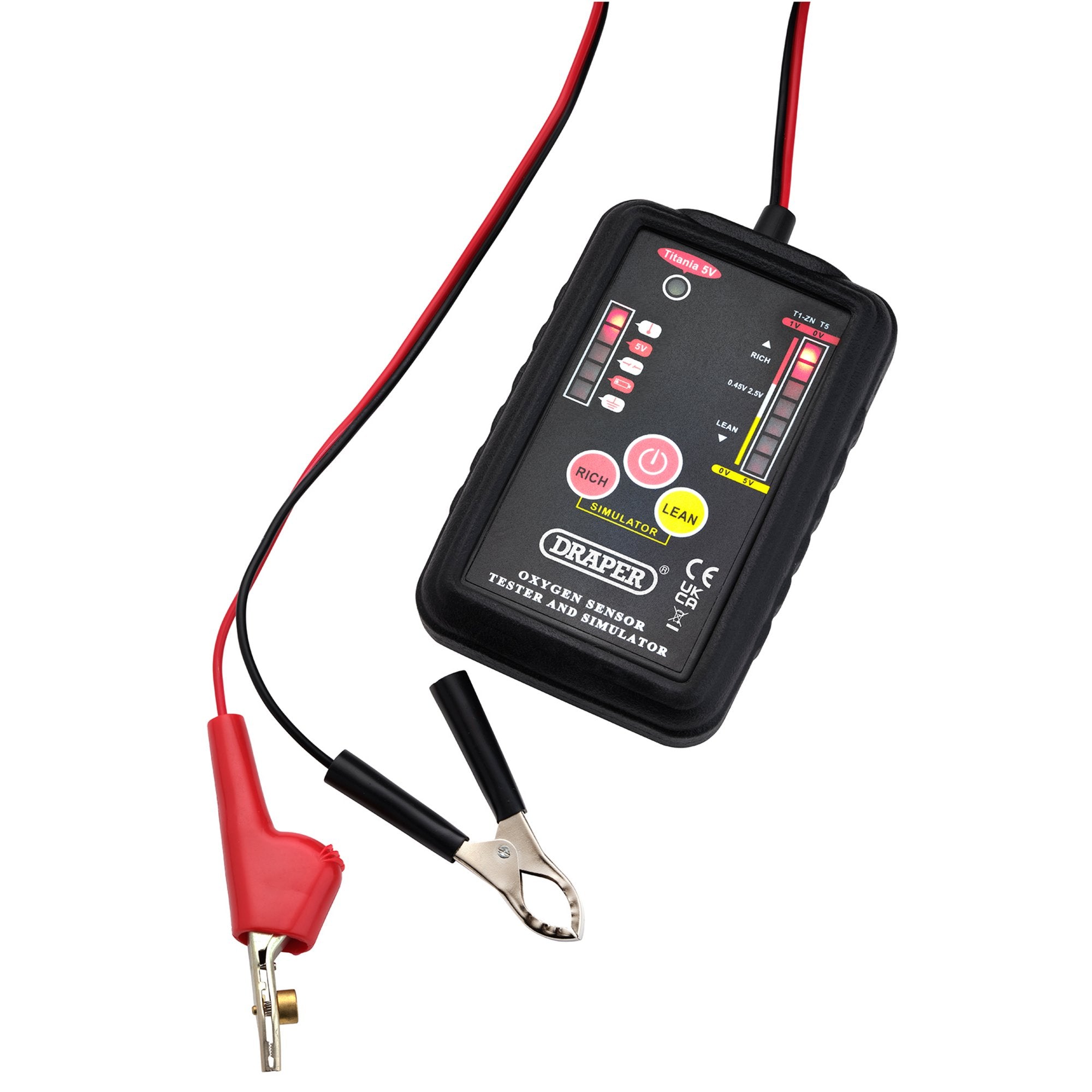

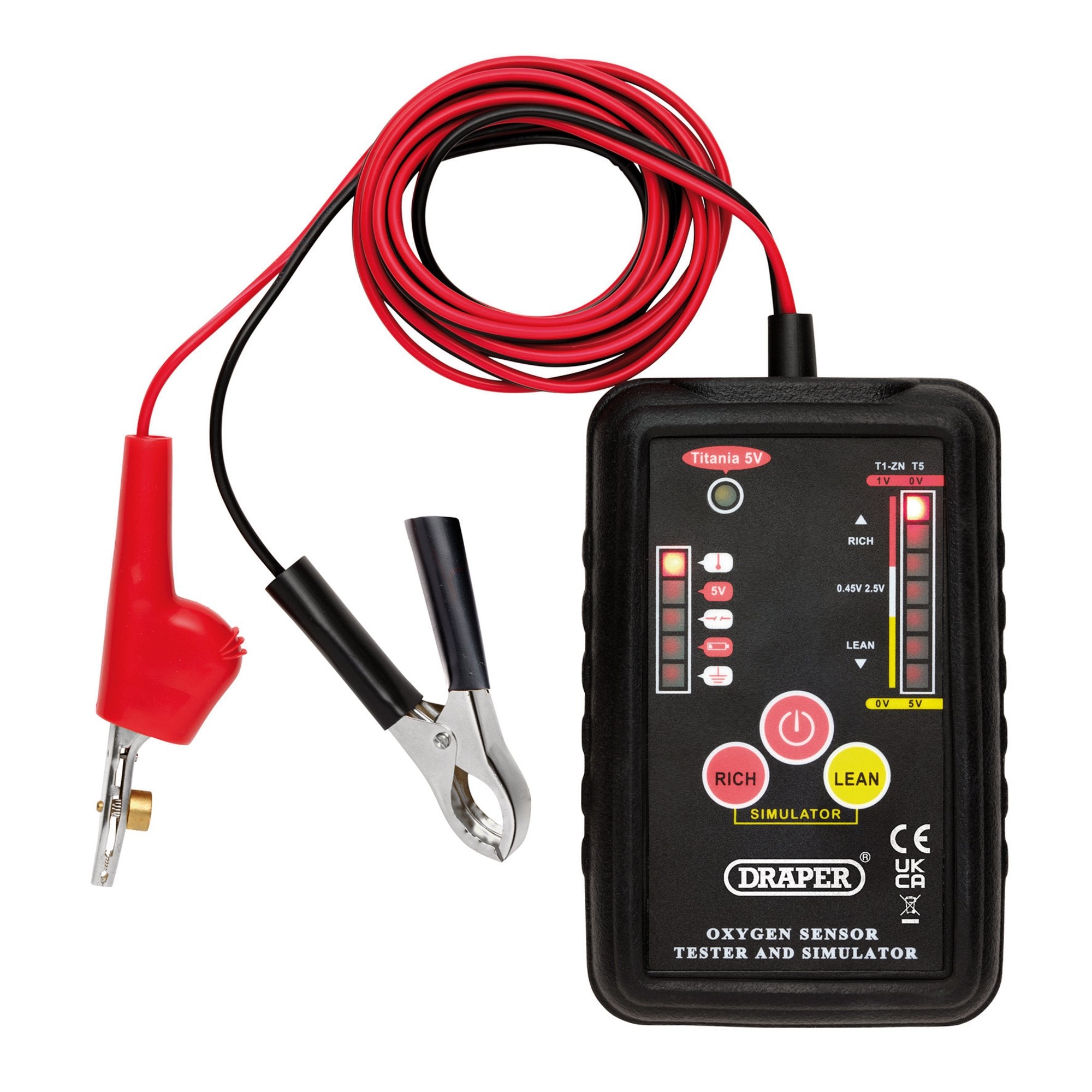

Draper 24708 12V Lambda Tester and Simulator

This 12V oxygen sensor tester and simulator is designed for testing both Zirconia and Titania lambda/oxygen sensors. It is suitable for testing 1-4 wire lambda/oxygen sensors, both heated and unheated. The device can simulate rich and lean mixtures to monitor the ECU's response. An LED display shows the crossover signal from the sensor. A wire piercing clamp is included for the positive lead, allowing for quick connection checks and confirming wire identity. Requires a 9V battery (available separately).

Specifications

Power supply: 12V vehicle battery
Zirconia: 1V
Titania: 1V and 5V
Fuel type: Petrol and diesel
Positive and negative lead length: 2m
Test probe lead length: 450mm
Tester battery: 9V (not supplied)
Dimensions: 140 x 90 x 35mm
Weight: 311g

Box Includes

1 x 12V Lambda Tester and Simulator
