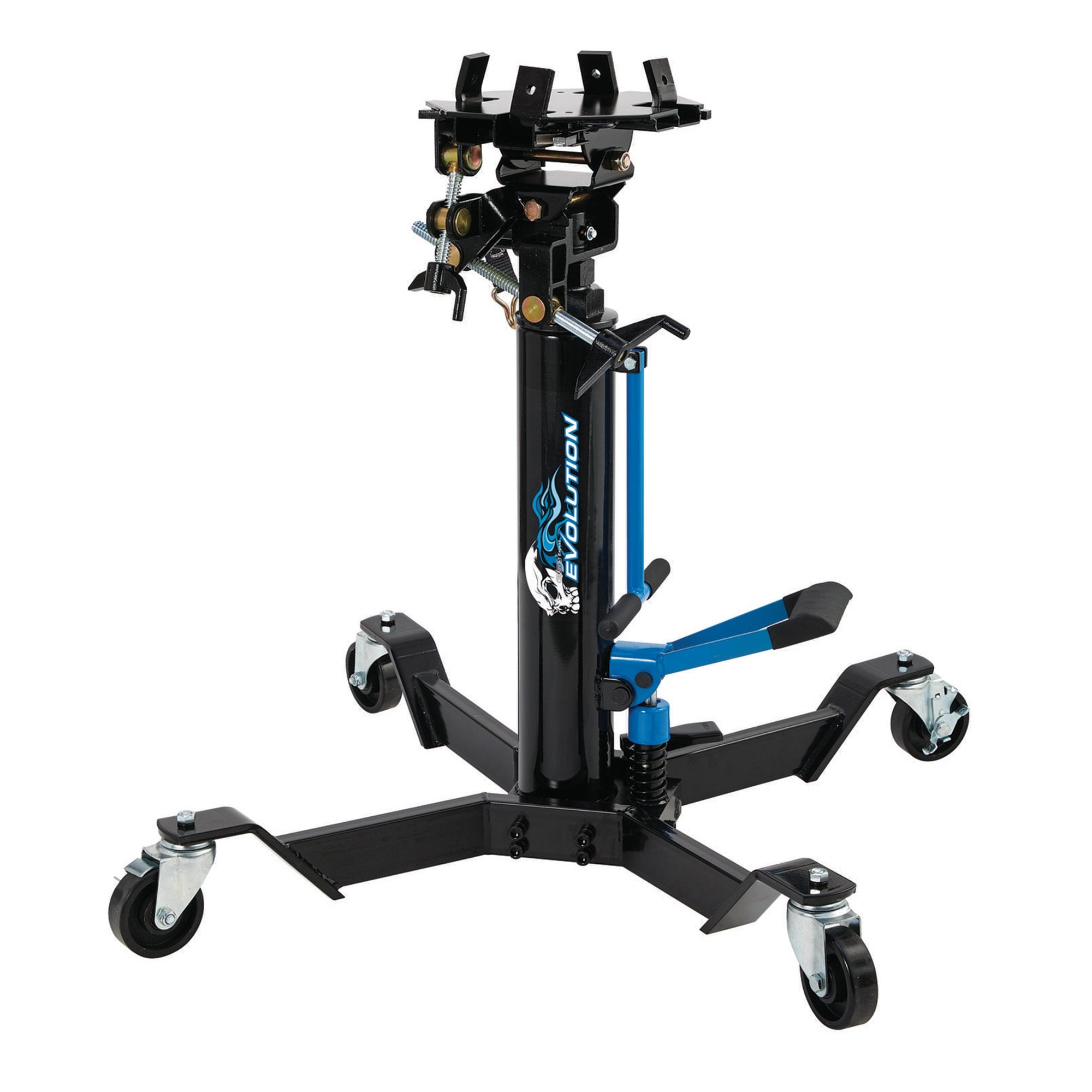

This vertical transmission jack is part of the stylish and distinctive Evolution range. Telescopic twin stage ram with a low entry height for reduced clearances. Operated by foot pedal for easy hands-free operation. Fully adjustable saddle able to accept a wide range of components. Has forward, backward and side-to-side tilting action to aid the user further. Ratchet saddle claws enhance the operating speed when clamping the load. There are two non-marking ratchet straps for added support. Fitted with four extra-large 100mm nylon castors that prevent damage to floors and provide quiet and smooth operation. The side mounted T-handle further aids positioning and manoeuvrability. Fitted with overload safety valve. Fully tested and certified for safe, reliable operation. Capacity 500kg.
Specifications
- 1 x Draper Expert Evolution Vertical Transmission Jack, 500kg
- Capacity: 500kg
Minimum height: 902mm
Maximum height stage 1: 1,387mm
Maximum height stage 2: 1,891mm
Saddle type: Adjustable
Base dimensions: 290 x 290mm
Castor diameter: 100mm
Weight: 66kg
