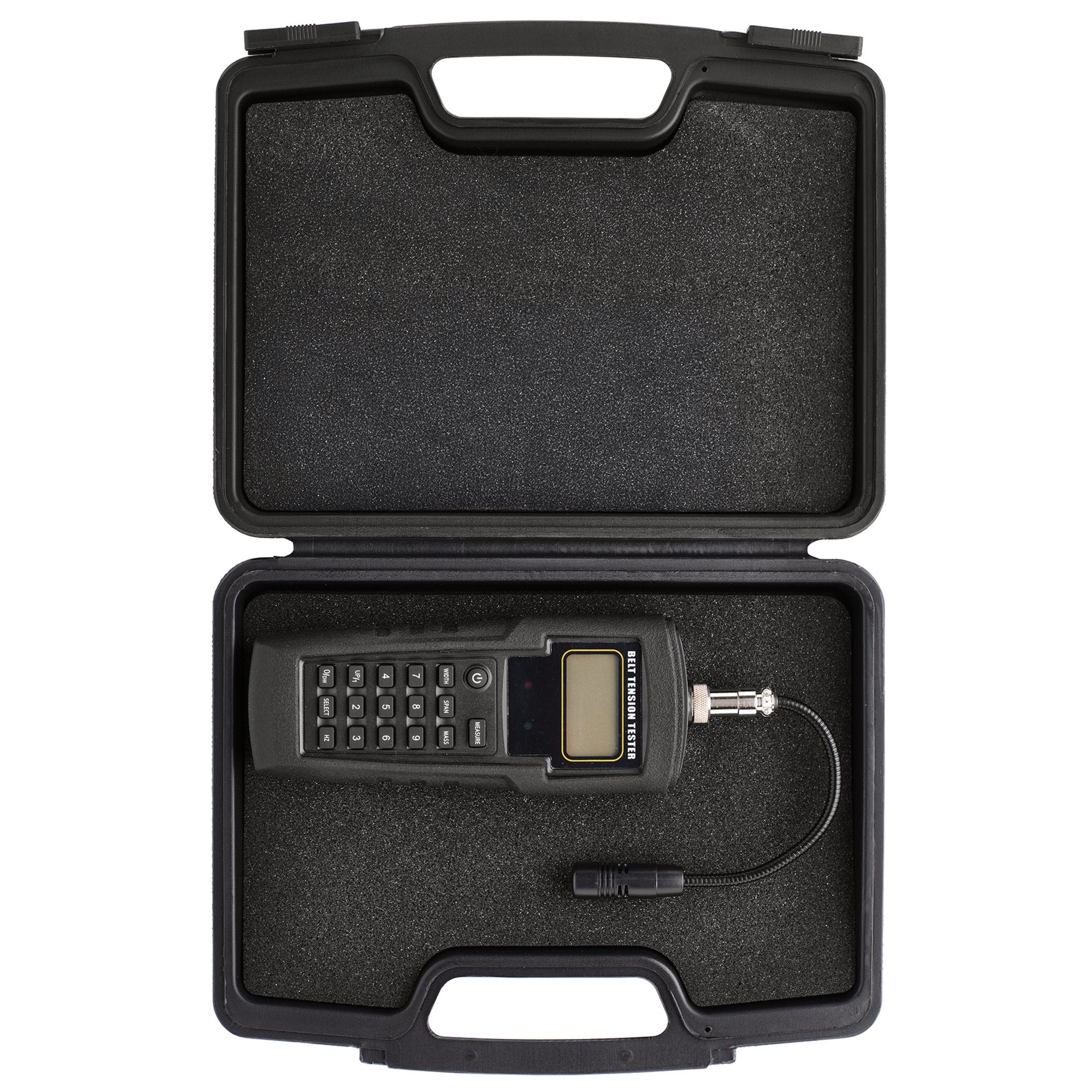

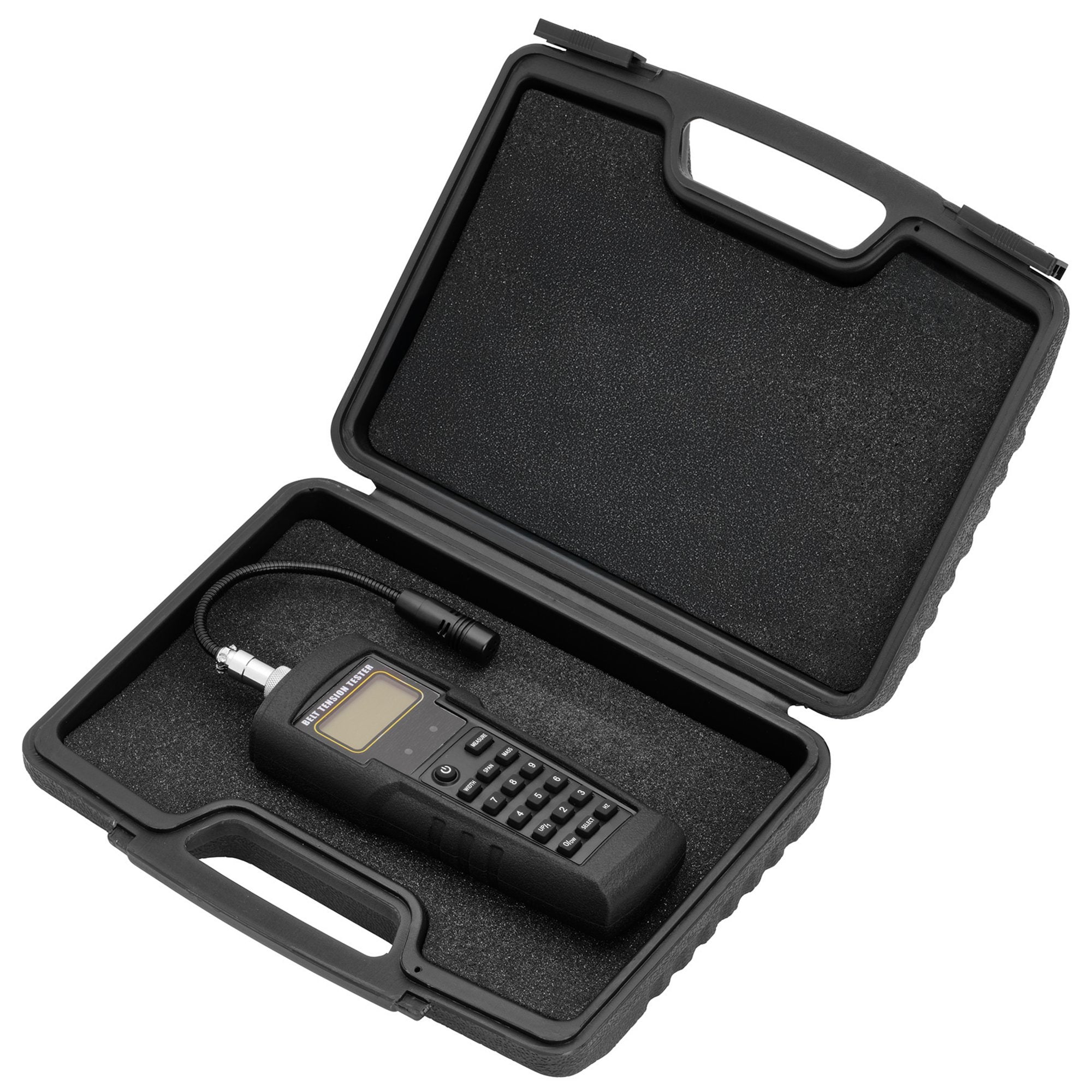

Draper 24709 Sonic Belt Tension Tester

This sonic belt tension tester is designed to check the tension on all types of drive belts including camshaft and auxiliary. The meter measures the vibration by using the microphone to convert the tension level when installing a new belt or making adjustments. The tester comes with a flexible probe, ideal for restricted engine bays. There are 20 internal memory data storage slots and the device automatically powers off after five minutes of inactivity to help conserve the battery. Requires 2 x AAA batteries (available separately).

Specifications

Frequency range: 10-600Hz
Power supply: 2 x AAA (not supplied)
Probe length: 115mm
Tester probe length: 42mm
Dimensions: 165 x 65 x 30mm
Weight: 242g

Box Includes

1 x Sonic Belt Tension Tester
