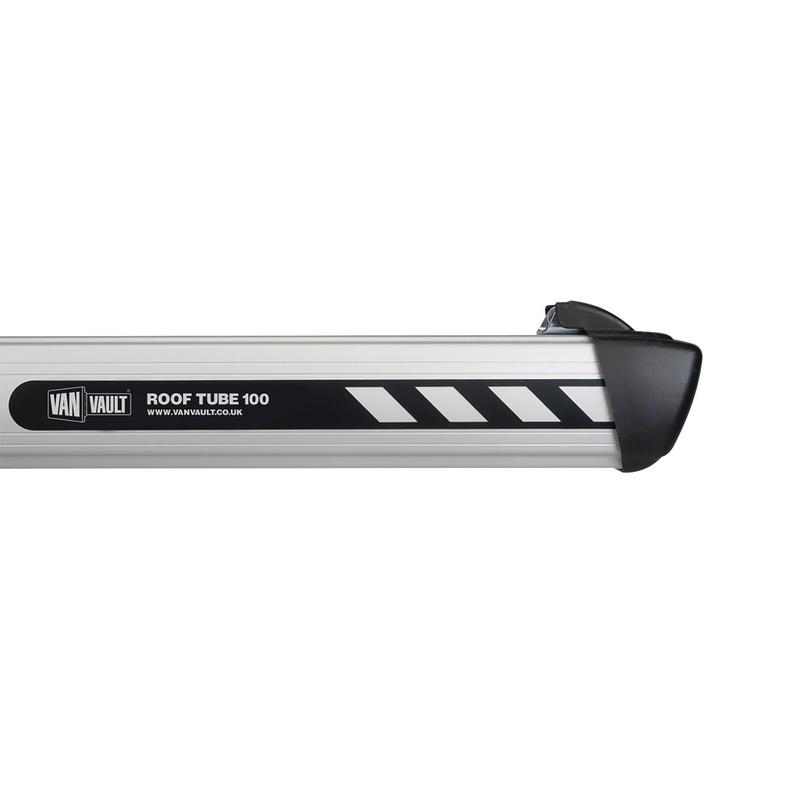

Draper 36109 Van Vault S10520 Roof Tube 100, 3m

Makes light work of loading, transporting and storing copper, waste and other pipes. Made from 1.5mm thick aluminium. Holds 100m of copper (34 x 3m lengths / 15mm width). Dual-end loading. Injection moulded end cap with steel insert. Includes 2 x 40mm solid brass and stainless steel disc locks with 2 keys each. External size (L x D x H): 3159 x 138 x 115mm. Internal size (L x D x H): 3030 x 126 x 90mm. Opening dimensions (L x D x H): 3030 x 126 x 90mm. Weight 8.25kg.

Features:

• 1 x Roof Tube Body
  1 x End Cap
  3 x Small Fixing Bracket
  3 x Large Fixing Bracket
  6 x M6 Nyloc Nut
  6 x M6 Washer
  6 x M6 Coach Bolt x 25mm
  6 x M6 Coach Bolt x 55mm
  6 x Clamping Washer
  2 x Disc Lock with Keys
• Max. Load Length: 34 x 3m lengths (15mm wide)
  Max. Safe Working Load: 40kg
  Internal Dimensions (L x D x H): 3030 x 126 x 90mm
  External Dimensions (L x D x H): 3159 x 150 x 150mm
  Weight (Tube and Fixings): 8.55kg
