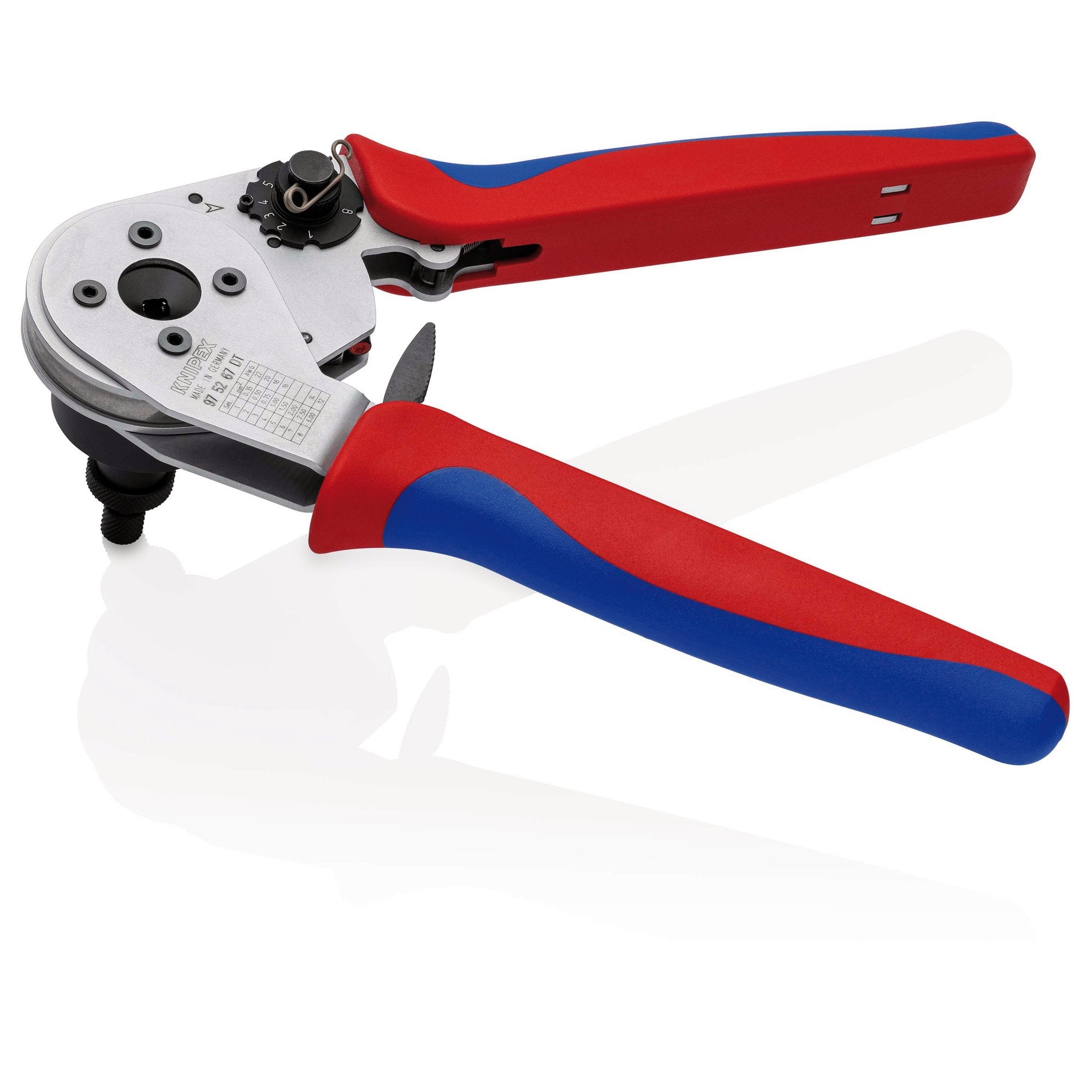

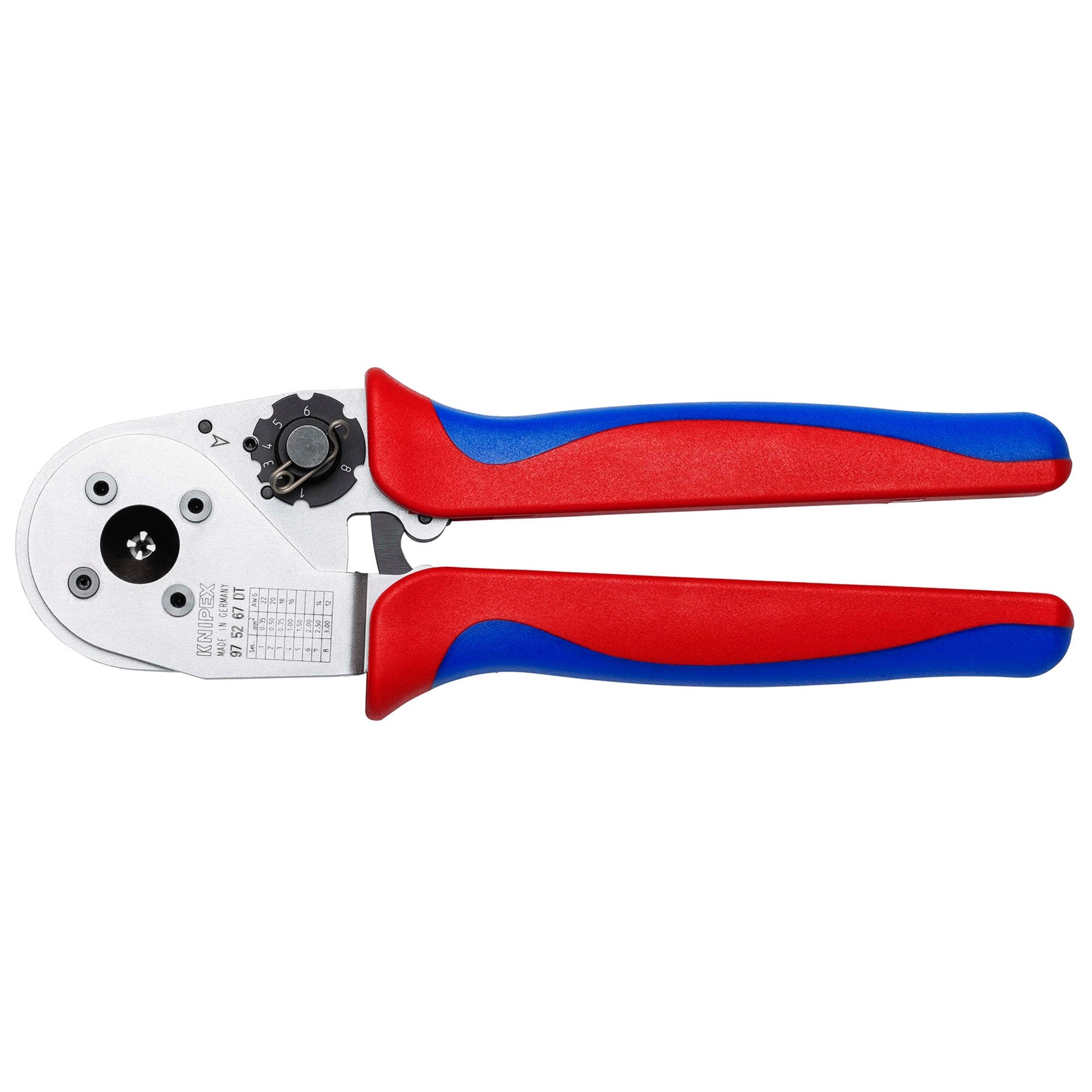

97 52 67 DT Four-Mandrel Crimping Pliers for DT contacts Crimps all turned male and female contacts of the DT, DTM and DTP series. Comprehensive capacity: from 0.35 mm_ to 3.0 mm_ (AWG 22-12). Complete: with precision-ground Go/NoGo gauges to check calibration. Synchronous feed of the four mandrels achieves optimum crimping results with eight indentations (4/8-Indent). Universal positioning aid for flexible adjustment to all contact lengths. Repetitive, high crimping quality due to ratchet mechanism (unlockable). Position settings for the crimp depth can be clearly read on the pliers. Ergonomic design for low-fatigue work: optimised opening width, comfortable multicomponent grips, low manual force required due to lever transmission. Go/NoGo gauges allow quick quality control at any time: Go gauge must fit, NoGo gauge must not fit.
Features
- Crimps all turned male and female contacts of the DT, DTM and DTP series
- Comprehensive capacity: from 0.35 mm_ to 3.0 mm_ (AWG 22-12)
- Ergonomic design for low-fatigue work: optimised opening width, comfortable multicomponent grips, low manual force required due to lever transmission
- Go/NoGo gauges allow quick quality control at any time: Go gauge must fit, NoGo gauge must not fit
- Position settings for the crimp depth can be clearly read on the pliers
- Repetitive, high crimping quality due to ratchet mechanism (unlockable)
- Synchronous feed of the four mandrels achieves optimum crimping results with eight indentations (4/8-Indent)
- Universal positioning aid for flexible adjustment to all contact lengths
What's Included
1 x KNIPEX 97 52 67 DT Four-Mandrel Crimping Pliers for DT contacts, 230 mm
