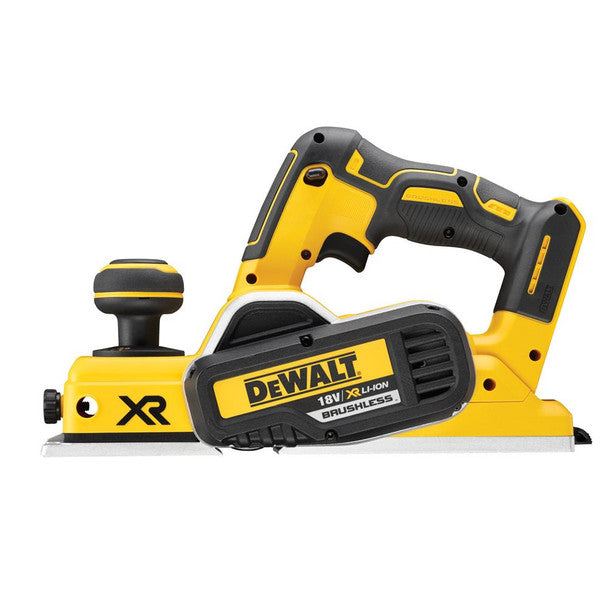

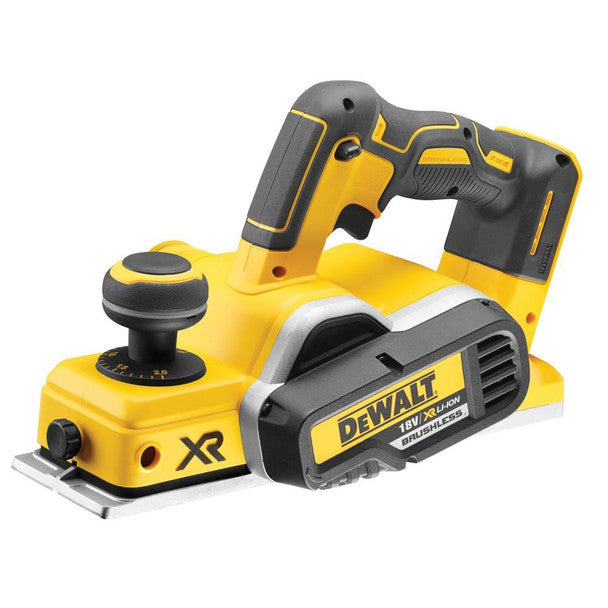

The DCP580 is an 18V cordless planer that can cut up to a maximum depth of 2mm in one pass with a rebate cut depth of 9mm. It features a fine adjustment dial with 0.1mm increments to ensure accurate cuts and is fully Air Lock compatible. Bare unit, batteries and charger sold separately.
- 18V XR BRUSHLESS MOTOR: Enhanced efficiency and durability.
- LIGHTWEIGHT, COMPACT, ERGONOMIC DESIGN: For comfortable use in all orientations for comfortable use in all orientations
- TWIN BLADE DRUM: Fitted with TCT blades for a high quality finish
- ON-BOARD BLADE STORAGE: Enable fast blade change and minimise downtime
- LARGE FRONT AND REAR SHOE: Gives improved stability
- 2.0 mm DEPTH OF CUT: Allows large material removal.
- 0.1 mm INCREMENT DEPTH ADJUSTMENT: For precise settings.
- OVERMOULDED TOUCH POINTS: Giving greater comfort and control
- DIRECT COMPATIBILITY WITH AIRLOCK SYSTEM: Ensuring easy and secure connection with DEWALT dust extractors for high dust-extraction efficiency and increased user health protection
- PART OF THE CORDLESS 18V XR SYSTEM: Fully Compatible With 250+ Solutions.
- 3 YEAR GUARANTEE: Tool covered by extended warranty, subject to registration.
Includes
- (1) 18V XR Brushless Planer
- (1) Tungsten Carbide Tipped Reversible Blades
- (1) Rebate Fence
- (1) Torx Key
- (1) Blade Alignment Plate
Technical Specification:
Max. Planing Depth [Metric] - 2 mm
Power Source - Cordless
Voltage - 18 V
No Load Speed (RPM) - 15000
Drum Diameter [Metric] - 48 mm
Shoe Length [Metric] - 295 mm
Rebate Depth [Metric] - 9 mm
Vibration Emission Value - <2.5 m/s²
Product Height [Metric] - 185 mm
Product Weight [Metric] - 2.5 Kg
Vibration Uncertainty - 1.5 m/s²
Product Length [Metric] - 370 mm
Uncertainty for Given Sound Level - 3 dB(A)
