There is a low risk of breakage, especially for drill bits below 6 mm in diameter as the bit is manufactured to have a highly elastic body. Its black-oxide coated flute provides fast chip removal. The HSS Twist Drill Bit PointTeQ is manufactured to DIN 338. The drill bit is Type N (flute angle) with a tip of 135 degrees.
It has a cylindrical shank system (shank equal to drill bit diameter) and is intended for use in drill stands and drill drivers.
- Self-centering tip prevents wandering, making quick and easy drilling starts possible
- Increased drilling rate generates less heat and wear
- PointTeQ tip design remains sharp and ensures continuous durability
- Low risk of breakage due to highly elastic body, black-oxide coated flute; DIN 338, Type N, 135-degree tip

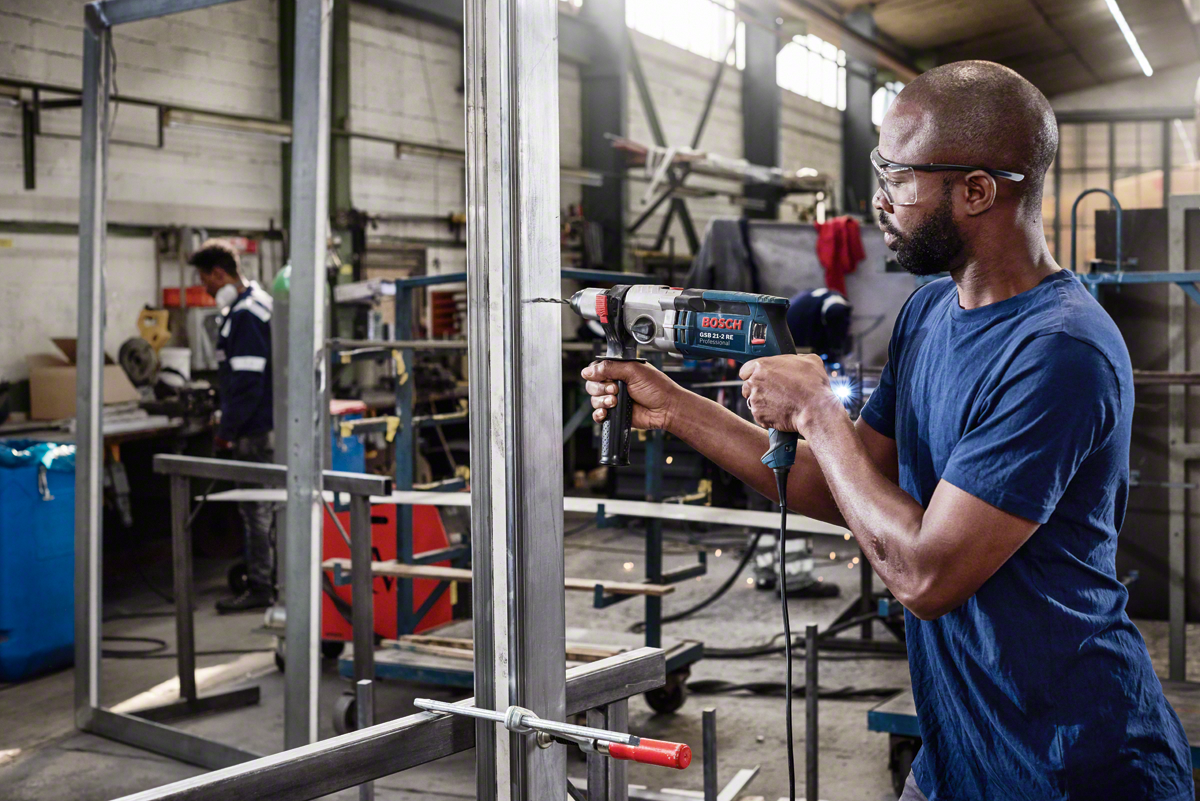

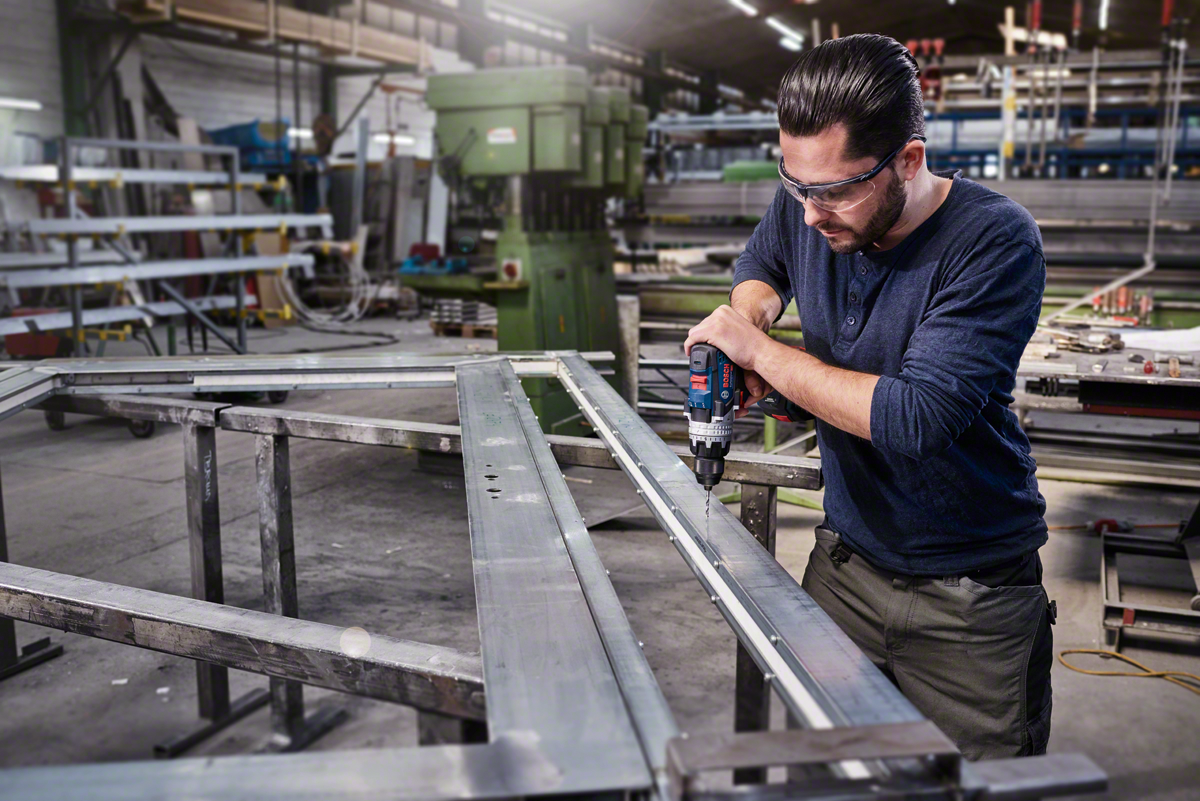

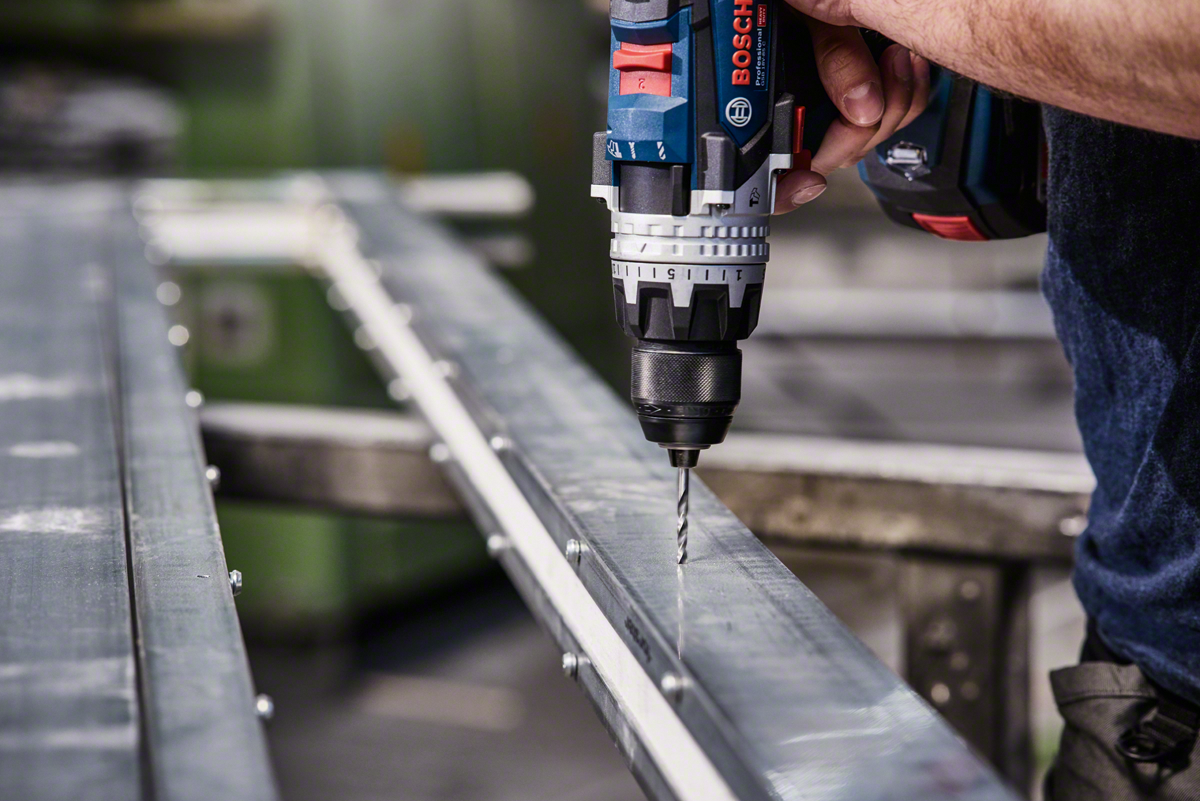

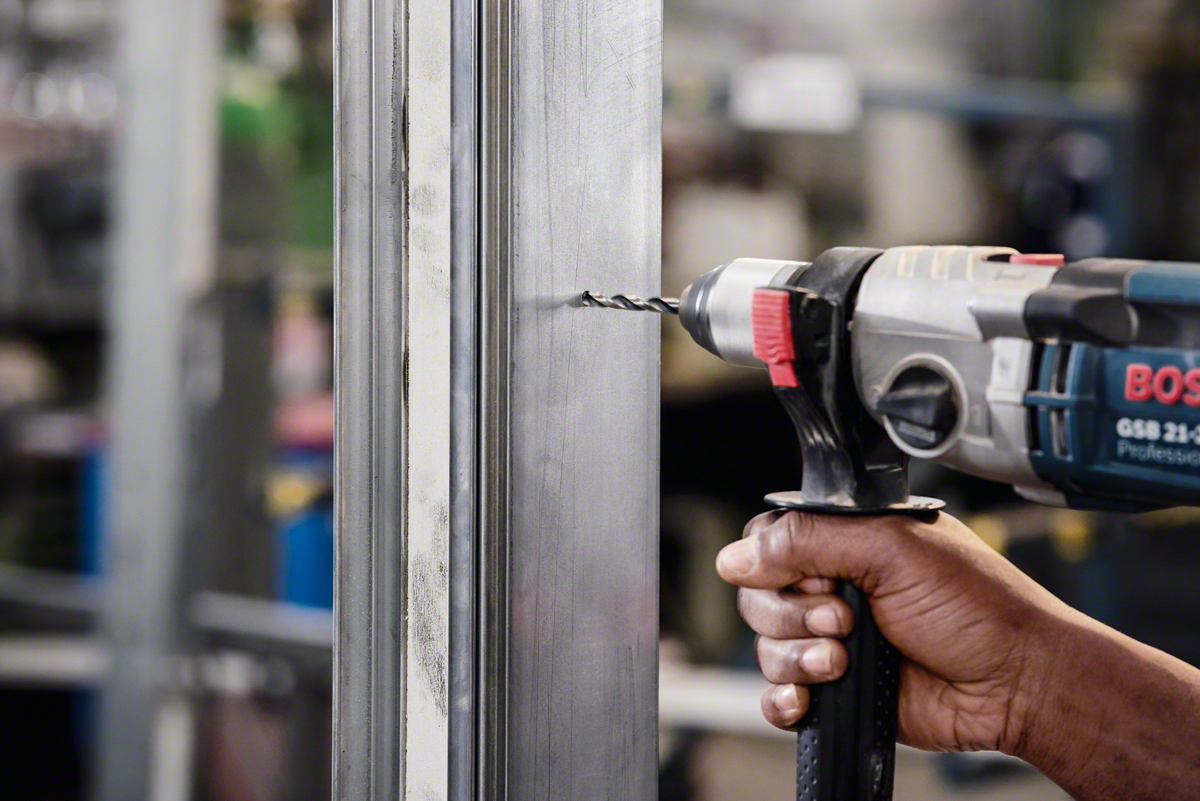

- HSS Twist Drill Bit PointTeQ enables fast drilling in metal due to PointTeQ tip design
Technical Specification:

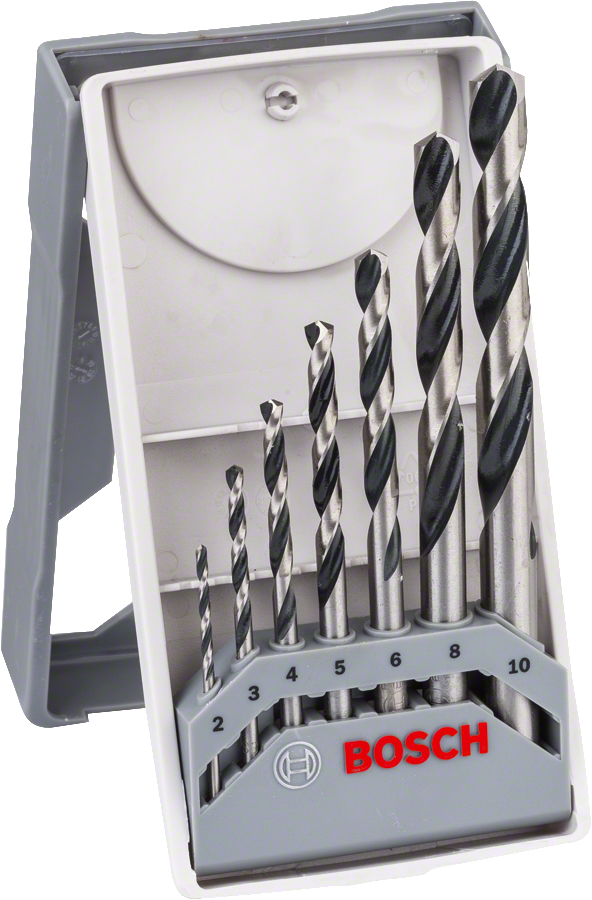

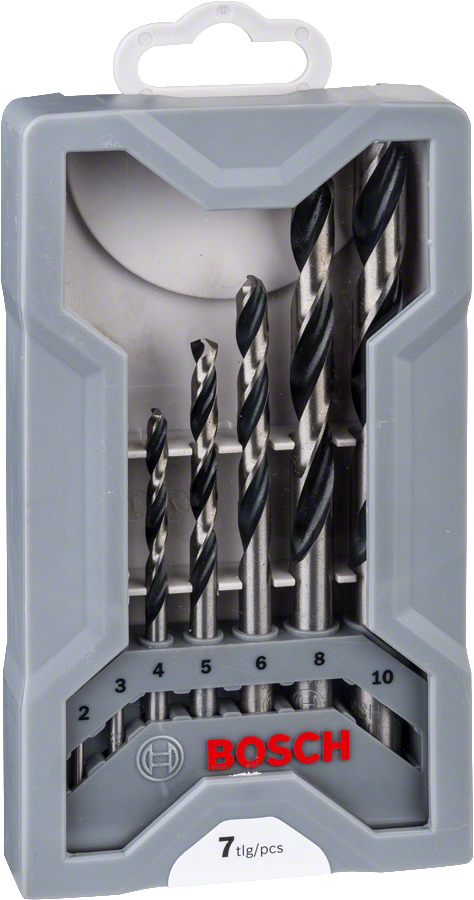

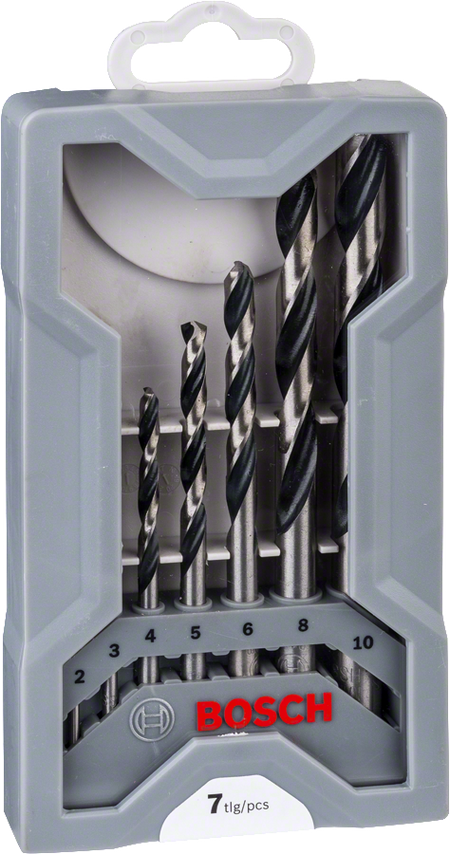

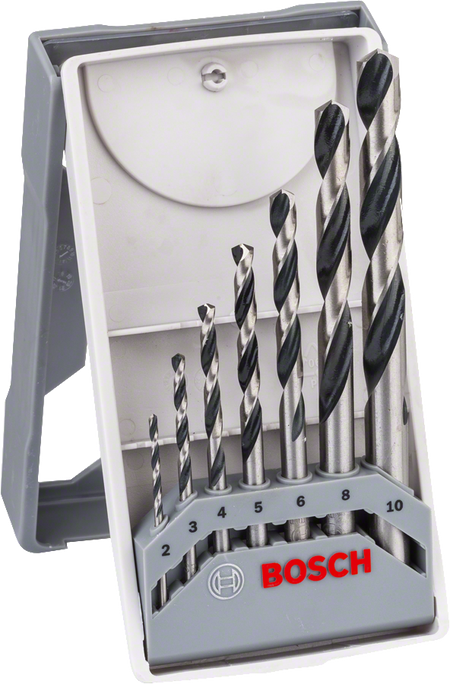

Diameter mm - 2.0 / 3.0 / 4.0 / 5.0 / 6.0 / 8.0 / 10.0
Working length mm - 24 / 33 / 43 / 52 / 57 / 75 / 87
Total length mm - 49 / 61 / 75 / 86 / 93 / 117 / 133
