There is a low risk of breakage, especially for drill bits below 6 mm in diameter as the bit is manufactured to have a highly elastic body. Its black-oxide coated flute provides fast chip removal. The HSS Twist Drill Bit PointTeQ is manufactured to DIN 338. The drill bit is Type N (flute angle) with a tip of 135 degrees.
It has a cylindrical shank system and is intended for use in drill stands and drill drivers.
HSS Twist Drill Bit PointTeQ enables fast drilling in metal due to PointTeQ tip design, Cylindrical shank compatible with three-jaw drill chucks
- Self-centering tip prevents wandering, making quick and easy drilling starts possible
- Increased drilling rate generates less heat and wear

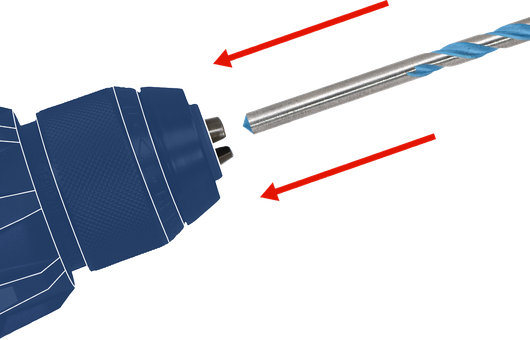

- Cylindrical shank compatible with three-jaw drill chucks
- PointTeQ tip design remains sharp and ensures continuous durability
- Low risk of breakage due to highly elastic body, black-oxide coated flute; DIN 338, Type N, 135-degree tip
Technical Specification:

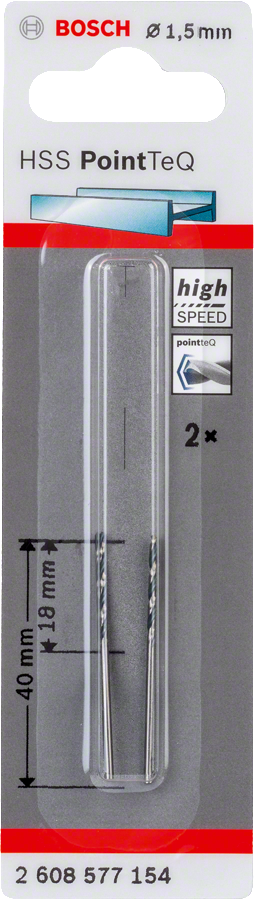

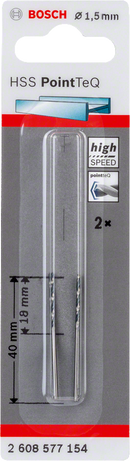

Diameter (D) mm - 1.50
Working length mm - 18
Total length mm - 40
Shank diameter (d) mm - 1.5
