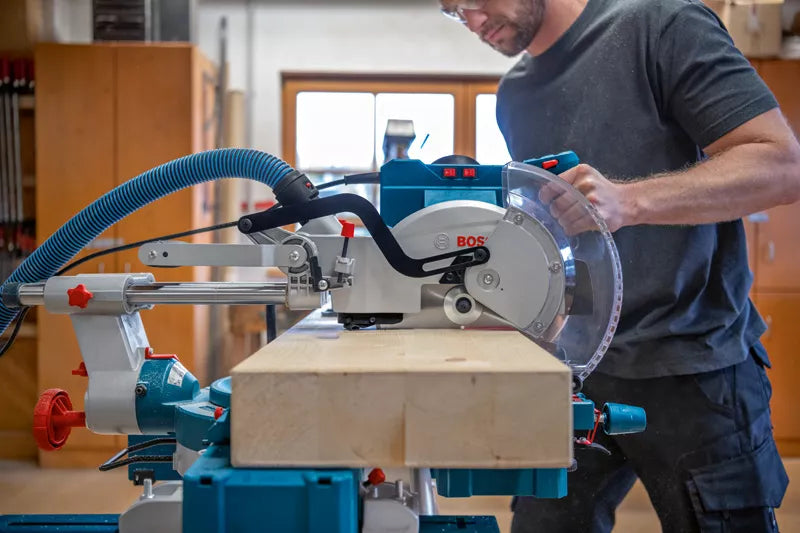

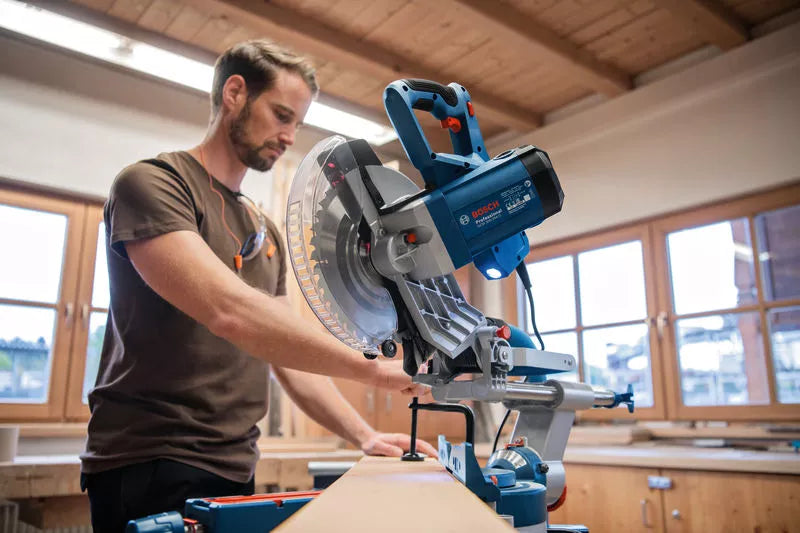

With its powerful motor, the GCM 305-254 D Professional offers enough cutting performance even for ambitious cuts. The mobile miter saw uses detachable workpiece supports and long table extensions to make cutting long materials easy and simple. Higher comfort and flexibility in demanding cuts are ensured by its dual bevel settings with ergonomic bevel lock wheel.

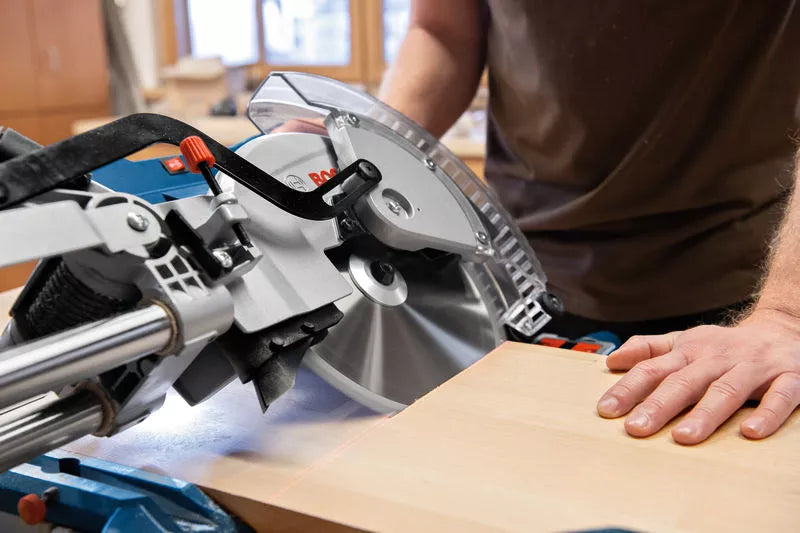

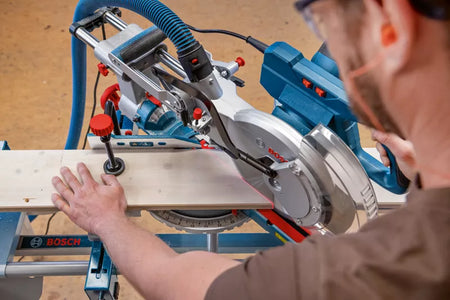

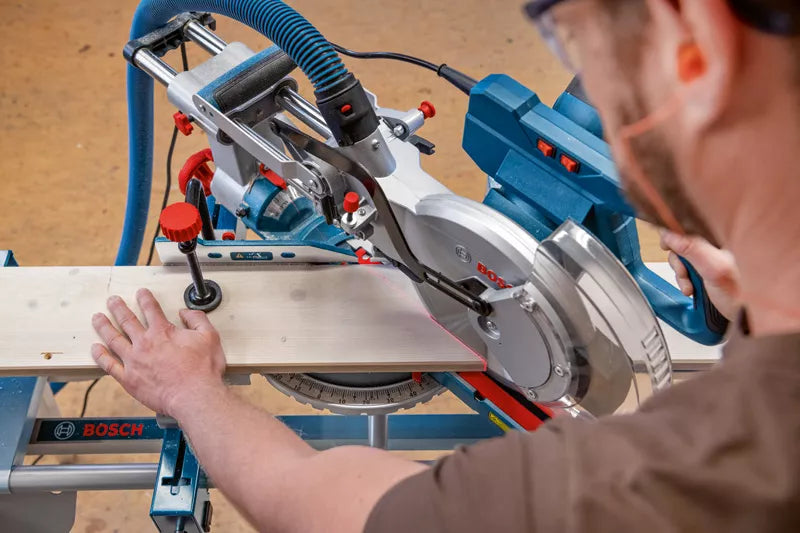

Cross cuts, miter cuts, and bevel cuts in wood, aluminium, and PVC plastic can be done perfectly with the GCM 305‐254 D Professional. The mitre saw is compatible with all Bosch dust extractors, GTA saw stands, and saw blades for corded miter saws.

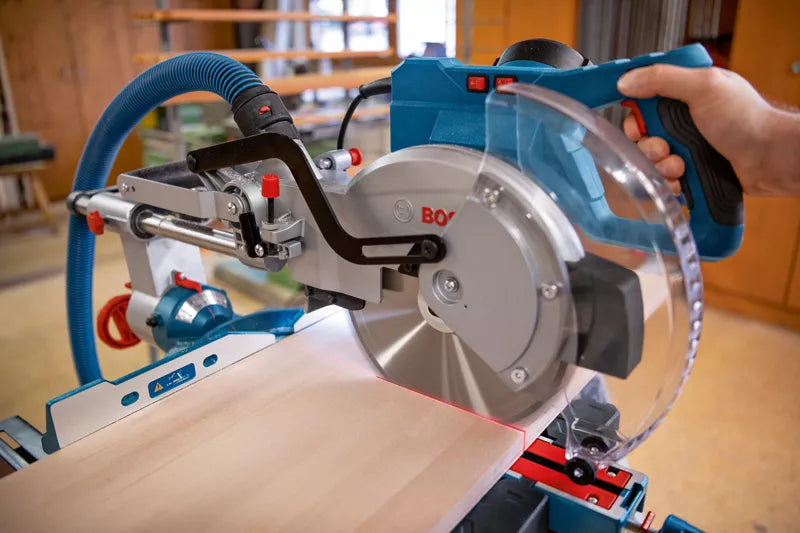

The mobile miter saw comes up with higher precision due to the dual laser lines display to the left and right of the saw blade. It is light and compact and the various one- or two-handed carrying options make transport easy.
Features and Benefits:
- Strong cutting performance for toughest cuts

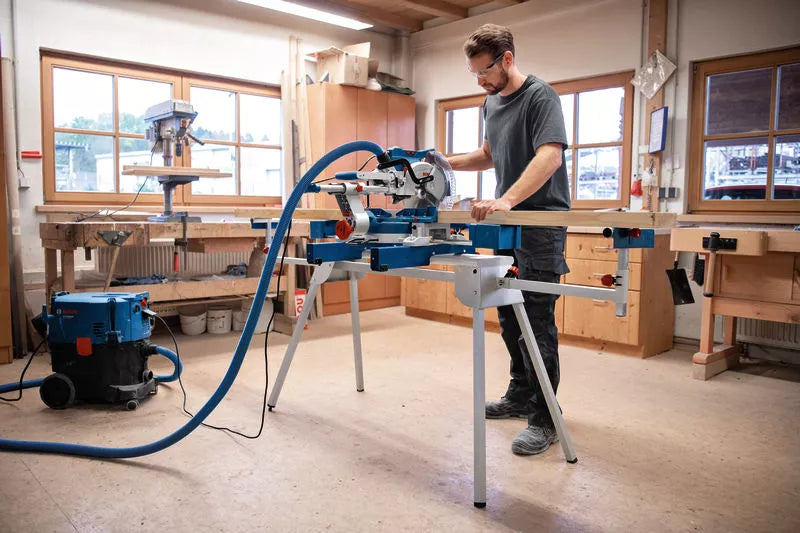

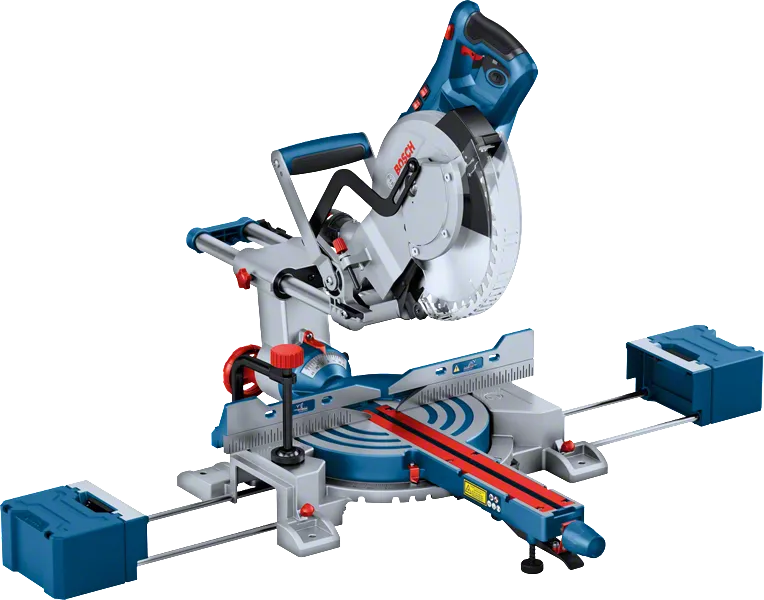

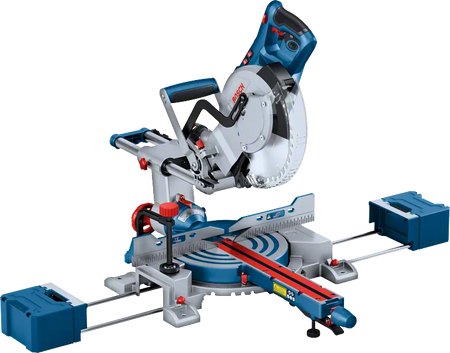

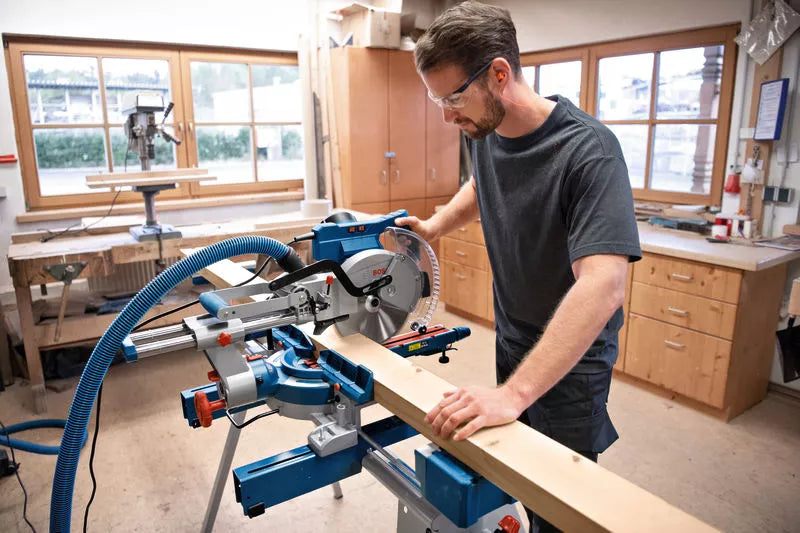

- Easy controlling of long materials during cutting by detachable workpiece supports and long table extensions
- Dual bevel function for convenient cutting
Technical Specification:
Cutting capacity, 0° - 90 x 305 mm
Cutting capacity, 45° mitre - 90 x 215 mm
Cutting capacity, 45° bevel - 55 x 305 mm
Mitre setting - 48 ° L / 48 ° R

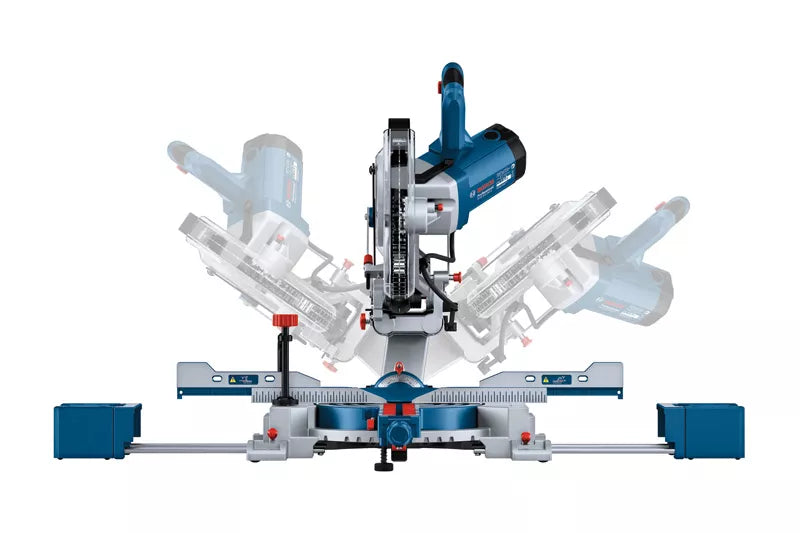

Bevel setting - 47 ° L / 47 ° R

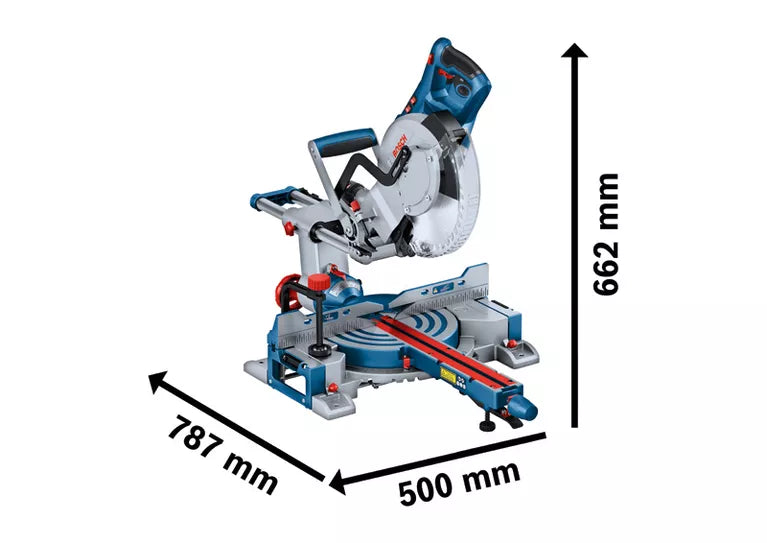

Tool dimensions (width x length x height) - 500 x787 x662 mm
No-load speed* - 4,500 rpm
Saw blade diameter - 254 mm
Saw blade bore diameter - 30 mm
Weight* - 19.8 kg
Rated input power - 1,500 W
Packaging dimensions (width x length x height) - 575 x 845 x 365 mm
Included:
-
2 x Workpiece support (flexibly pluggable)
Part Number: 1 609 B07 675
-
1 x circular saw blade, Standard for Wood, 254 x 30 x 2 mm, 40
Part Number: 2 608 640 435
-
Clamp
Part Number: 1 609 B06 932
-
Dust bag
Part Number: 2 608 000 841
