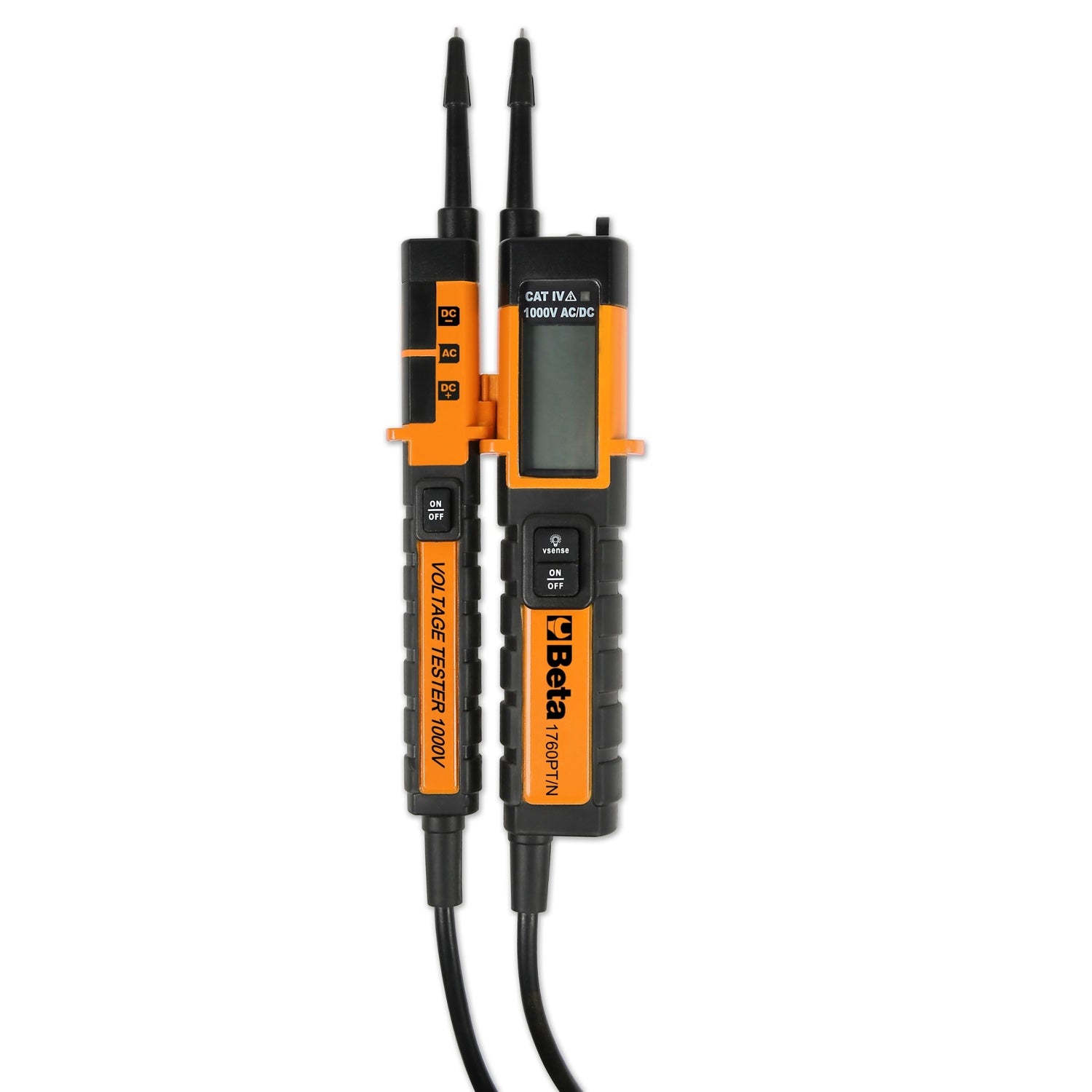

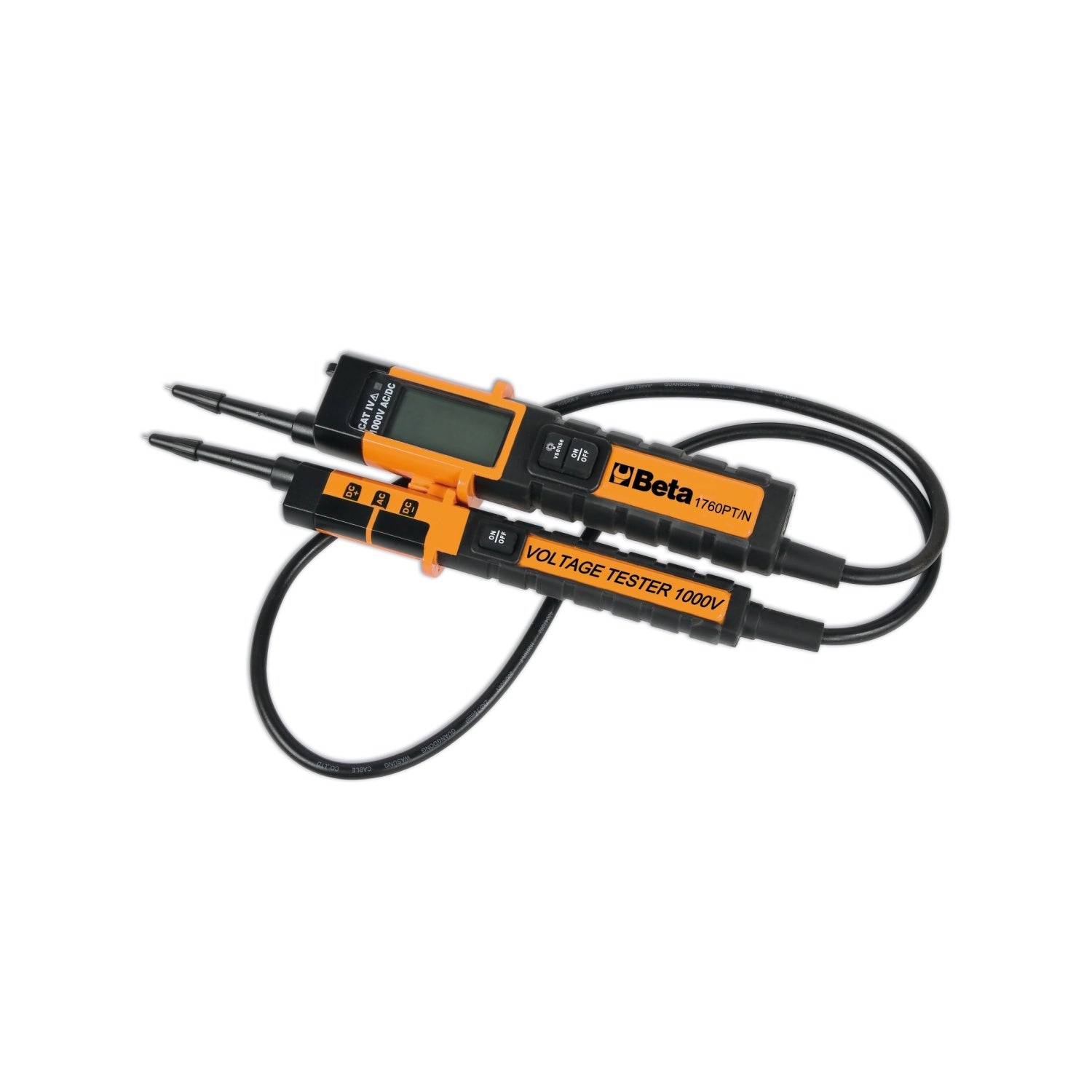

Introducing the Beta Tools 1760PT/N Voltage and Continuity Tester, a reliable and precise instrument designed for professional tradespeople working with electrical systems. This versatile tool is essential for electricians, mechanics, and engineers who require accurate voltage and continuity measurements up to 1000V. With a high-visibility digital screen and a convenient self-test function, the Beta Tools tester ensures both accuracy and reliability in every measurement. Its robust design and advanced features make it an indispensable asset for any professional toolkit.
Features
- Measure voltage accurately from 24 to 1000VAC and 6 to 1000VDC.
- Identify voltage levels with a bar indicator ranging from 6 to 1000V.
- Ensure precision with an accuracy of ± (3% + 3)V.
- Respond swiftly with a response time of less than 1 second.
- Detect voltage contact-free at levels above 90VAC.
- Perform phase rotation tests between 100 and 1000VAC.
- Conduct continuity tests with current ≤5 μA.
- Power supply designed for professional use with low pollution level.
Specifications
| SKU |
17600155 |
| Voltage Range |
24÷1000VAC / 6÷1000VDC |
| Length |
250 mm |
| Accuracy |
± (3% + 3)V |
| Response Time |
< 1s (90%) |
| Maximum Absorbed Current |
< 3.5mA @1000V |
| Phase Angle |
120° ±5° |
| Continuity Test Resistance |
0±1.3 MΩ |
