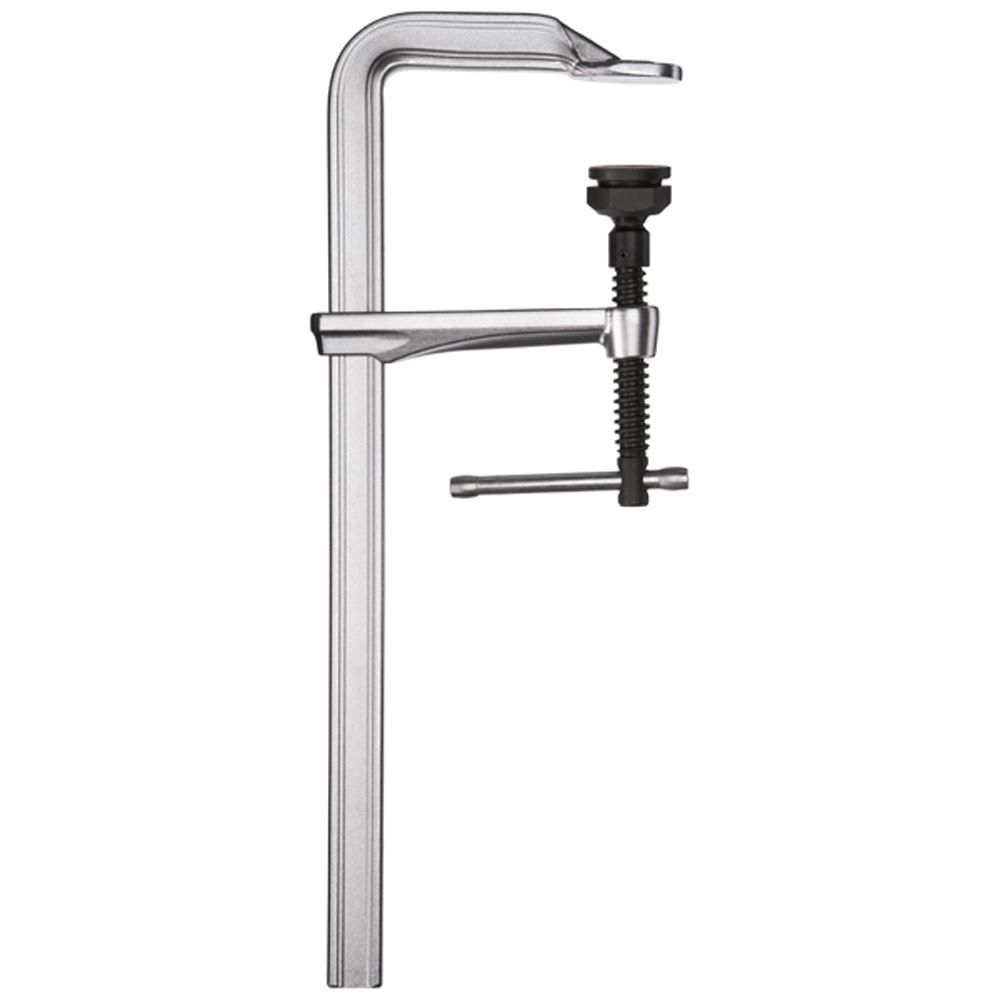

Bessey SG60M High-performance Welders clamp SG 600/140, BE101838 ¥ Clamping force up to 12,000 N at tightening torque of 40 Nm ¥ 20 % more clamping force per spindle rotation with optimised rail profile ¥ Maximum safety due to the better linear transfer of force of the sliding arm ¥ Long life due to heat-resistant pressure plate with sintered steel insert, which can be tilted up to 35¡ Maximum stability, The optimised profile shape guarantees greater clamping force build-up in the shortest time, while maintaining greater stability and safety. The fixed clamp forged from a single piece with moulded pressure plate is hardened, tempered and galvanised, making it highly durable and torsion-resistant. Forged sliding arm, The sliding arm has a shape that allows for more efficient transfer of force. As a result of its more linear transfer of force, the U-shaped sliding arm offers maximum security with the heaviest of loads. You can rely on that. Special tilting pressure plate, The heat-resistant pressure plate is replaceable and can be tilted up to 35¡ so it can even clamp on angled or sloping surfaces. It has an extremely long service-life due to the oil-soaked sintered steel insert's excellent sliding and emergency running properties. Tempered spindle, The tempered spindle is particularly sturdy and wear-resistant. This considerably increases its durability.
