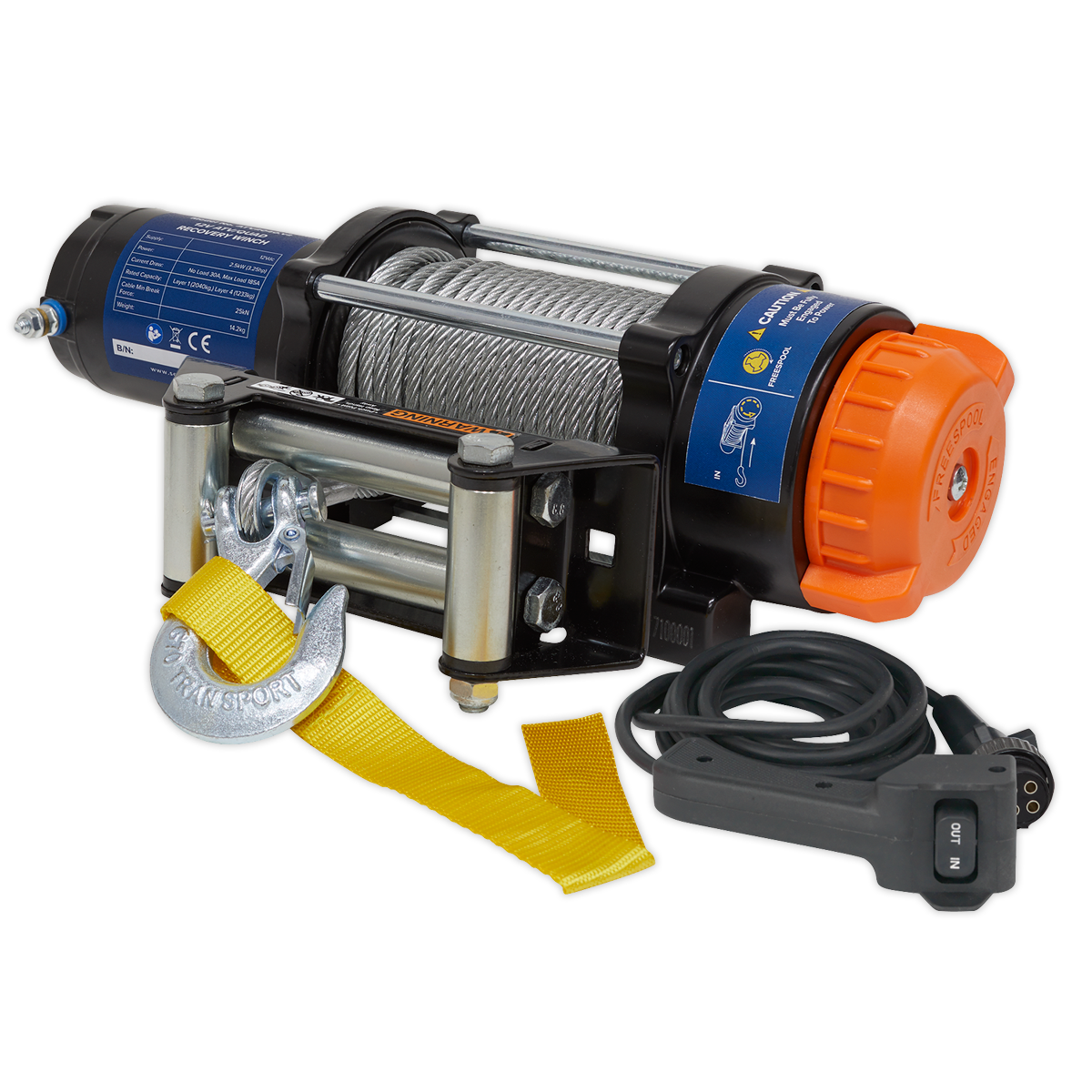

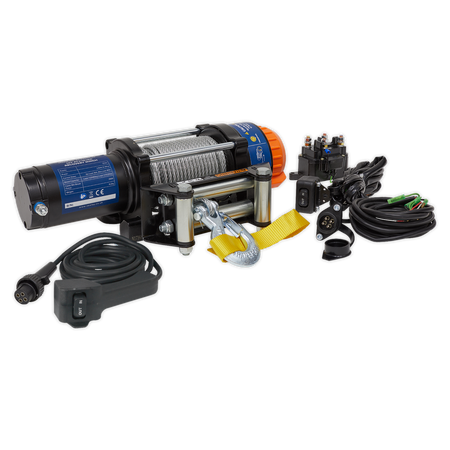

Suitable for ATV and quadbike mounting, these high-speed winches offer a combination of performance with durability. High power 2.5kW (3.25hp) 12V DC permanent magnet type motor gives first class pulling power. All-metal chassis for long-life and low maintenance. Motor can easily be rotated 90° to meet various wiring and mounting requirements. Patented unique automatic spring brake, reliable in full load operation. High quality wire rope feeds through 4-way roller fairlead for even distribution of cable onto drum.
Specification
- Suitable for ATV and quadbike mounting, these high-speed winches offer a combination of performance with durability.
- High power 2.5kW(3.25hp) 12V DC permanent magnet type motor gives first class pulling power.
- All-metal chassis for long-life and low maintenance.
- Motor can easily be rotated 90° to meet various wiring and mounting requirements.
- Patented unique automatic spring brake, reliable in full load operation.
- High quality wire rope feeds through 4-way roller fairlead for even distribution of cable onto drum.
- Cable Length: 17m.
- Line Pull*: 2040kg(4500lb).
- IP67 rated.
- Gear Ratio: 180:1.
- Model No. ATV2040
*Performance quoted at first layer of cable on drum
