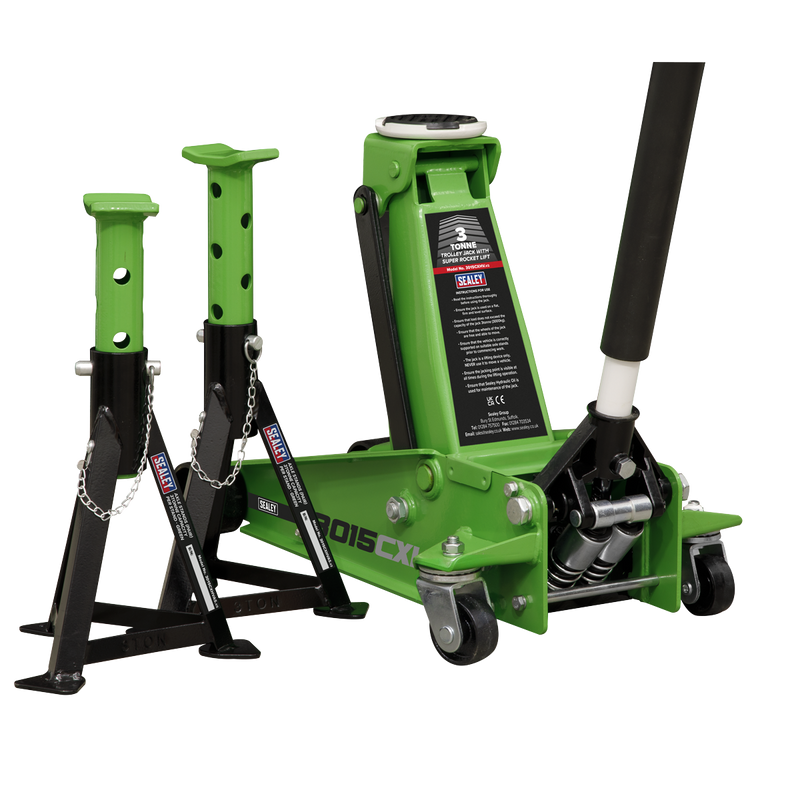

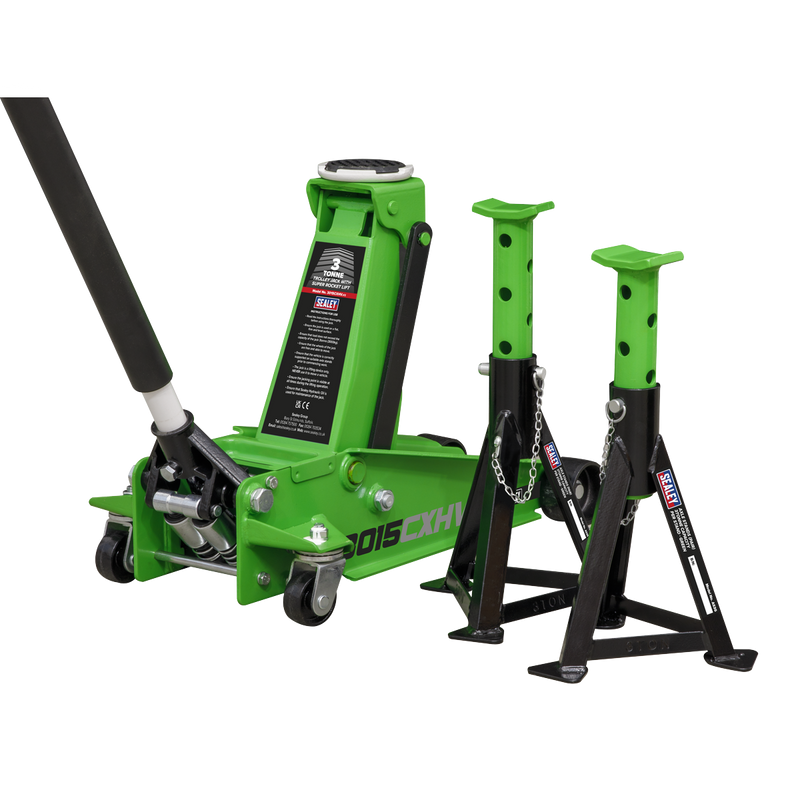

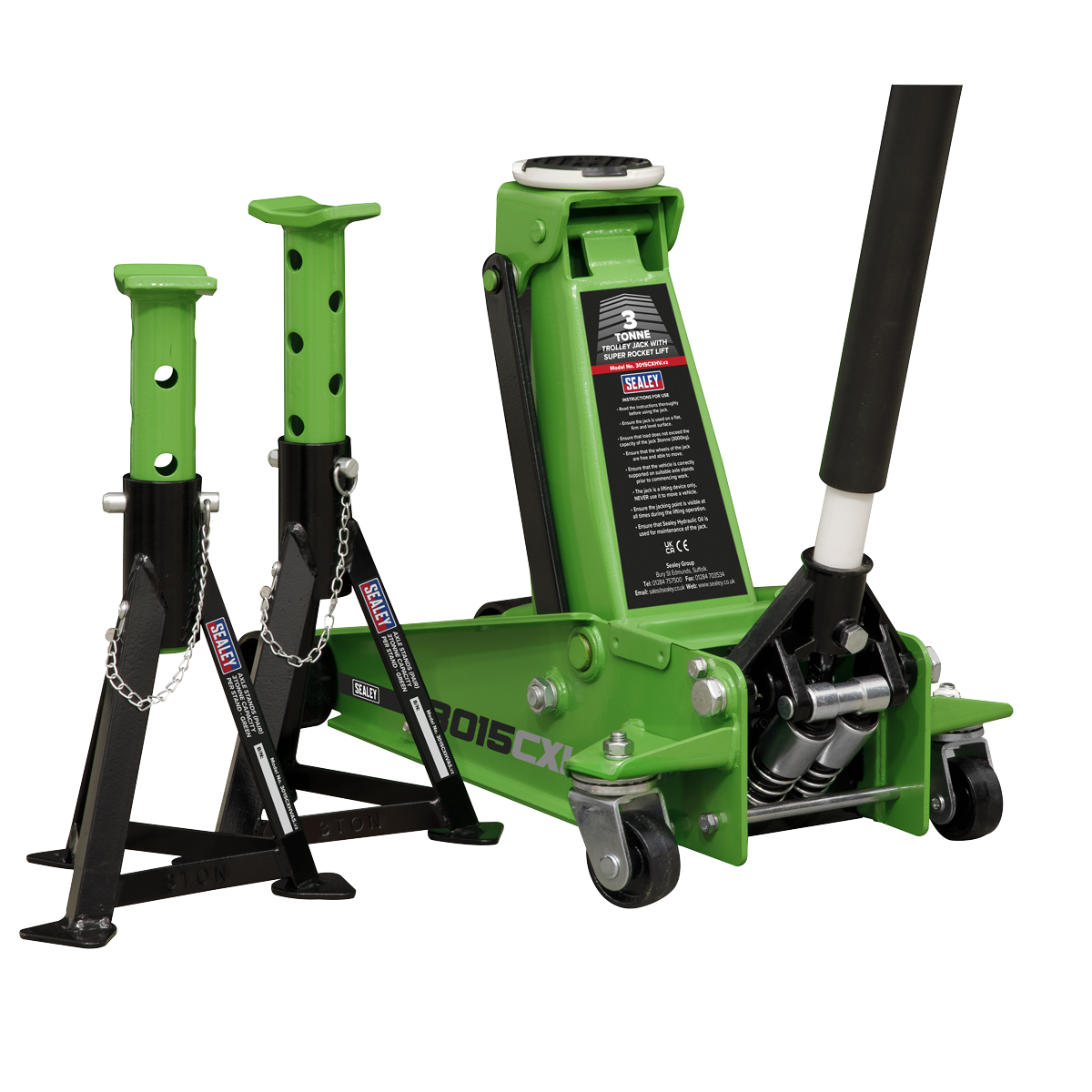

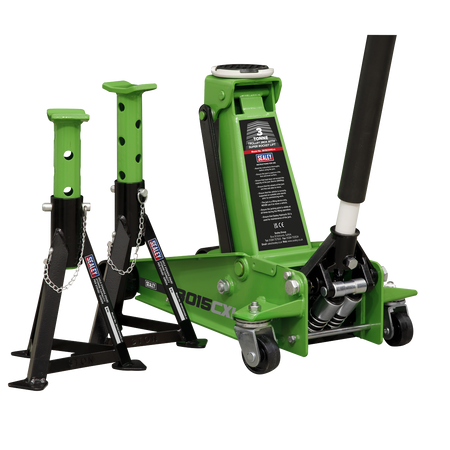

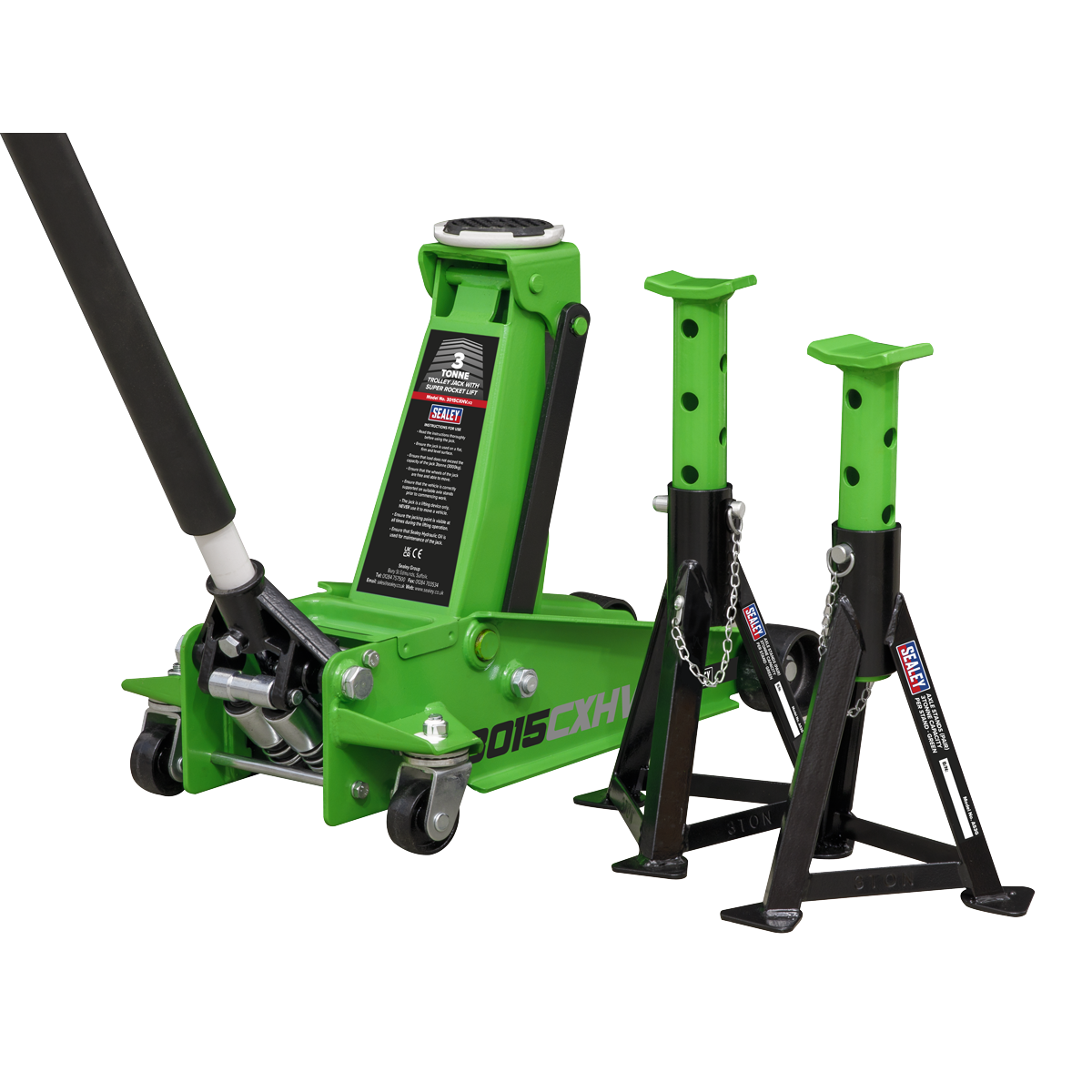

Single-piece hydraulic unit with heavy chassis design and large jacking saddle (Pad available as optional extra - Model No. JP17). Universal joint release mechanism allows safer, more controlled lowering of the jack. Twin piston Super Rocket Lift feature brings lifting arm straight into contact with the jacking point. Polyurethane wheels for smoother manoeuvrability and helps prevent damage to workshop floor. Fitted with safety overload valve and pump-through valve to prevent handle locking at maximum ram extension. Ideal for loaded vans up to 3.5tonne GVW. Supplied with Pin Type Axle Stands, 3tonne (3000kg) capacity per stand (6tonne (6000kg) per pair). Min./Max. Working Height: 290/435mm.
Specification

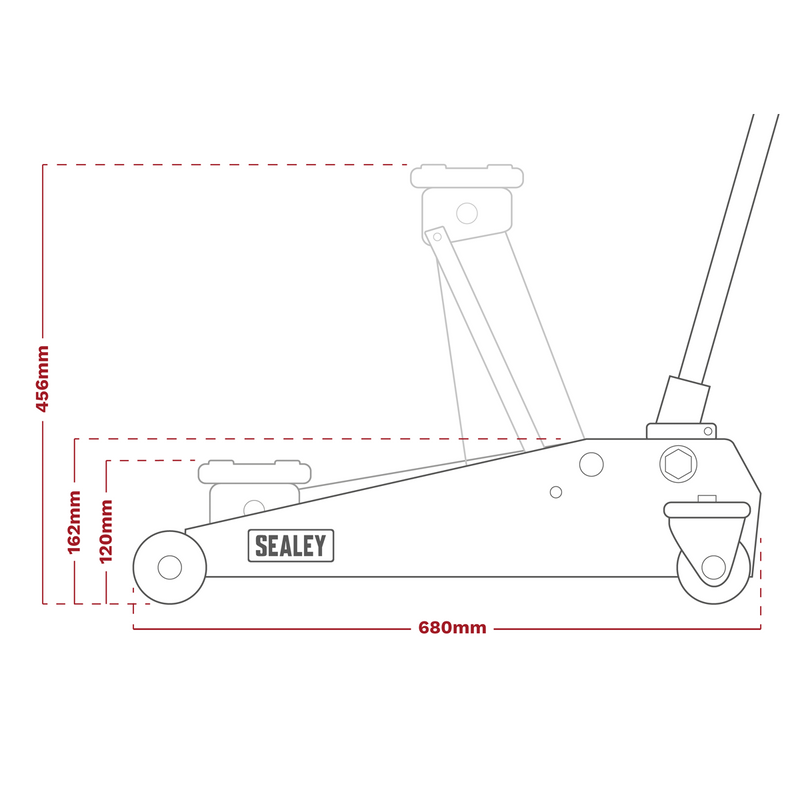

- Min./Max. Saddle Height: 120/456mm.
- Single-piece hydraulic unit with heavy chassis design and large jacking saddle (pad available as optional extra - Model No. JP17).
- Universal joint release mechanism allows safer, more controlled lowering of the jack.
- Twin piston Super Rocket Lift feature brings lifting arm straight into contact with the jacking point.
- Polyurethane wheels for smoother manoeuvrability and helps prevent damage to workshop floor.
- Fitted with safety overload valve and pump-through valve to prevent handle locking at maximum ram extension.
- Ideal for loaded vans up to 3.5tonne GVW.
- Supplied with Pin Type Axle Stands, 3tonne (3000kg) capacity per stand (6tonne (6000kg) per pair).
- Min./Max. Working Height: 290/435mm.
- Model No. 3015CXHV
